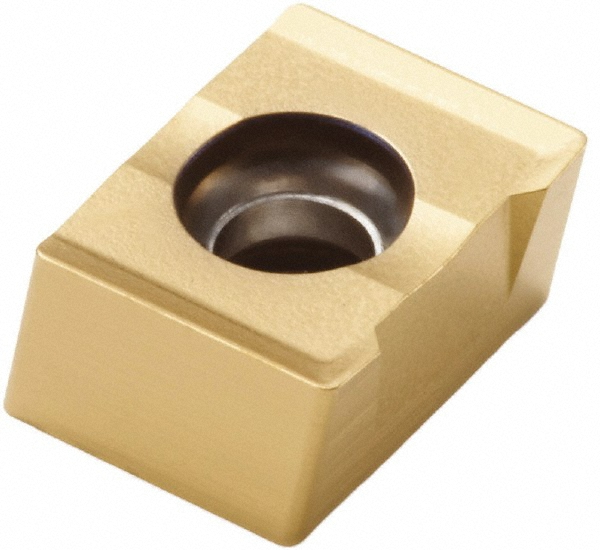

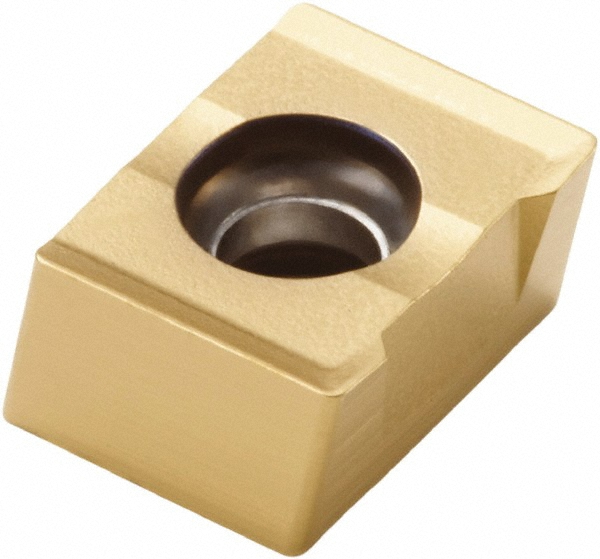

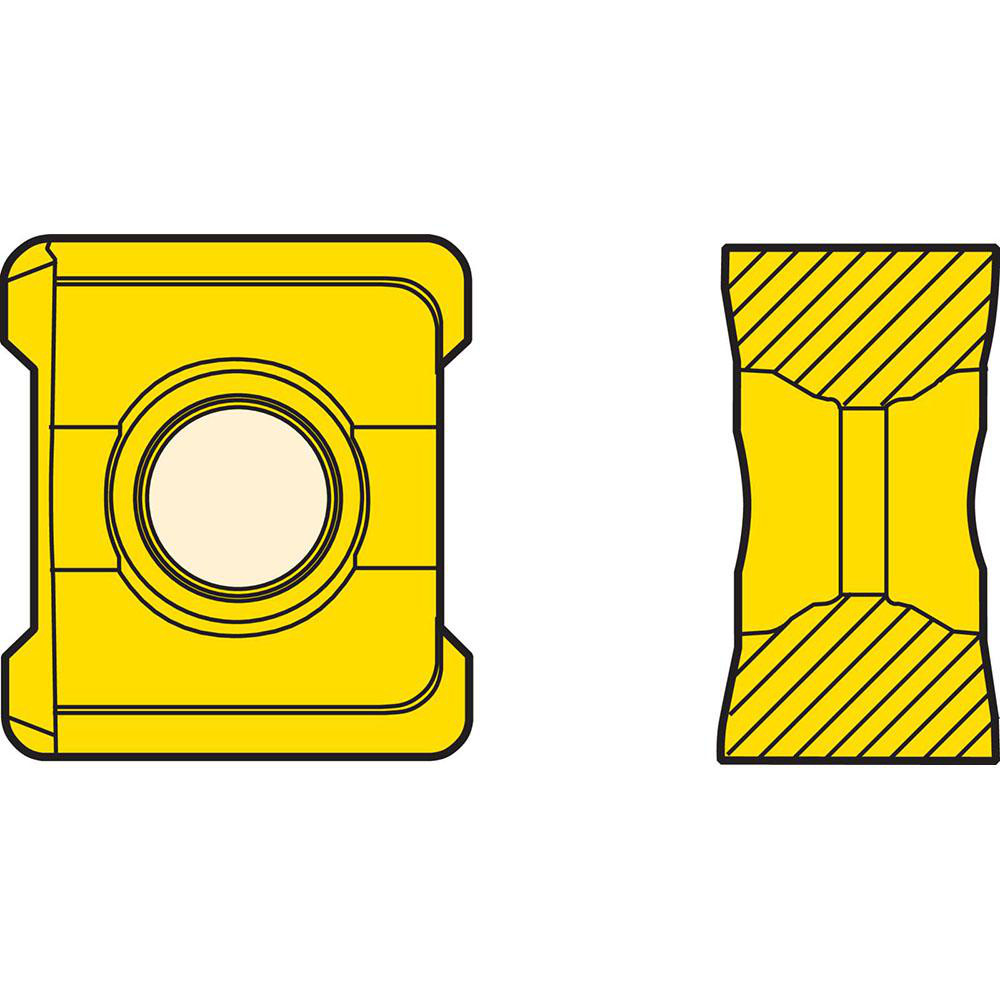

TiAlN & TiN Finish, 0.1969" Thick, 0.2835" Wide
| Insert Style | LNKT |
|---|---|
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |

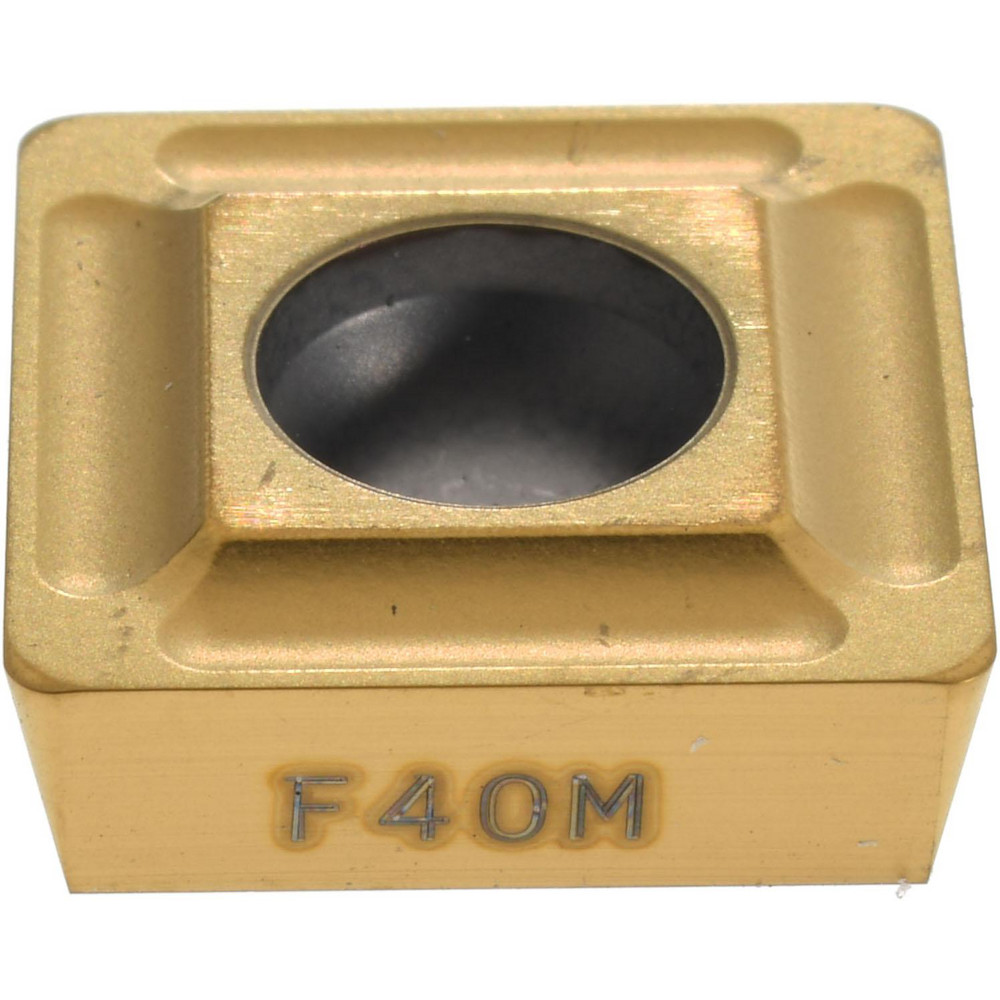

| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.0630 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 080516 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.2835 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2835 |
| Series | LNKT-08 |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2835 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | LNKT080516PPTN-M06 |
| Iso Code | LNKT080516PPTN-M06 |
| Standards | ISO |
| Rake Angle | 15 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | LNKT080516PPTN-M06 |
| Cutter Series Compatibility | R335.18 |
| Chip Breaker | M06 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Rectangle |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2835 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
| Country of Origin | Sweden |
