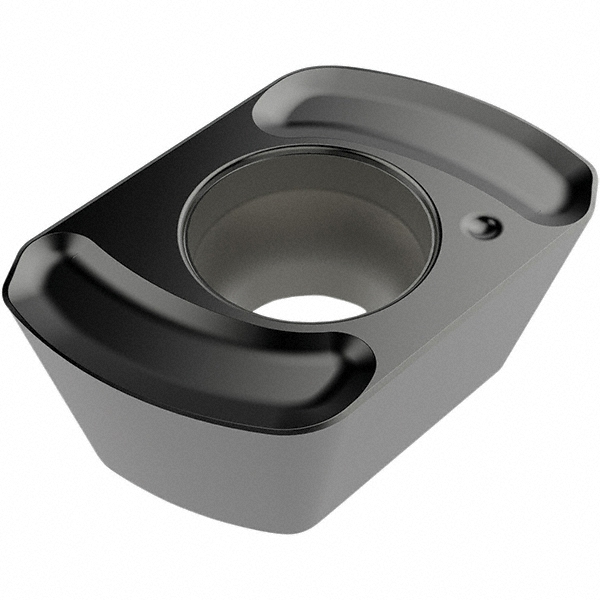

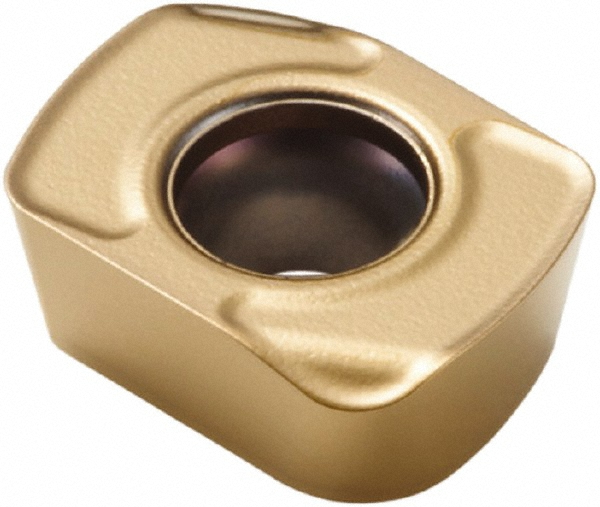

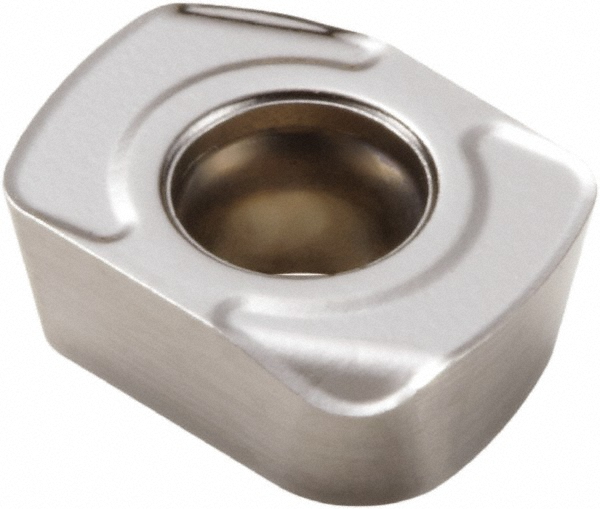

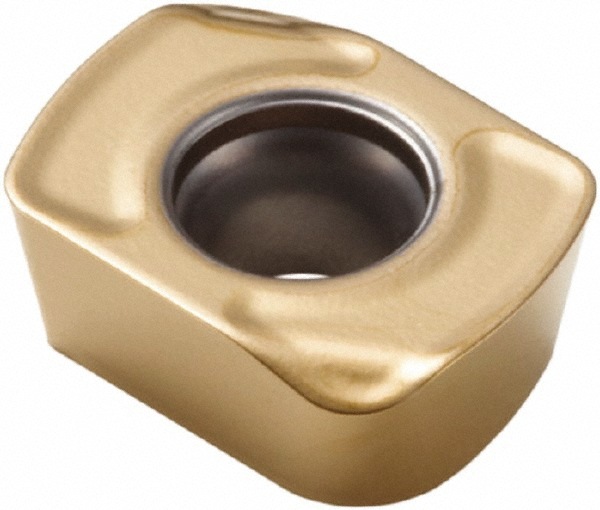

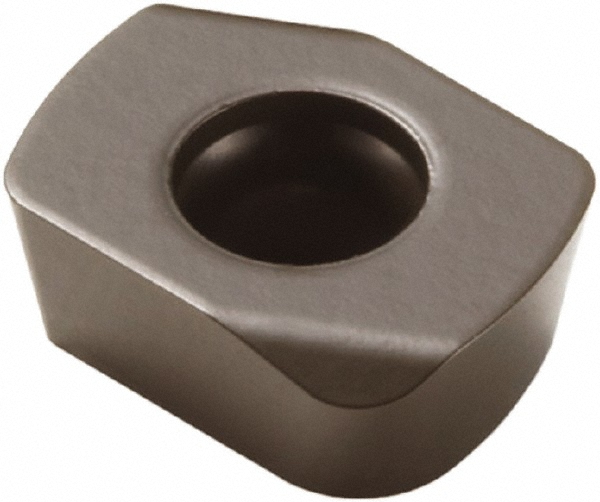

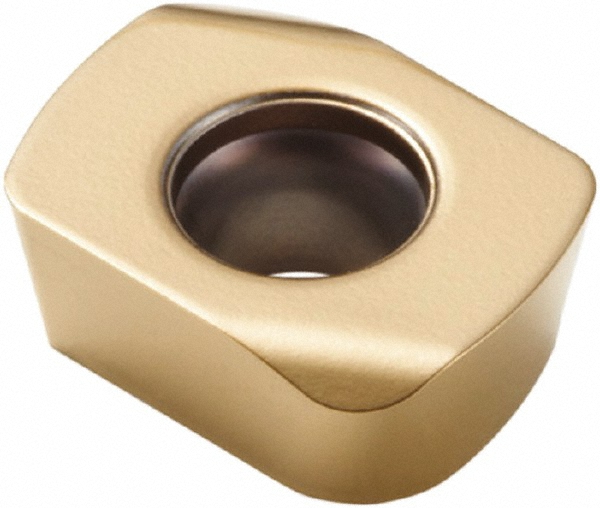

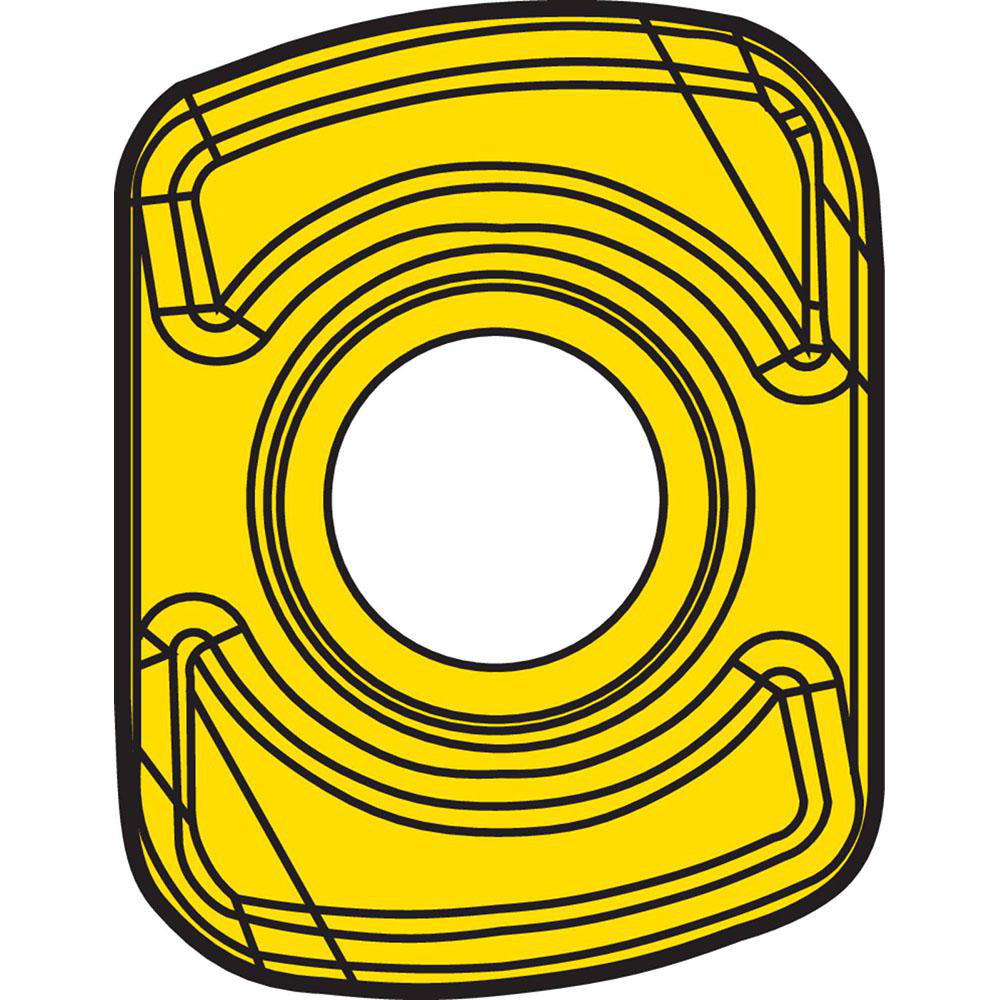

TiCN & Al2O3 Finish, 0.1252" Thick, 0.2500" Wide
| Insert Style | LPHT |
|---|---|
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | MS2500 |

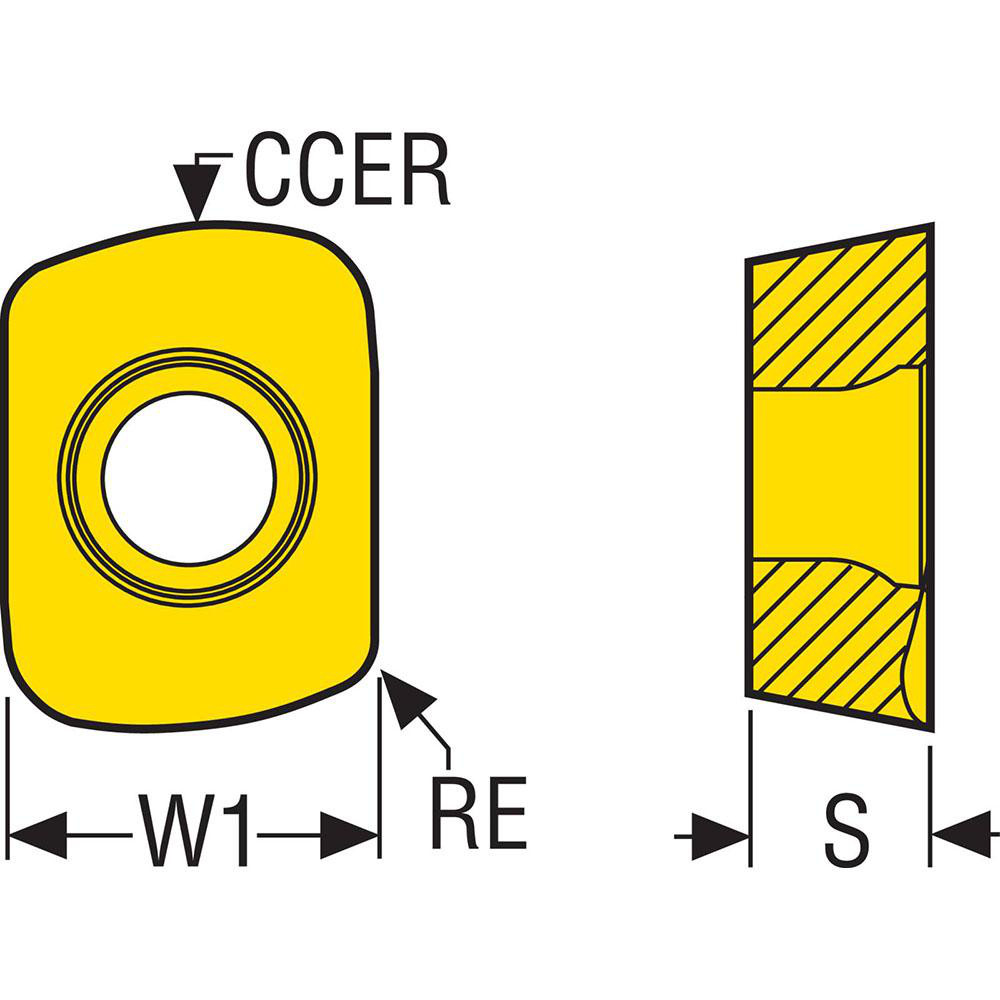

| Corner Radius (Decimal Inch) | 0.0394 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 11.00 |
| Insert Size Code | 060310 |
| Material Grade | Medium Grain |
| Width (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3343 |
| Series | LPHT-06 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3343 |
| Rake | Positive |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | LPHT060310TR-M06 |
| Iso Code | LPHT060310TR-M06 |
| Standards | ISO |
| Convex Radius (Decimal Inch) | 0.3150 |
| Rake Angle | 11 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | LPHT060310TR-M06 |
| Cutter Series Compatibility | R217.21-LP06; R220.21-LP06 |
| Chip Breaker | M06 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Shape | Rectangle |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3343 |
| Country of Origin | Sweden |
| MSC Number | MSC# 34976126 |
