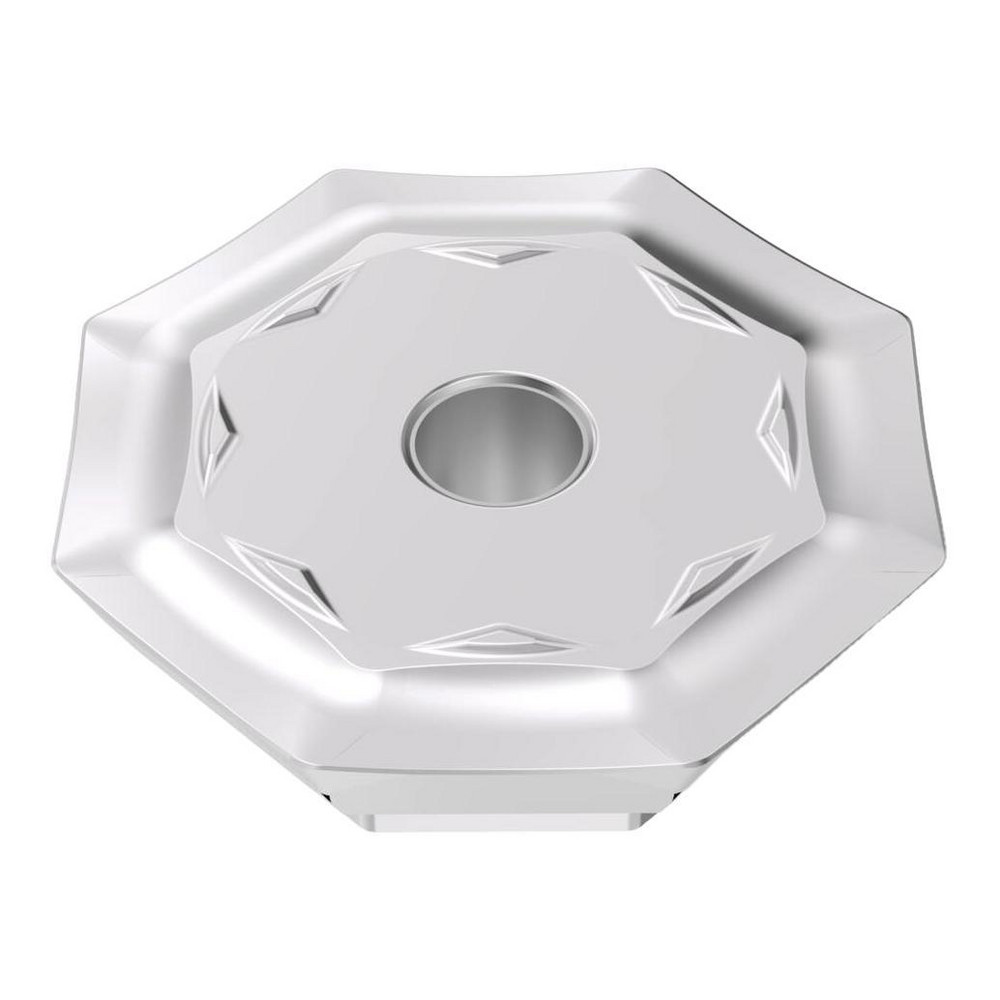

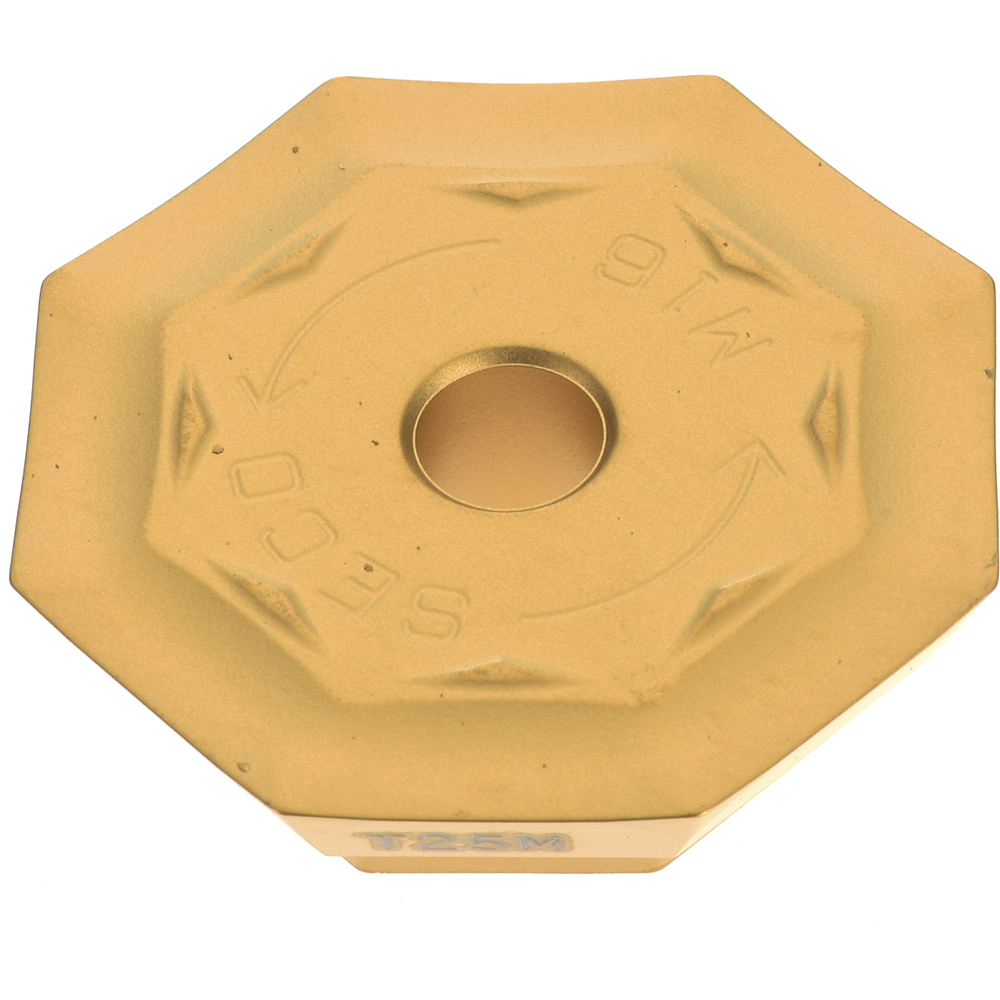

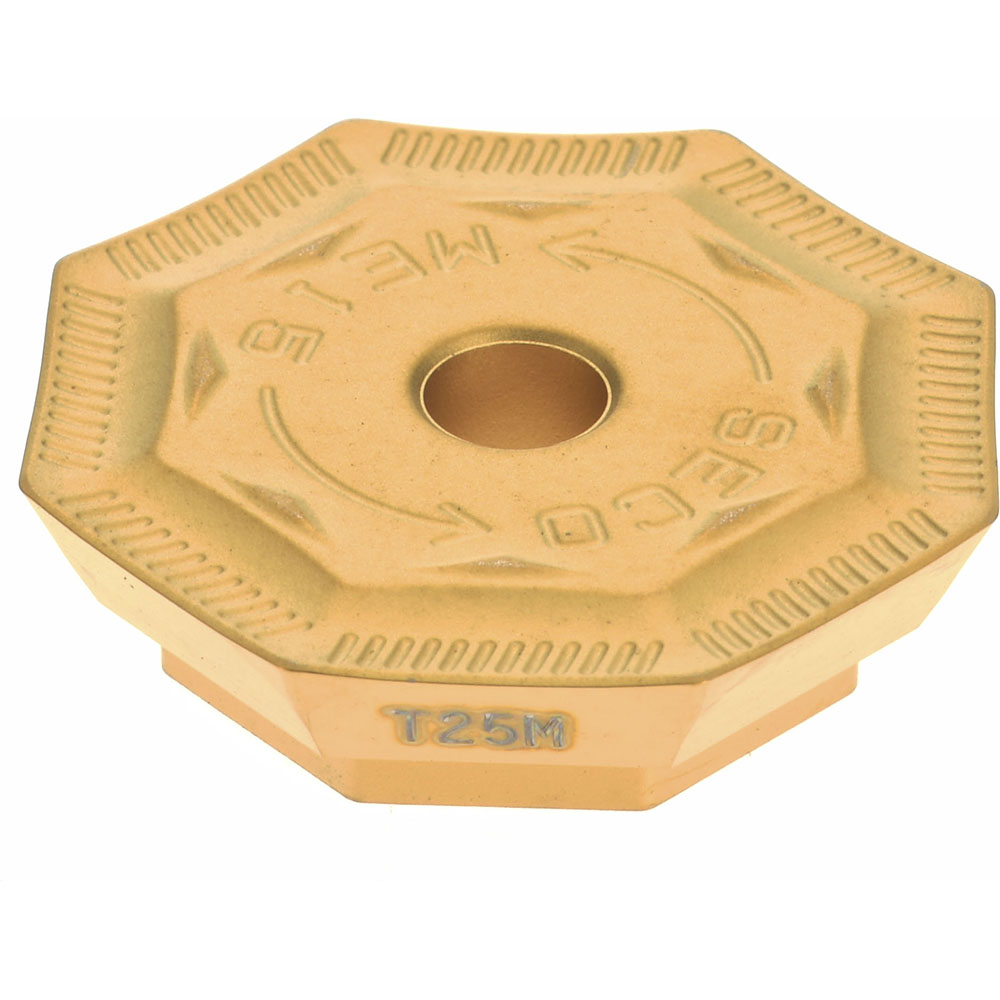

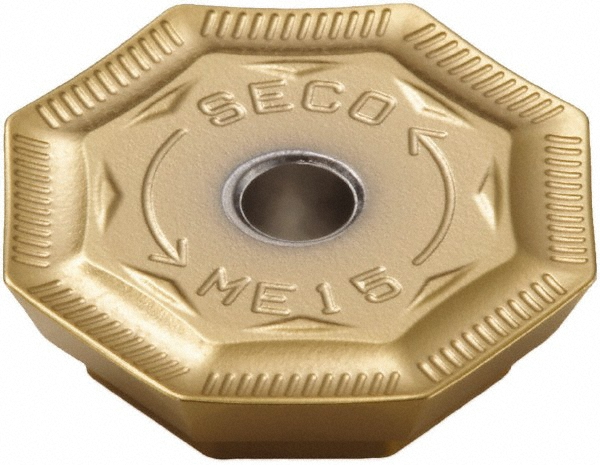

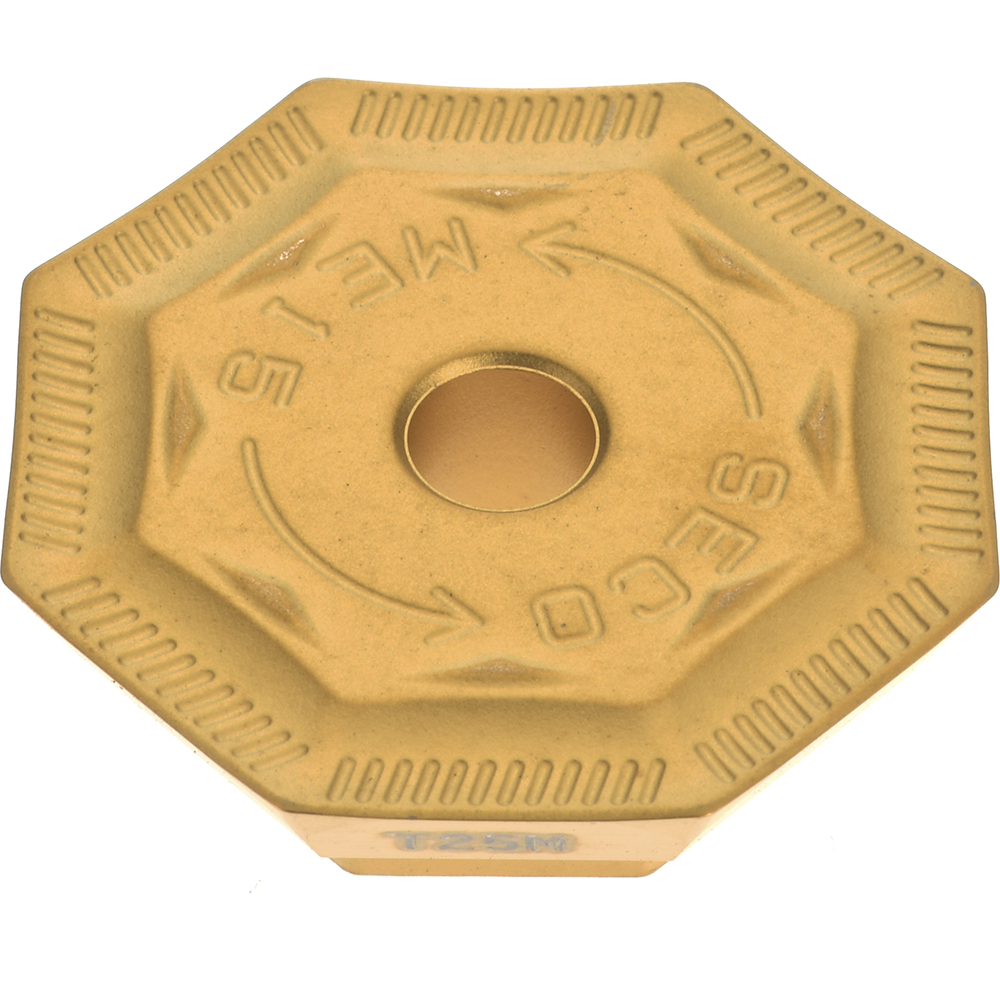

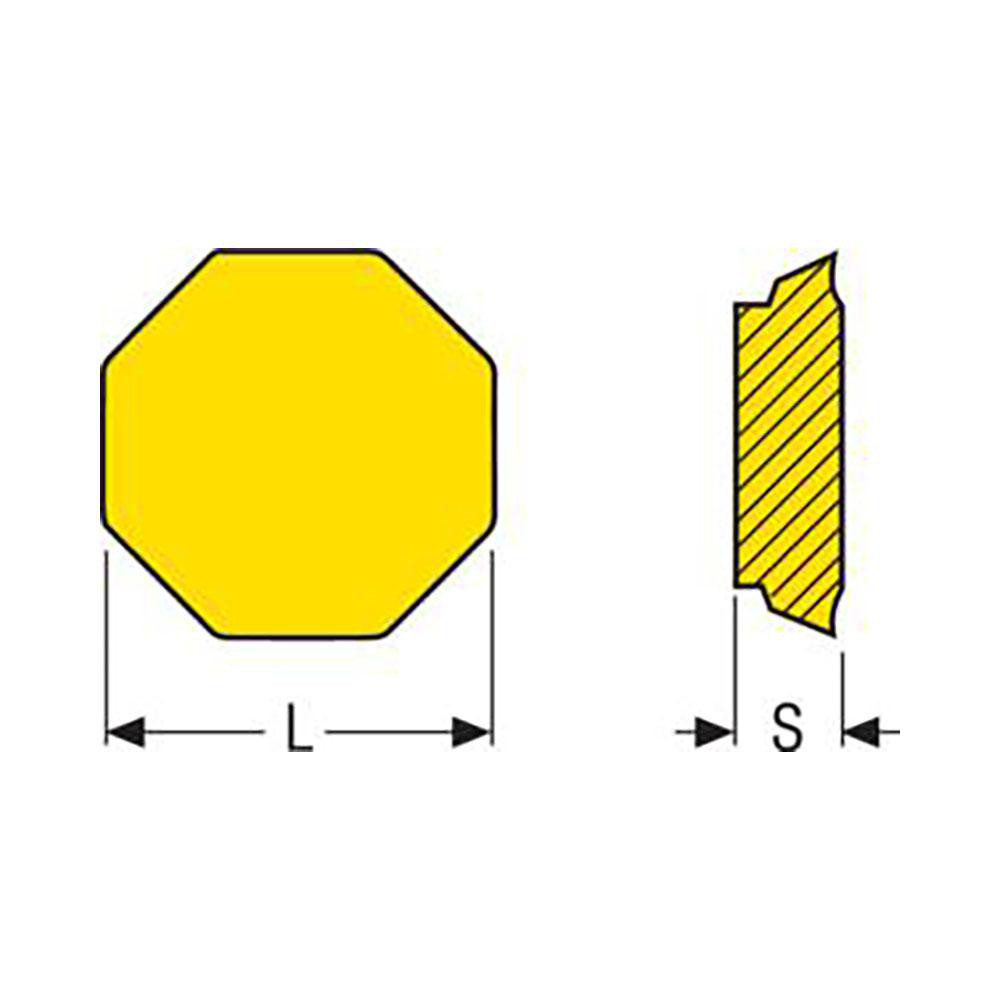

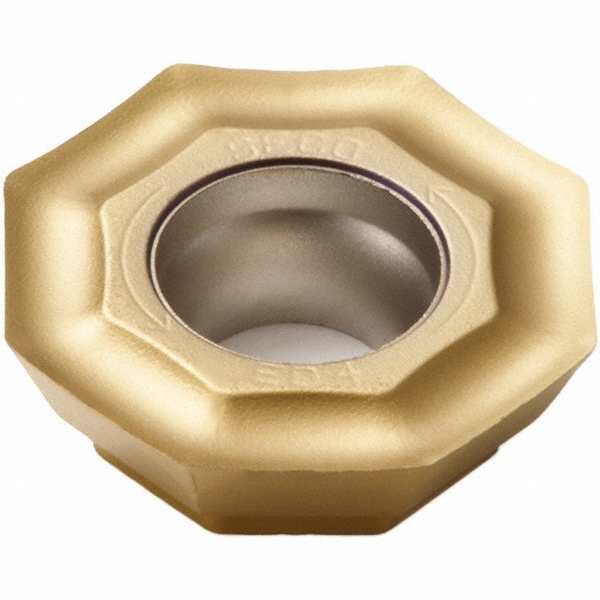

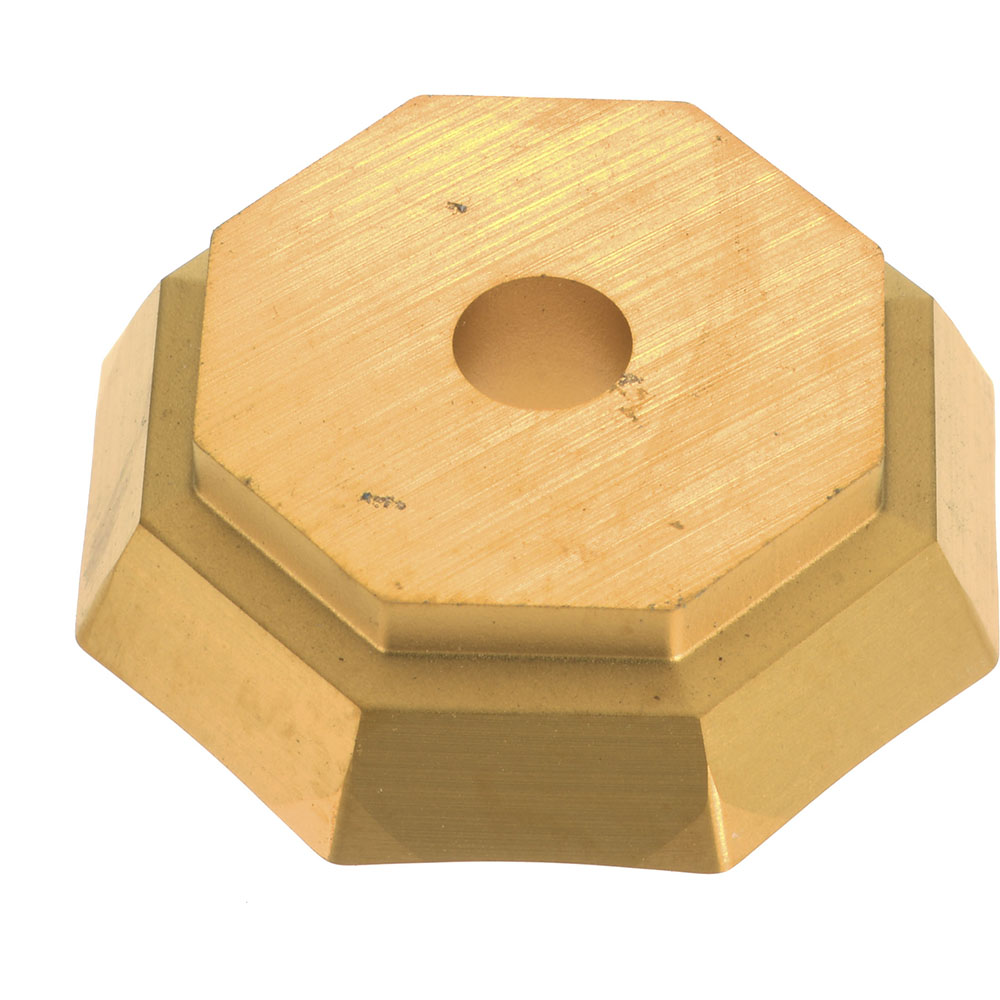

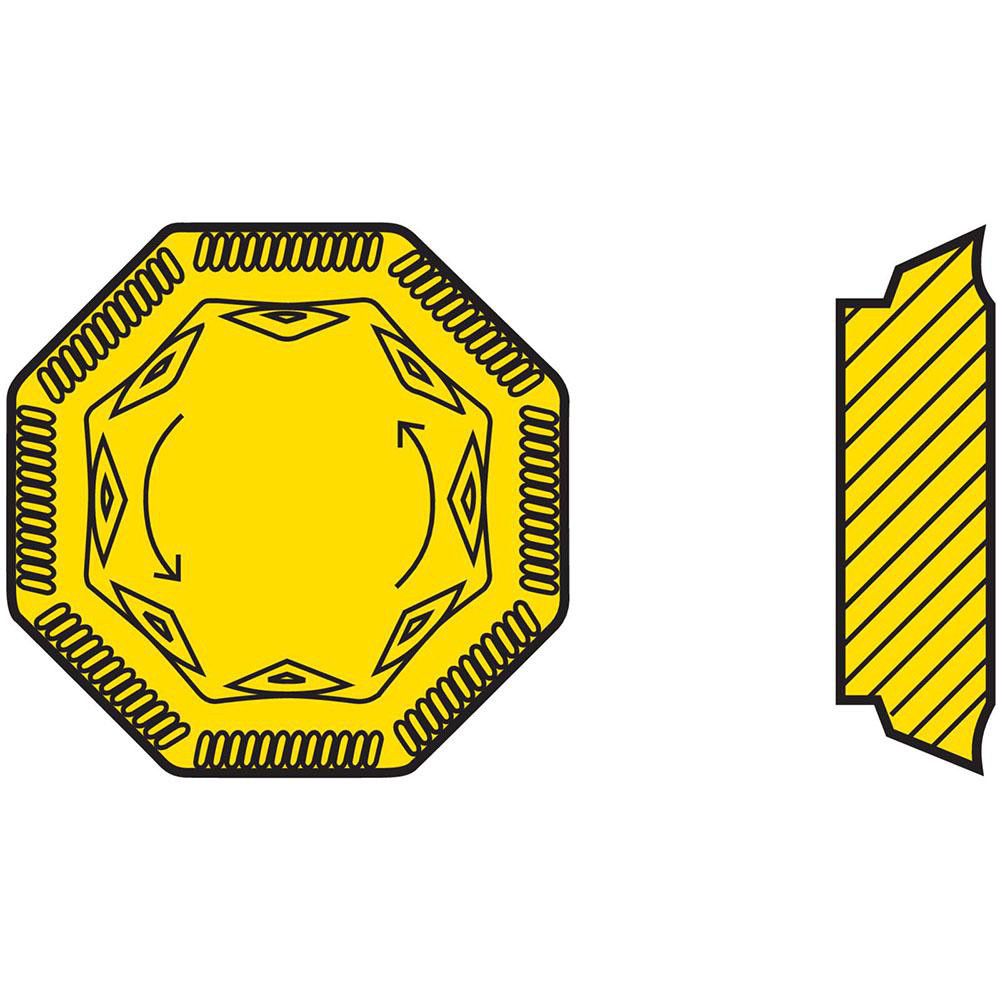

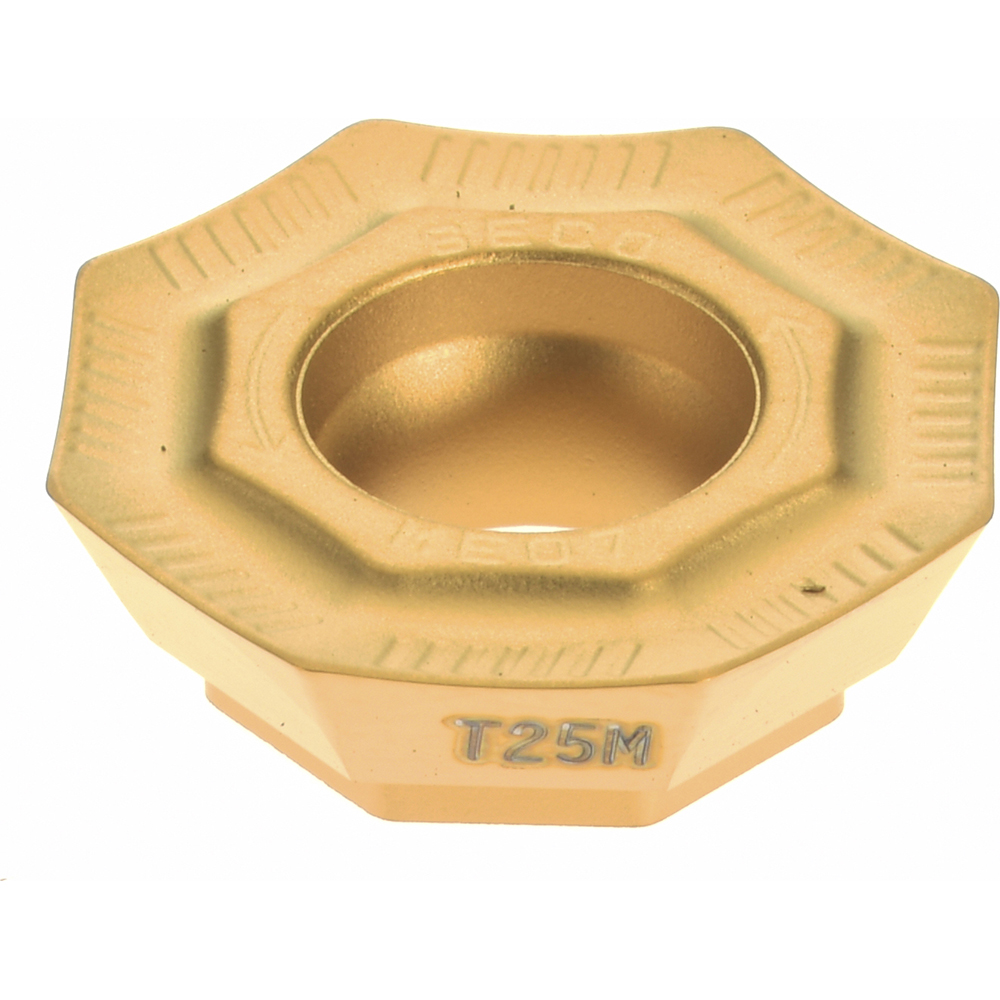

TiCN Finish, 0.1795" Thick, 0.7063" Wide
| Insert Style | OFER |
|---|---|
| Insert Size | 07 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | T25M |
| Corner Radius (Decimal Inch) | 0.0197 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1795 |
| Coating/Finish | TiCN |
| Relief Angle | 26.00 |
| Insert Size Code | 070405 |
| Material Grade | Medium Grain |
| Inscribed Circle (Decimal Inch) | 0.7063 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2795 |
| Series | OFER-07 |
| Coating Process | CVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2921 |
| Rake | Positive |
| Secondary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; M |
| Ansi Code | OFER070405TN-ME15 |
| Iso Code | OFER070405TN-ME15 |
| Standards | ISO |
| Rake Angle | 16 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | OFER070405TN-ME15 |
| Cutter Series Compatibility | R220.43-07 |
| Chip Breaker | ME15 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Shape | Octagon |
| Insert Holding Method | Wedge Clamp |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.7063 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7063 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 06321889 |
