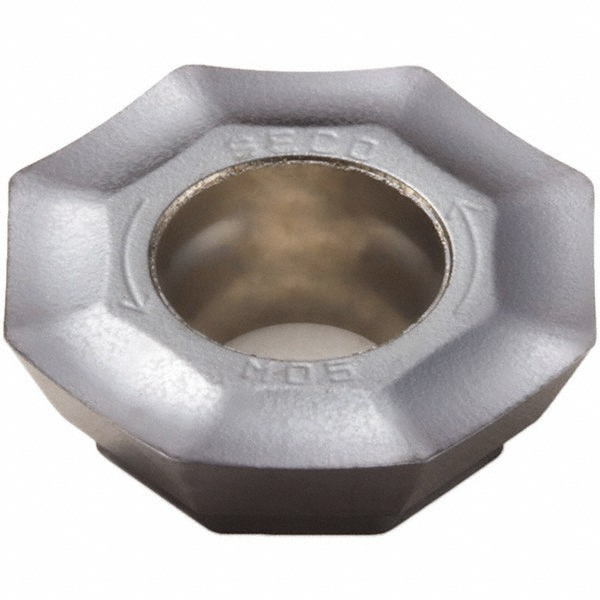

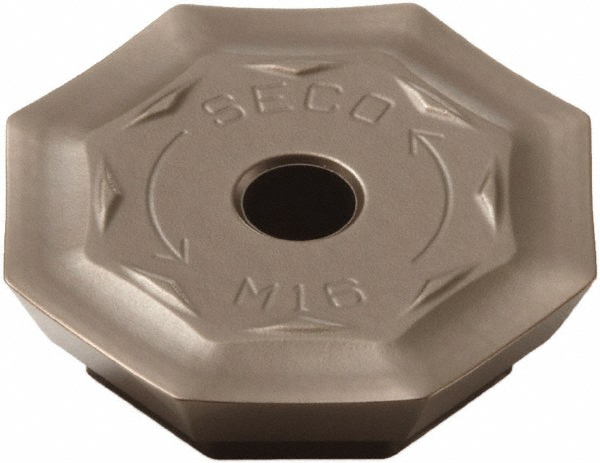

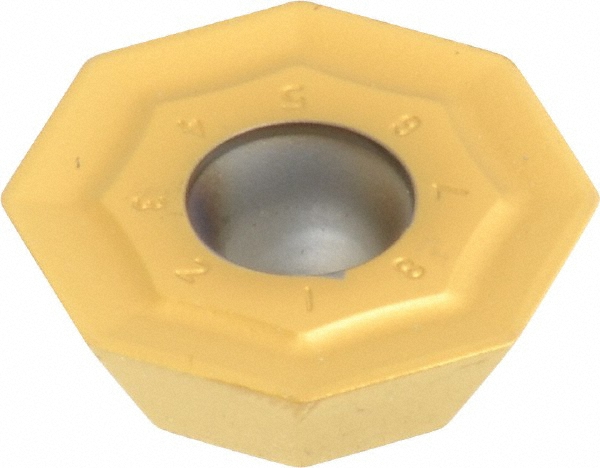

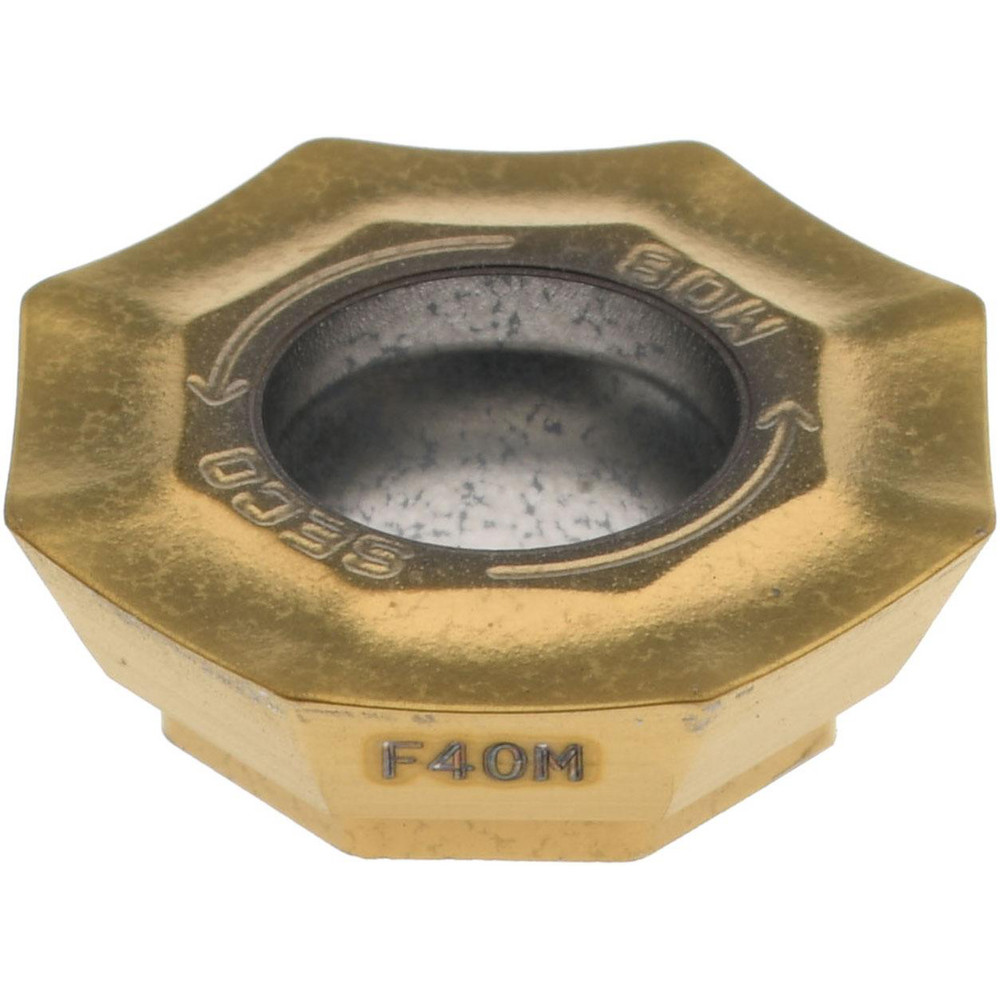

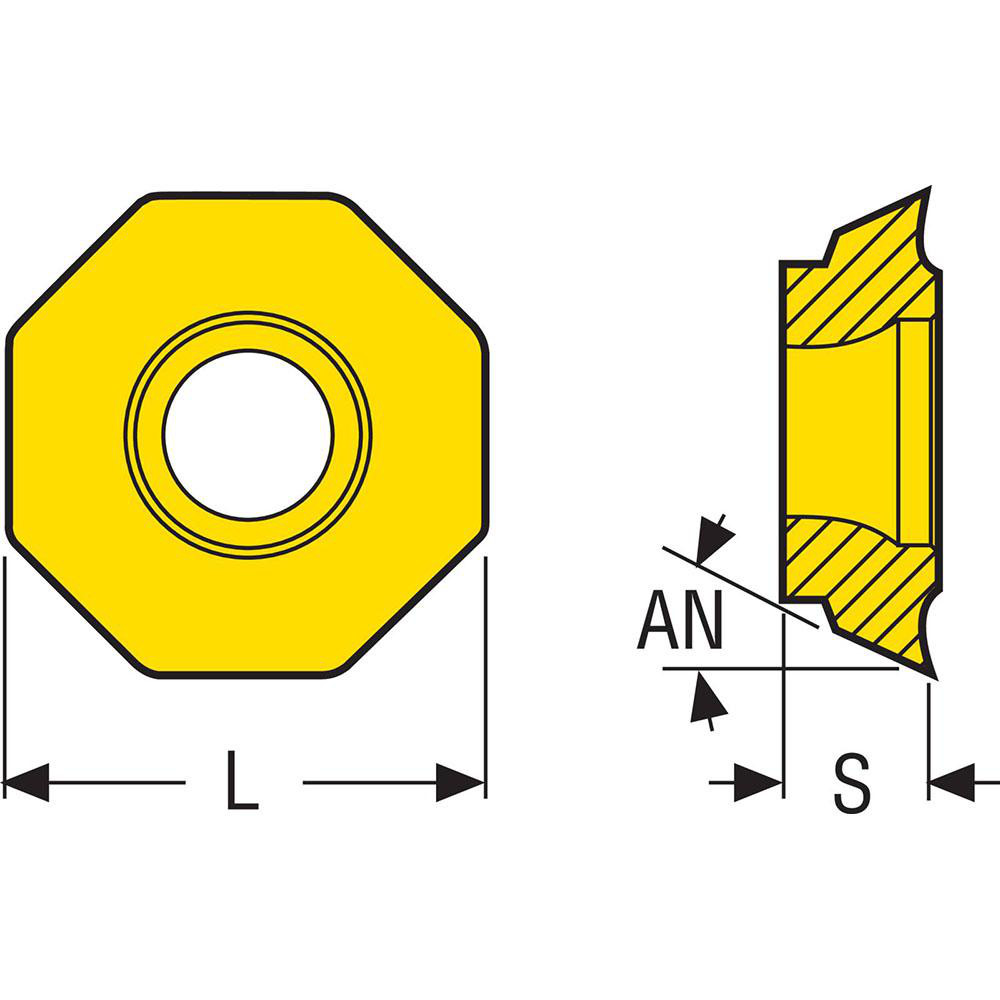

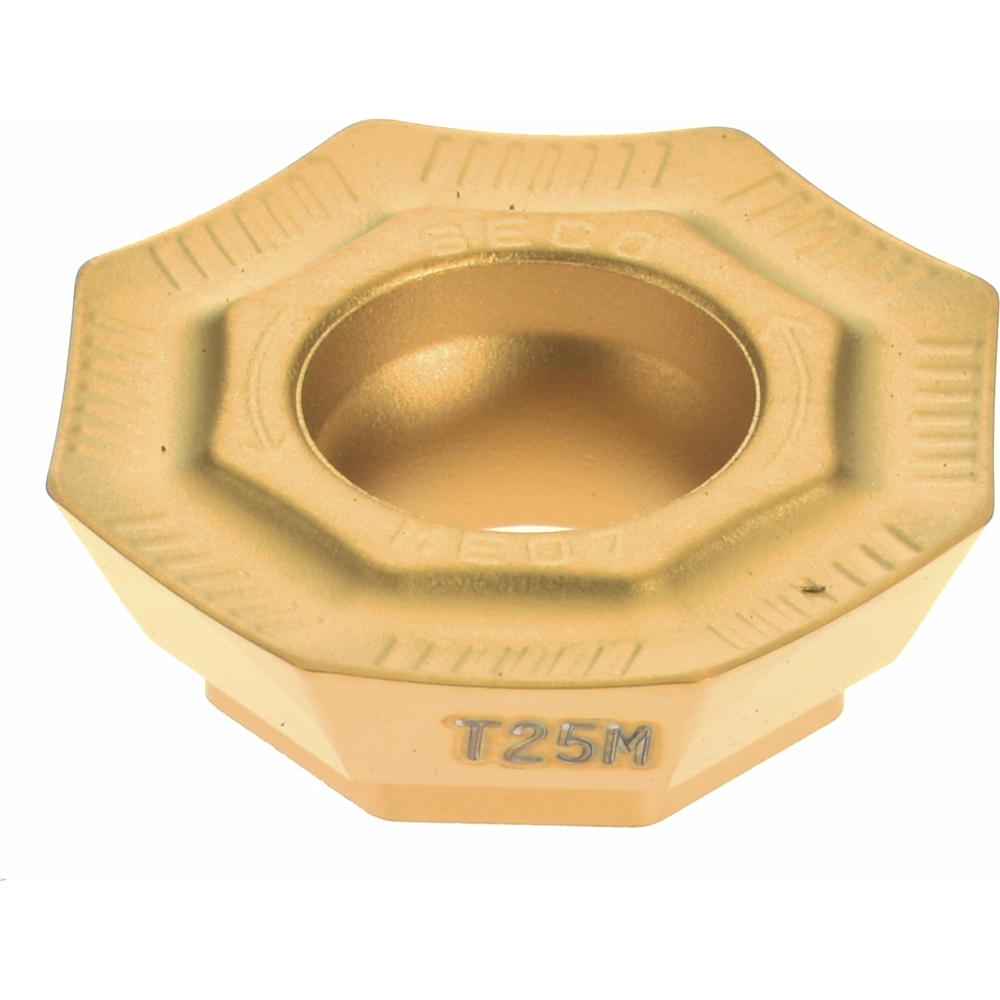

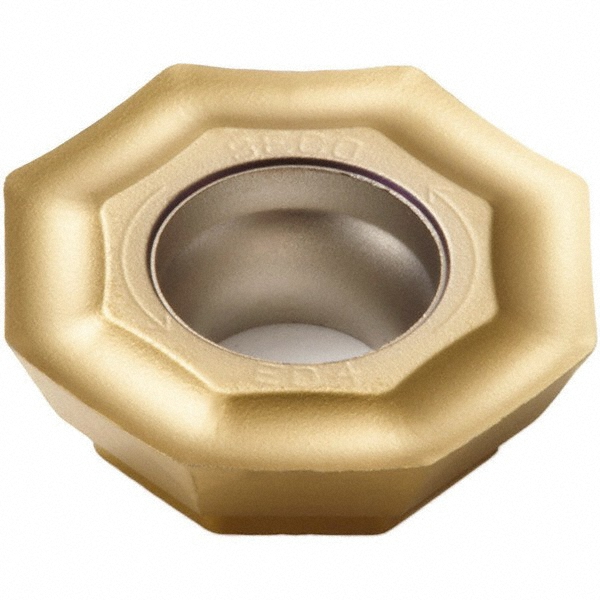

TiCN & Al2O3 Finish, 0.1484" Thick, 0.5000" Wide
| Insert Style | OFEX |
|---|---|
| Insert Size | 05 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | MK1500 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1484 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 26.00 |
| Insert Size Code | 05T305 |
| Material Grade | Micrograin |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1929 |
| Series | OFEX-05 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2075 |
| Rake | Neutral |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | OFEX05T305TN-M08 |
| Iso Code | OFEX05T305TN-M08 |
| Standards | ISO |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | OFEX05T305TN-M08 |
| Cutter Series Compatibility | R217.43-05; R220.43-05 |
| Chip Breaker | M08 |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | India |
