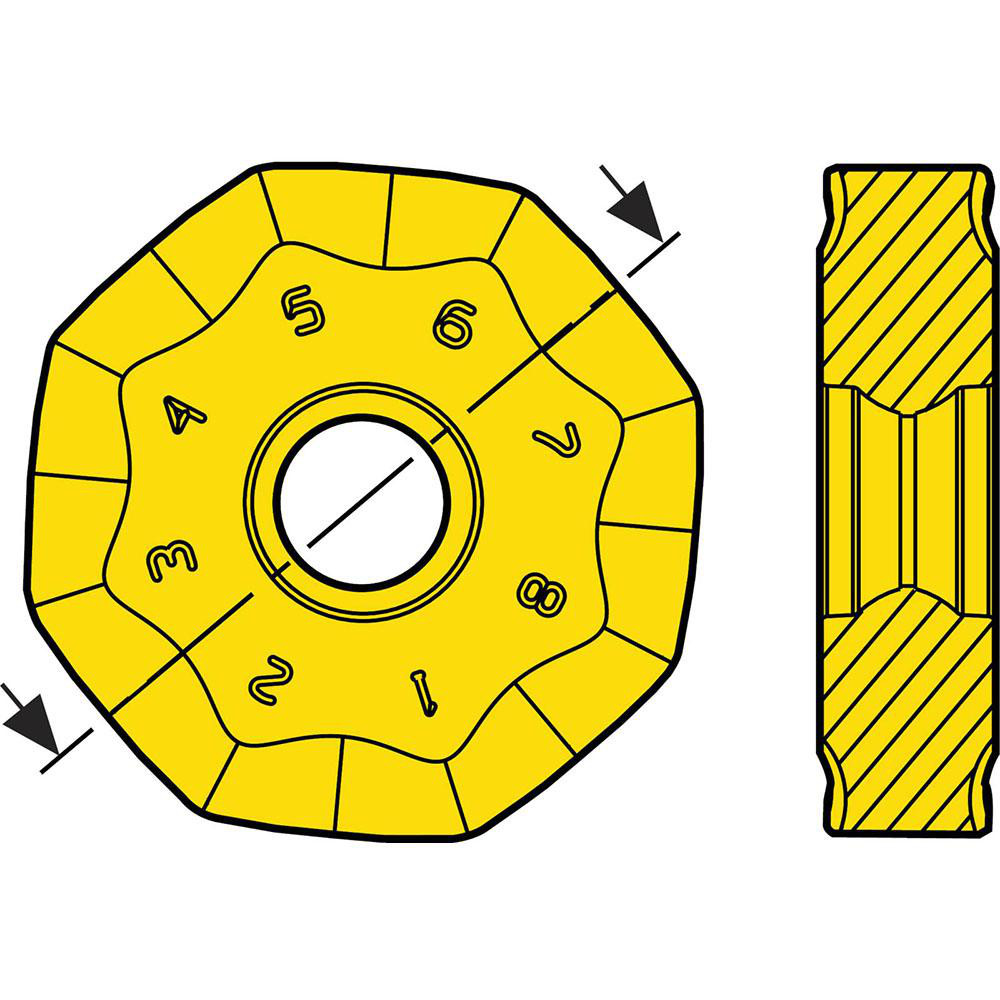

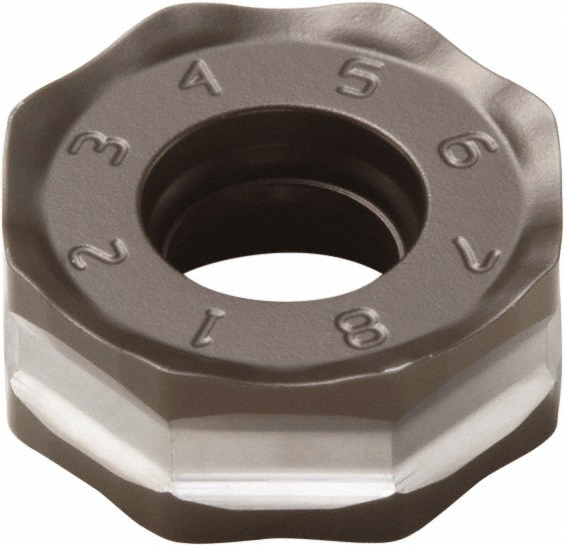

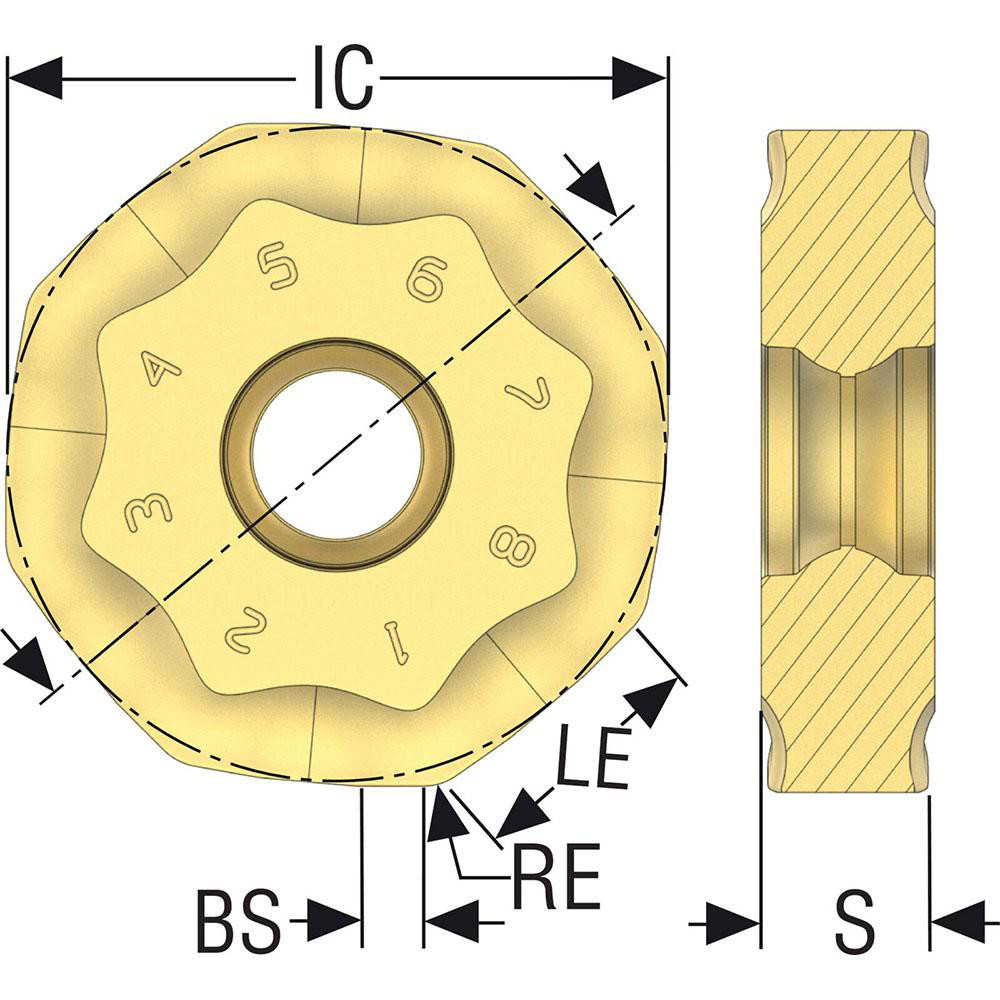

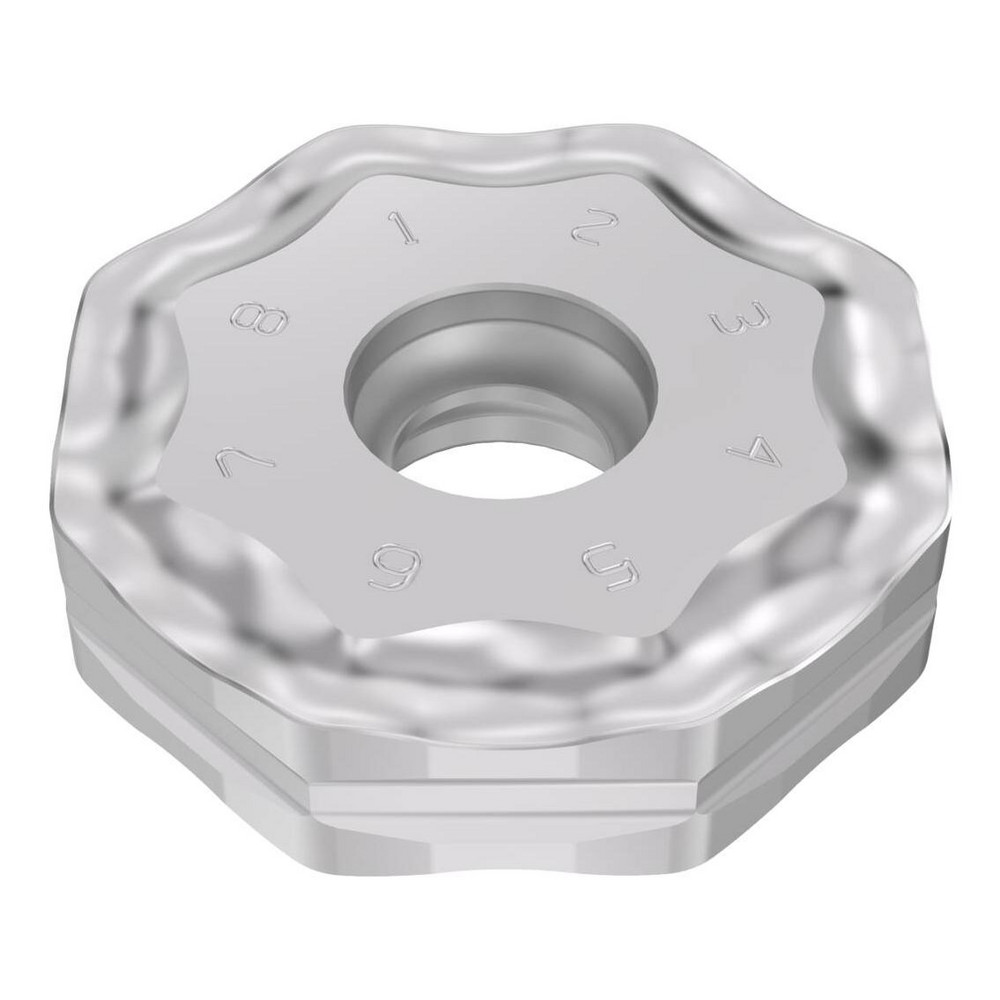

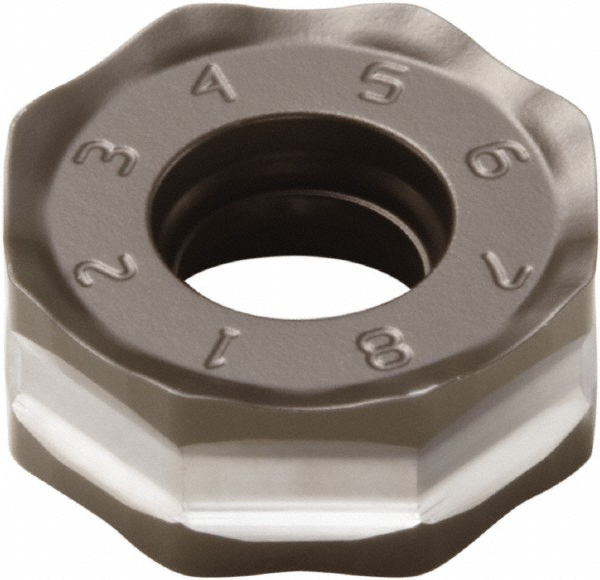

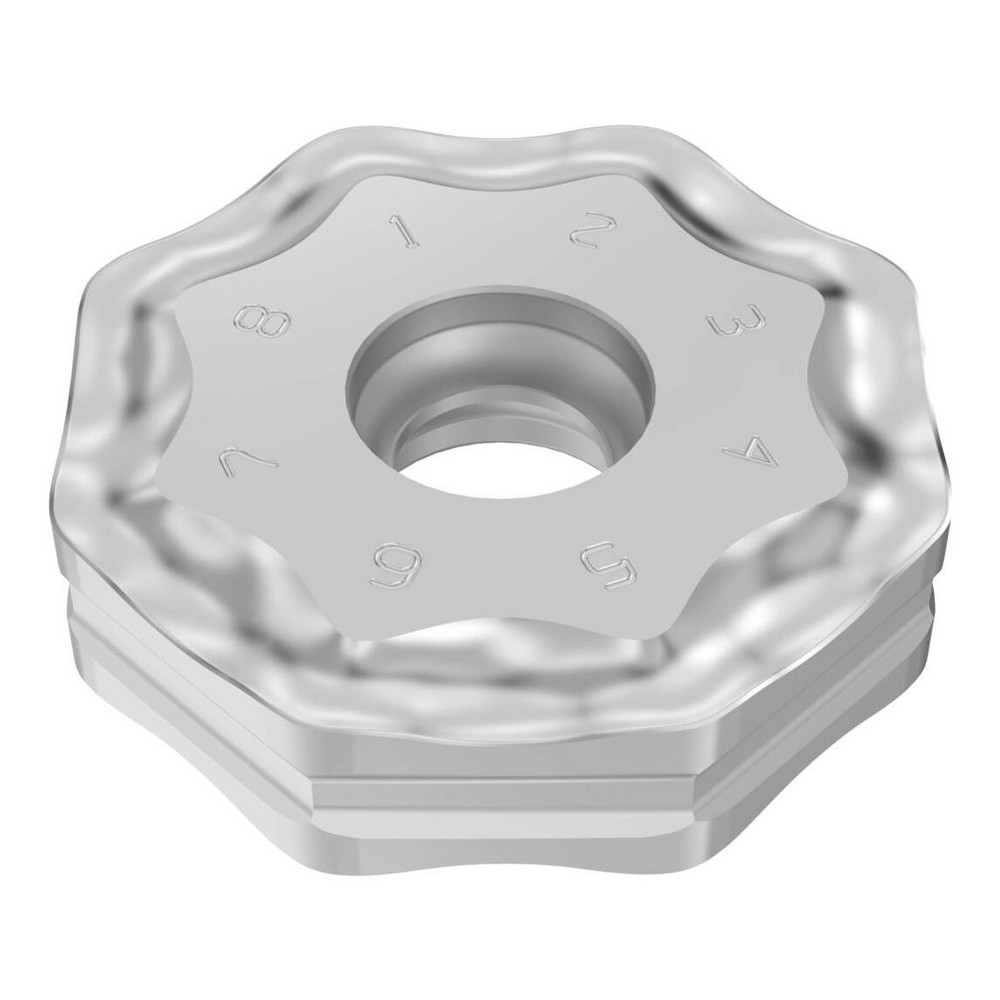

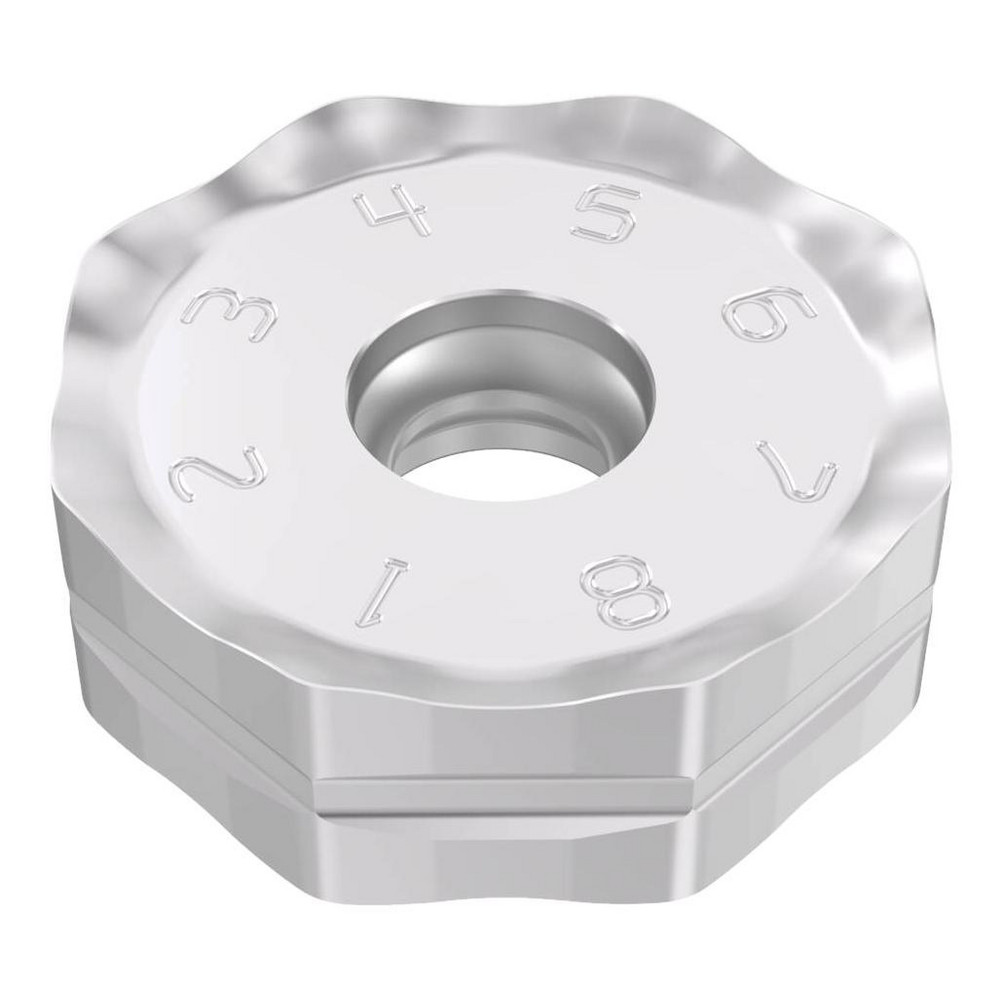

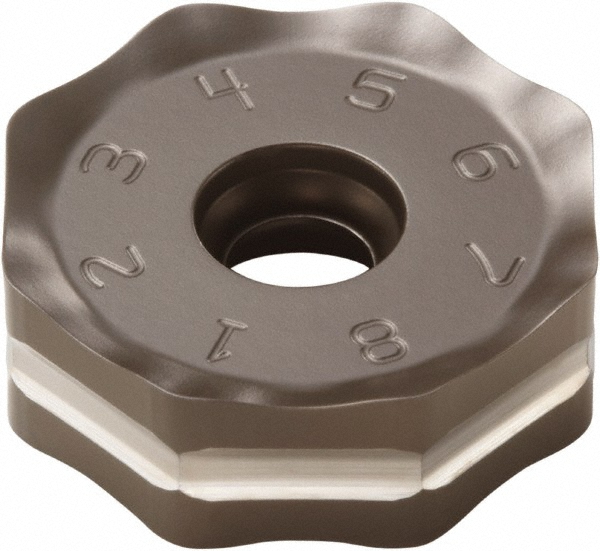

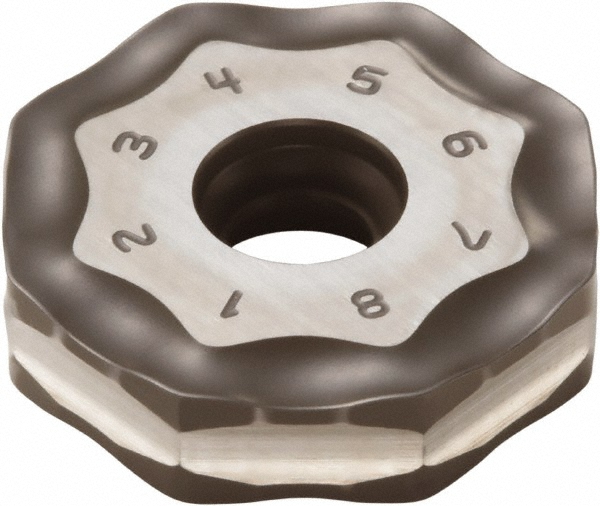

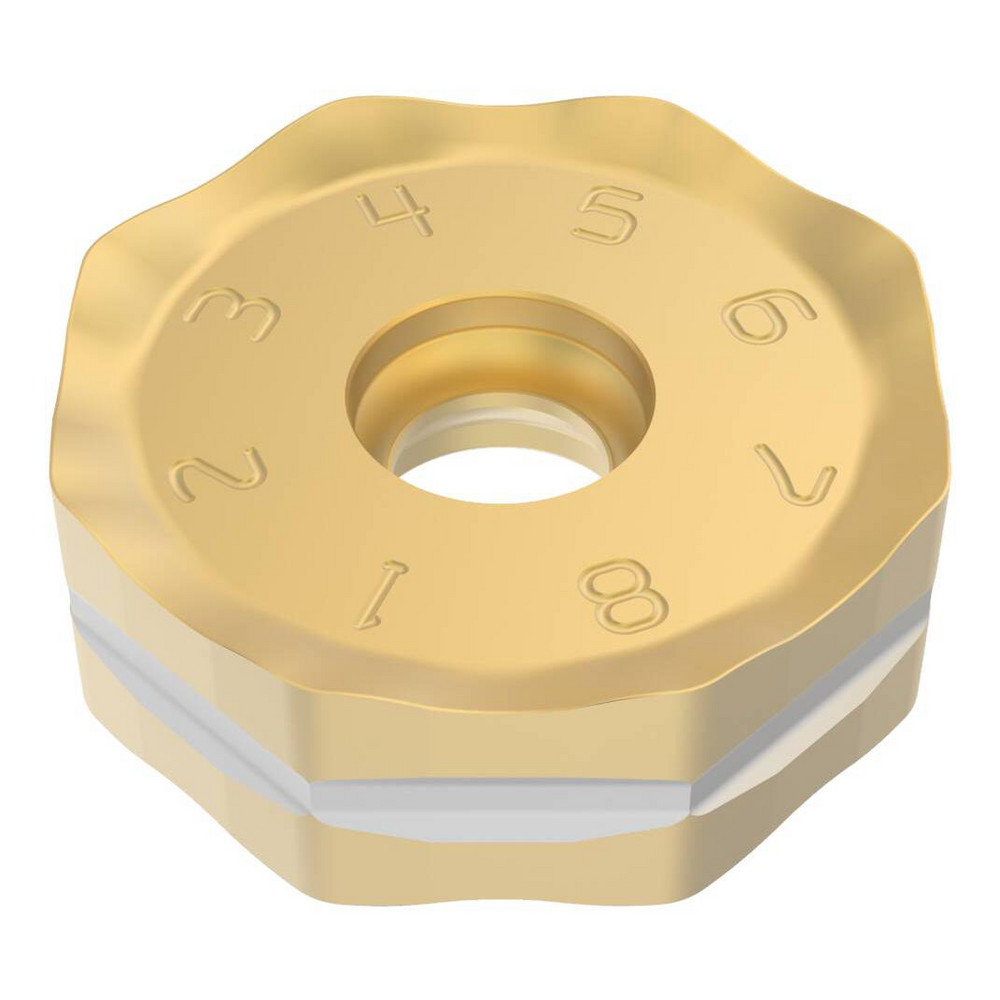

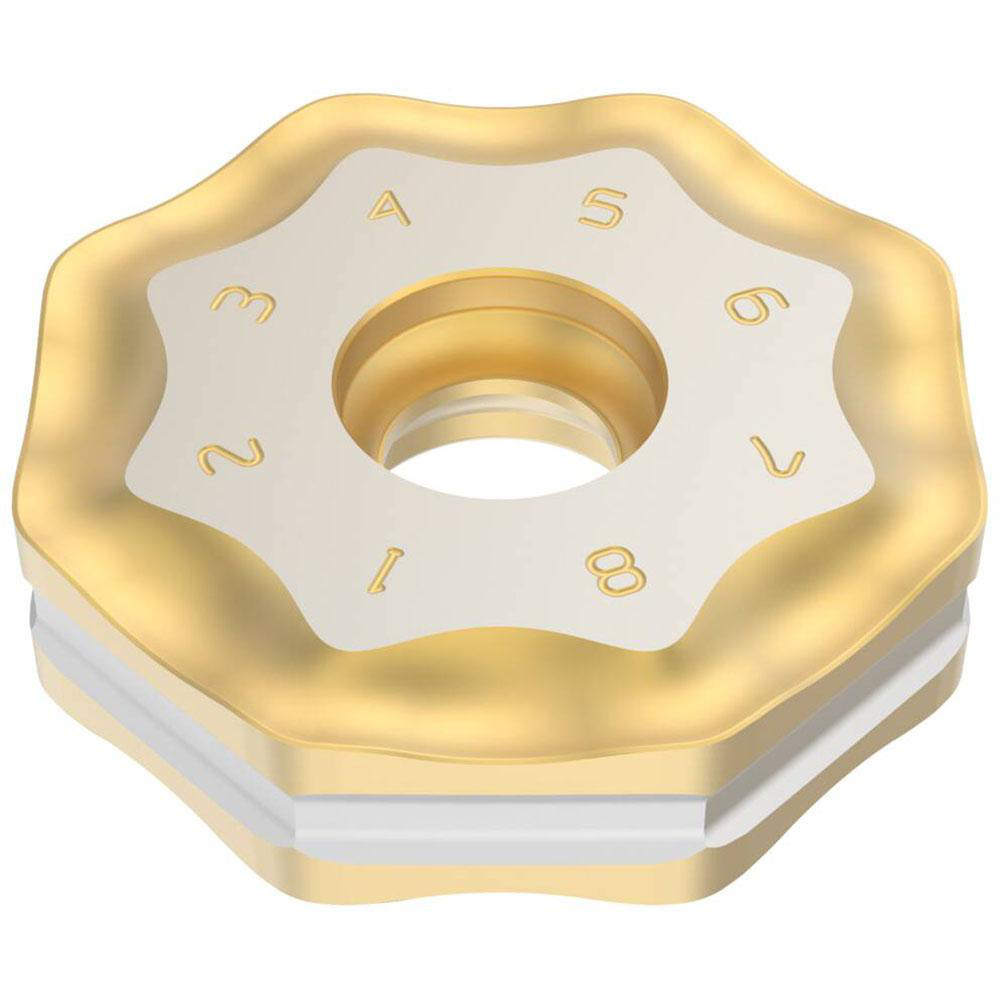

TiAlN Finish, 0.2189" Thick, 0.8661" Wide
| Insert Style | ONMU |
|---|---|
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | MP3000 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Number Of Cutting Edges | 16 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 090520 |
| Material Grade | Micrograin |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.8661 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3031 |
| Series | ONMU-09 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2205 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3031 |
| Rake | Negative |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | ONMU090520ANTN-M15 |
| Iso Code | ONMU090520ANTN-M15 |
| Standards | ISO |
| Rake Angle | 15 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | ONMU090520ANTN-M15 |
| Cutter Series Compatibility | R220.48-09; L220.48-09 |
| Chip Breaker | M15 |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Steel |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.8661 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8661 |
| Country of Origin | India |
| MSC Number | MSC# 58731209 |
