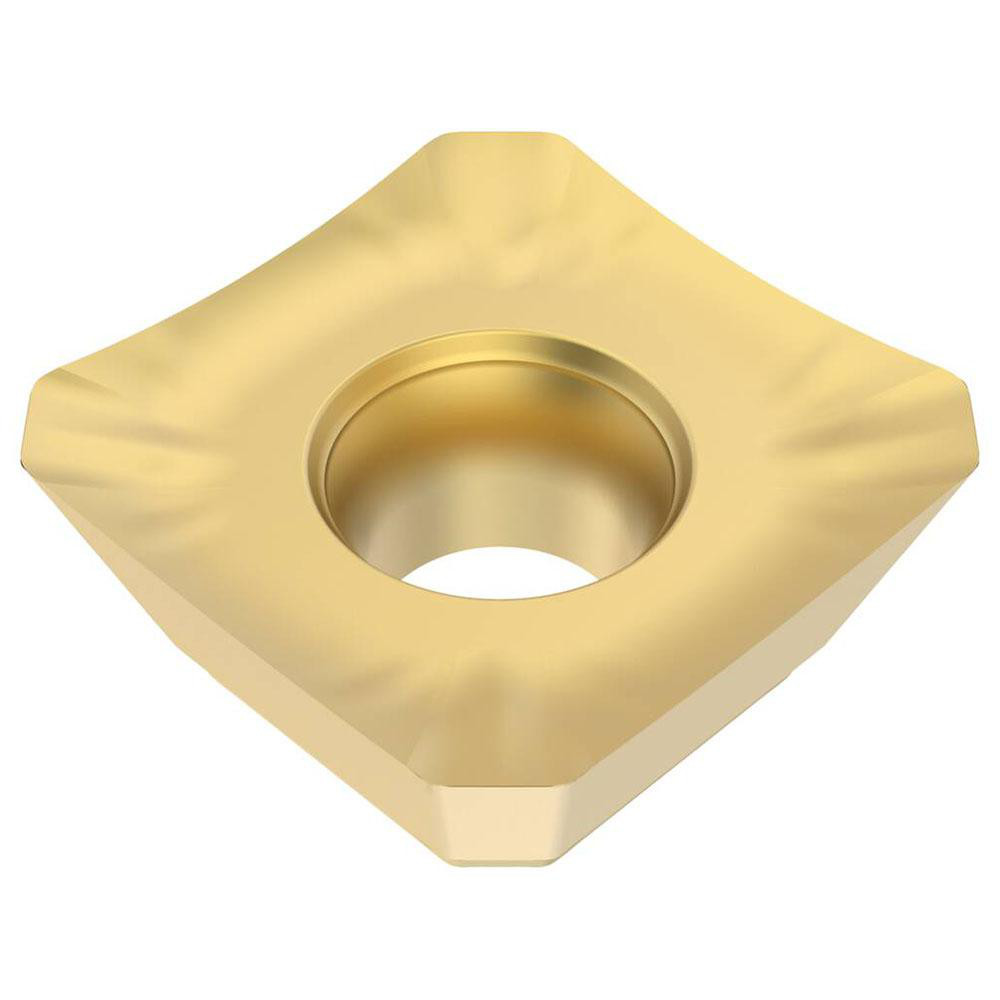

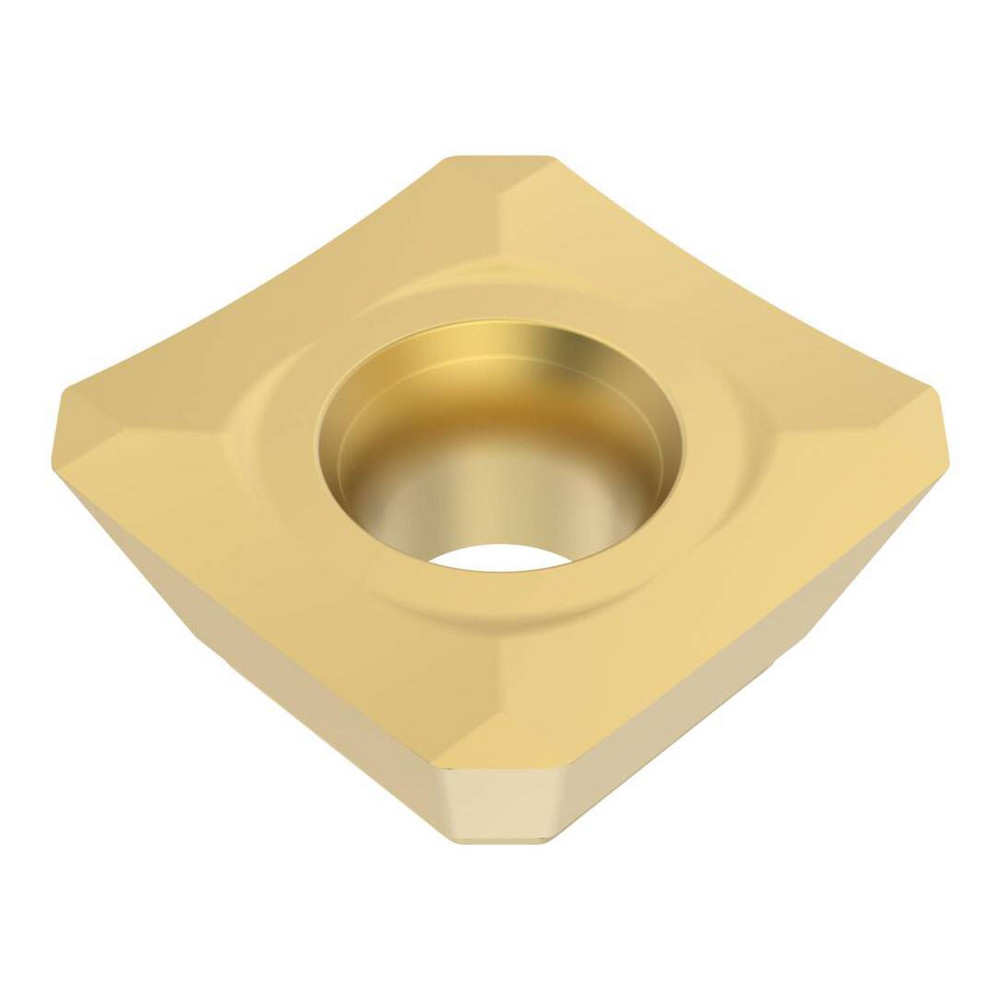

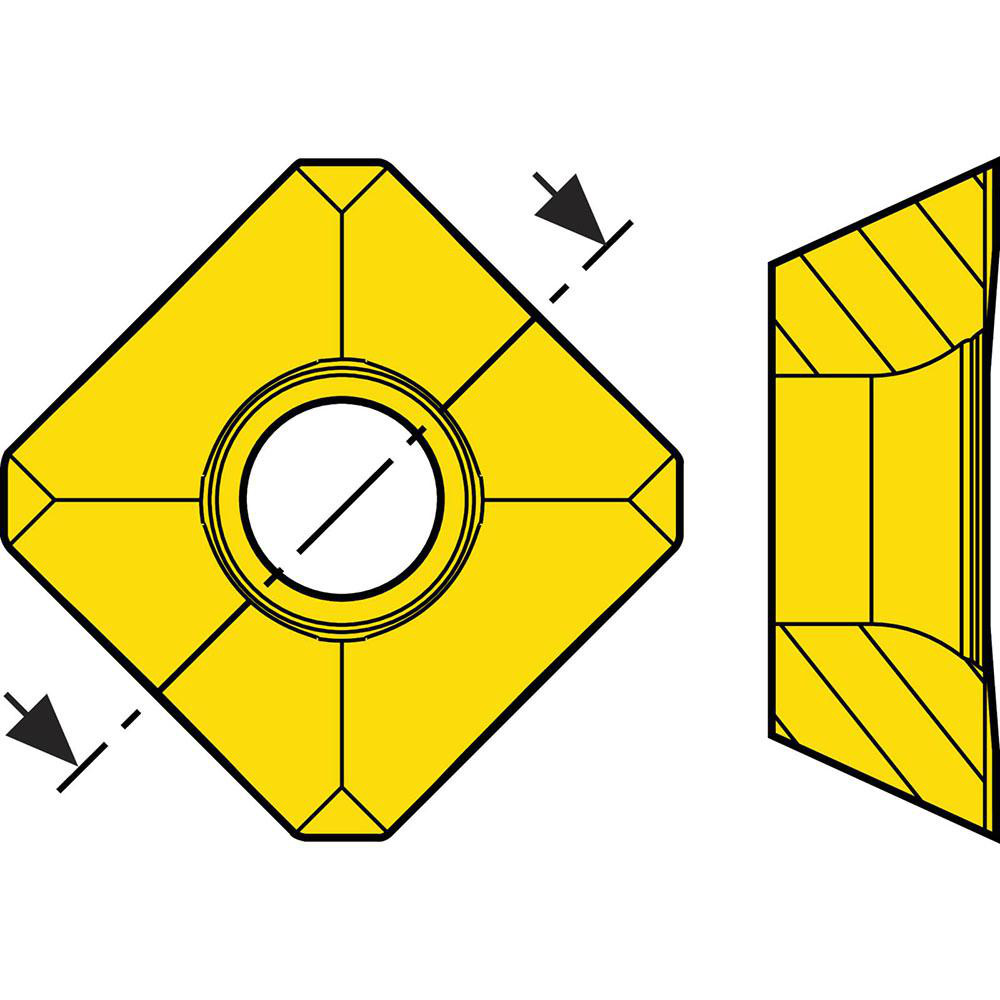

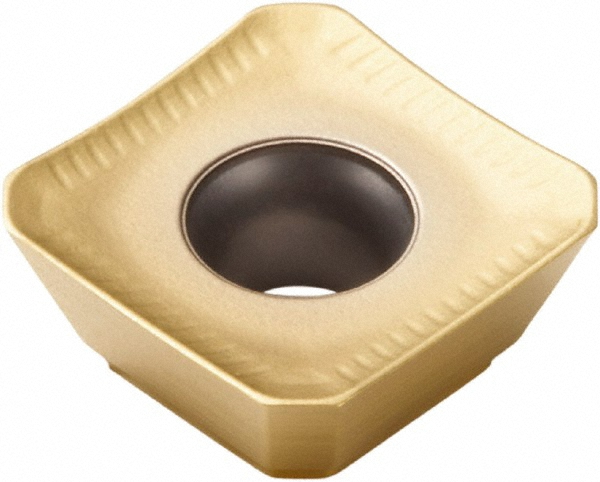

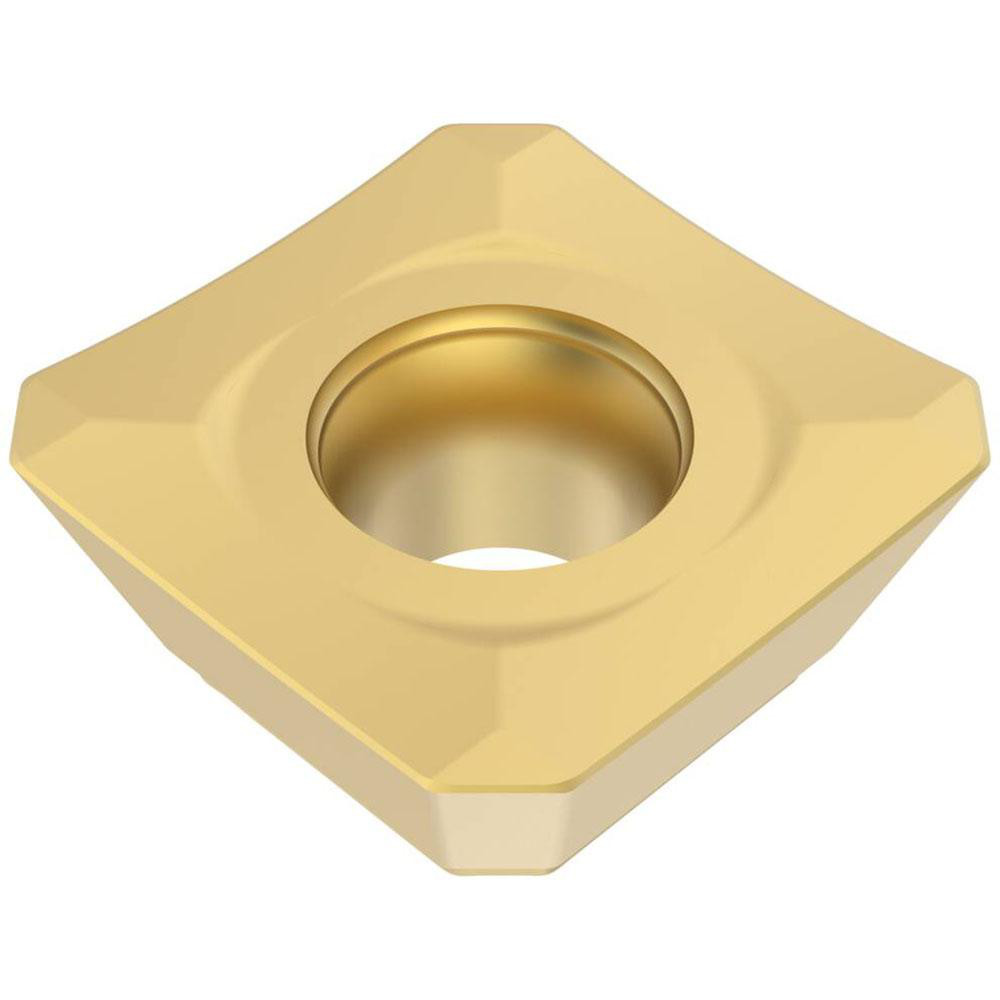

TiAlN & TiN Finish, 0.1563" Thick, 0.3750" Wide
| Insert Style | SEEX |
|---|---|
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | F15M |
| Corner Radius (Decimal Inch) | 0.0118 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 20.00 |
| Insert Size Code | 09T3 |
| Material Grade | Fine Grain |
| Width (Inch) | 3/8 |
| Length (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |

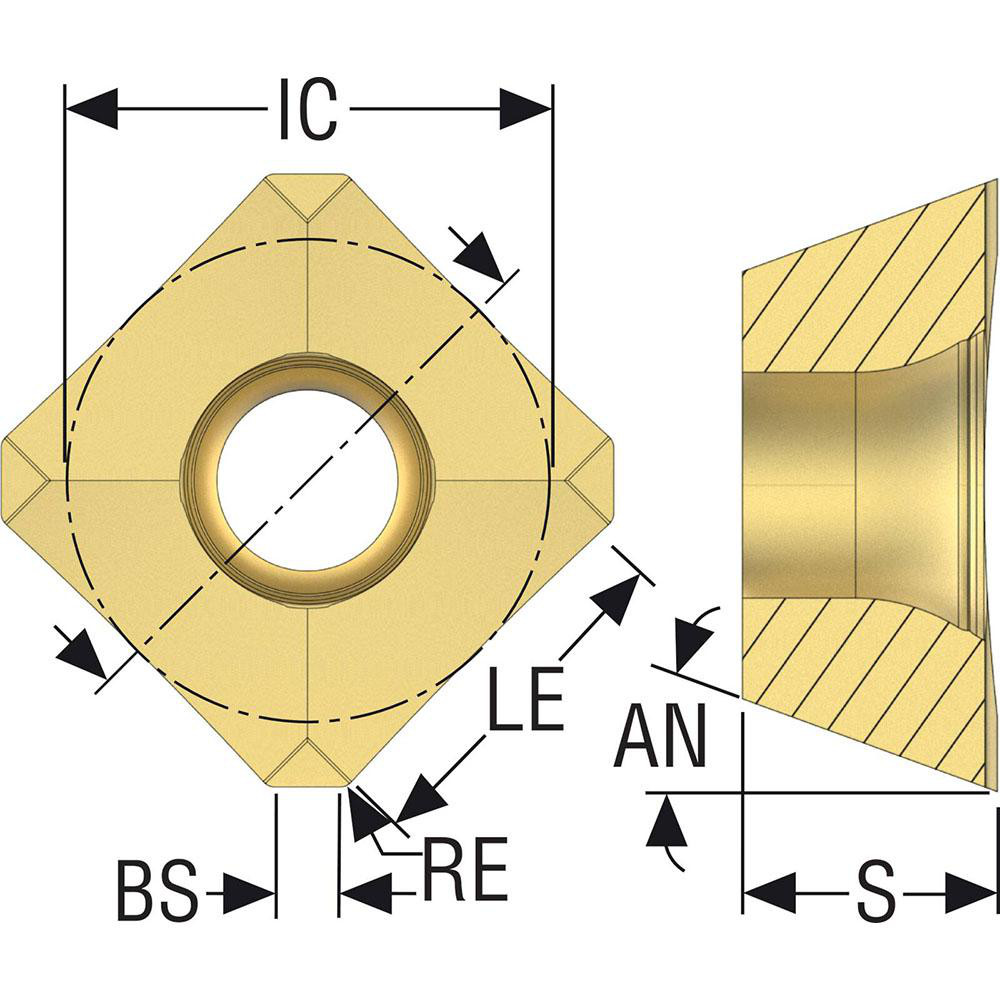

| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2795 |
| Series | SEEX-09 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1378 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3748 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SEEX09T3AFN-E04 |
| Iso Code | SEEX09T3AFN-E04 |
| Standards | ISO |
| Rake Angle | 25 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SEEX09T3AFN-E04 |
| Cutter Series Compatibility | R220.53-09; R217.53-09 |
| Chip Breaker | E04 |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 7.10 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3748 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 56994908 |
