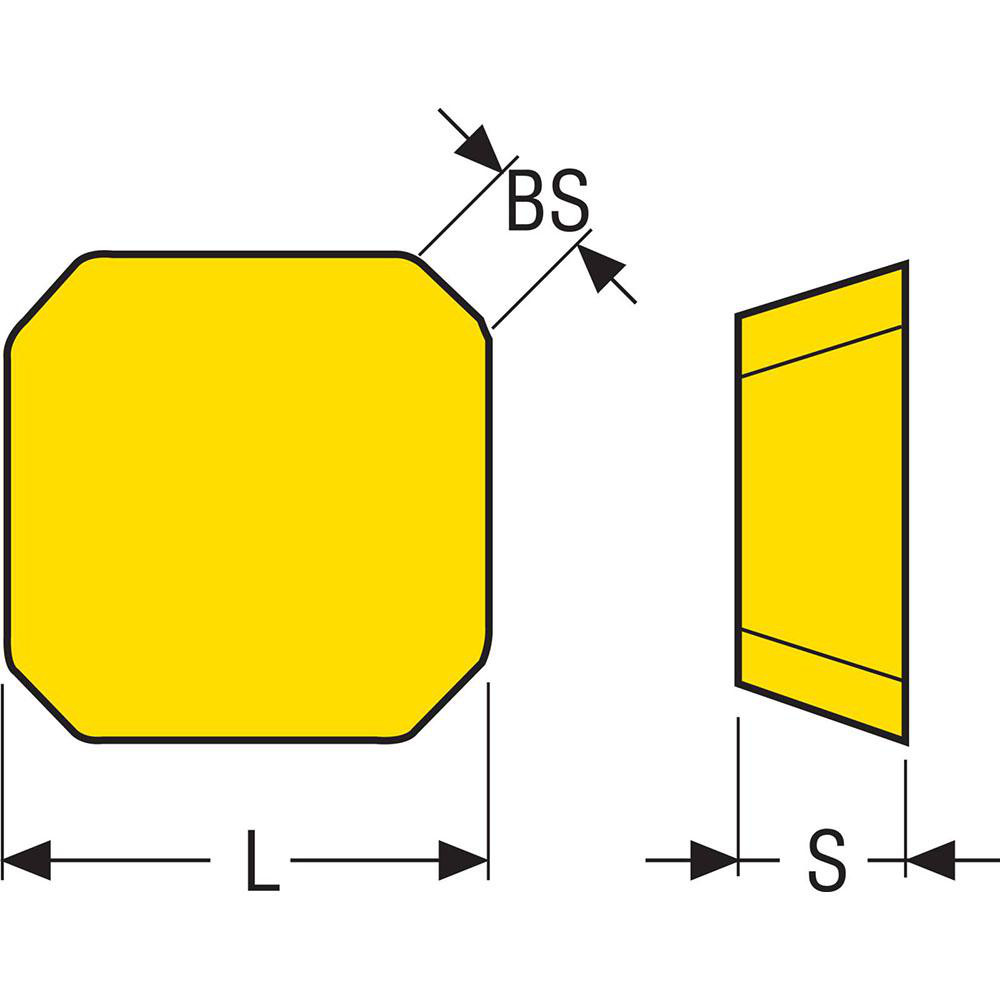

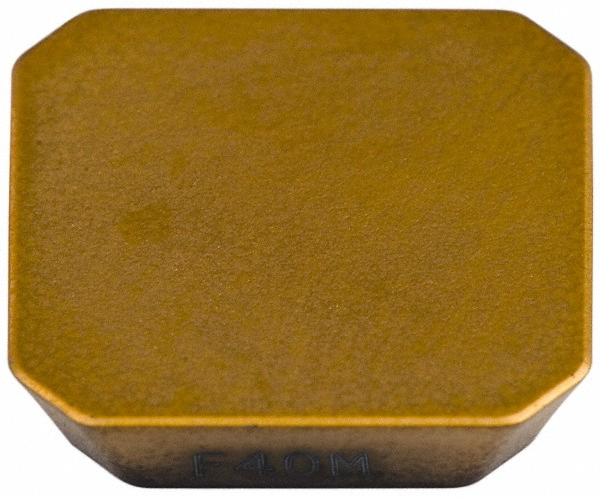

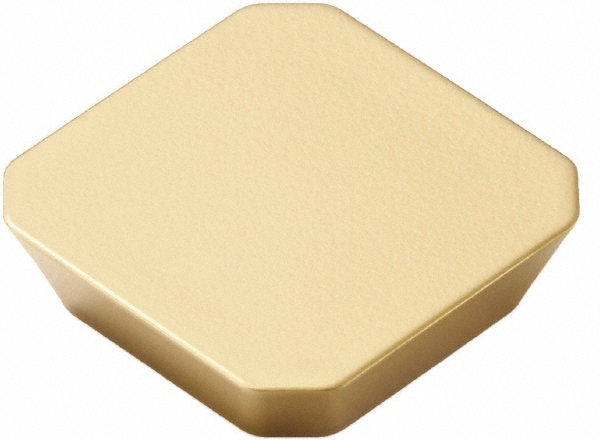

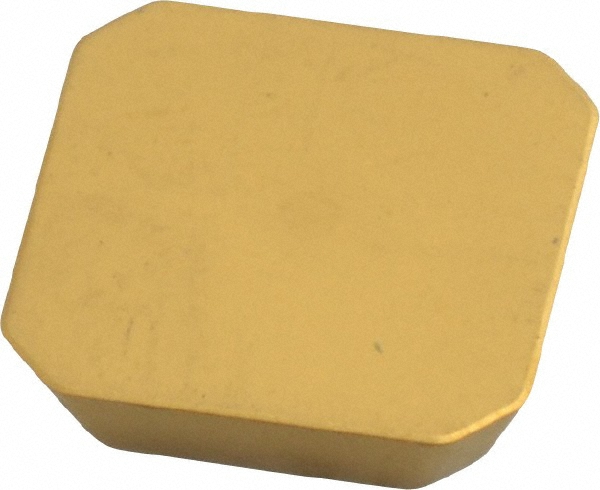

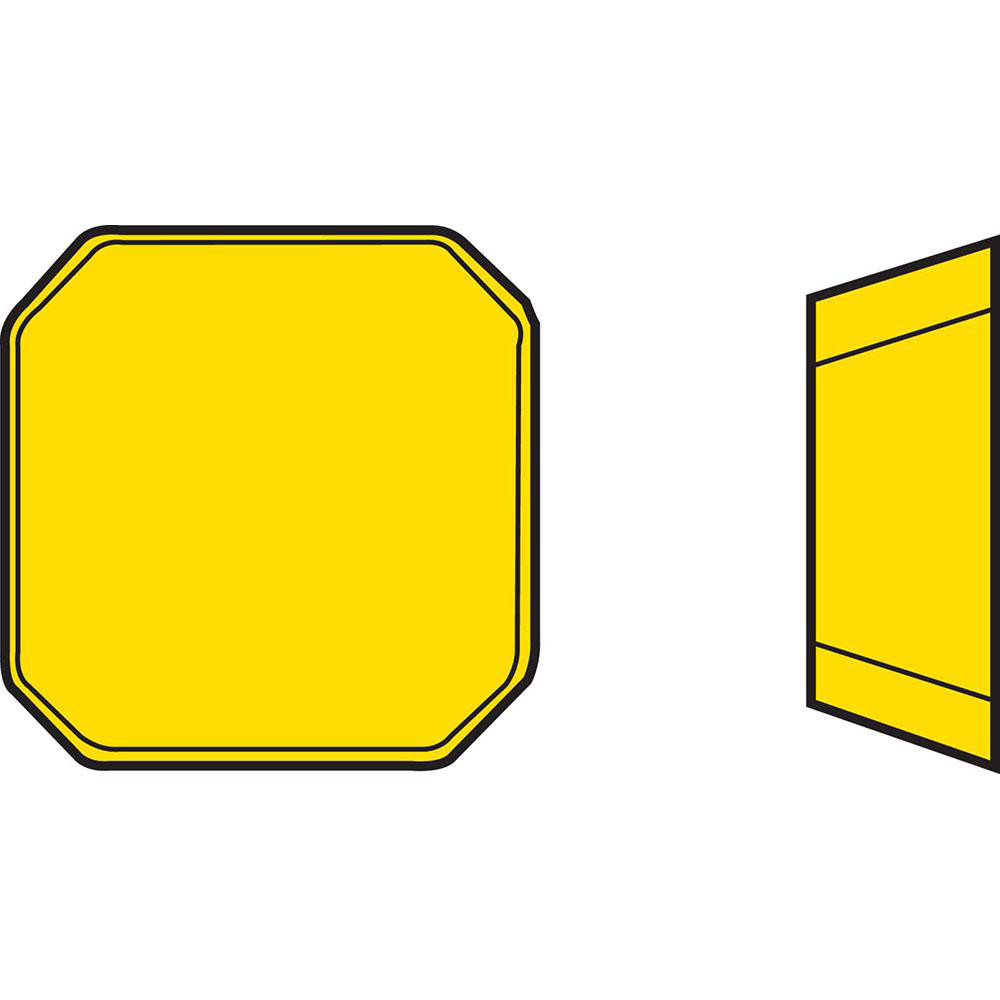

TiAlN & TiN Finish, 0.1252" Thick, 0.5000" Wide
| Insert Style | SEKN |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.0394 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 20.00 |
| Insert Size Code | 1203 |
| Material Grade | Fine Grain |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3465 |
| Series | SEKN-12 |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5000 |
| Rake | Neutral |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SEKN1203AFTN-M14 |
| Iso Code | SEKN1203AFTN-M14 |
| Standards | ISO |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SEKN1203AFTN-M14 |
| Cutter Series Compatibility | R220.13-12 |
| Chip Breaker | M14 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Square |
| Insert Holding Method | Wedge Clamp |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 71876205 |
