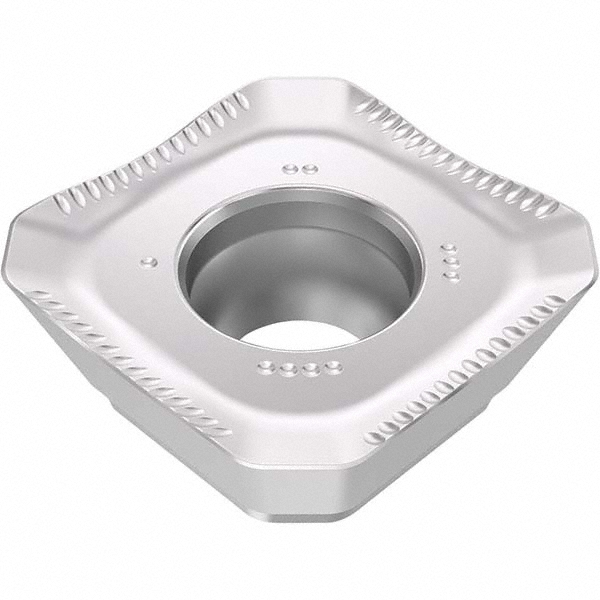

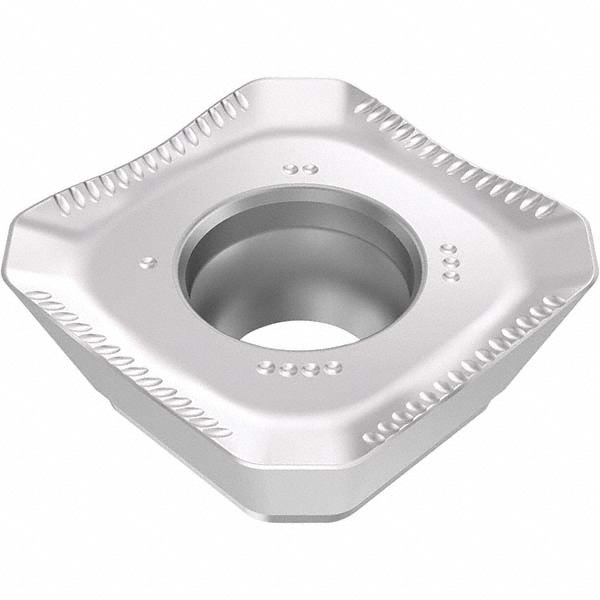

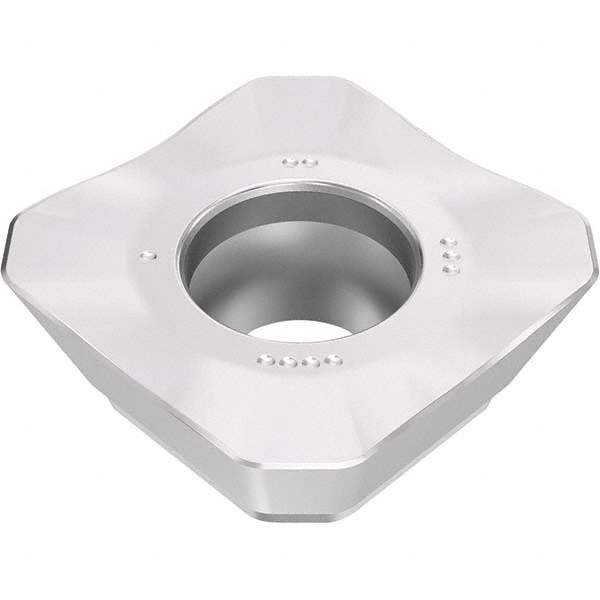

TiCN & Al2O3 Finish, 0.1874" Thick, 0.5000" Wide
| Insert Style | SEMX |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | MP2501 |
| Corner Radius (Decimal Inch) | 0.0441 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 20.00 |
| Insert Size Code | 1204 |
| Material Grade | Fine Grain |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3425 |
| Series | SEMX-12 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Ansi Code | SEMX1204AFTN-M15 |
| Iso Code | SEMX1204AFTN-M15 |
| Standards | ISO |
| Rake Angle | 4 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SEMX1204AFTN-M15 |
| Cutter Series Compatibility | R220.53-12; R217.53-12 |
| Chip Breaker | M15 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 8.70 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 96590922 |
