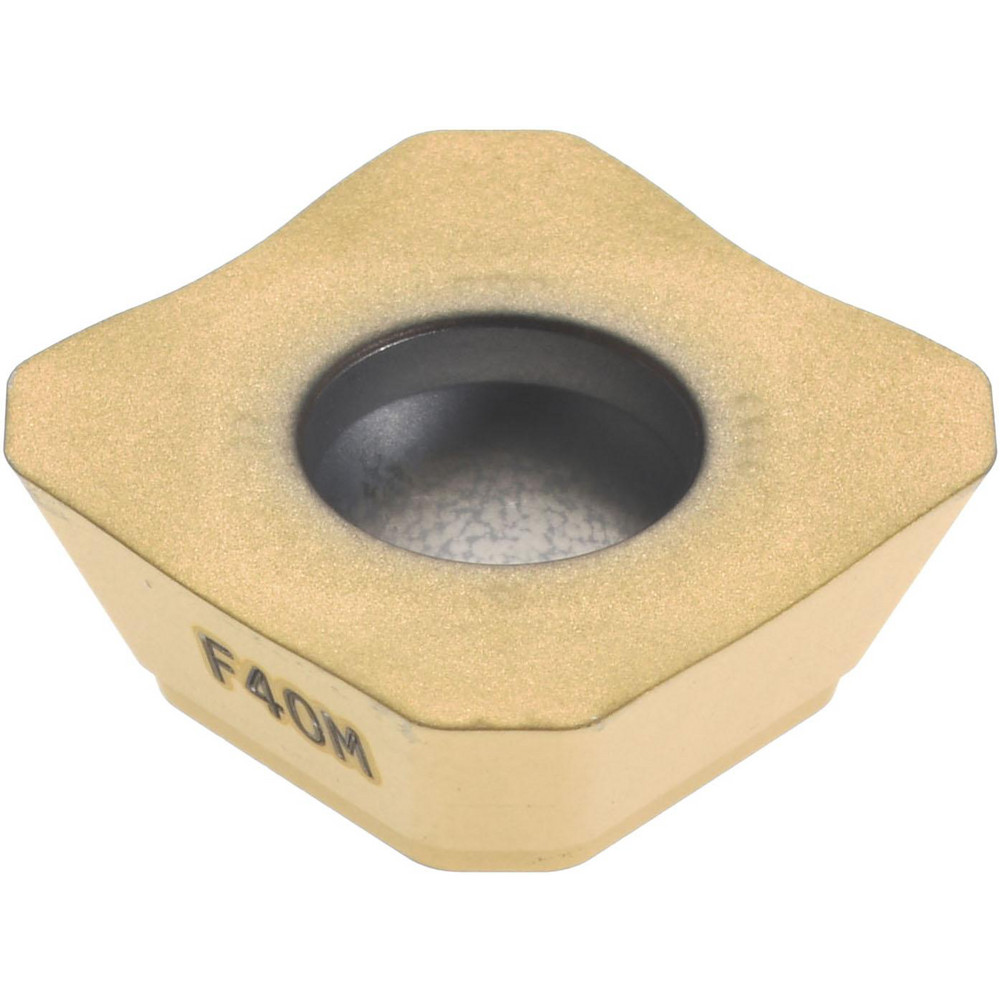

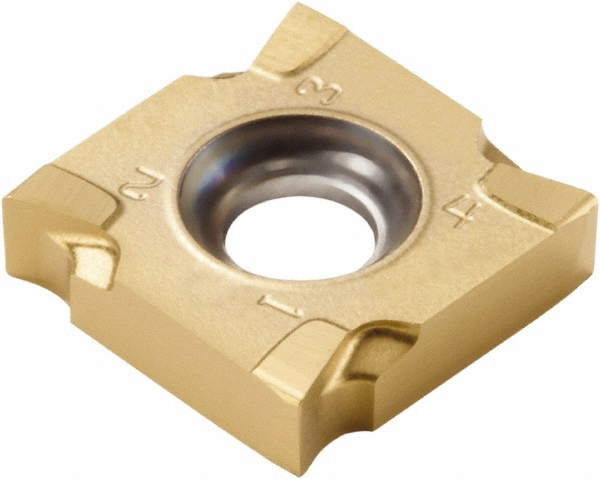

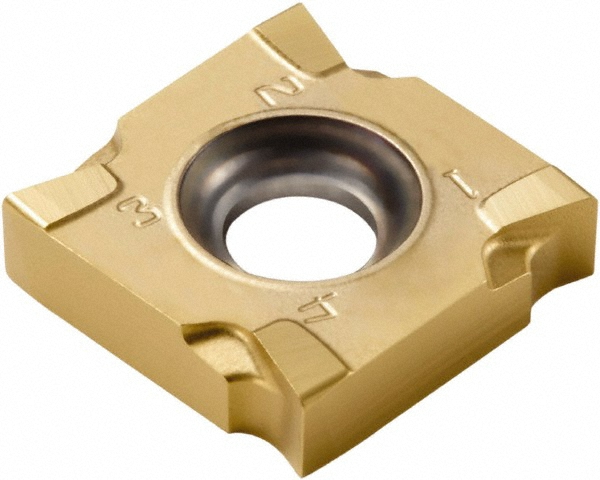

TiAlN & TiN Finish, 0.1575" Thick, 0.5000" Wide
| Insert Style | SNHQ |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.0157 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1575 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 120404 |
| Material Grade | Fine Grain |
| Width (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1437 |
| Series | SNHQ-12 |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.1575 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SNHQ120404TR4-M07 |
| Iso Code | SNHQ120404TR4-M07 |
| Standards | ISO |
| Rake Angle | 20 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SNHQ120404TR4-M07 |

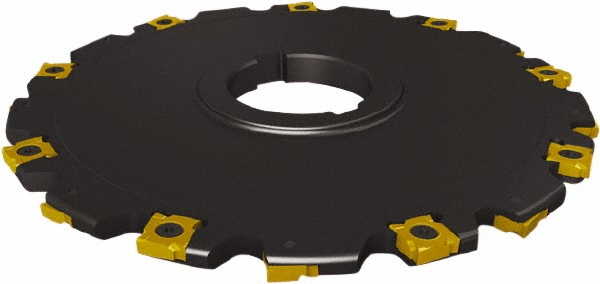

| Cutter Series Compatibility | 335.19-12 |
| Chip Breaker | M07 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Square |

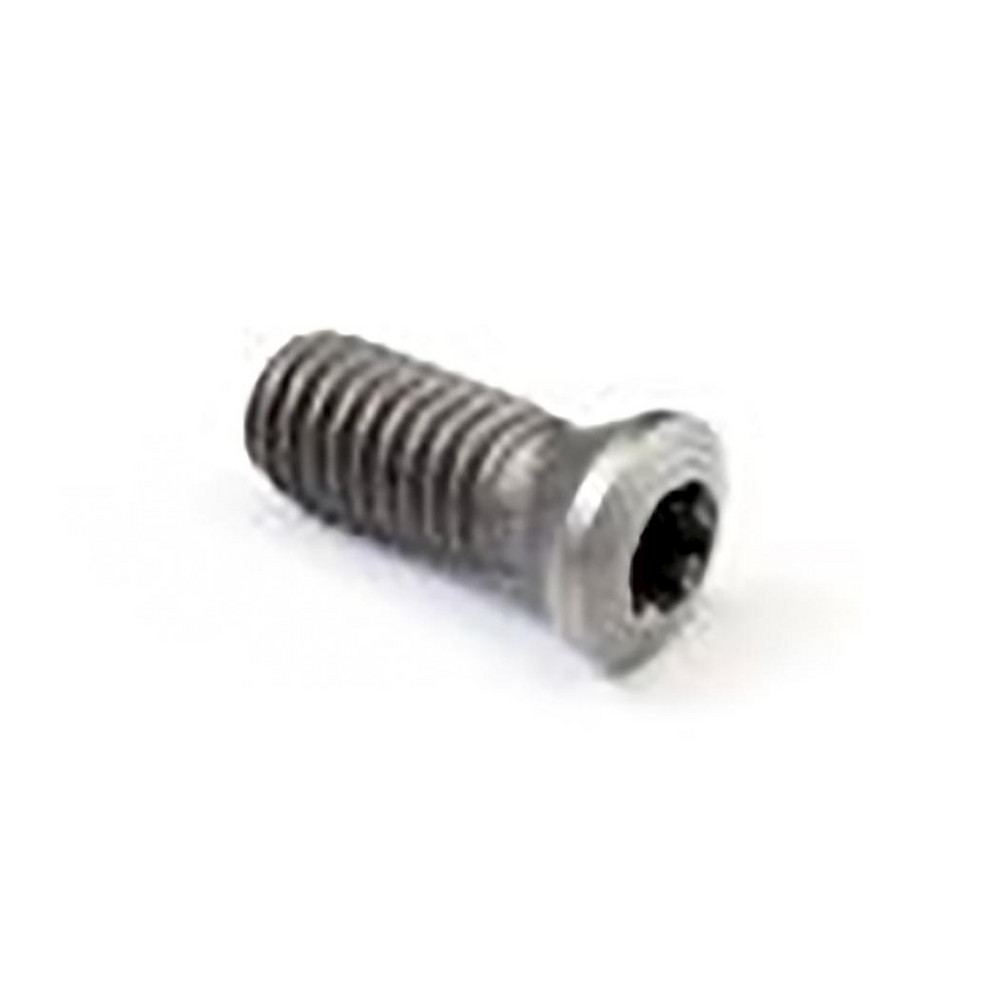

| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 3.65 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.1575 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 44575983 |
