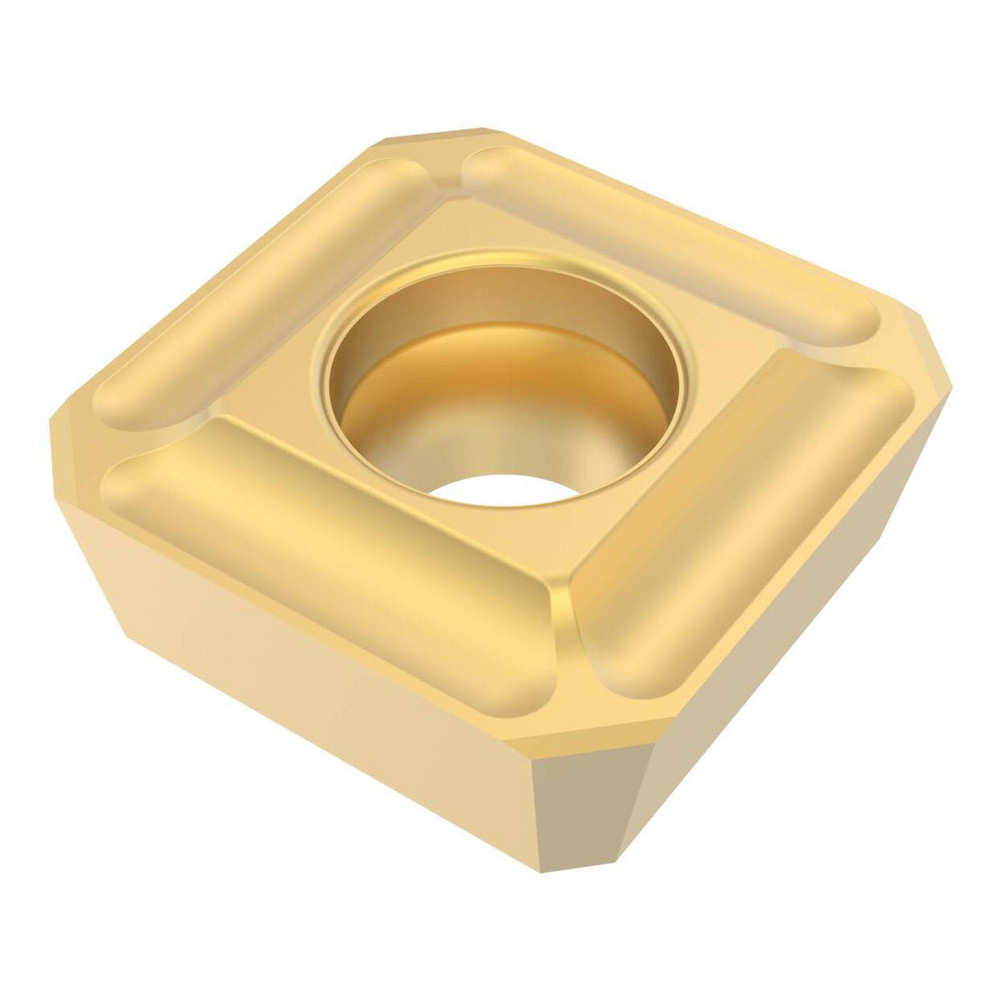

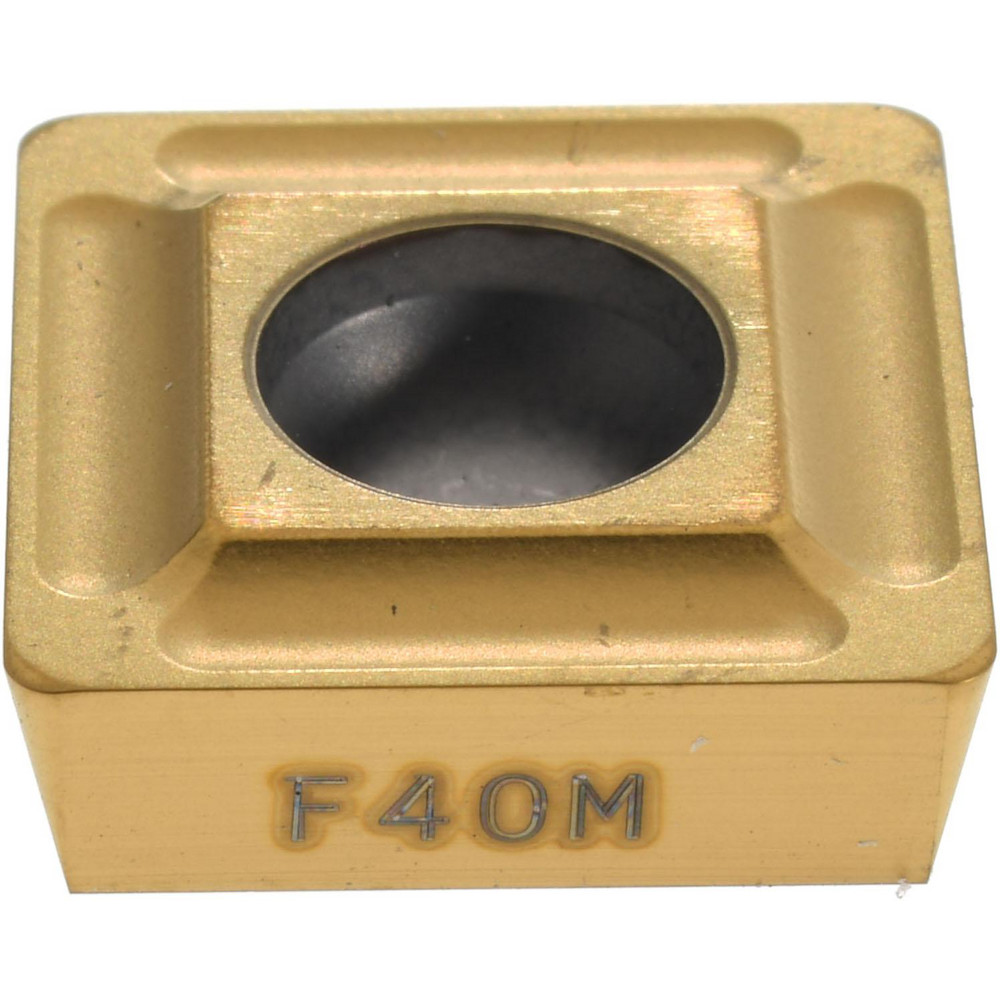

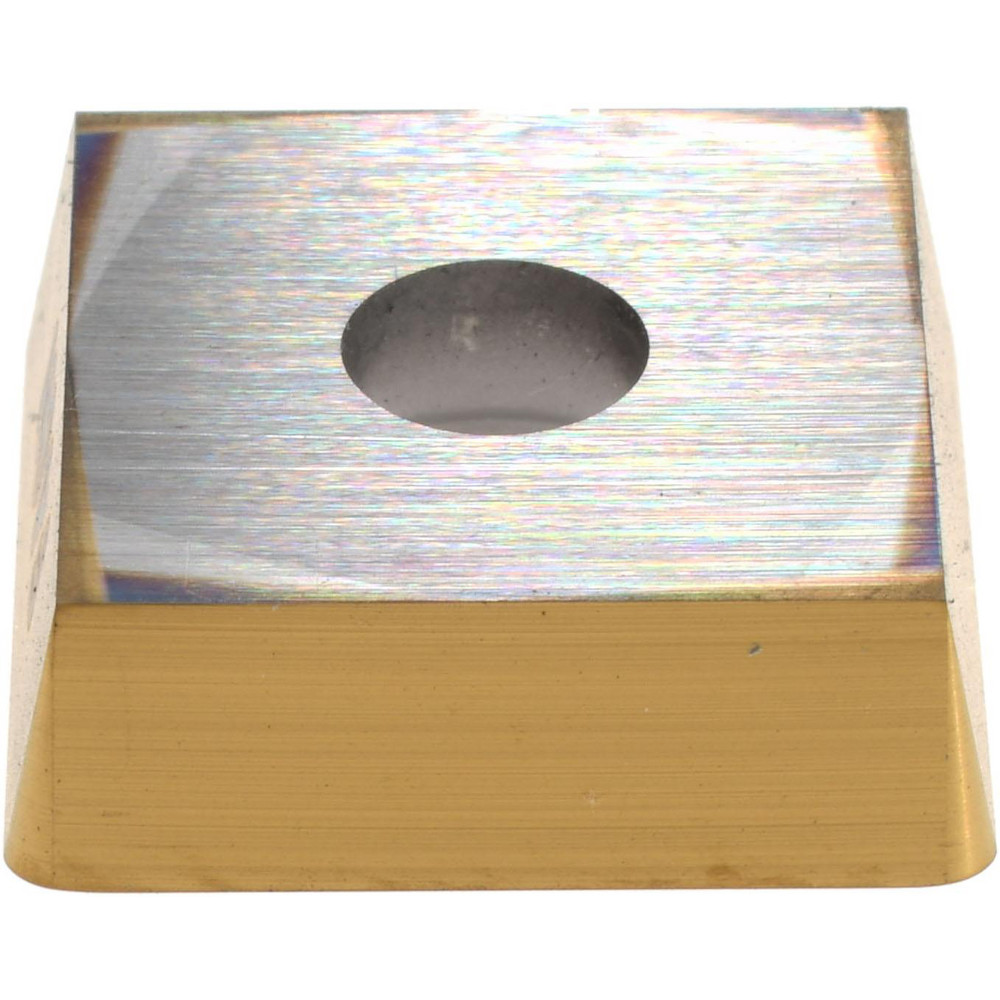

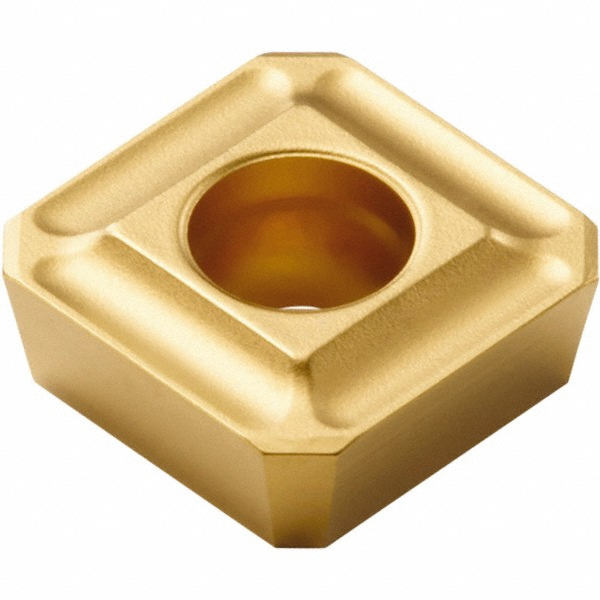

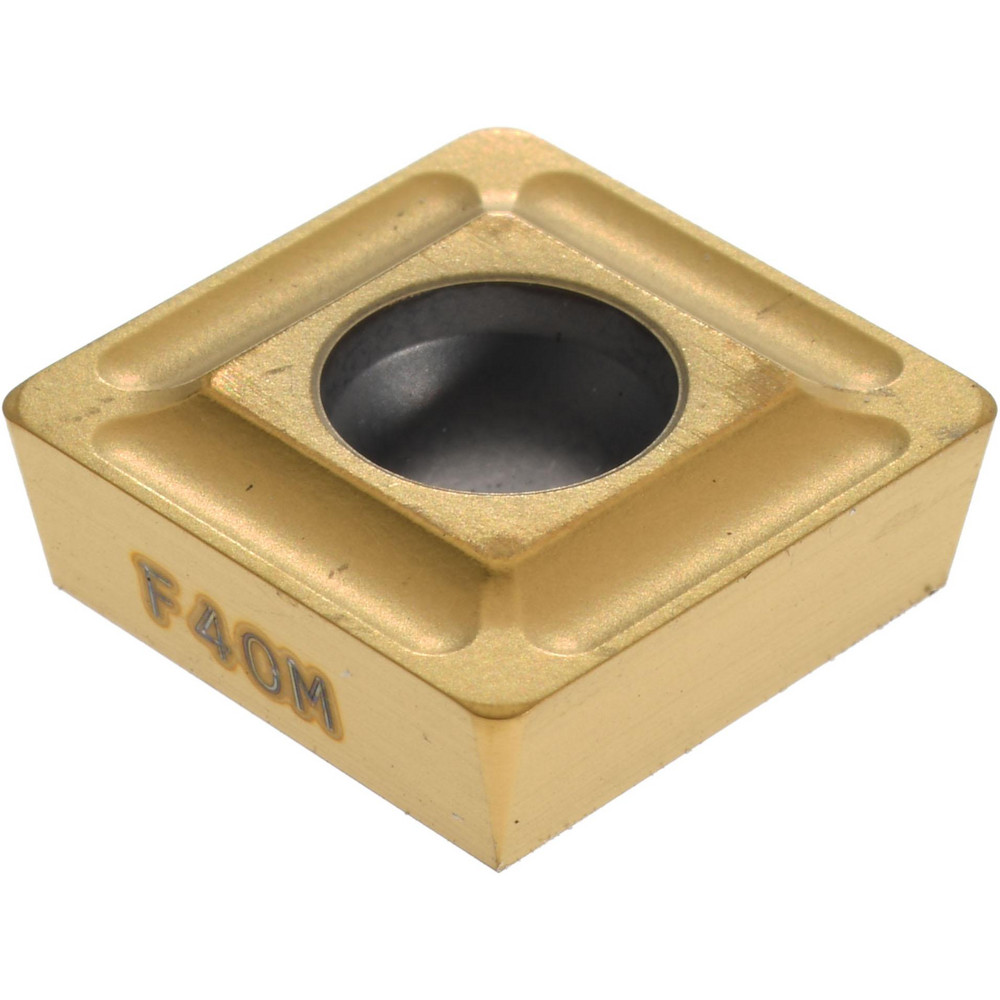

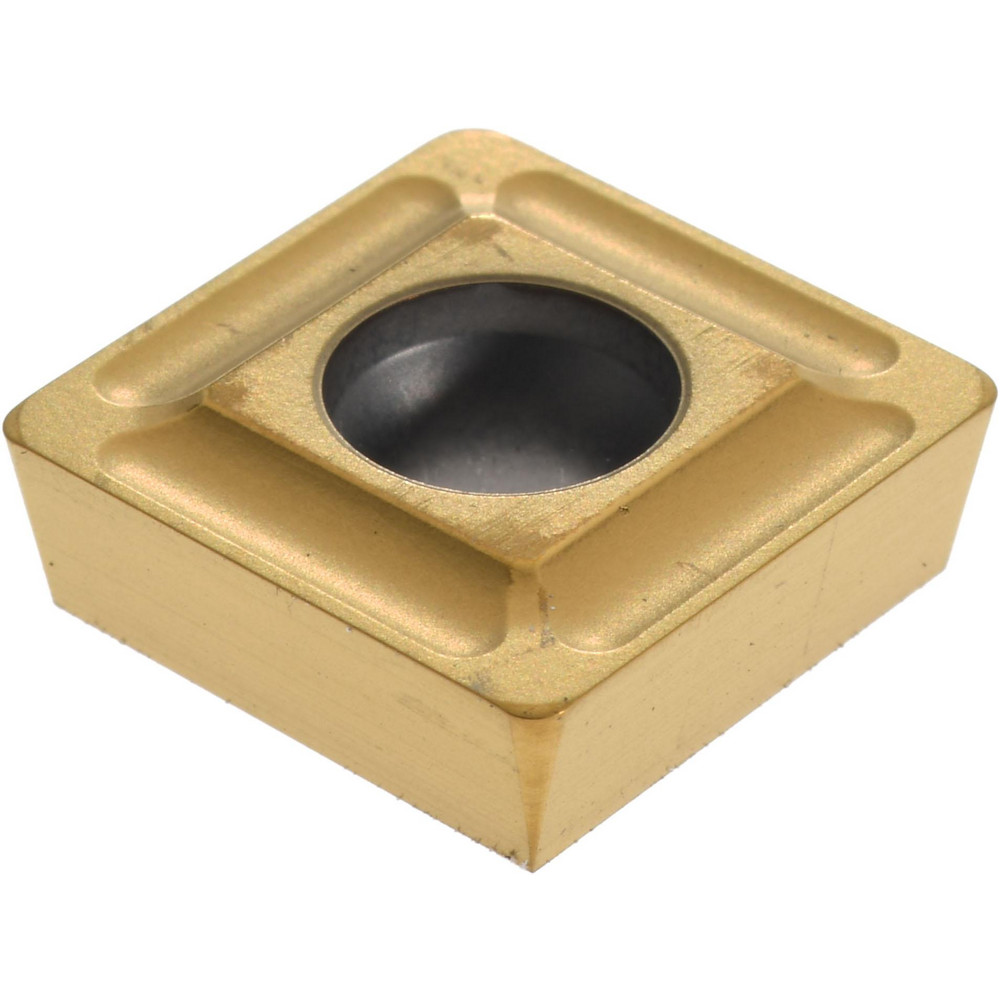

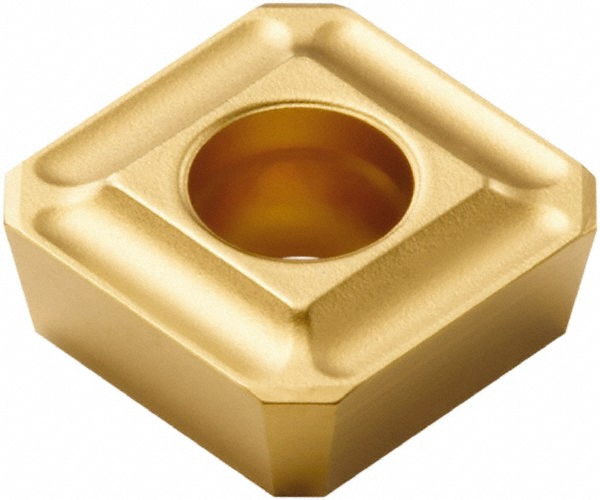

TiAlN & TiN Finish, 0.1563" Thick, 0.5000" Wide
| Insert Style | SPMX |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 12T3 |
| Material Grade | Fine Grain |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Series | SPMX-12 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1535 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SPMX12T308-75 |
| Iso Code | SPMX12T308-75 |
| Standards | ISO |
| Rake Angle | 14 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SPMX12T308-75 |
| Cutter Series Compatibility | R417.19-3; R220.69; R215.49-3 |
| Chip Breaker | 75 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 64197916 |
