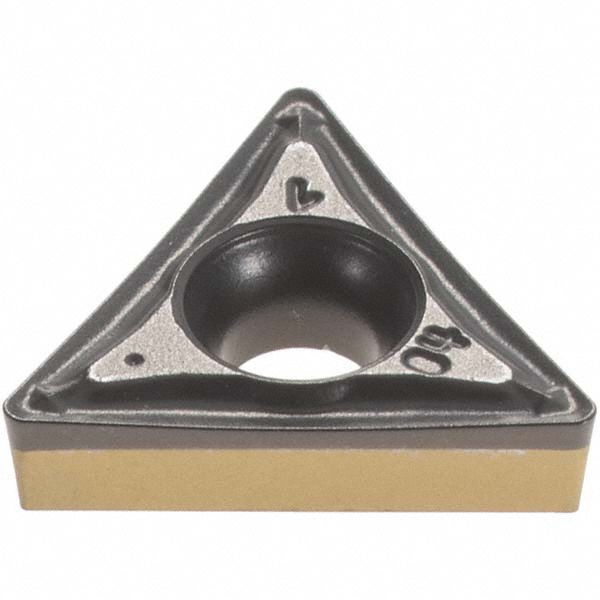

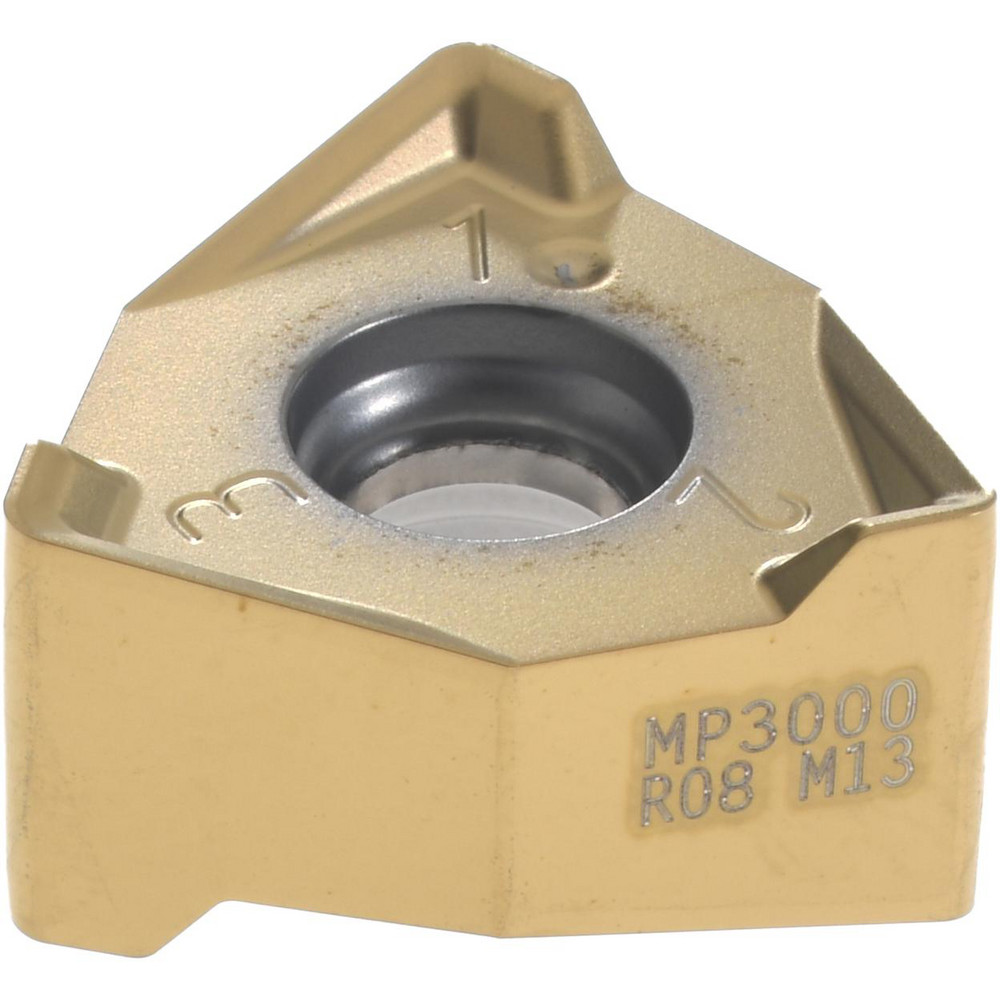

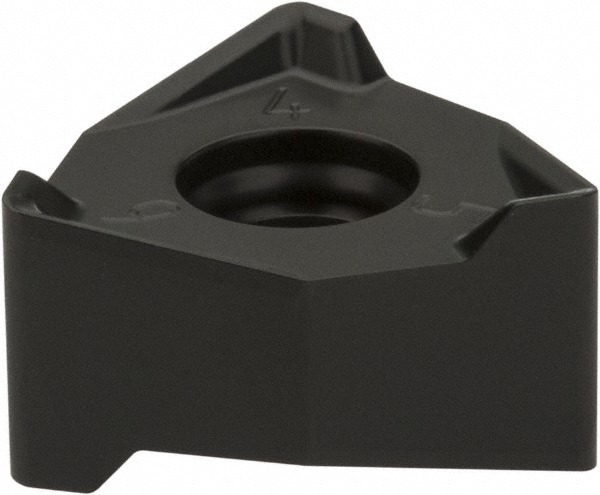

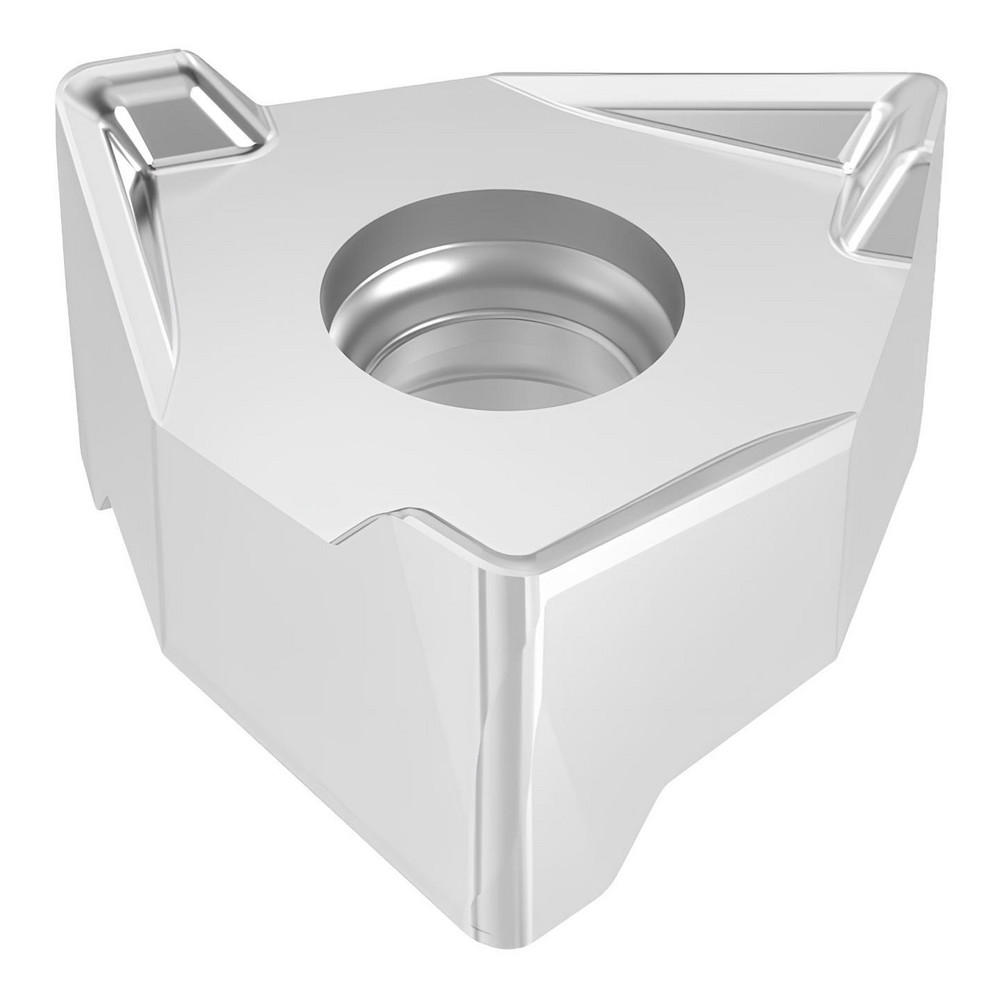

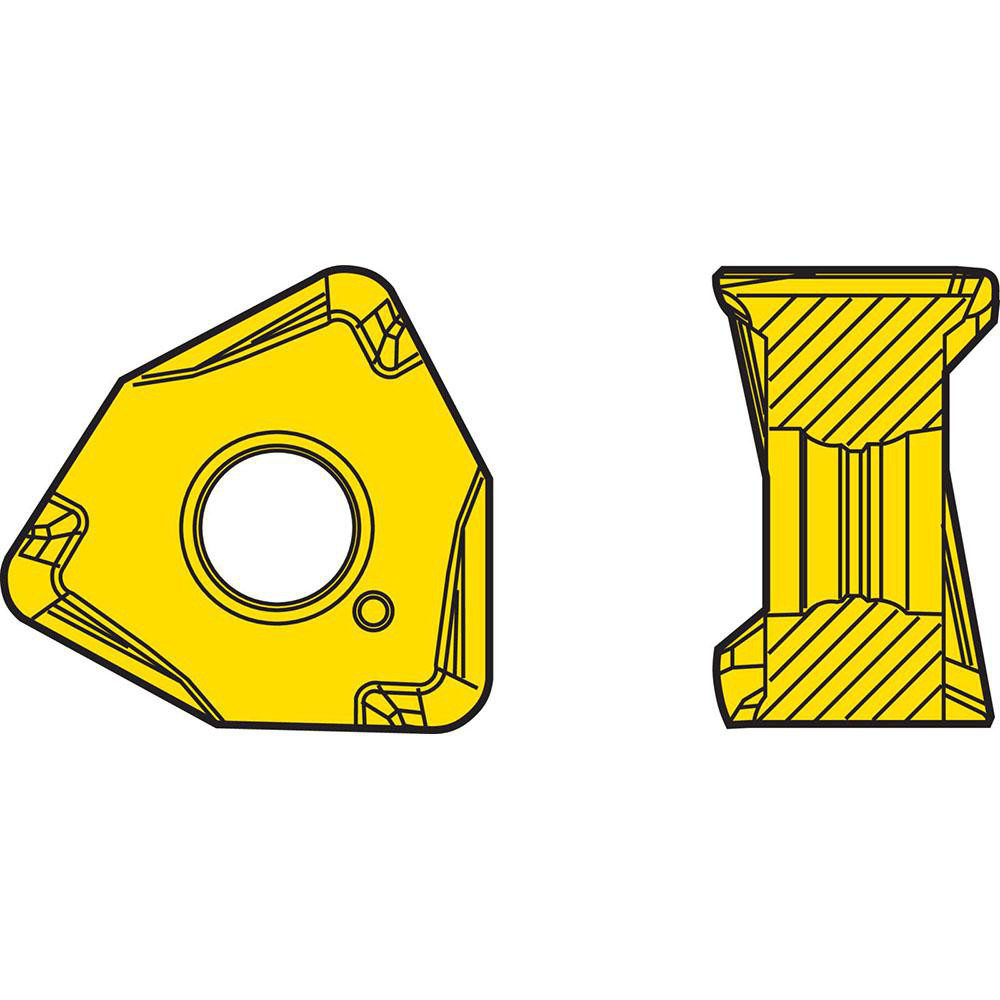

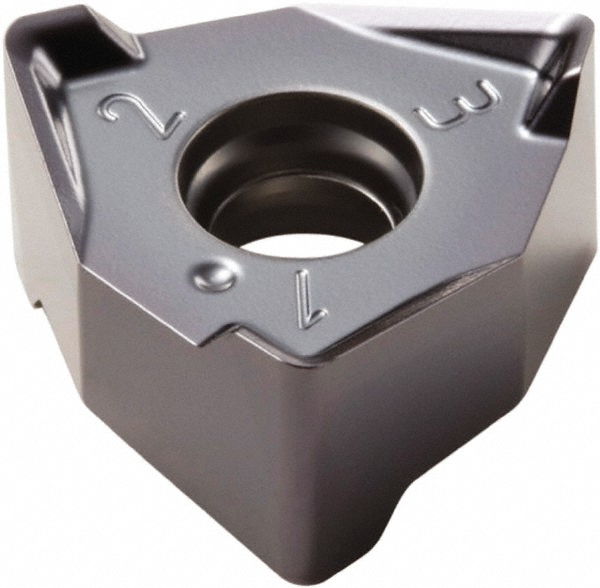

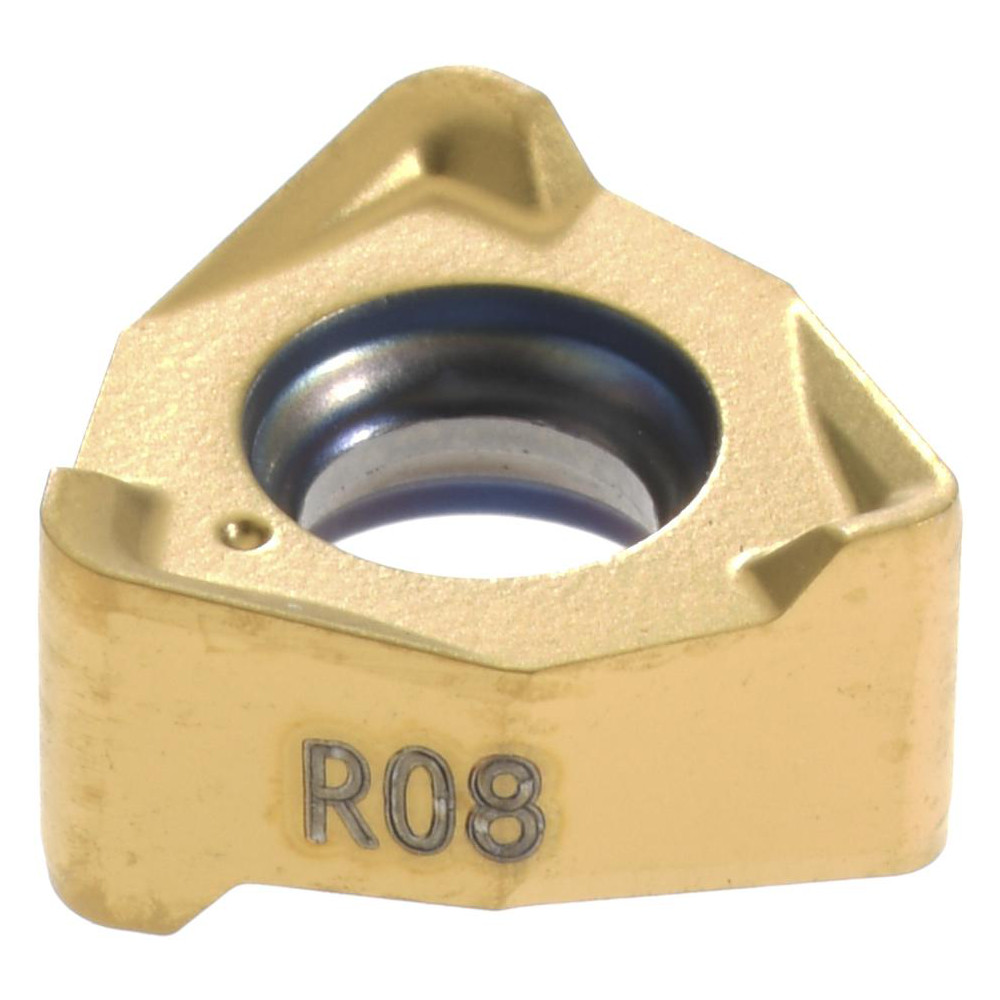

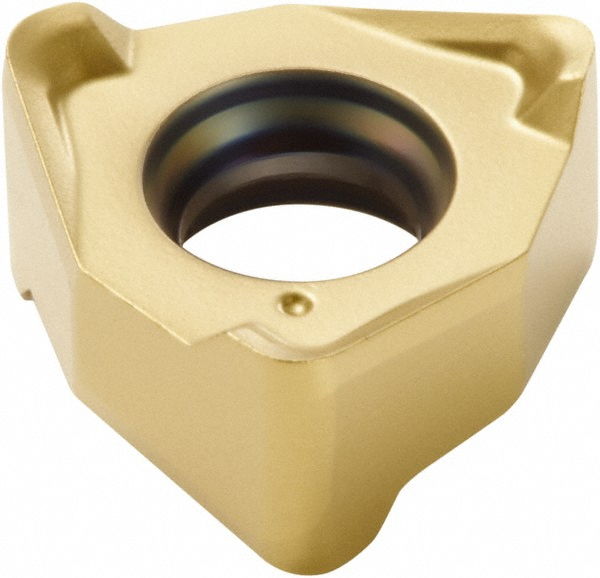

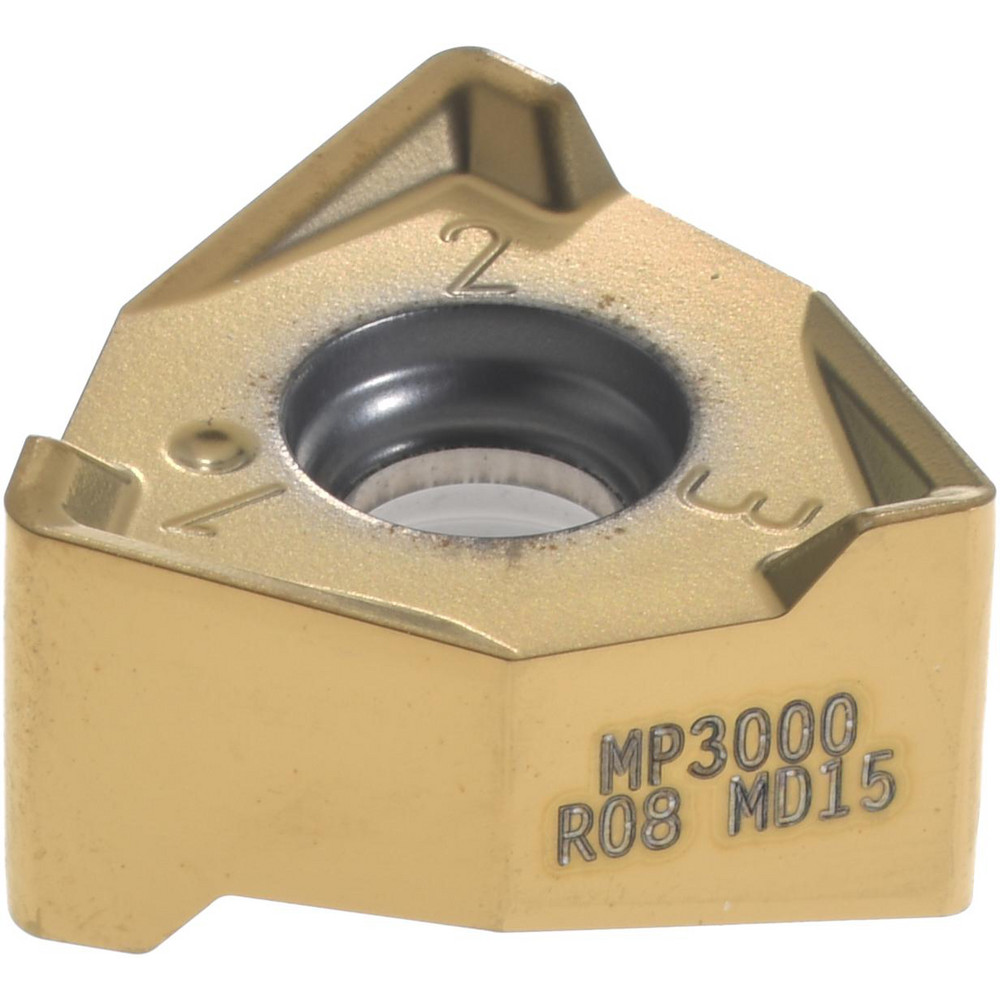

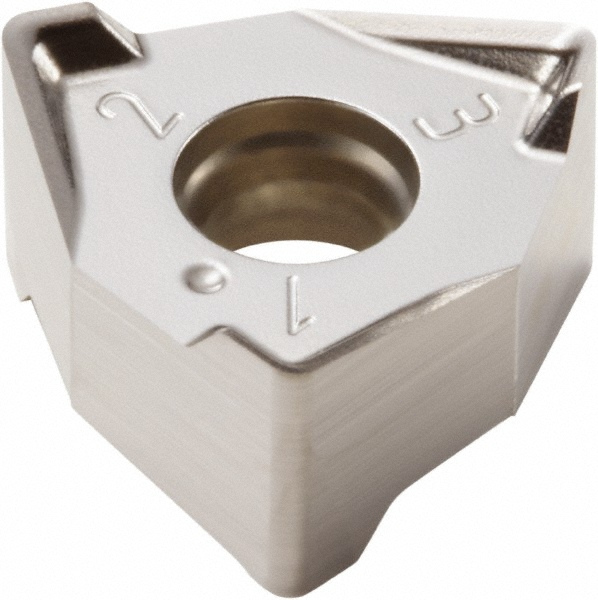

TiAlN Finish, 0.1295" Thick, 0.2638" Wide
| Insert Style | XNEX |
|---|---|
| Insert Size | 04 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | MP3000 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1295 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 040308 |
| Material Grade | Micrograin |

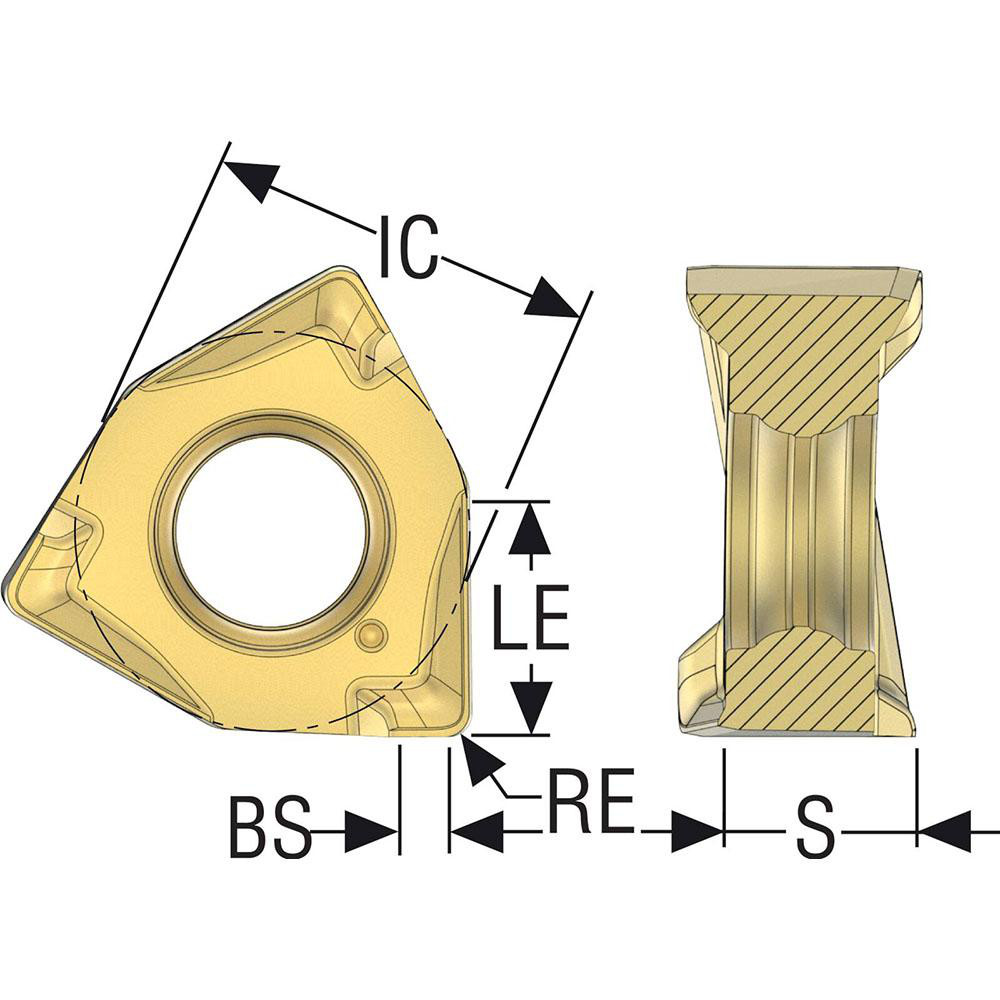

| Inscribed Circle (Decimal Inch) | 0.2638 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Series | XNEX-04 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1244 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1575 |
| Rake | Negative |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | XNEX040308TR-M08 |
| Iso Code | XNEX040308TR-M08 |
| Standards | ISO |
| Rake Angle | 27 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | XNEX040308TR-M08 |
| Cutter Series Compatibility | R220.96-04; R217.96-04 |
| Chip Breaker | M08 |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Steel |
| Shape | Trigon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 88 |
| Width (Decimal Inch - 4 Decimals) | 0.2638 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.1575 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 62635180 |
