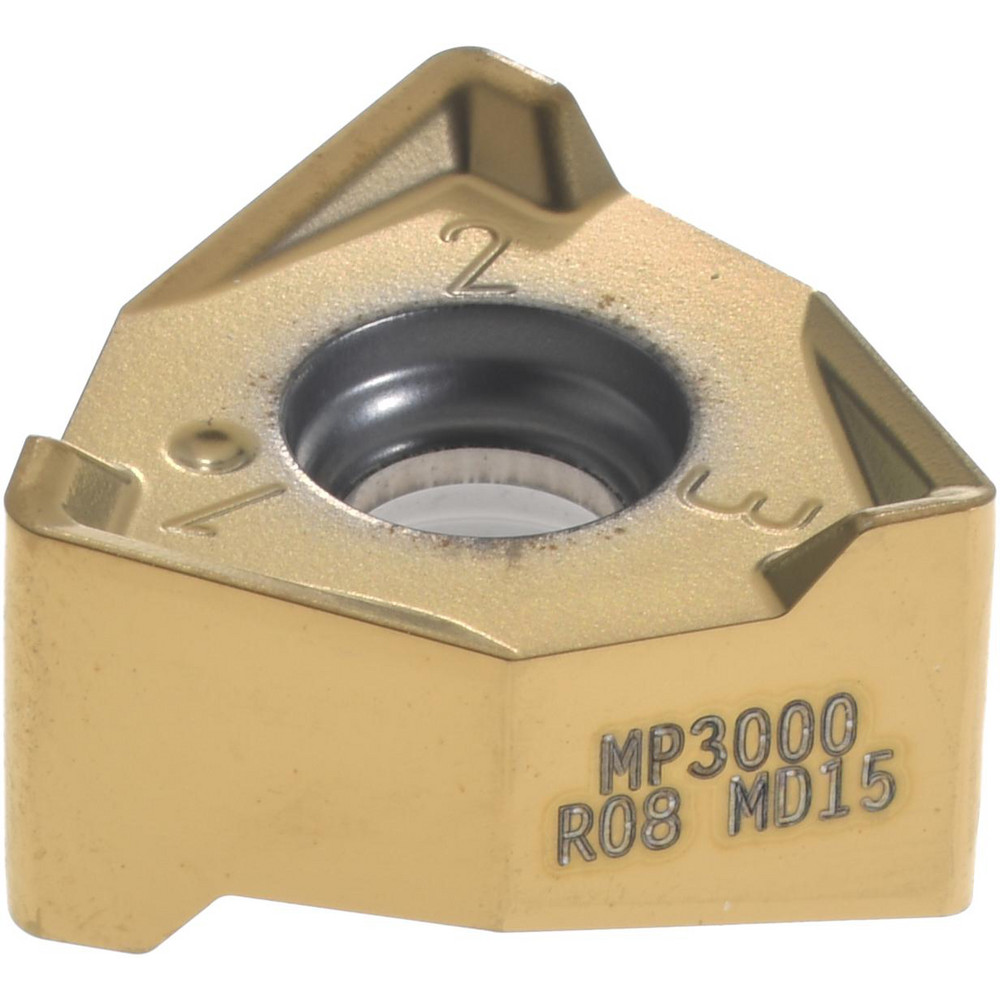

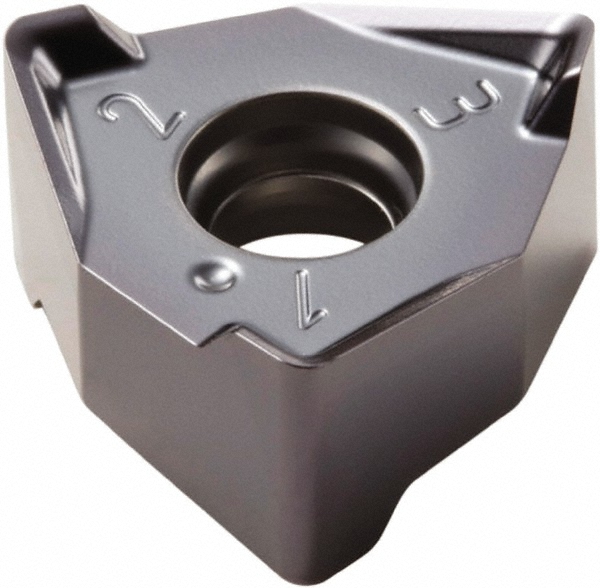

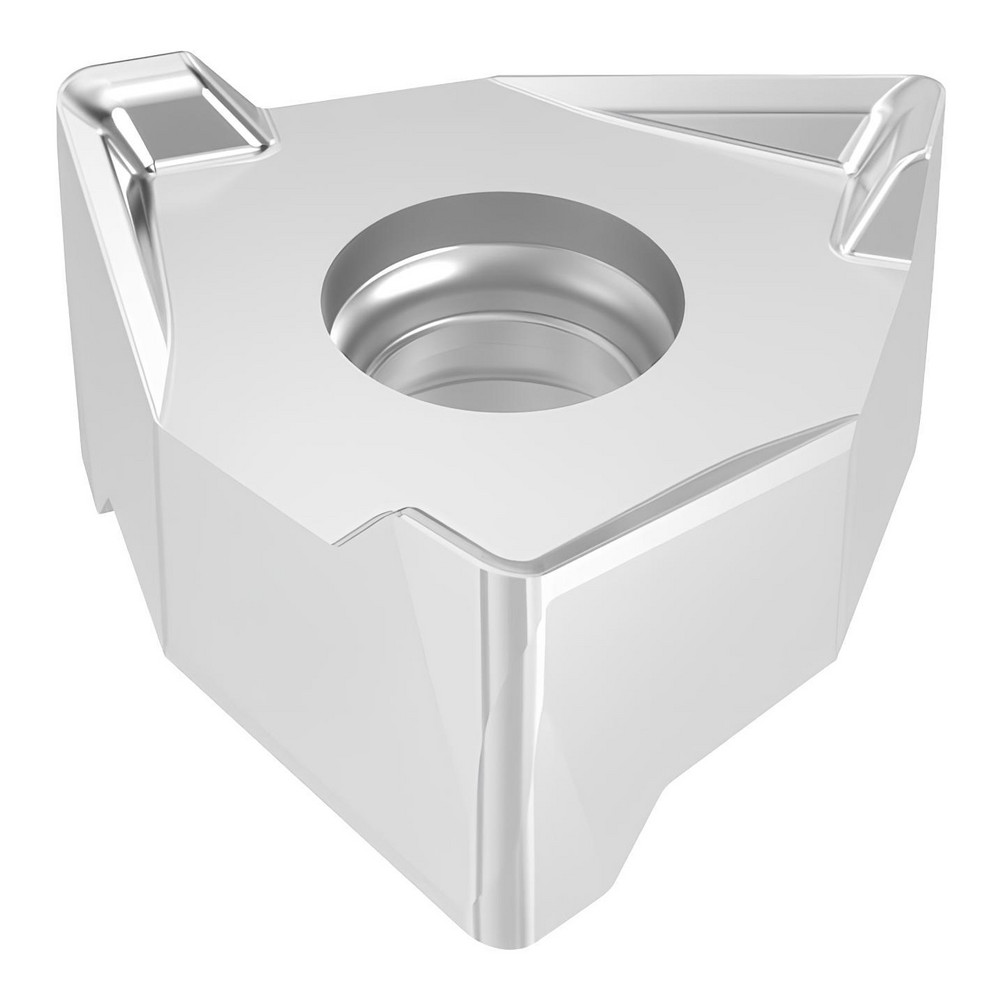

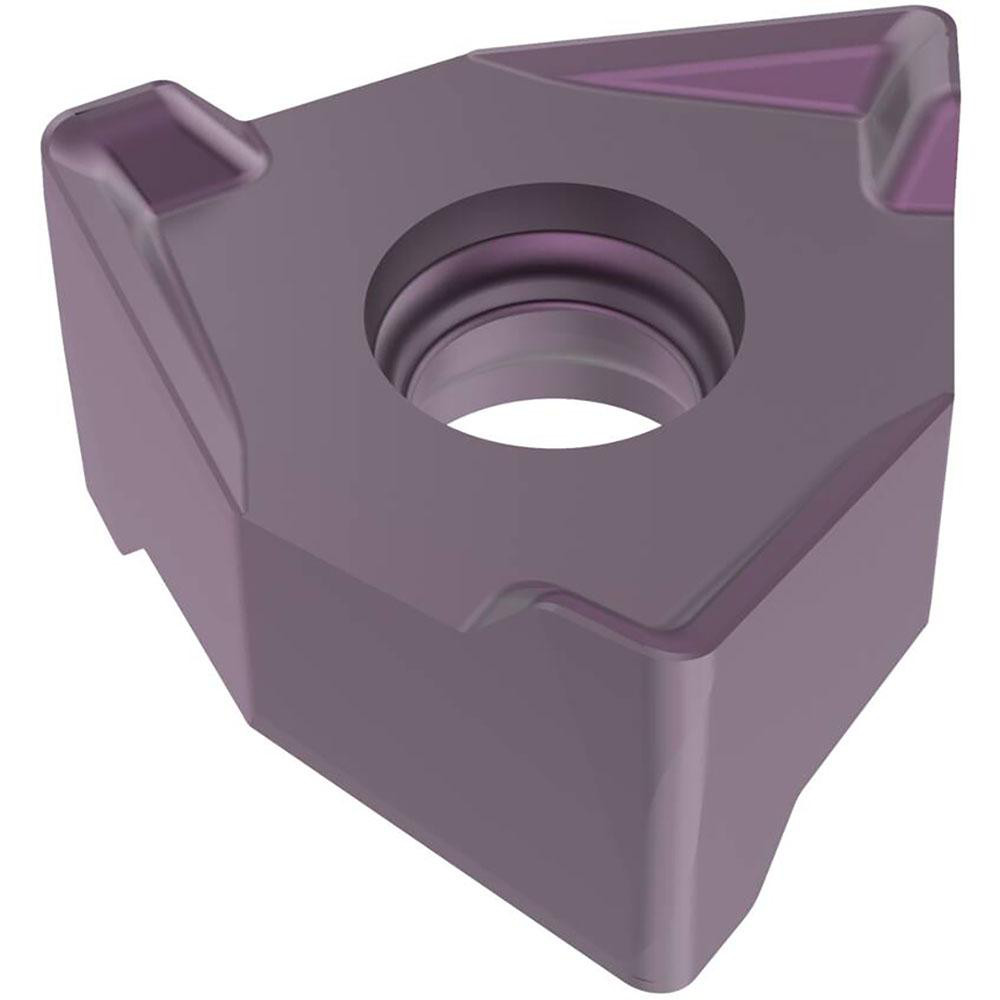

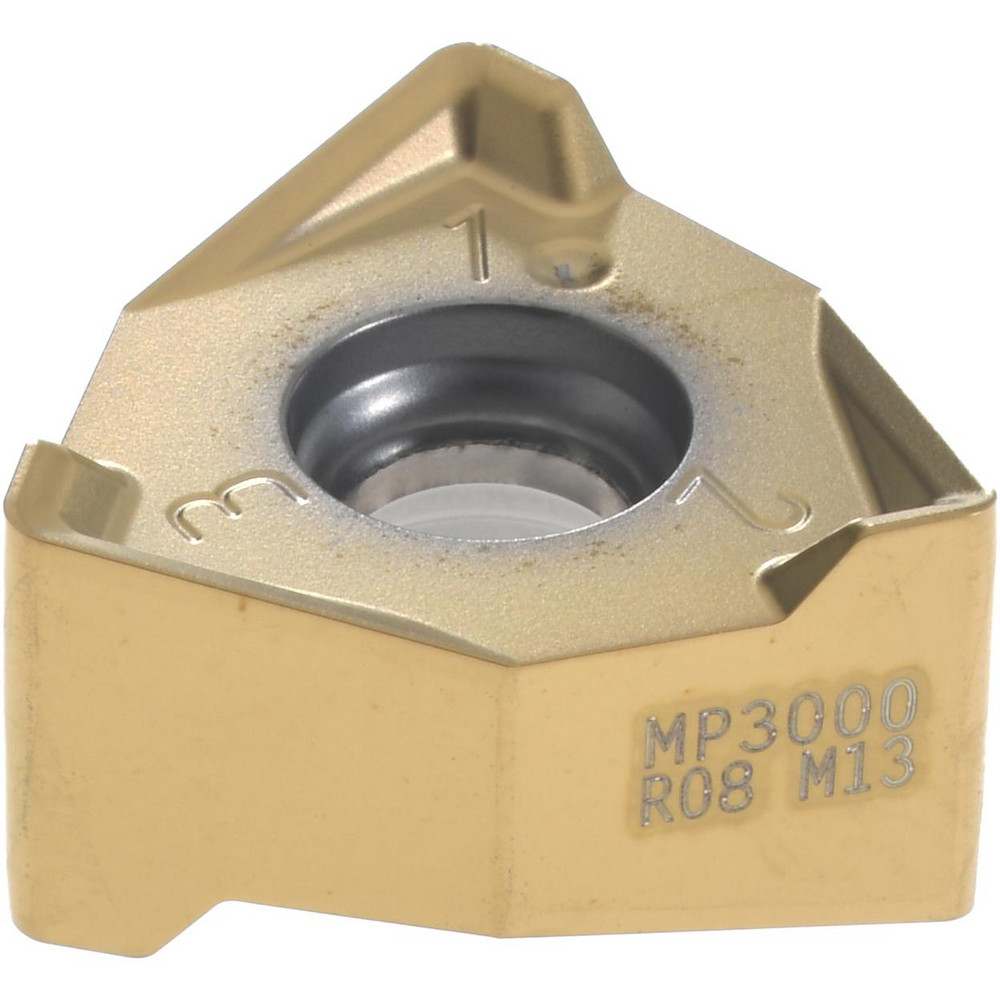

TiSiN & TiAlN Finish, 0.2539" Thick, 0.4913" Wide
| Insert Style | XNEX |
|---|---|
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | MK2050 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2539 |
| Coating/Finish | TiSiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 080608 |
| Material Grade | Medium Grain |
| Thickness (Inch) | 1/4 |

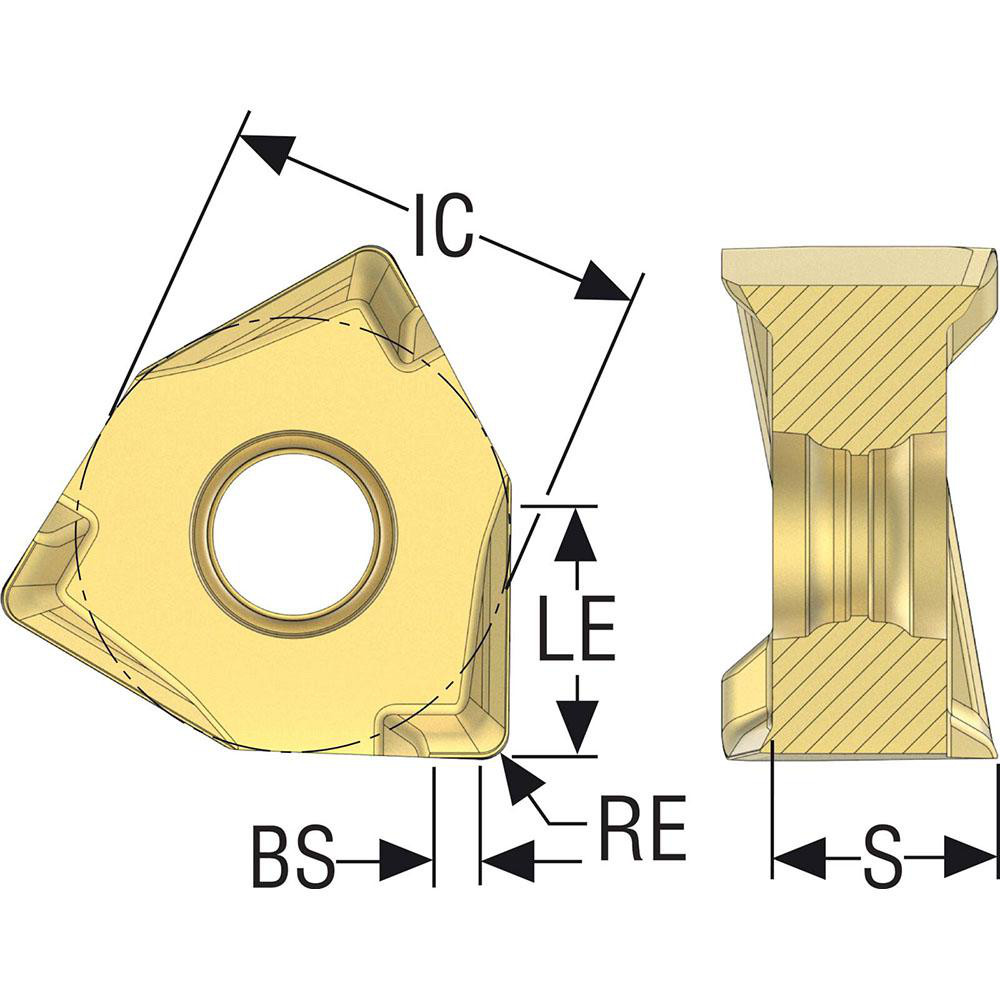

| Inscribed Circle (Decimal Inch) | 0.4913 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Series | XNEX-08 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2953 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Hard Material; Steel |
| Secondary Workpiece Material Code | P; H |
| Ansi Code | XNEX080608TR-M13 |
| Iso Code | XNEX080608TR-M13 |
| Standards | ISO |
| Rake Angle | 22 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | XNEX080608TR-M13 |
| Cutter Series Compatibility | R220.96-08 |
| Chip Breaker | M13 |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Cast Iron; Steel |
| Shape | Trigon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 88.28 |
| Width (Decimal Inch - 4 Decimals) | 0.4913 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2953 |
| Country of Origin | Sweden |
| MSC Number | MSC# 65947160 |
