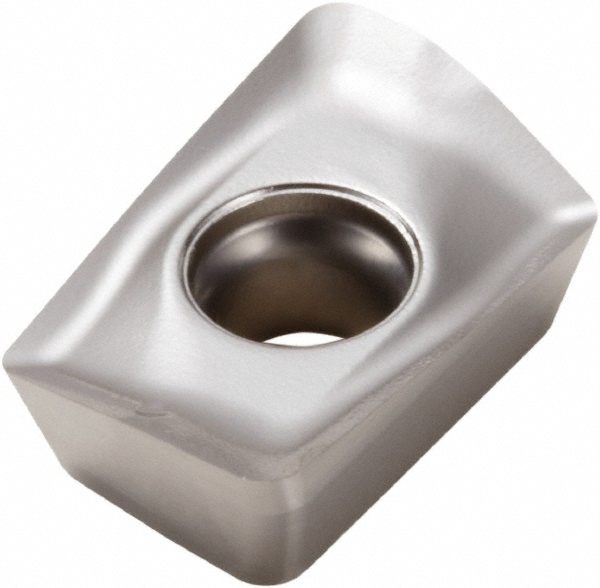

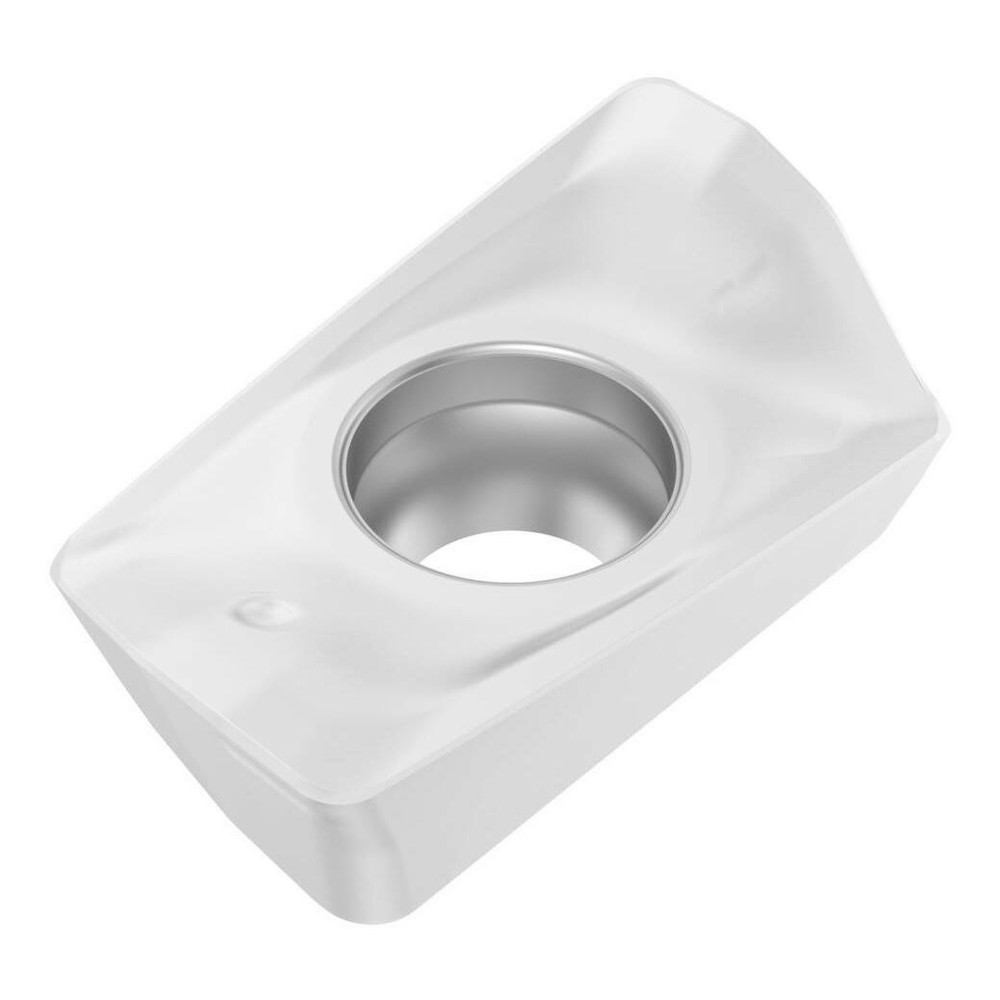

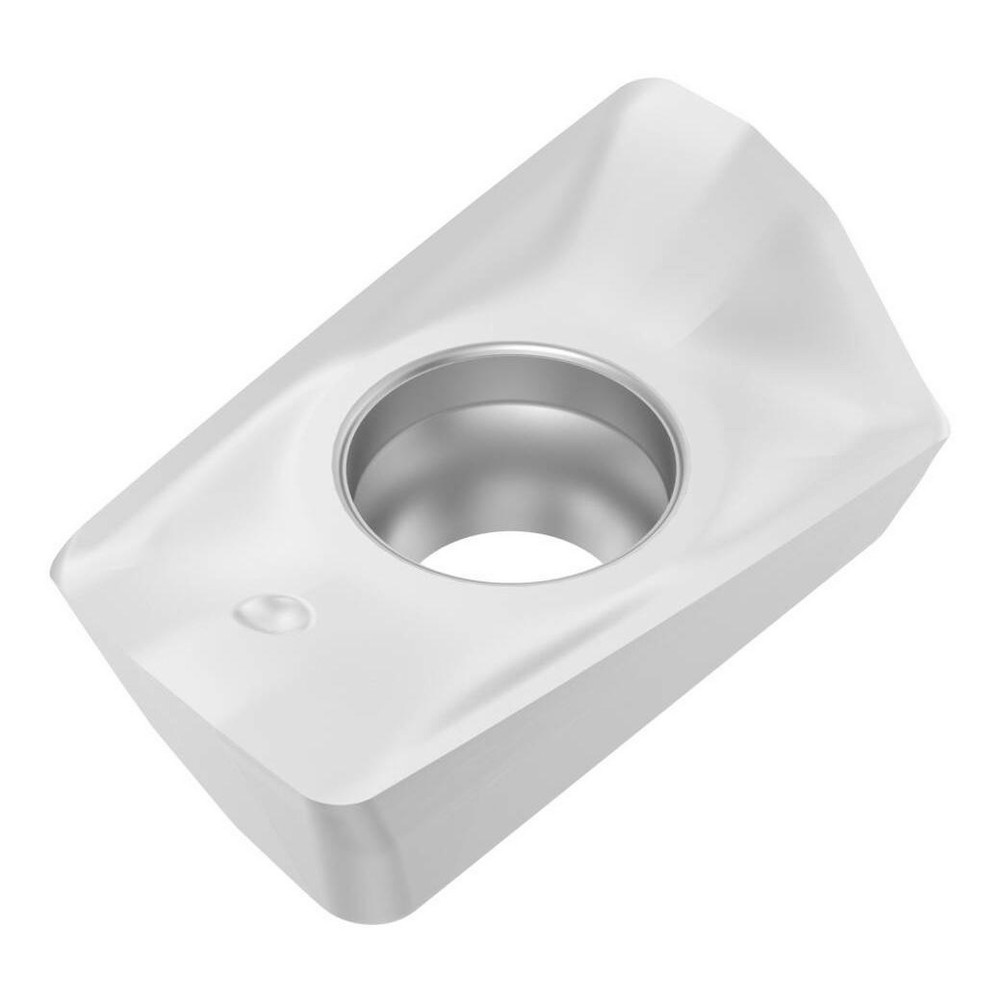

TiAlN & NbN Finish, 0.2323" Thick, 0.4016" Wide
| Insert Style | XOEX |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | MS2050 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2323 |
| Coating/Finish | NbN; TiAlN |
| Relief Angle | 15.20 |
| Insert Size Code | 160516 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.4016 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6063 |
| Series | XOEX-16 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6063 |
| Rake | Positive |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | XOEX160516R-M09 |
| Iso Code | XOEX160516R-M09 |
| Standards | ISO |
| Rake Angle | 14 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | XOEX160516R-M09 |
| Cutter Series Compatibility | R220.69-XO16; R217.69-XO16 |
| Chip Breaker | M09 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4016 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6063 |
| Country of Origin | Sweden |
| MSC Number | MSC# 14419600 |
