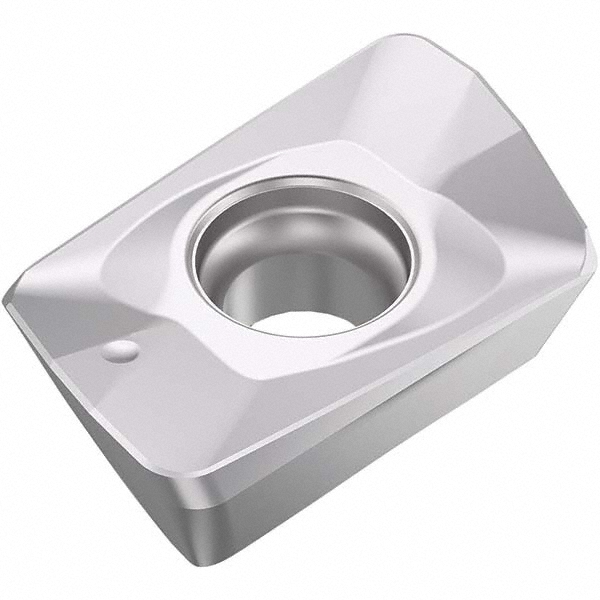

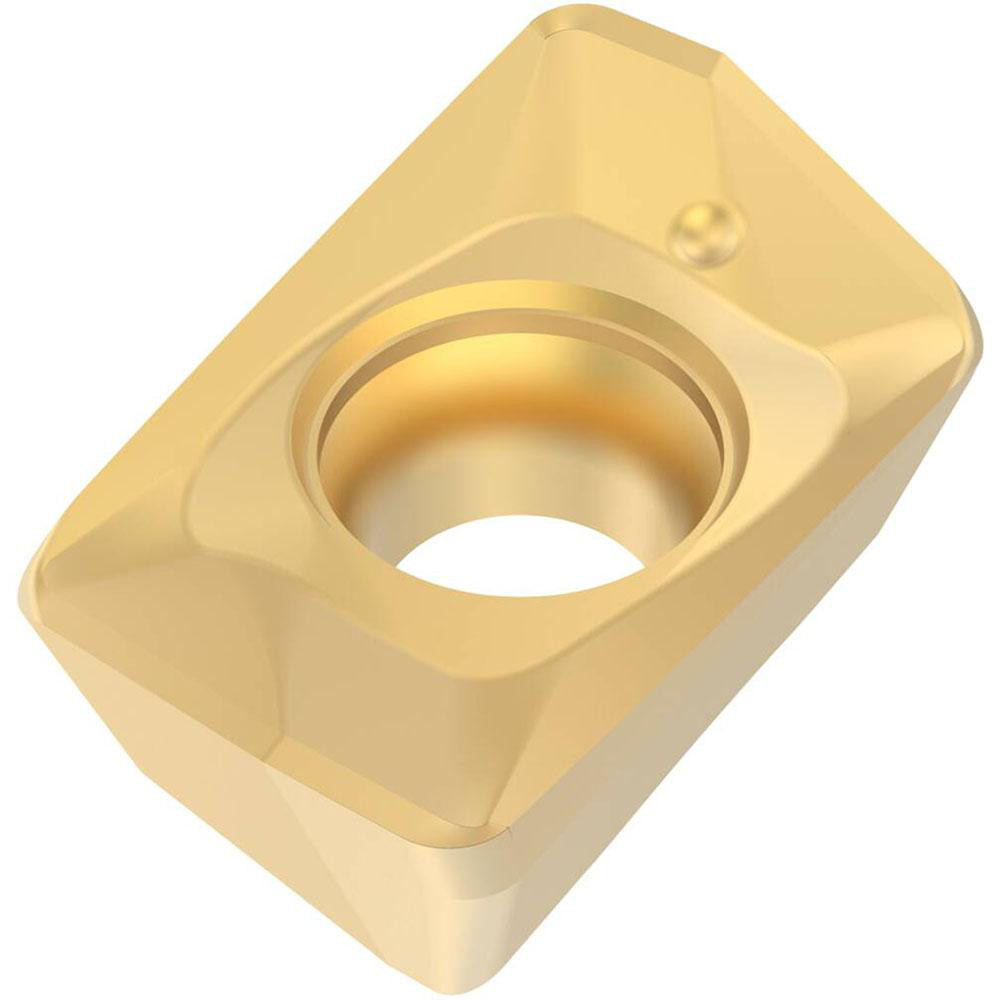

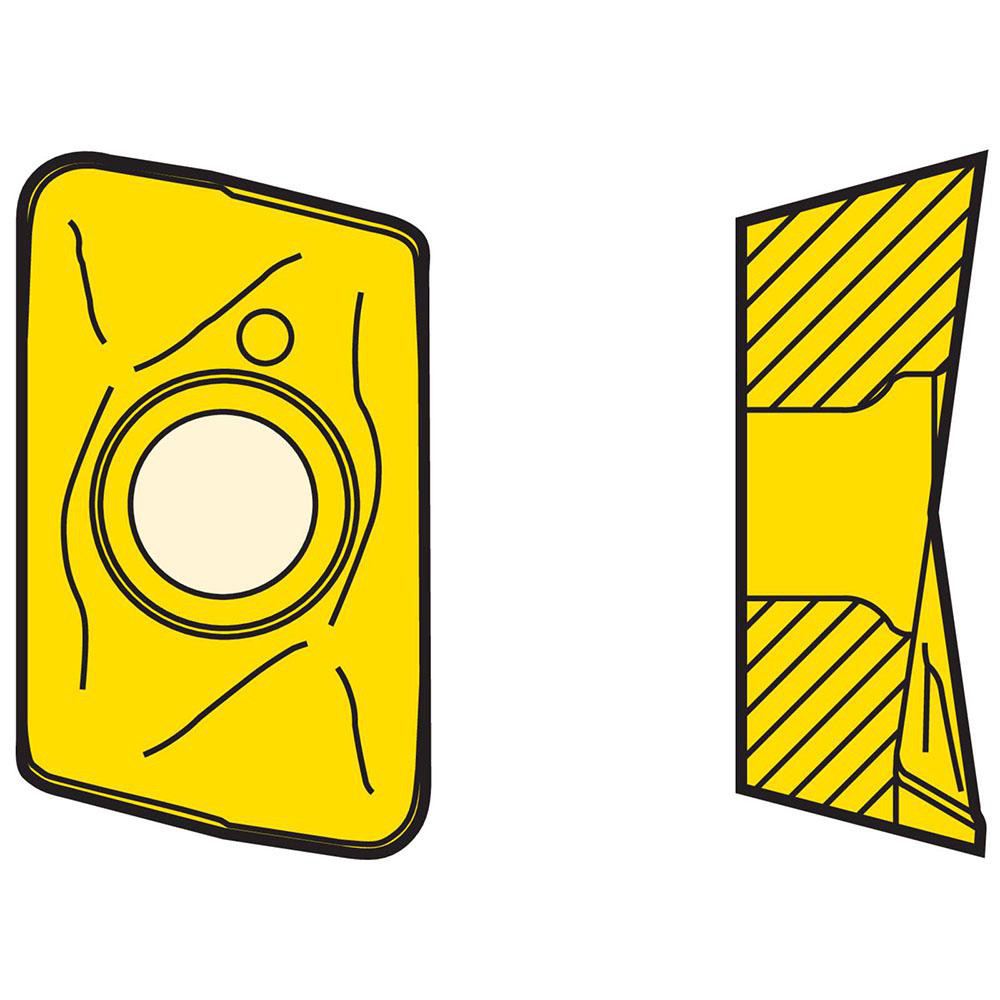

TiCN & Al2O3 Finish, 3.83 mm Thick, 6.90 mm Wide
| Insert Style | XOMX |
|---|---|
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | MP2501 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1508 |
| Thickness (mm) | 3.83 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 10T308 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.2717 |
| Inscribed Circle (mm) | 6.90 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3661 |
| Maximum Depth of Cut (mm) | 4.65 |
| Series | XOMX-10 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.12 |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3661 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Ansi Code | XOMX10T308TR-M09 |
| Iso Code | XOMX10T308TR-M09 |
| Standards | ISO |
| Rake Angle | 10.6 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | XOMX10T308TR-M09 |
| Cutter Series Compatibility | R220.69-10; R217.69-10 |
| Chip Breaker | M09 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 9.30 |
| Width (Decimal Inch - 4 Decimals) | 0.2717 |
| Width (mm - 2 Decimals) | 6.90 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3661 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 96598933 |
