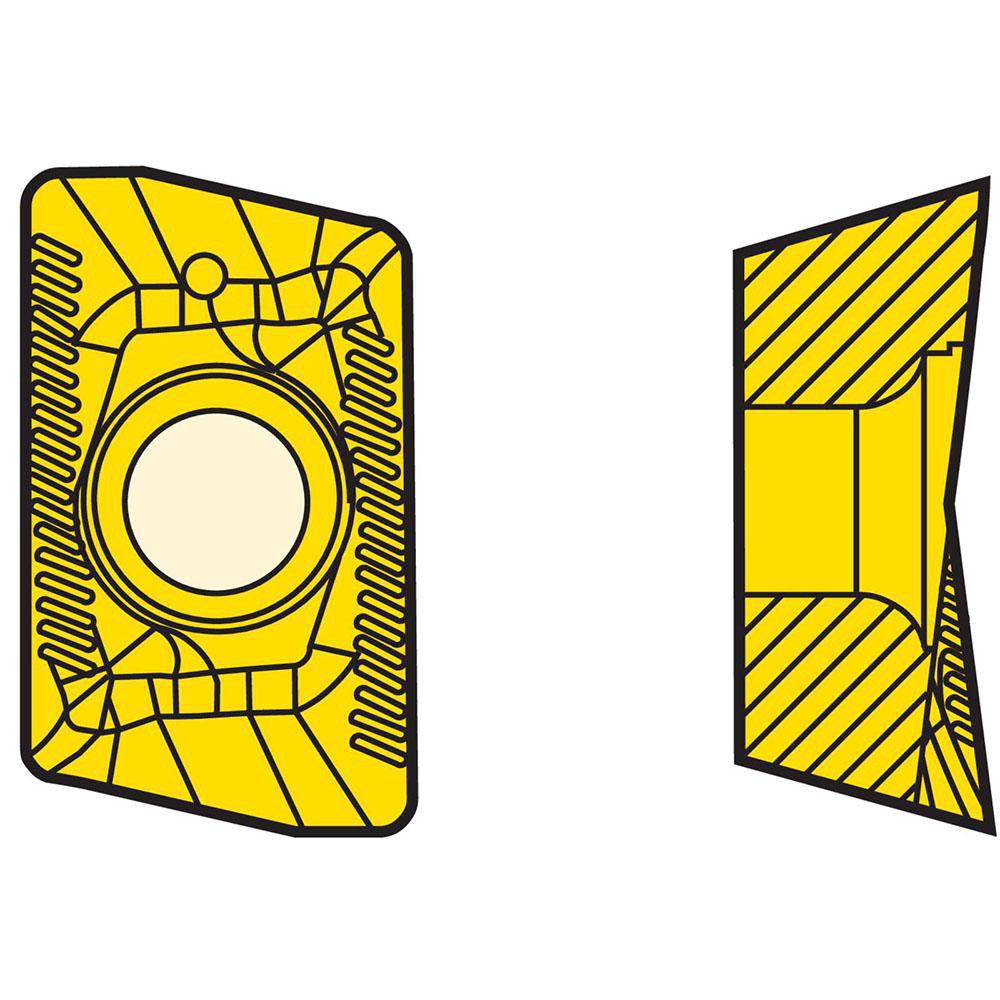

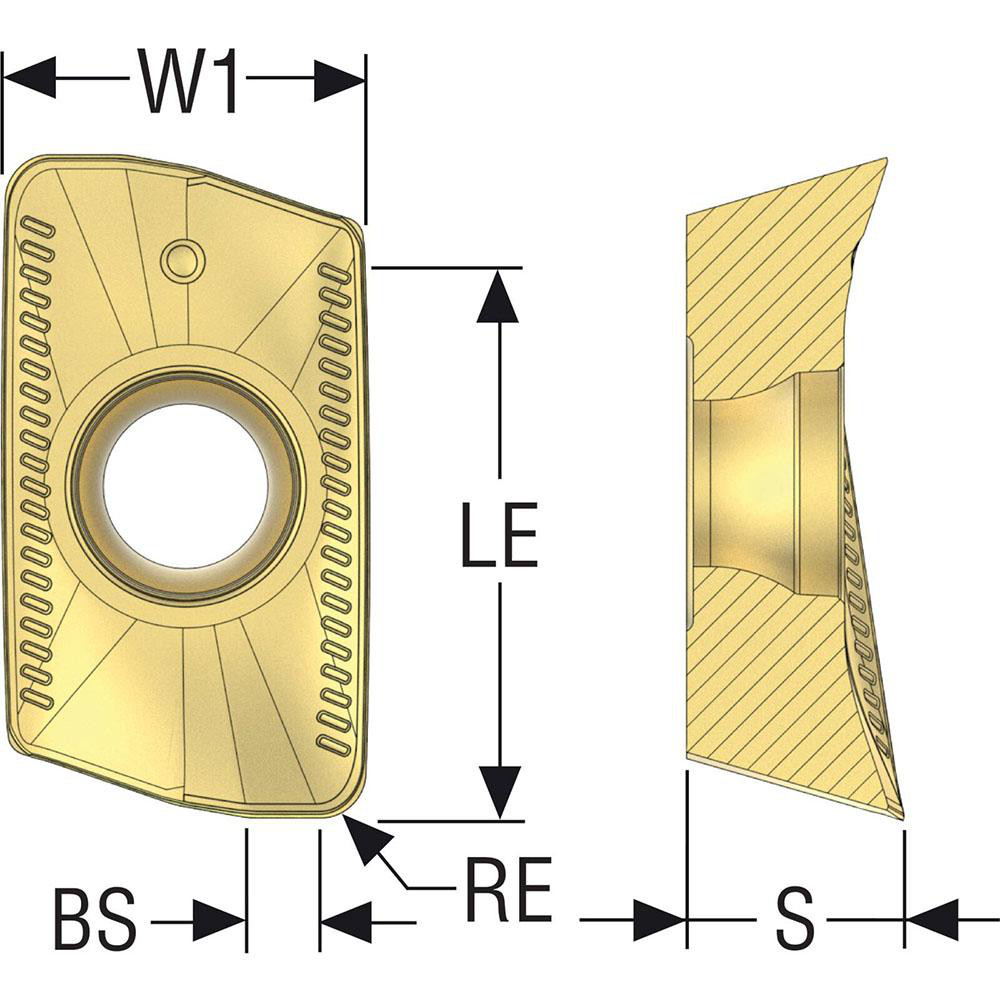

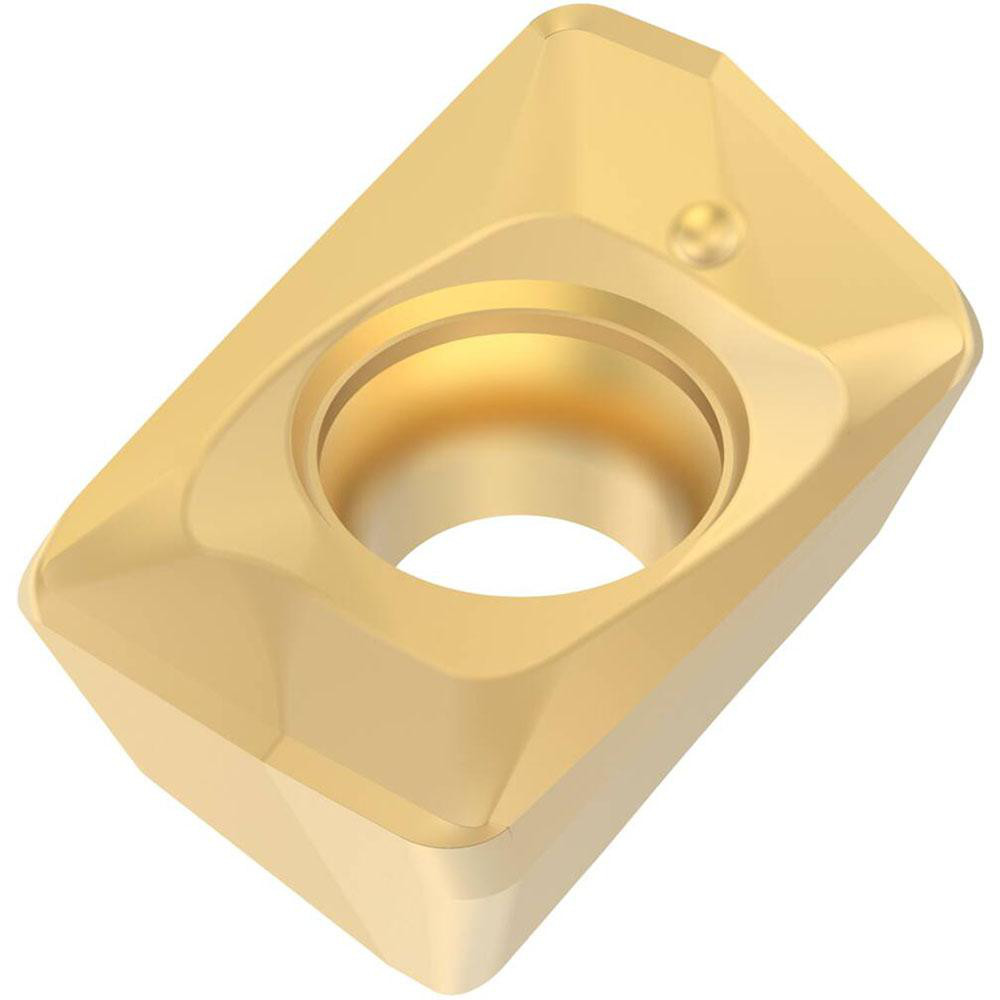

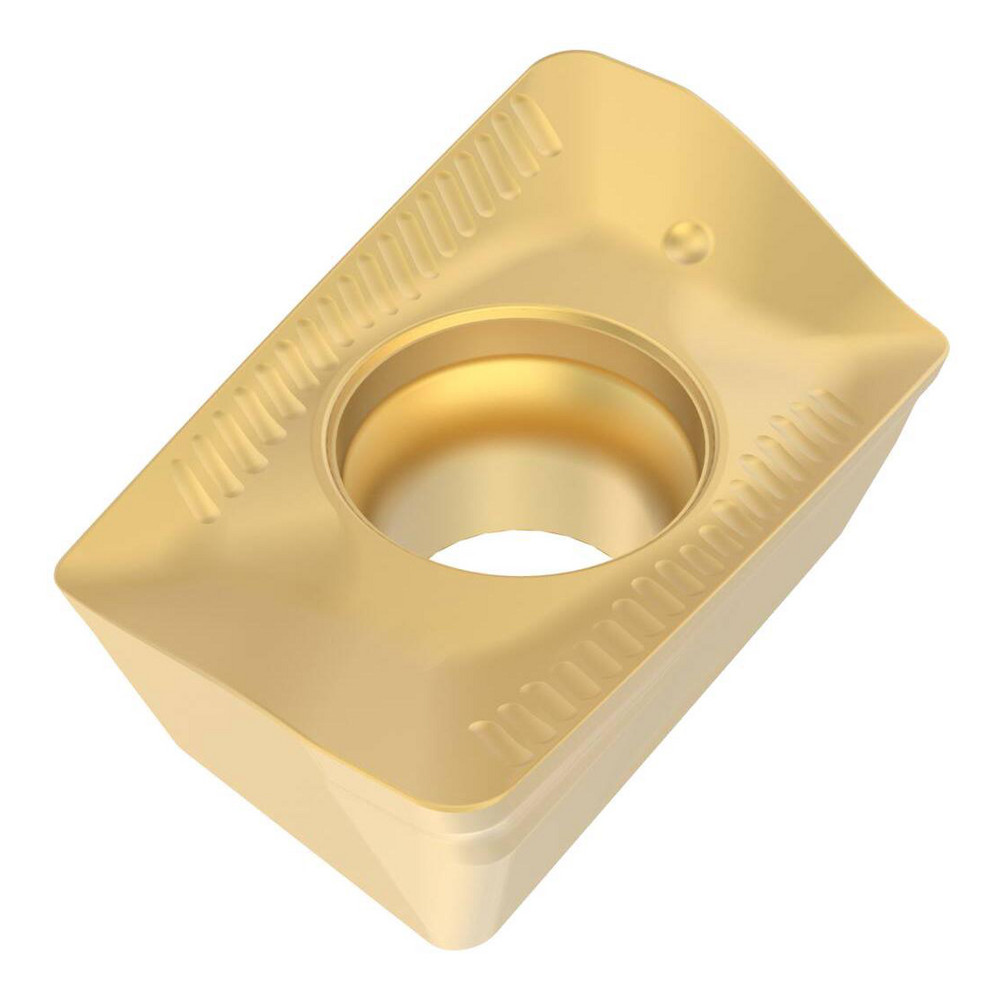

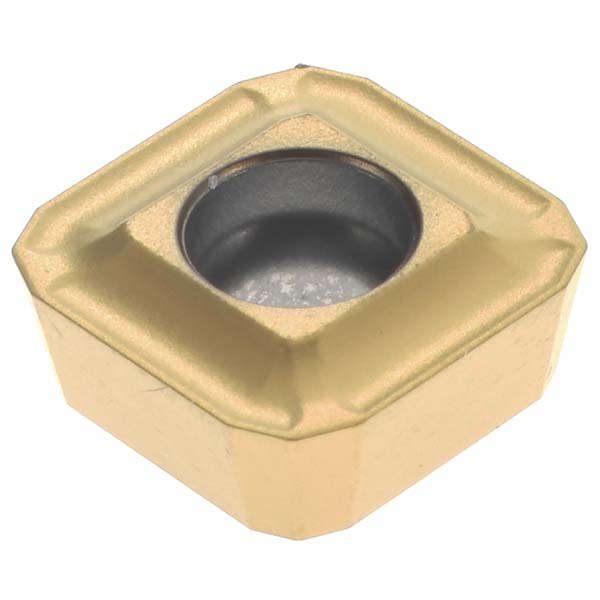

TiAlN & TiN Finish, 0.1996" Thick, 0.3228" Wide
| Insert Style | XOMX |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.1220 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1996 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 15.00 |
| Insert Size Code | 120431 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.3228 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4567 |
| Series | XOMX-12 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1535 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4567 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | XOMX120431TR-ME08 |
| Iso Code | XOMX120431TR-ME08 |
| Standards | ISO |
| Rake Angle | 20.1 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | XOMX120431TR-ME08 |
| Cutter Series Compatibility | R217.69-12; R220.69-12 |
| Chip Breaker | ME08 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3228 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4567 |
| Country of Origin | Sweden |
| MSC Number | MSC# 85321255 |
