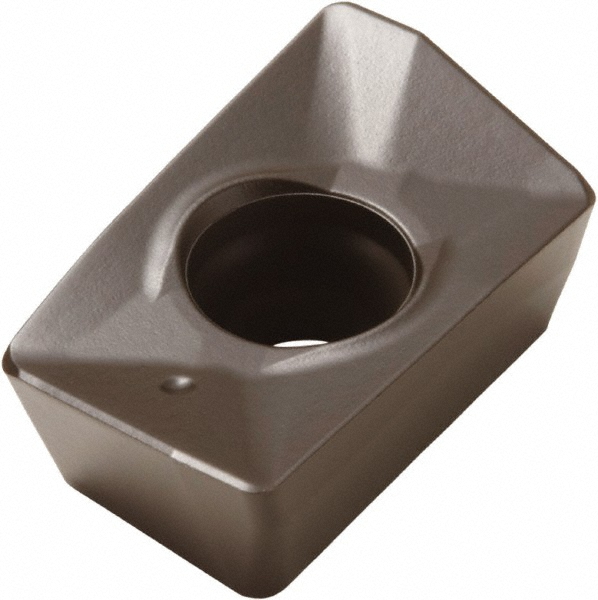

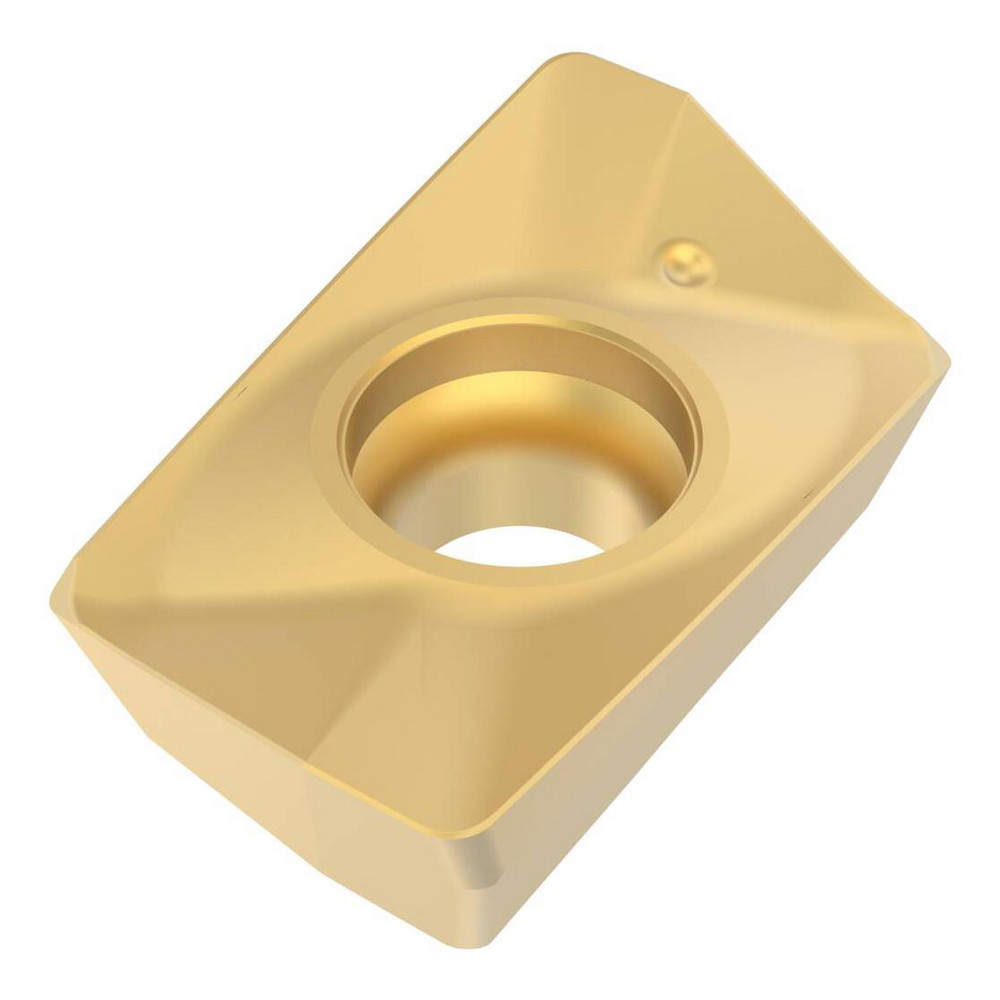

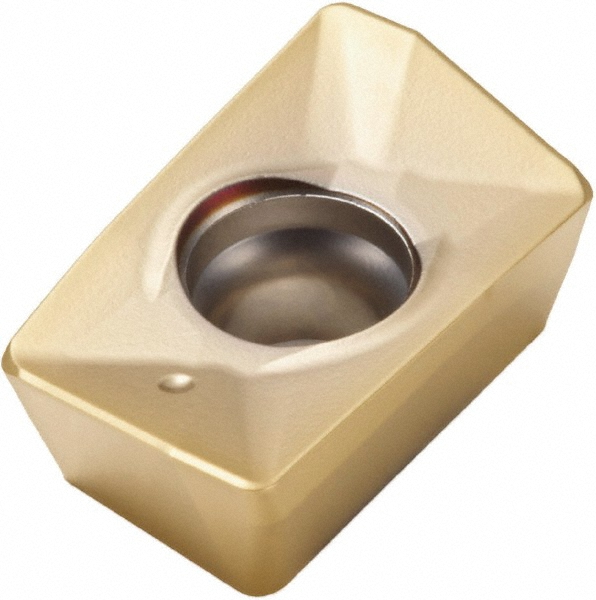

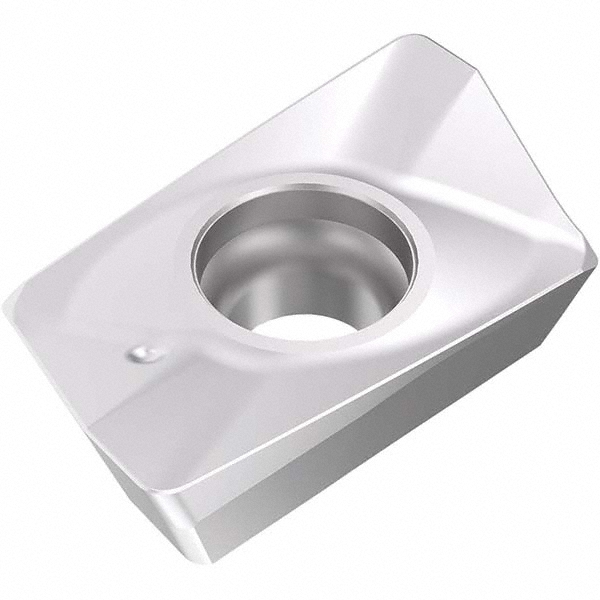

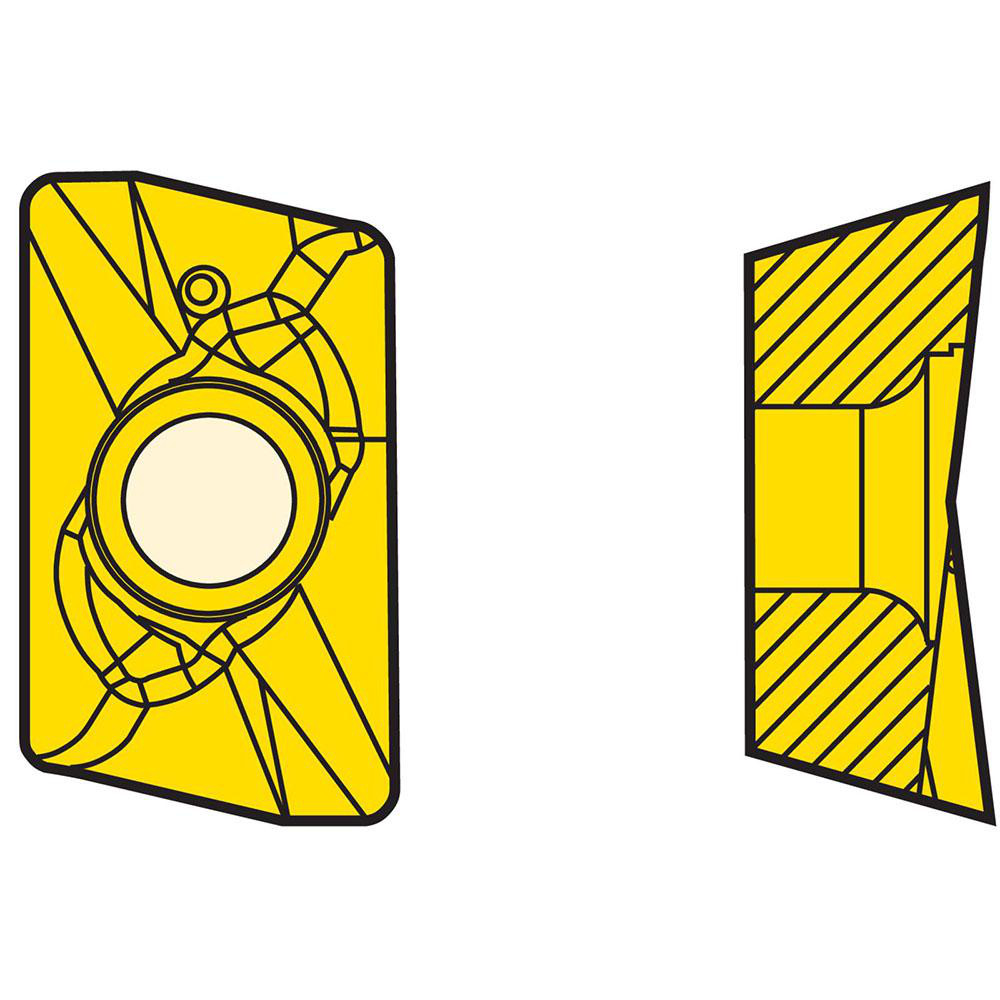

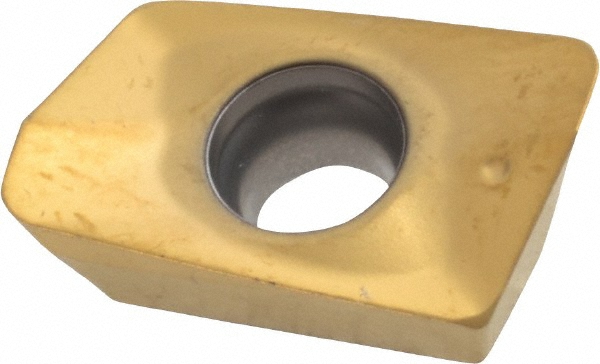

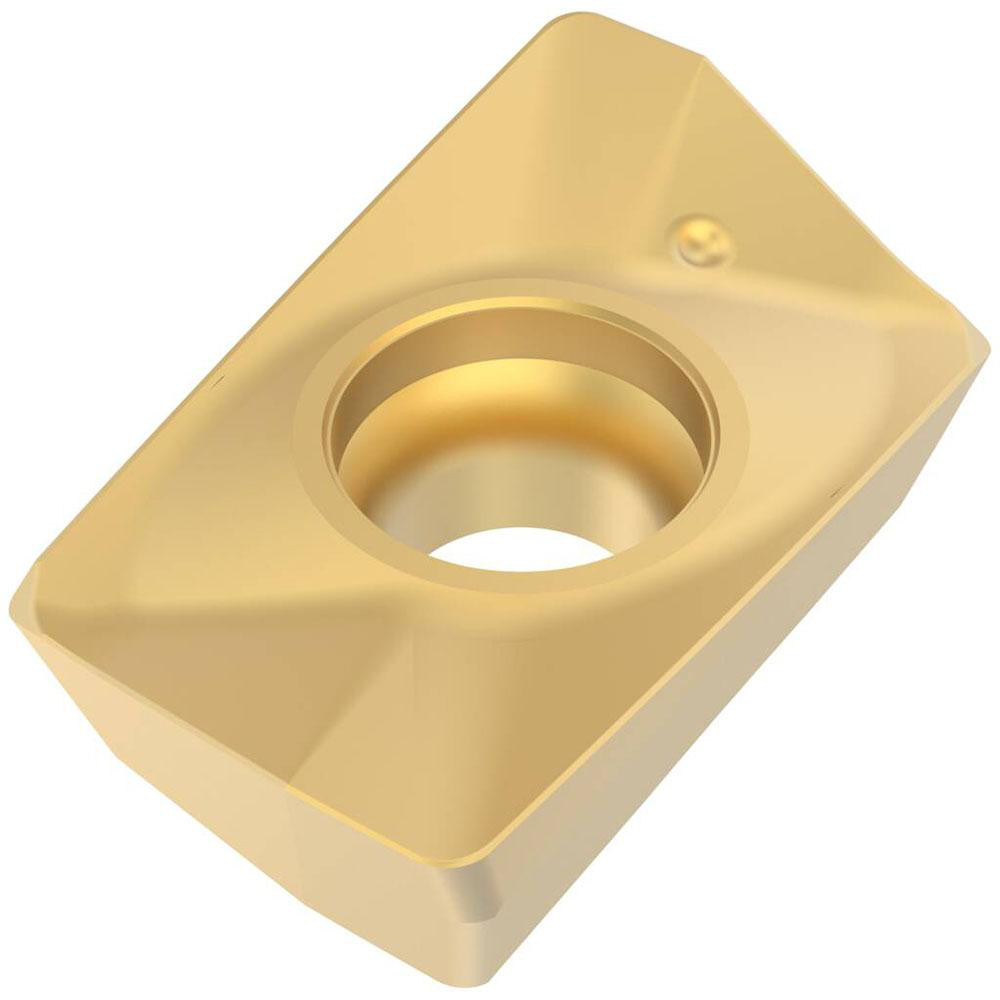

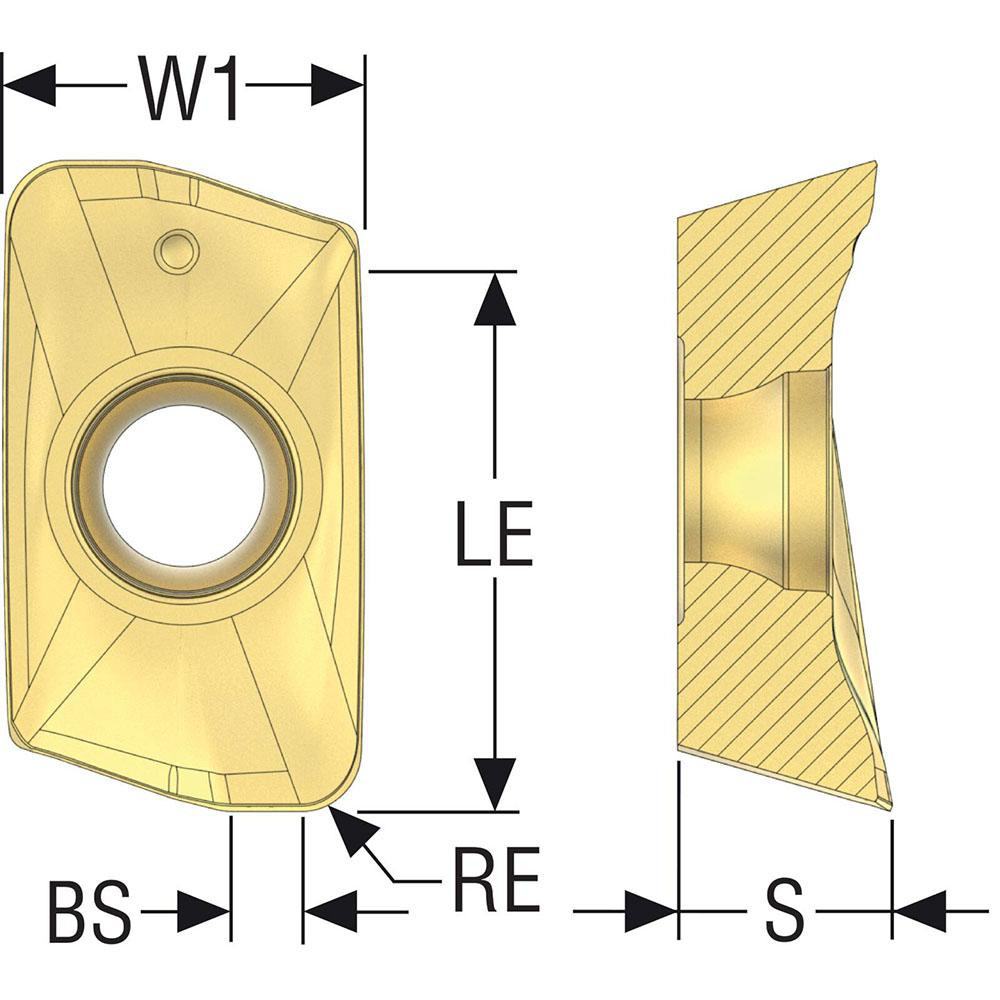

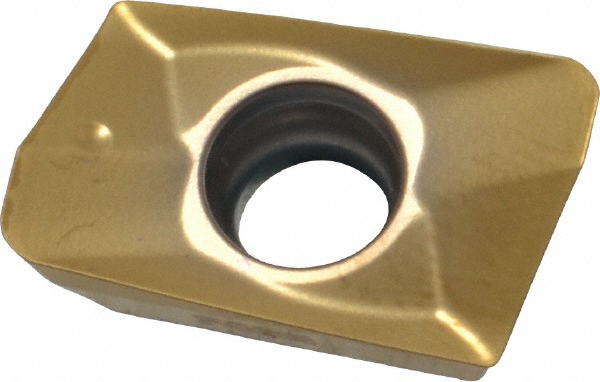

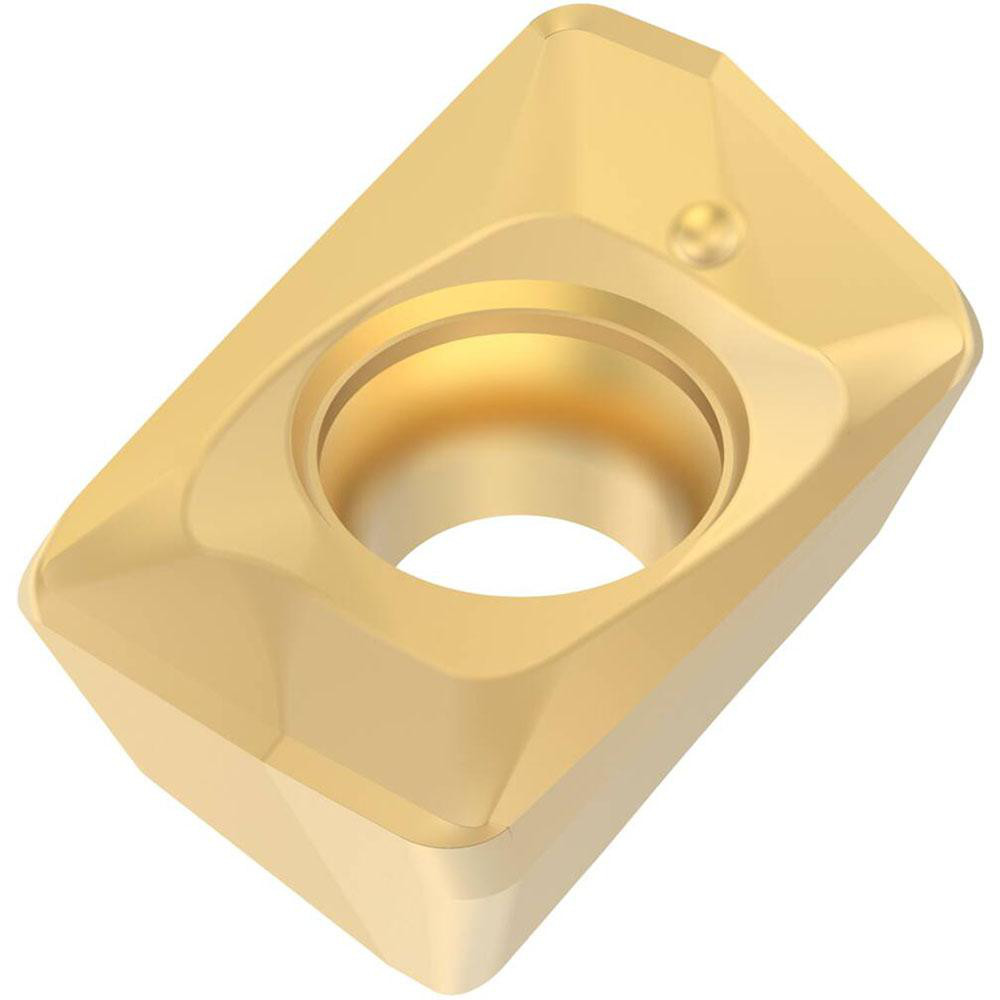

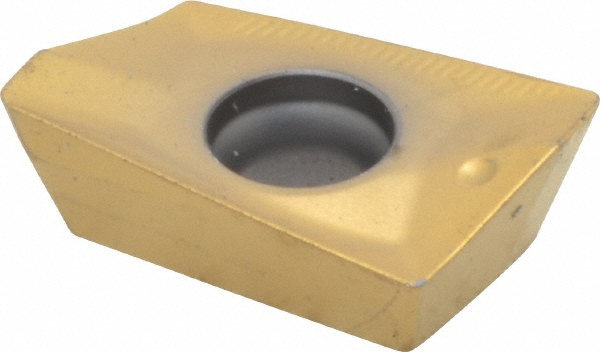

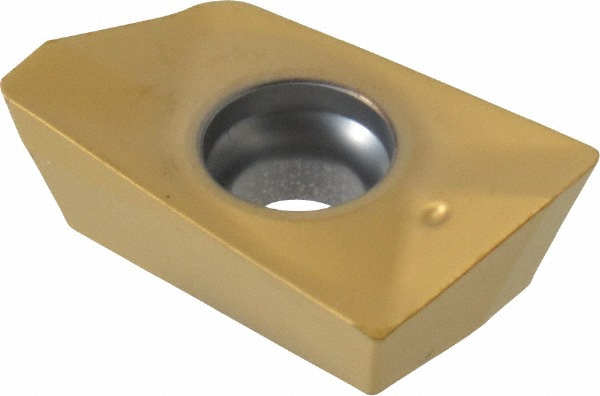

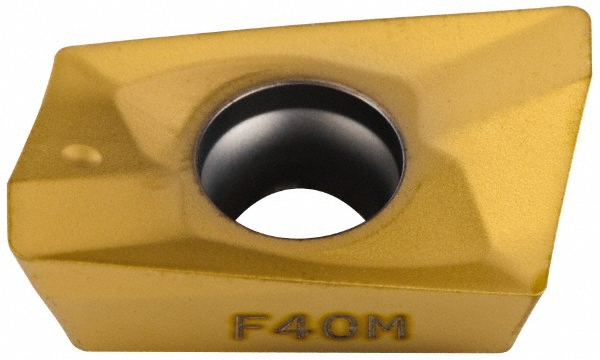

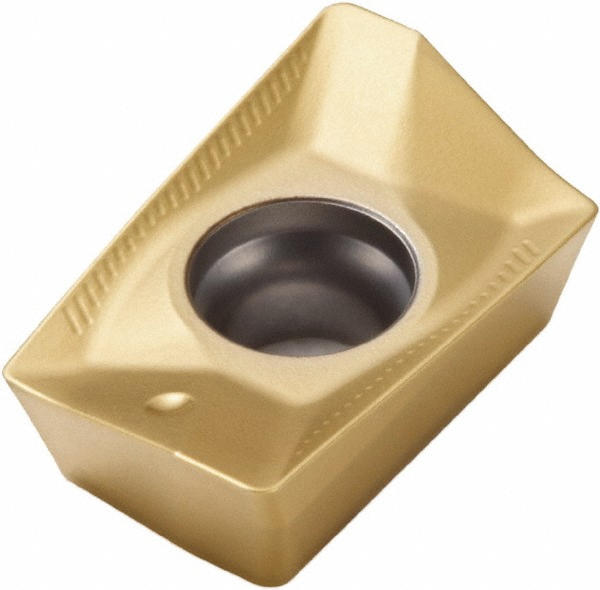

TiAlN & TiN Finish, 0.2520" Thick, 0.4409" Wide
| Insert Style | XOMX |
|---|---|
| Insert Size | 18 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.0630 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2520 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 15.00 |
| Insert Size Code | 180616 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.4409 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Series | XOMX-18 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6693 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | XOMX180616TR-M14 |
| Iso Code | XOMX180616TR-M14 |
| Standards | ISO |
| Rake Angle | 15 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | XOMX180616TR-M14 |
| Cutter Series Compatibility | R220.69-18; R217.69-18 |
| Chip Breaker | M14 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4409 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6693 |
| Country of Origin | Sweden |
| MSC Number | MSC# 82675638 |
