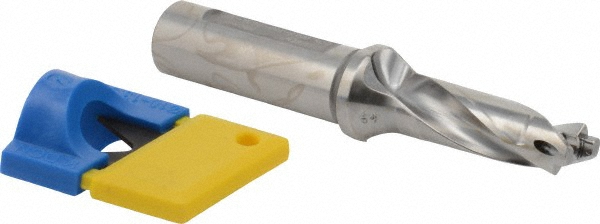

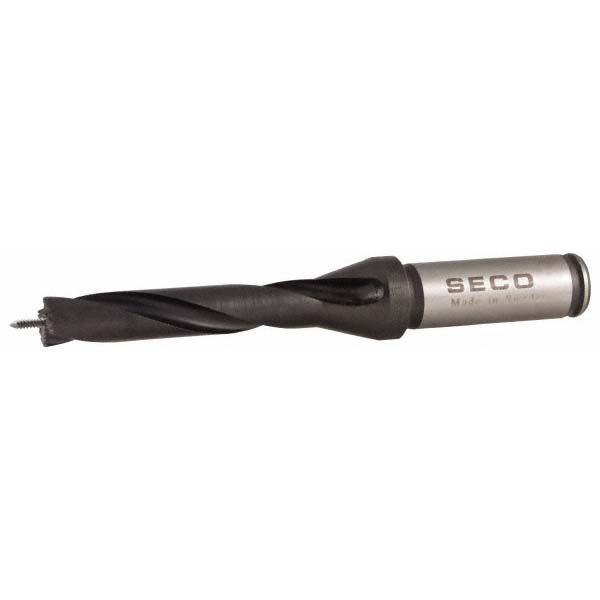

7.461" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
|---|---|
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 110.00 |
| Maximum Drill Depth (Decimal Inch) | 4.3307 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |
| Overall Length (Decimal Inch) | 7.461 |
| Series | CROWNLOC |
| Toolholder Style | SD107 |
| Flute Length (Decimal Inch) | 4.8620 |
| Body Length (Decimal Inch) | 5.571 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Holemaking |
| Standards | ISO 9766 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Coating/Finish | TiAlN |
| Country of Origin | Sweden |
| MSC Number | MSC# 02326445 |
