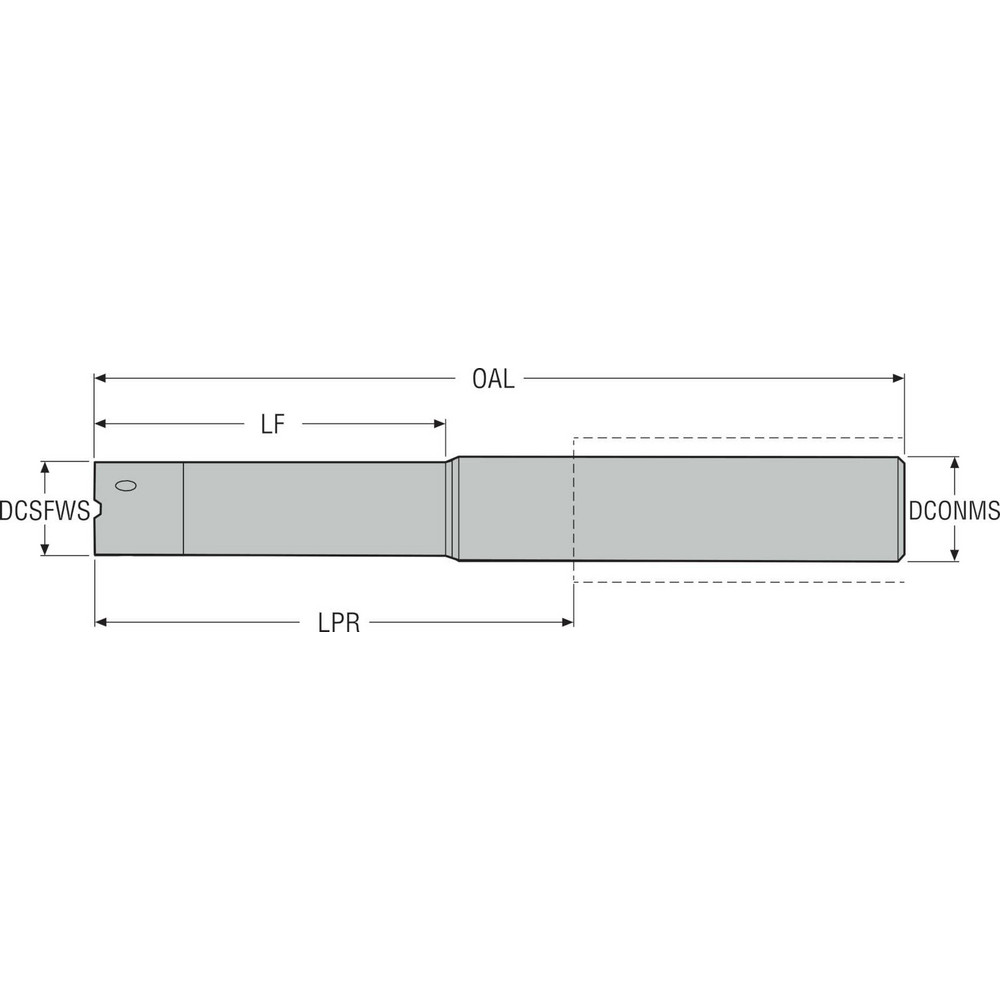

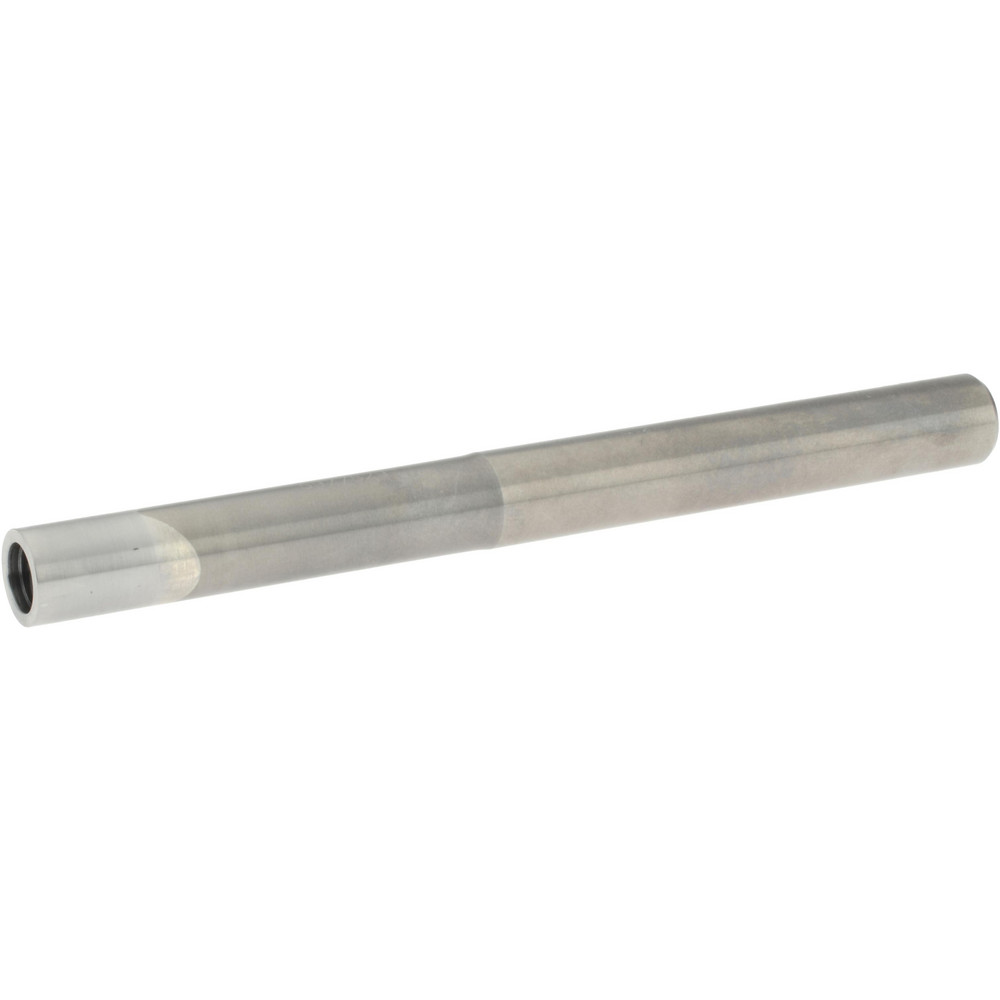

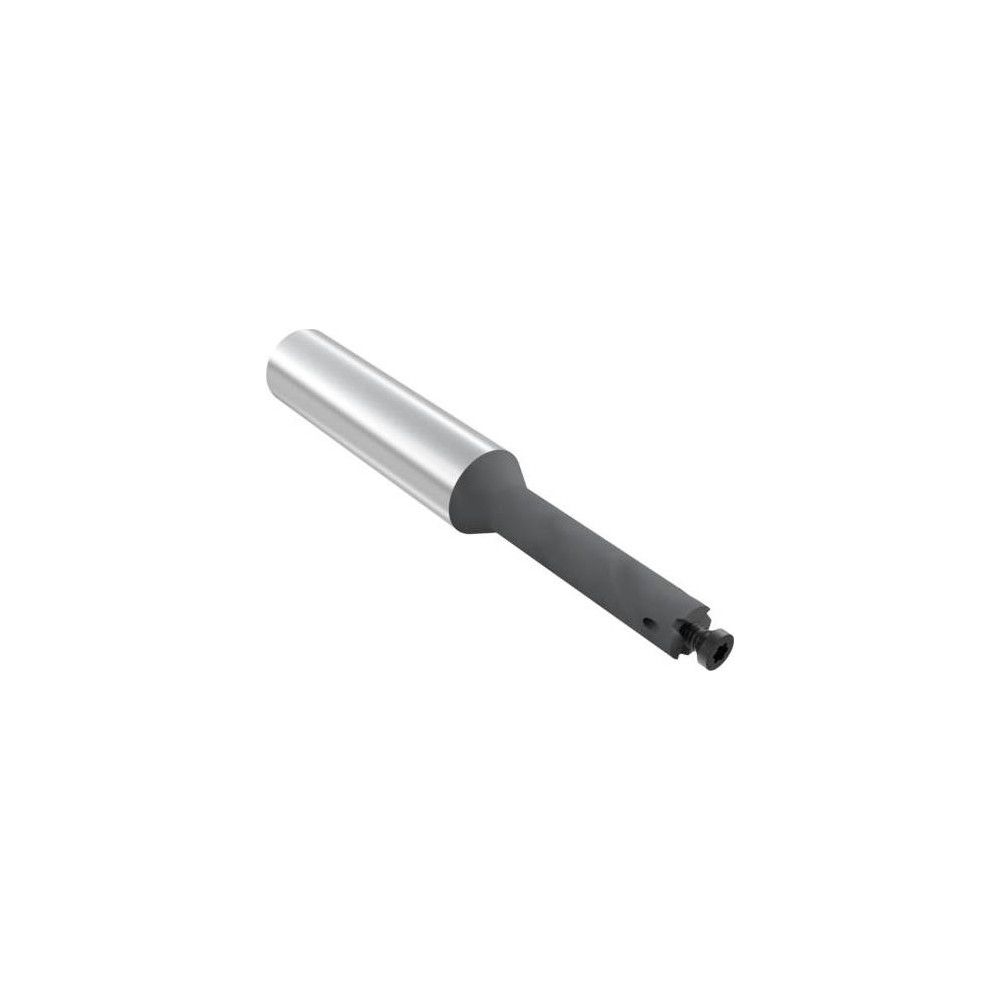

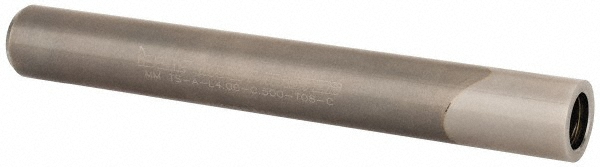

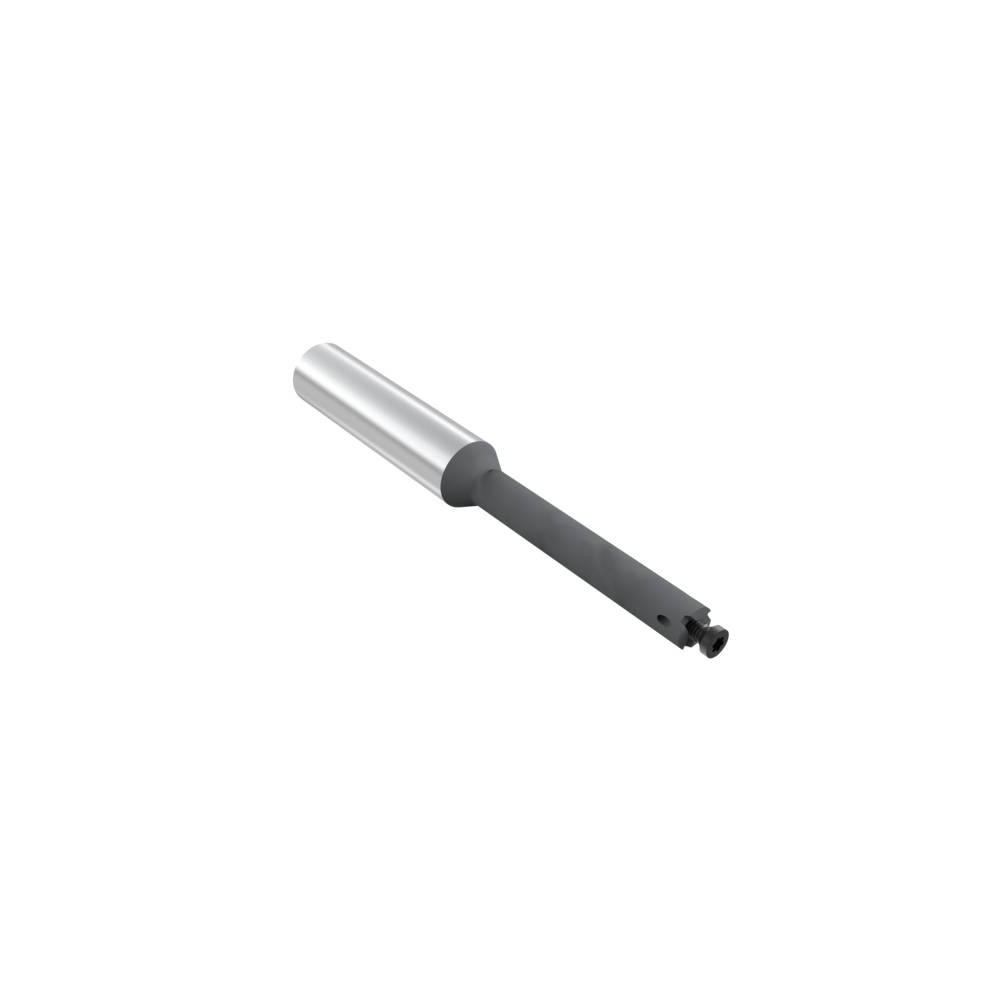

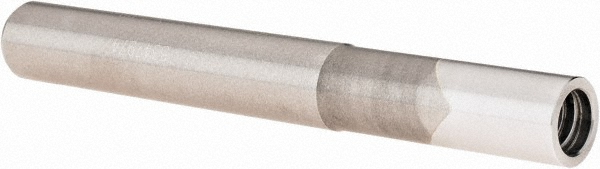

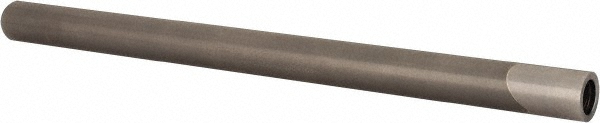

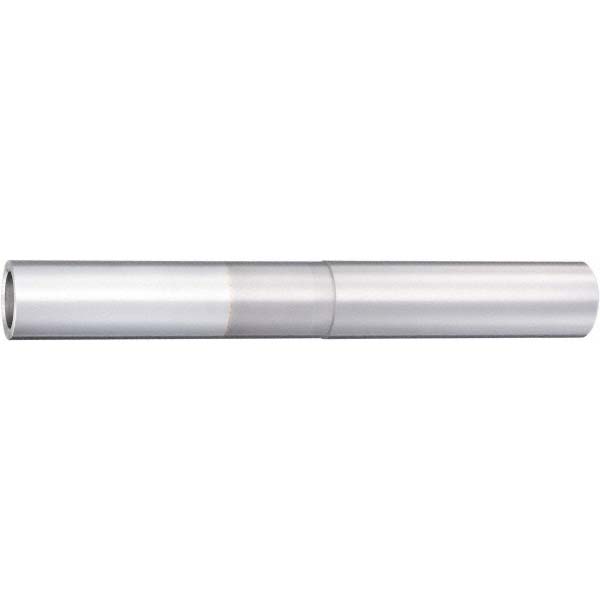

M3.5 Neck Thread, 0.315" Neck Dia, 4.15" OAL, Solid Carbide
| Shank Type | Straight |
|---|---|
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Neck Thread Size | M3.5 |
| Overall Length (Decimal Inch) | 4.1500 |
| Tool Material | Solid Carbide |
| Neck Diameter (Decimal Inch) | 0.3150 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.3150 |
| Toolholder Style | 335.14 |
| Series | 335.14 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| For Use With | R335.14-x.08 |
| Projection (Decimal Inch) | 2.3820 |
| UNSPSC Code | 23291600 |
| Country of Origin | Germany |
| MSC Number | MSC# 29105897 |
