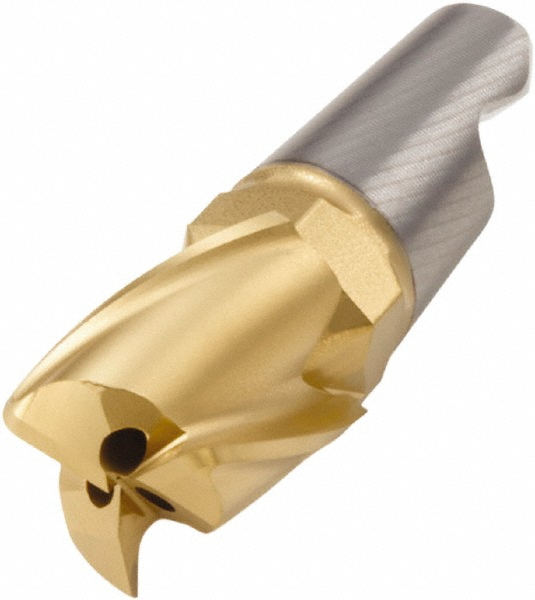

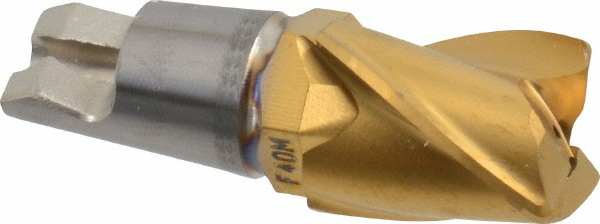

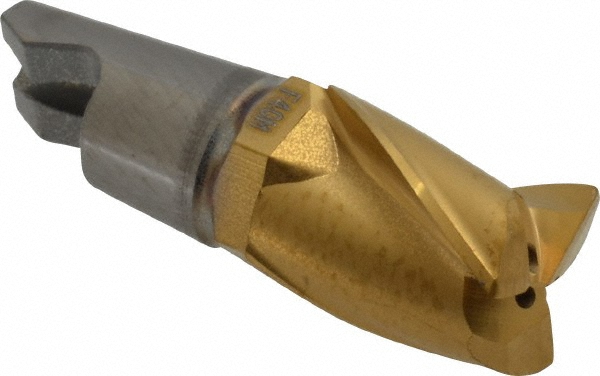

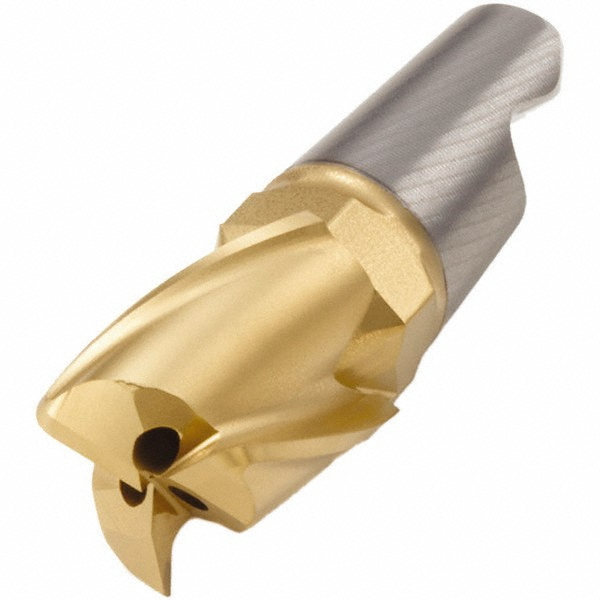

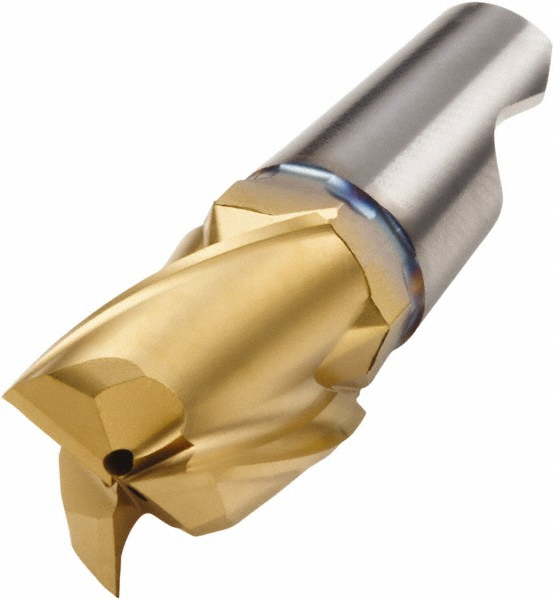

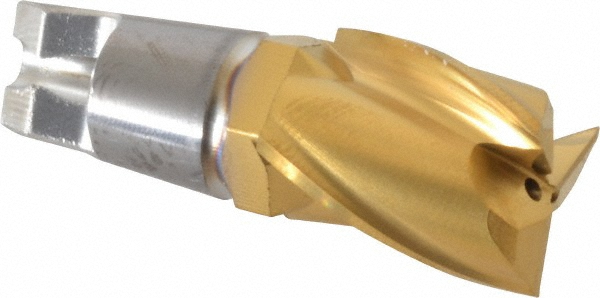

TiAlN & TiN, 3 Flutes, 0.4720" Cutting Dia, 0.6040" Max Depth of Cut, Series MM12
| Milling Tip Type | Slotting |
|---|---|
| Milling Tip Style | MM12 |

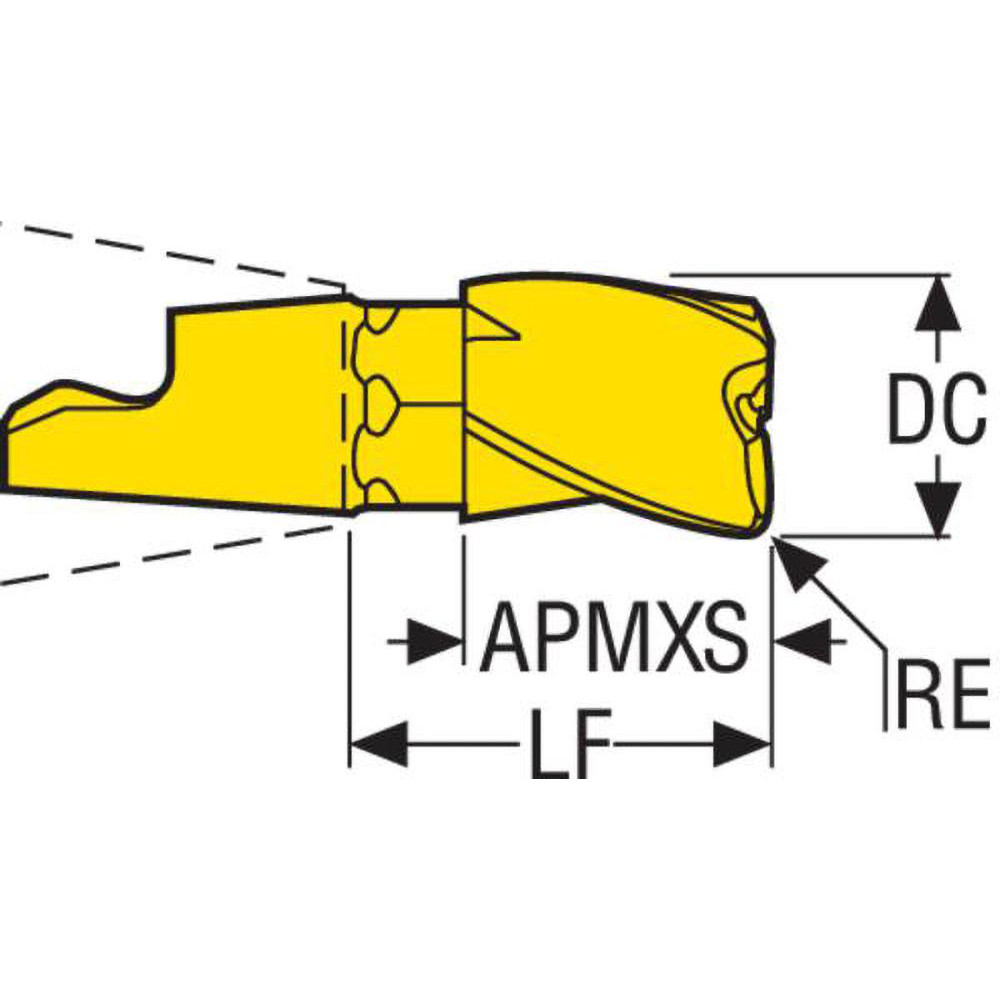

| Maximum Depth of Cut (Decimal Inch) | 0.6040 |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Tool Material | Carbide |
| Manufacturer Grade | F40M |
| Insert Hand | Right Hand |
| Chipbreaker | M04 |
| Series | MM12 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0200 |
| Cutting Width (Decimal Inch) | 0.472 |
| Functional Length (Decimal Inch) | 0.7830 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M; N |
| Standards | ANSI |
| Milling Tip Full Description | MM12-0.472-R020A30-M04 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 00023724 |
| Chamfer Angle | 0 |
| Overall Length (Decimal Inch) | 0.783 |
| Insert Size | 0.472-R020A30 |
| Helix Angle | 30 |
| Coolant Through | Yes |
| Material Grade | M40; P50; M20; M30; P30; N10; P40; N20; M10; P10; P20; S20; S10 |
| Included Angle Degree | 90 |
| Coating/Finish | TiN; TiAlN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6040 |
| Number Of Flutes | 3 |
| Extension From Holder (Inch) | 0.7830 |
| Country of Origin | Sweden |
| MSC Number | MSC# 04959821 |
