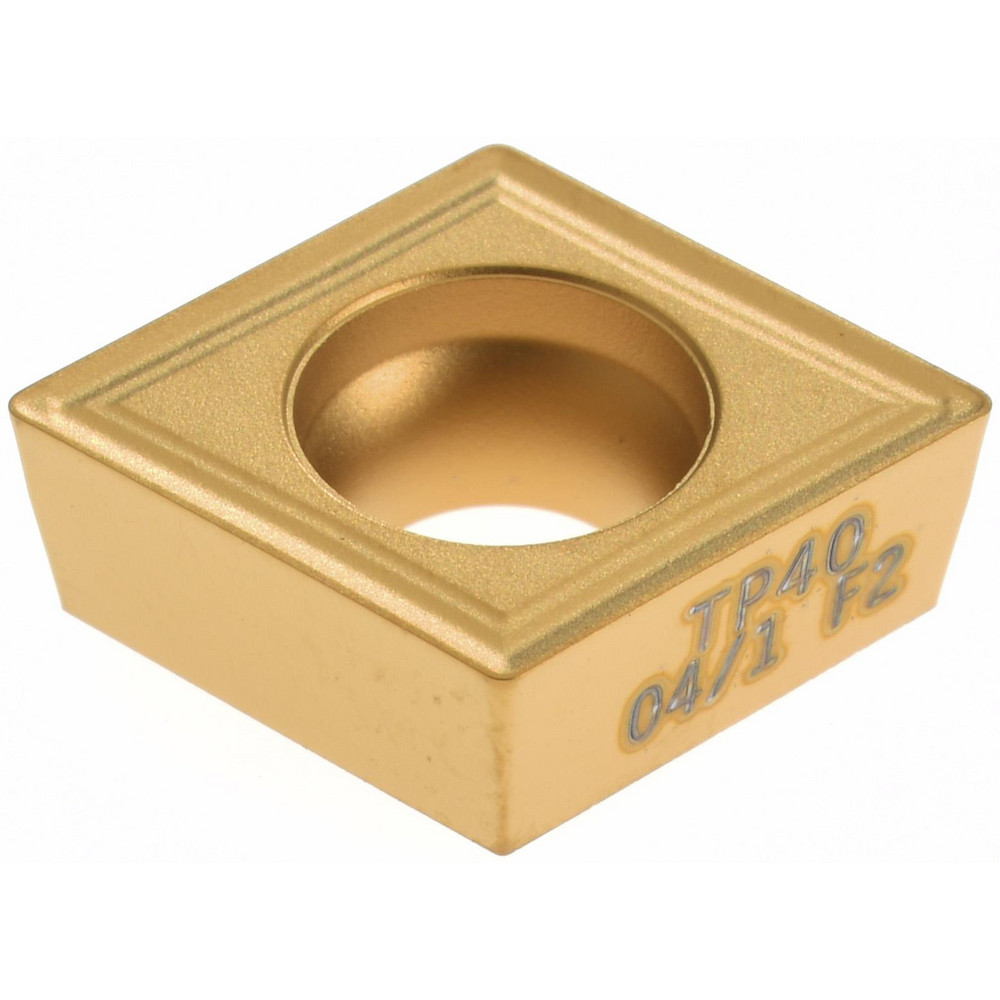

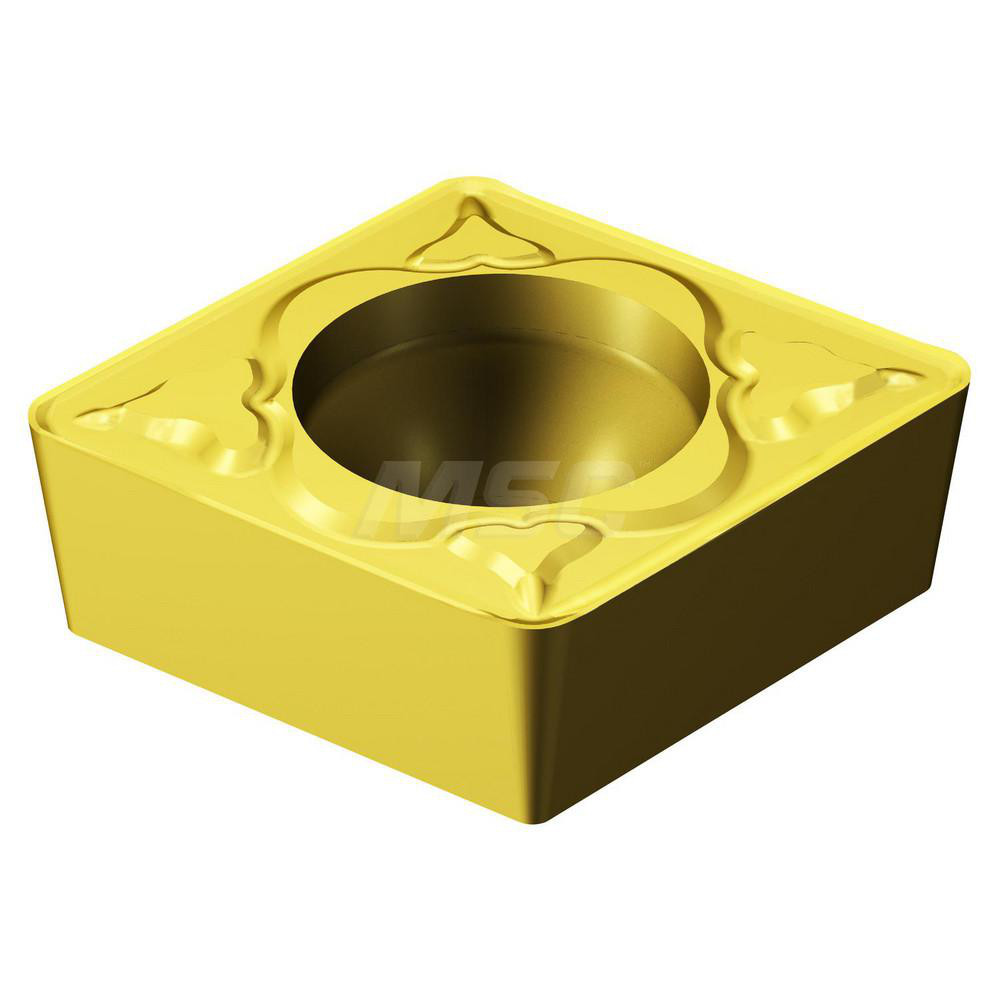

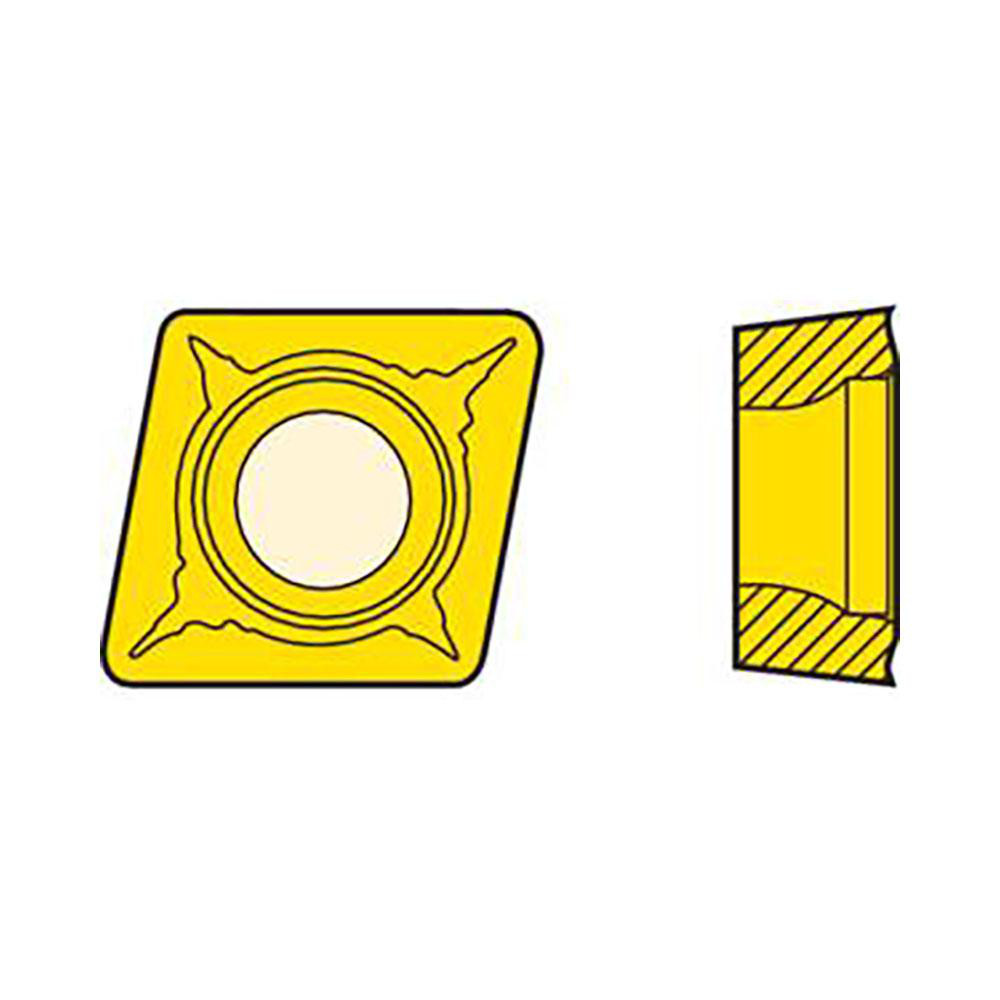

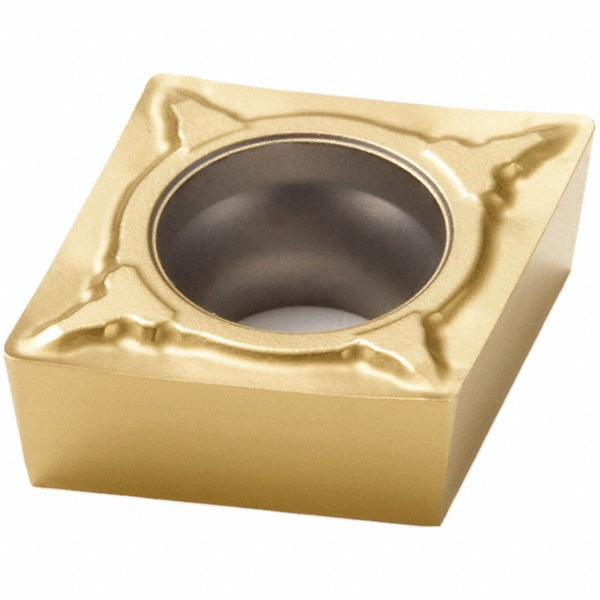

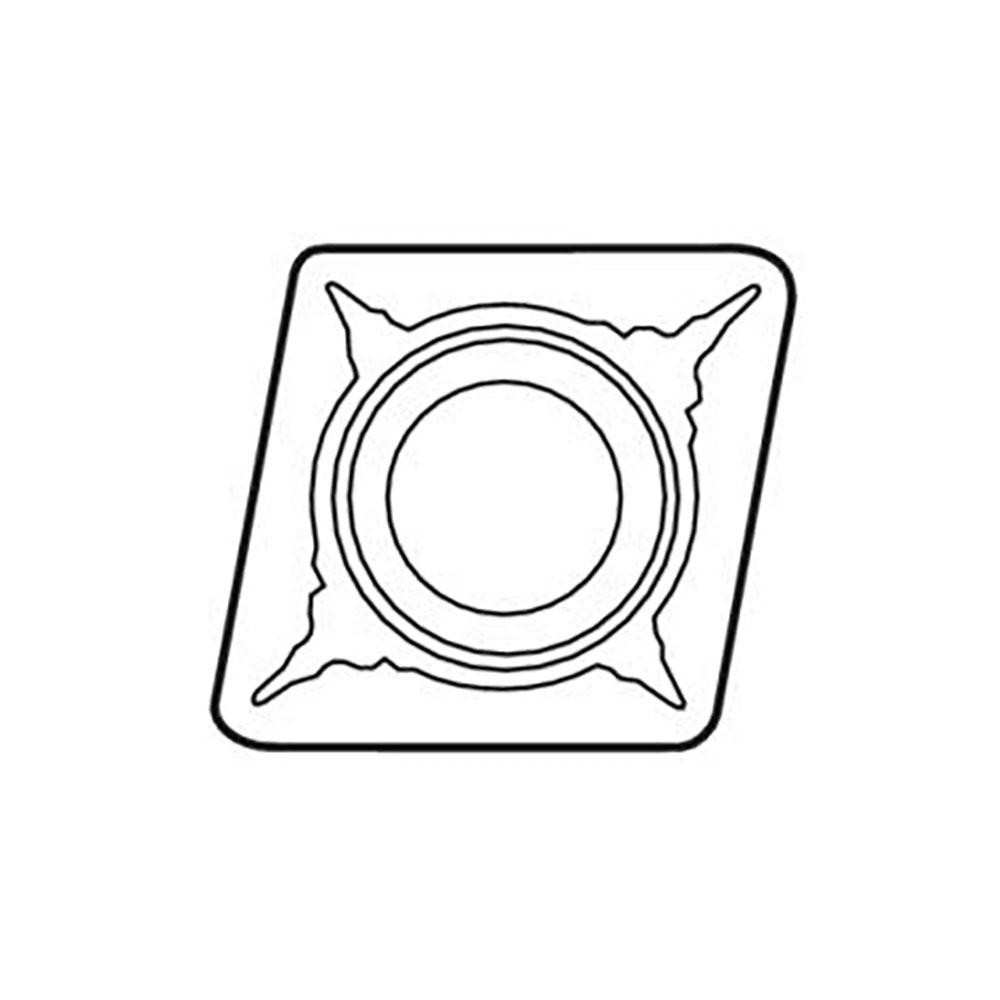

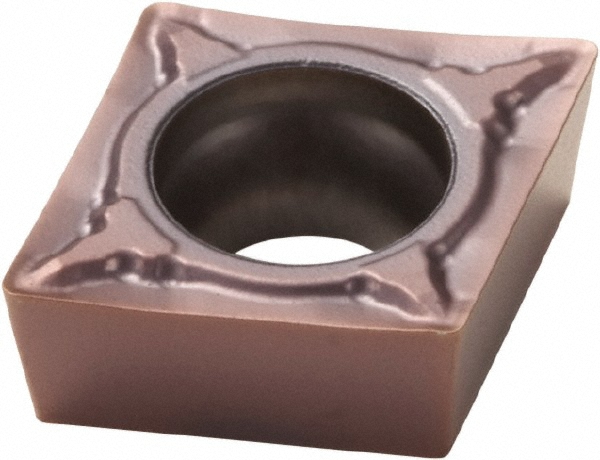

TiCN, Al2O3 & Cr Finish, Neutral, 0.3819" Long, 0.3750" Inscribed Circle, 0.0157" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CCMT-F1

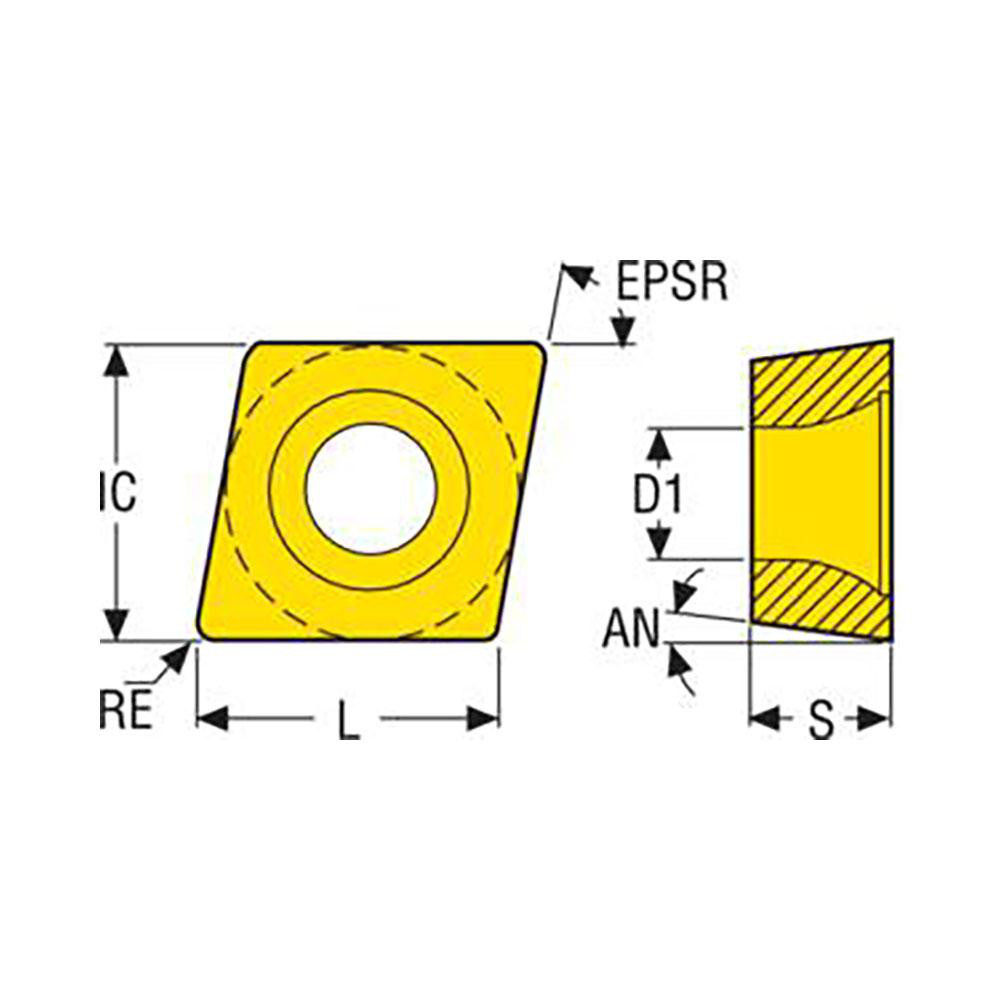

| Insert Style | CCMT |
|---|---|
| ISO Size Code | 09T304 |
| ANSI Size Code | 32.51 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |
| Manufacturer Grade | TP1501 |
| Coating/Finish | TiCN; Al2O3; Cr |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Hand | Neutral |
| Series | CCMT-F1 |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3661 |
| ISO Insert Code | CCMT09T304 |
| ANSI Insert Code | CCMT32.51 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Iso Code | CCMT09T304-F1 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 02960844 |
| Material Grade | P10; P20 |
| Single or Multi Tipped | Multi Tipped |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 80 |
| Coating Classification | Duratomic |
| Chip Breaker | F1 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | CCMT32.51-F1 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| Country of Origin | Sweden |
| MSC Number | MSC# 36206746 |
