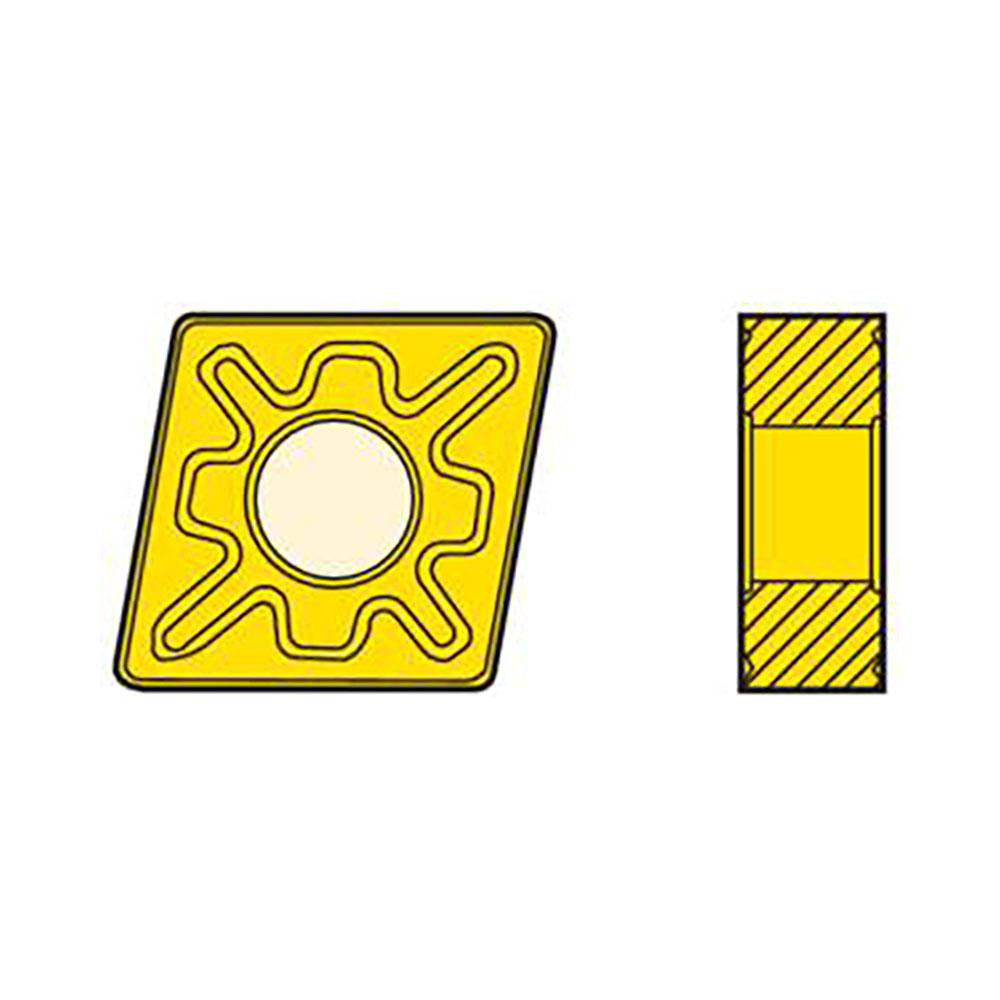

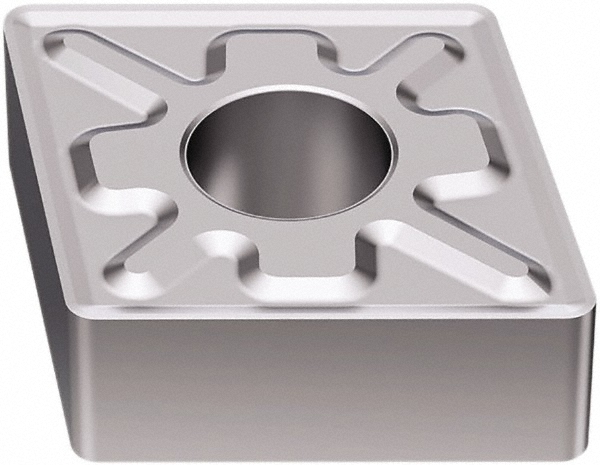

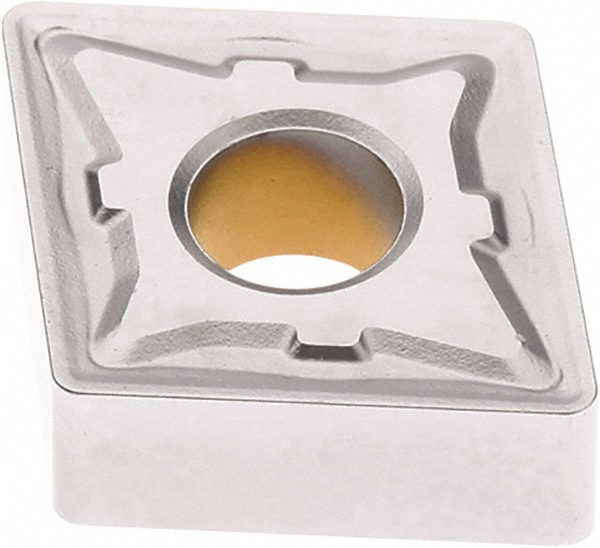

TiCN, Al2O3 & Cr Finish, Neutral, 12.90 mm Long, 80 deg C - Diamond (Rhombic) 80-Deg, Series CNMG-MF3

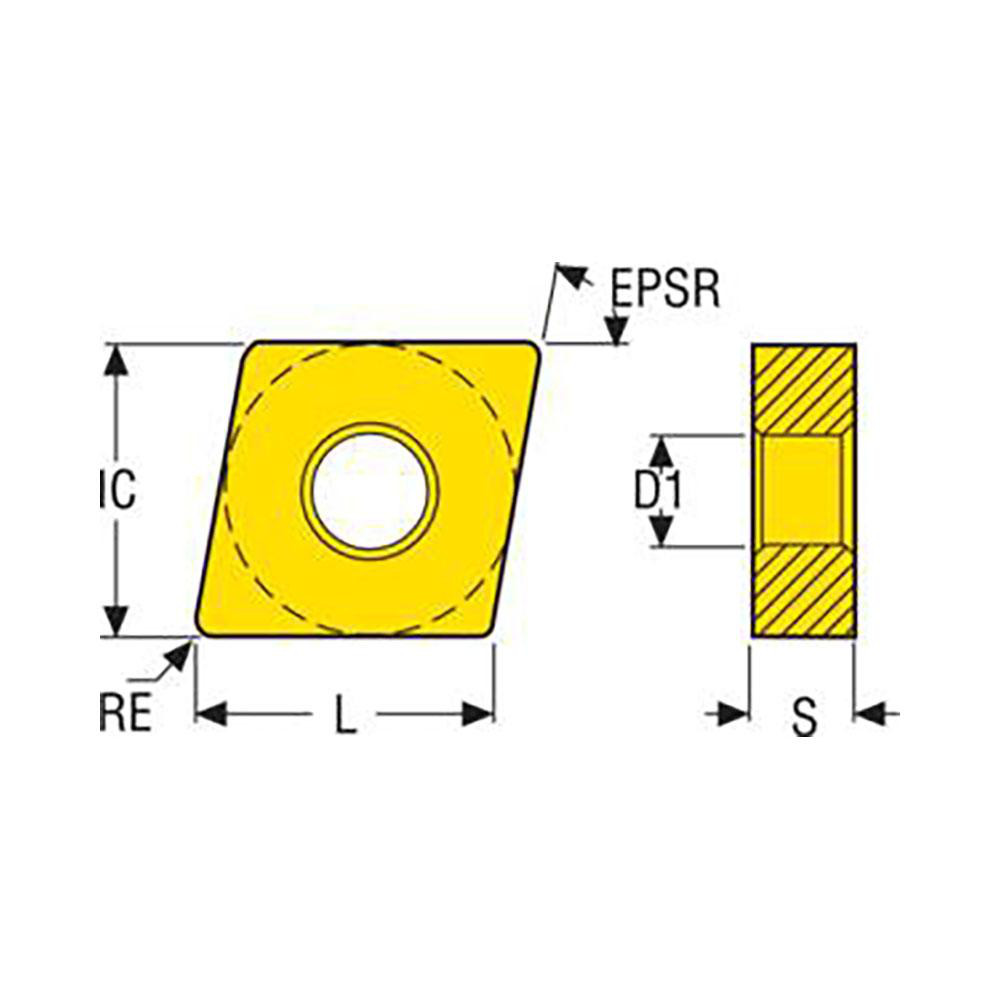

| Insert Style | CNMG |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Manufacturer Grade | TK1501 |
| Coating/Finish | TiCN; Al2O3; Cr |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | CNMG-MF3 |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.4764 |
| ISO Insert Code | CNMG120408 |
| ANSI Insert Code | CNMG432 |
| Insert Holding Method | Pin; Clamp; Lever Lock |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5079 |
| Insert Length (mm) | 12.90 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Iso Code | CNMG120408-MF3 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 03064481 |
| Material Grade | K20; K30; K10 |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 80 |
| Coating Classification | Duratomic |
| Chip Breaker | MF3 |
| Rake Angle | 0 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CNMG432-MF3 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 12.90 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | India |
| MSC Number | MSC# 37817657 |
