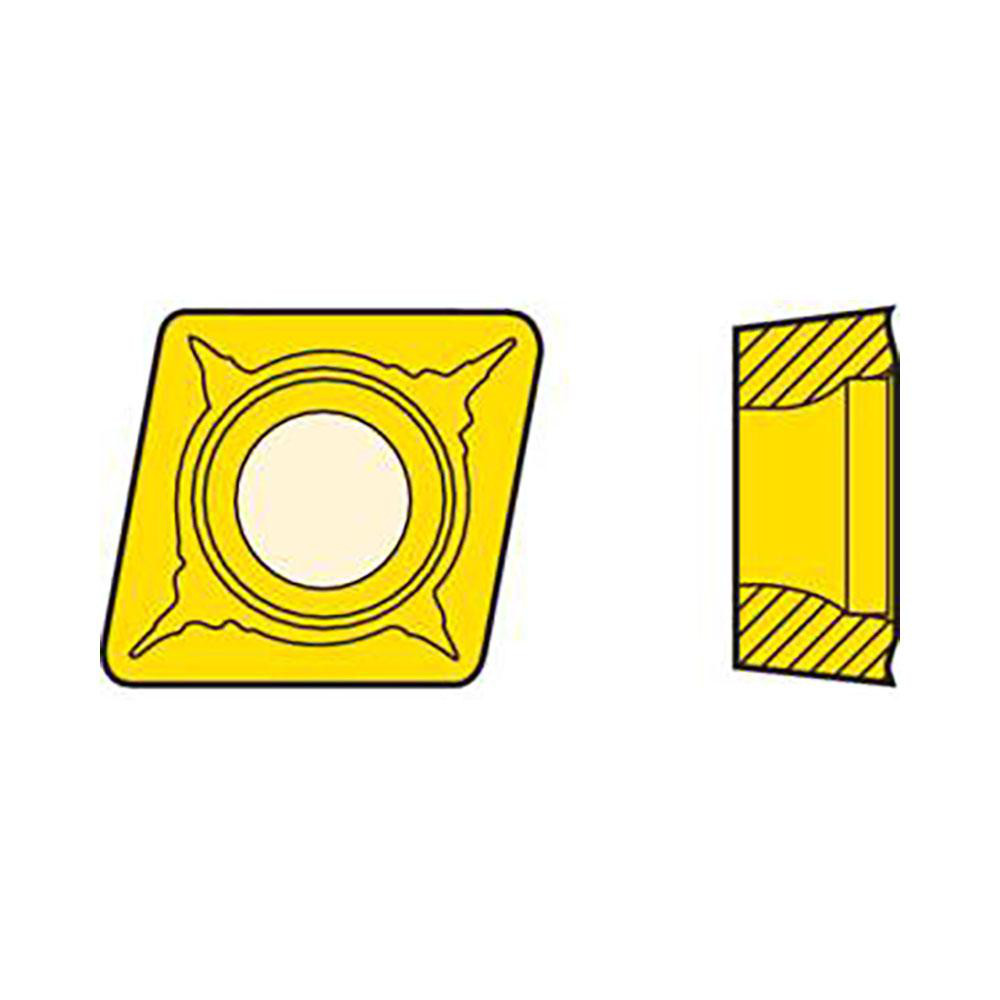

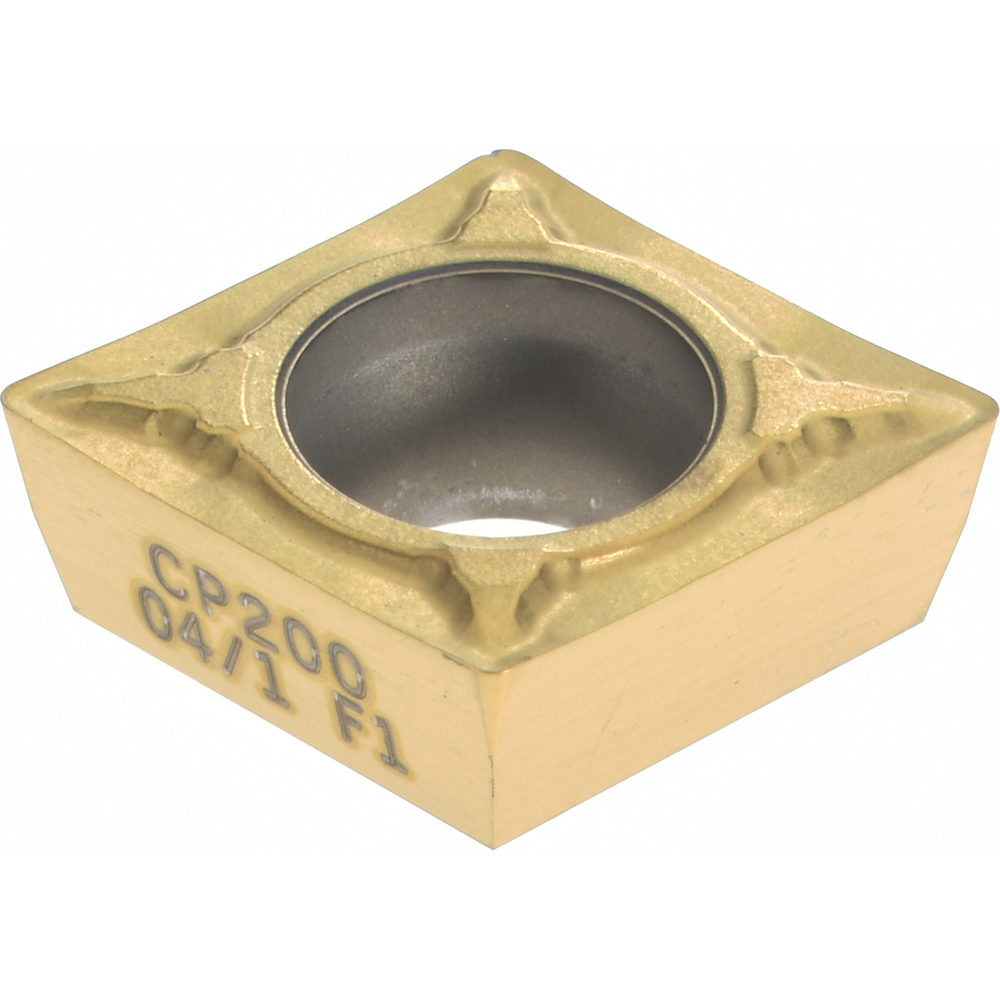

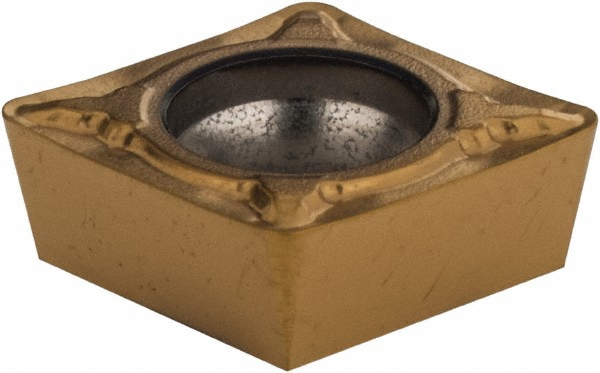

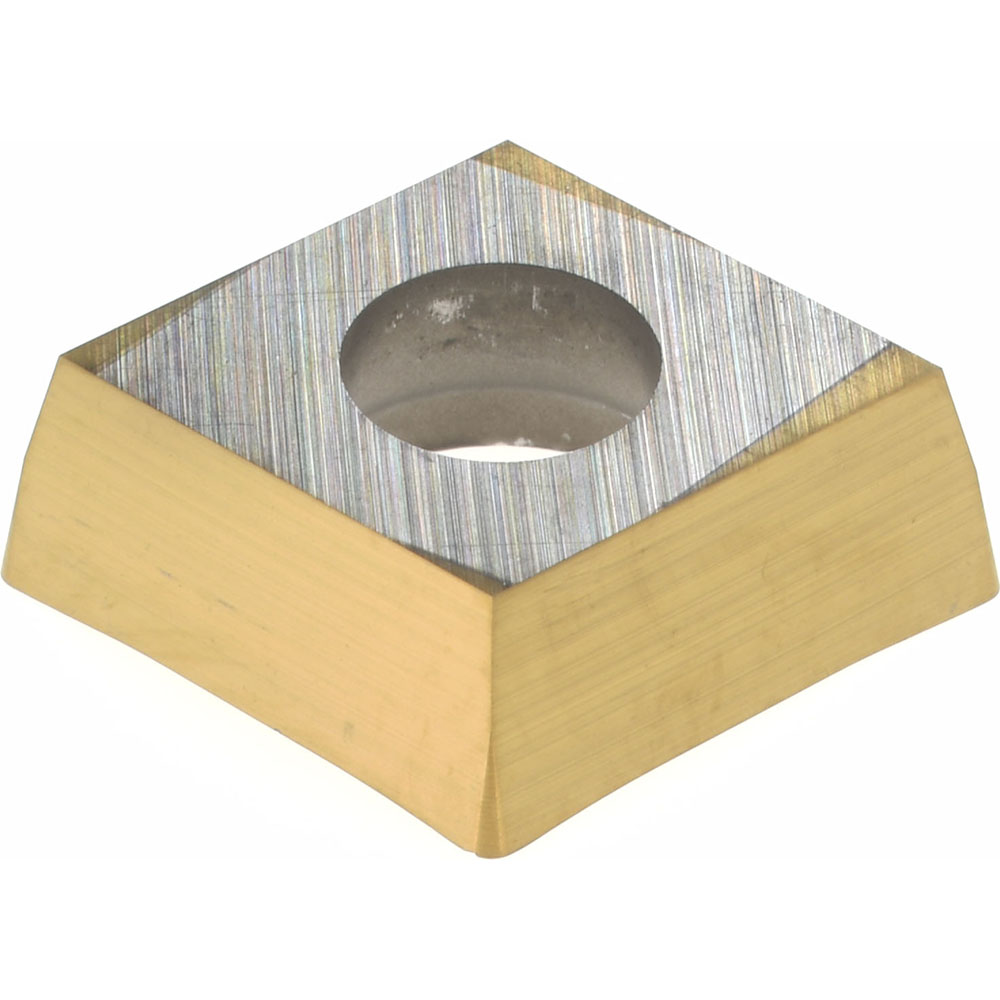

TiAlN & TiN Finish, Neutral, 0.3819" Long, 0.3750" Inscribed Circle, 0.0157" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CPMT-F1
| Insert Style | CPMT |
|---|---|
| ISO Size Code | 09T304 |
| ANSI Size Code | 32.51 |

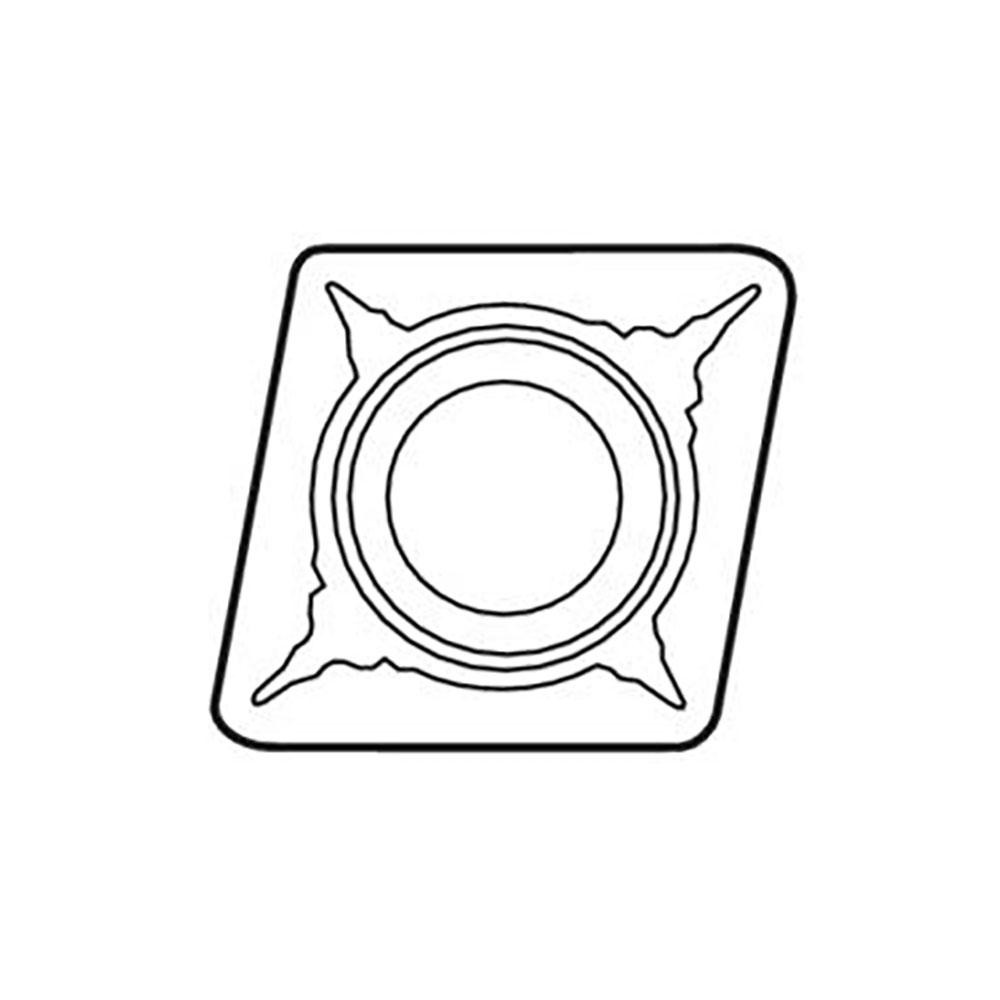

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |

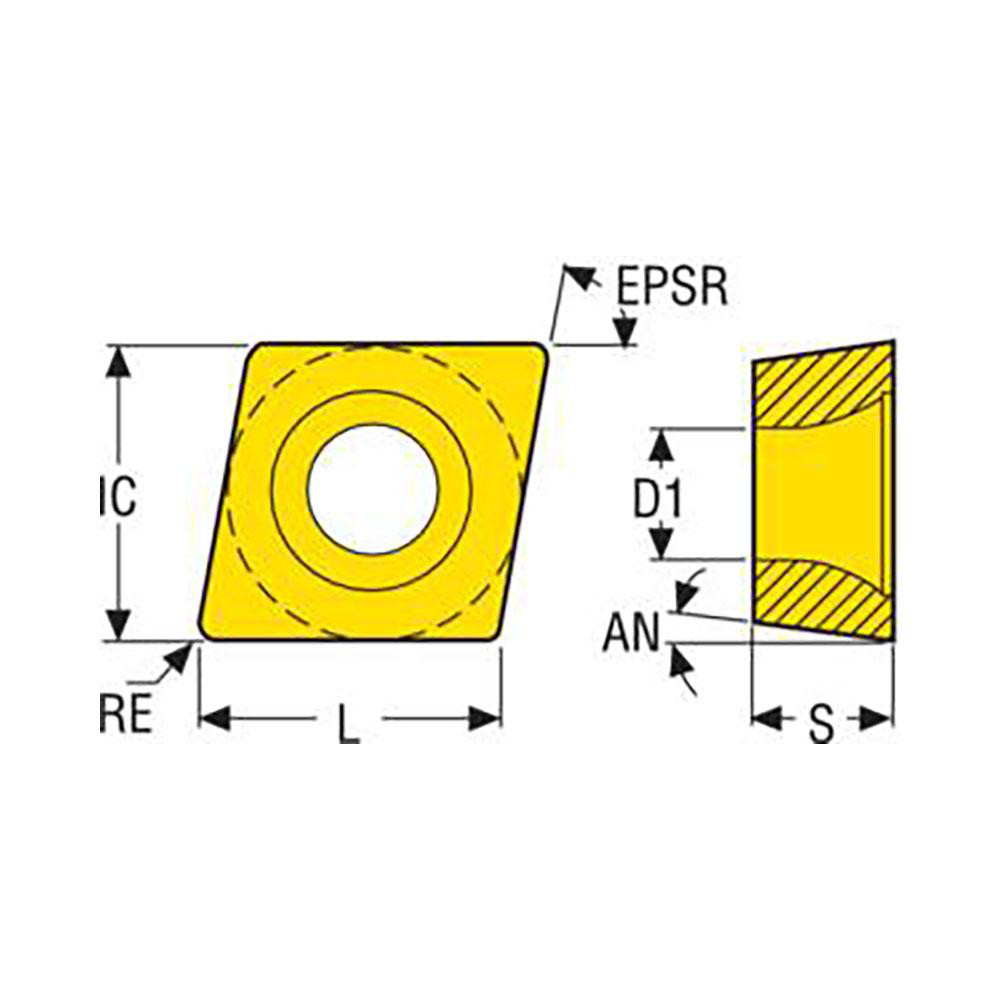

| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |

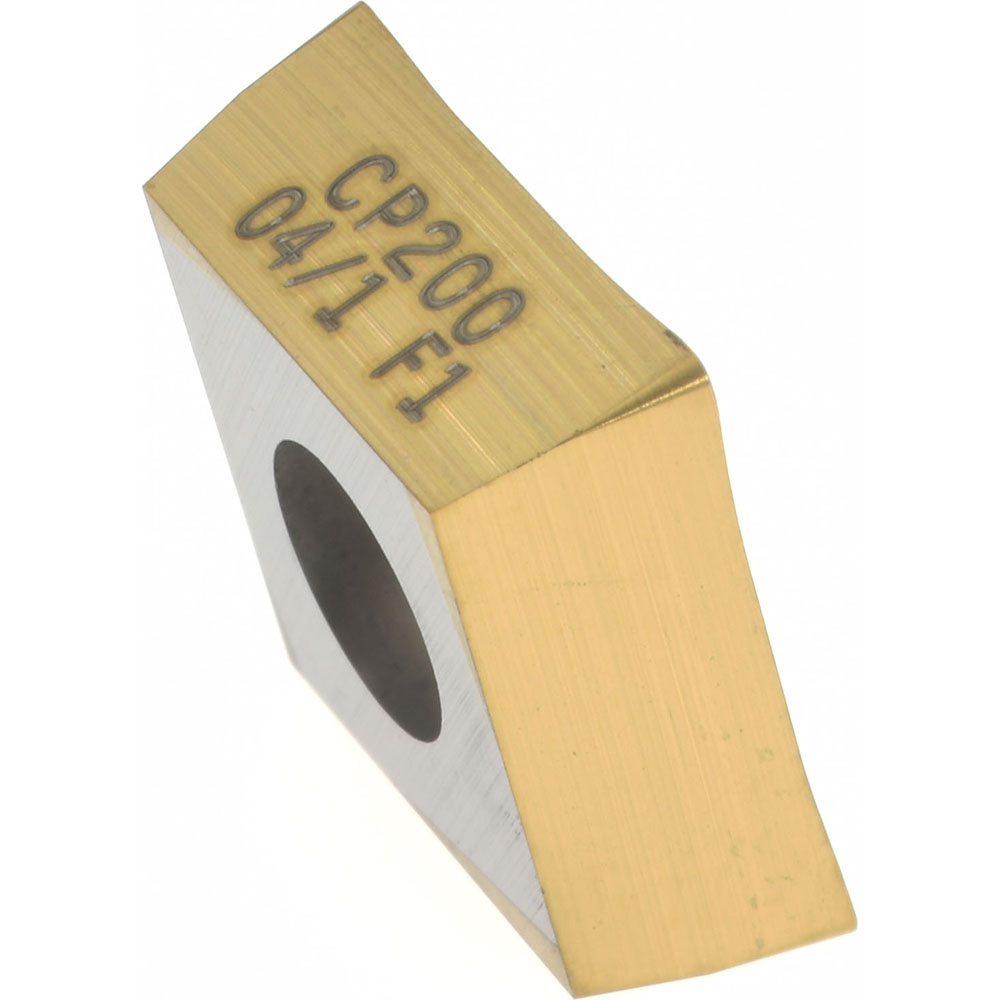

| Manufacturer Grade | CP200 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 11 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Hand | Neutral |
| Series | CPMT-F1 |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (Decimal Inch) | 0.3386 |
| ISO Insert Code | CPMT09T304 |
| ANSI Insert Code | CPMT32.51 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Iso Code | CPMT09T304-F1 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 00064906 |
| Material Grade | S20; S10; M20; M10; M01 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 80 |
| Coating Classification | PVD |
| Chip Breaker | F1 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | CPMT32.51-F1 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| Country of Origin | Sweden |
| MSC Number | MSC# 05838552 |
