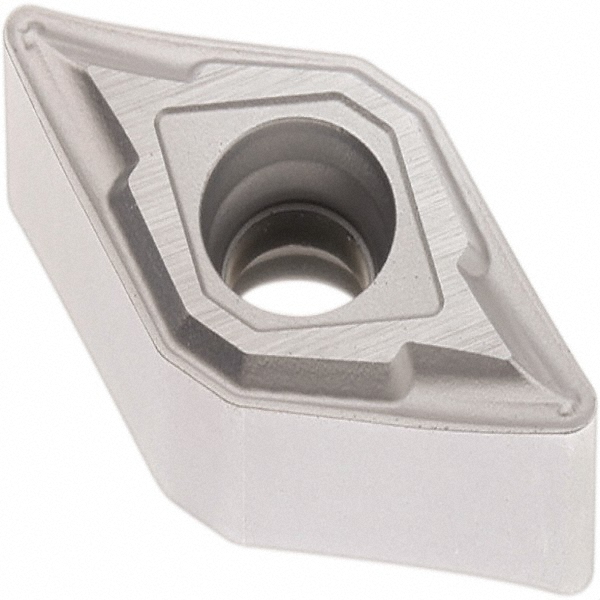

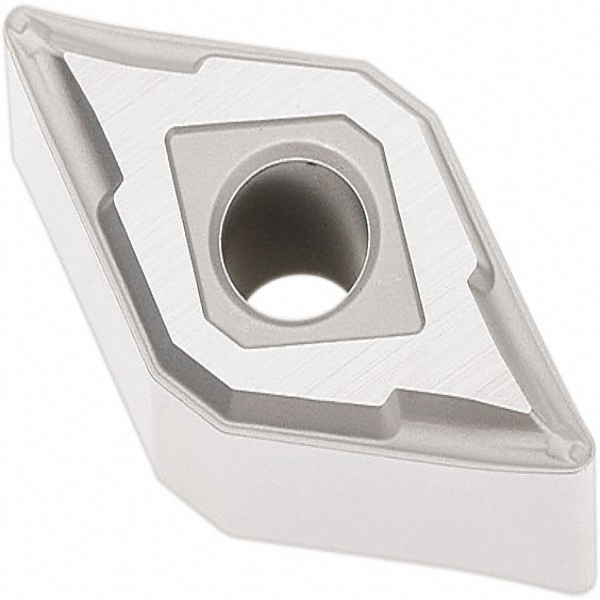

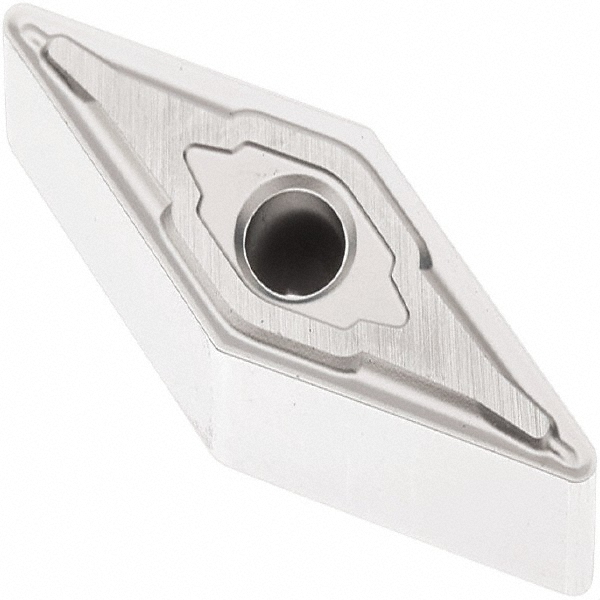

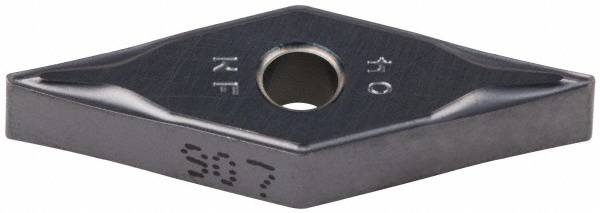

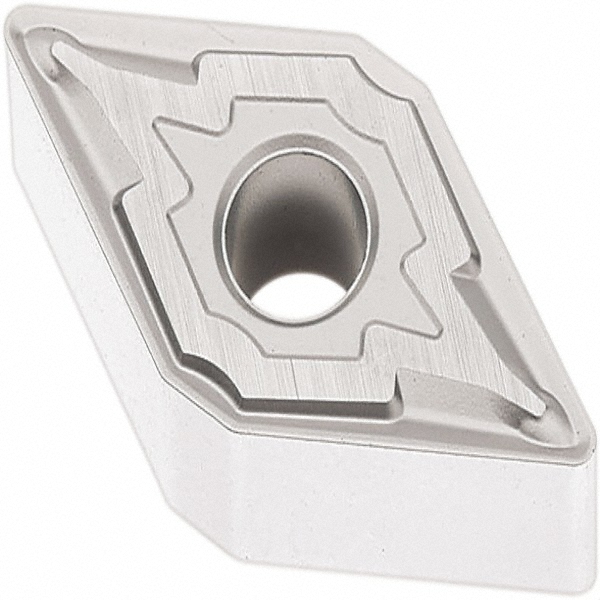

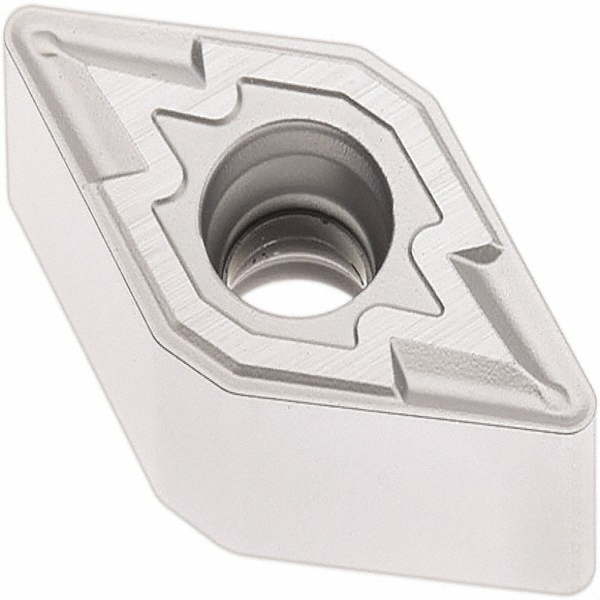

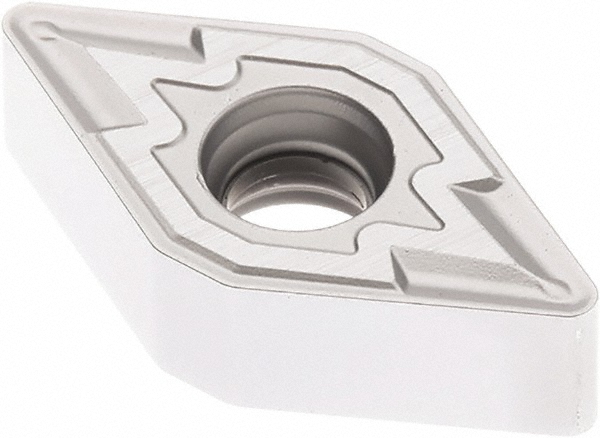

TiCN, Al2O3 & Cr Finish, Neutral, 0.9134" Long, 0.3750" Inscribed Circle, 0.0157" Corner Radius, 55 deg D - Diamond (Rhombic) 55-Deg, Series DNMU-MF2
| Insert Style | DNMU |
|---|---|
| ISO Size Code | 110404 |
| ANSI Size Code | 331 |

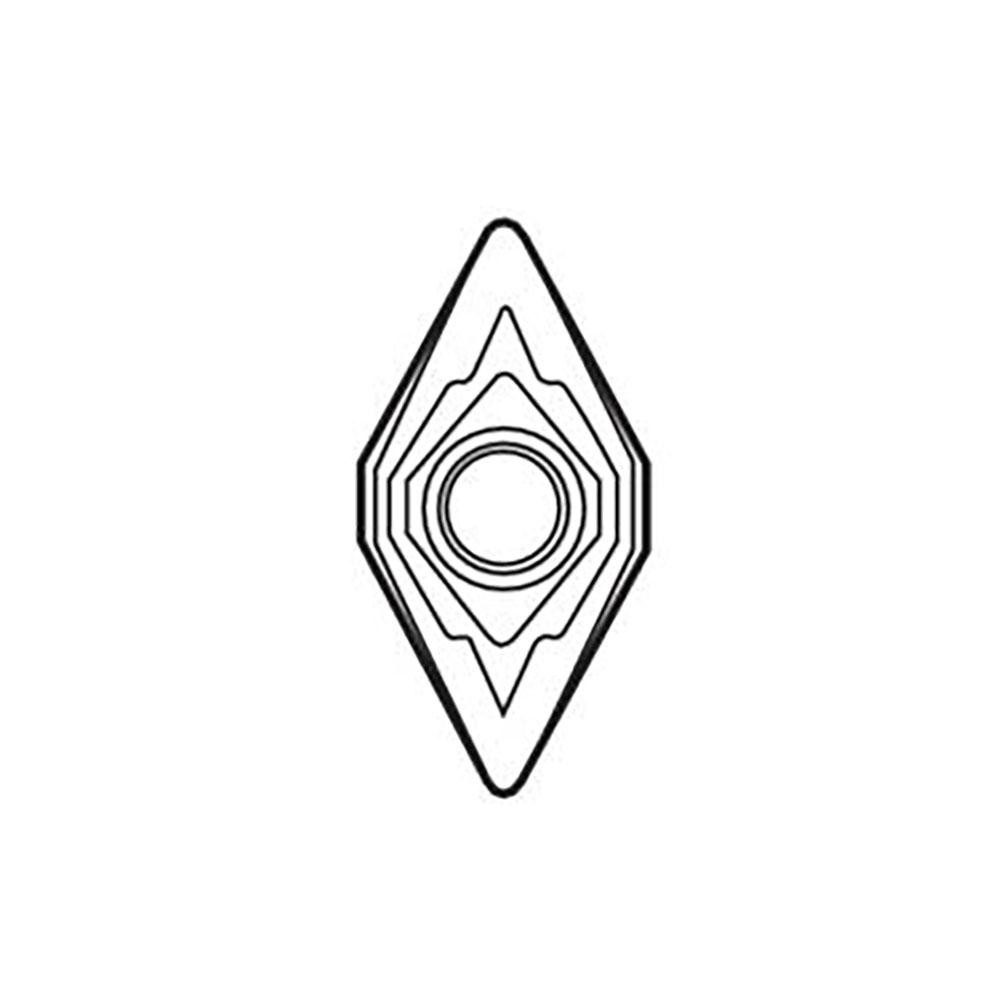

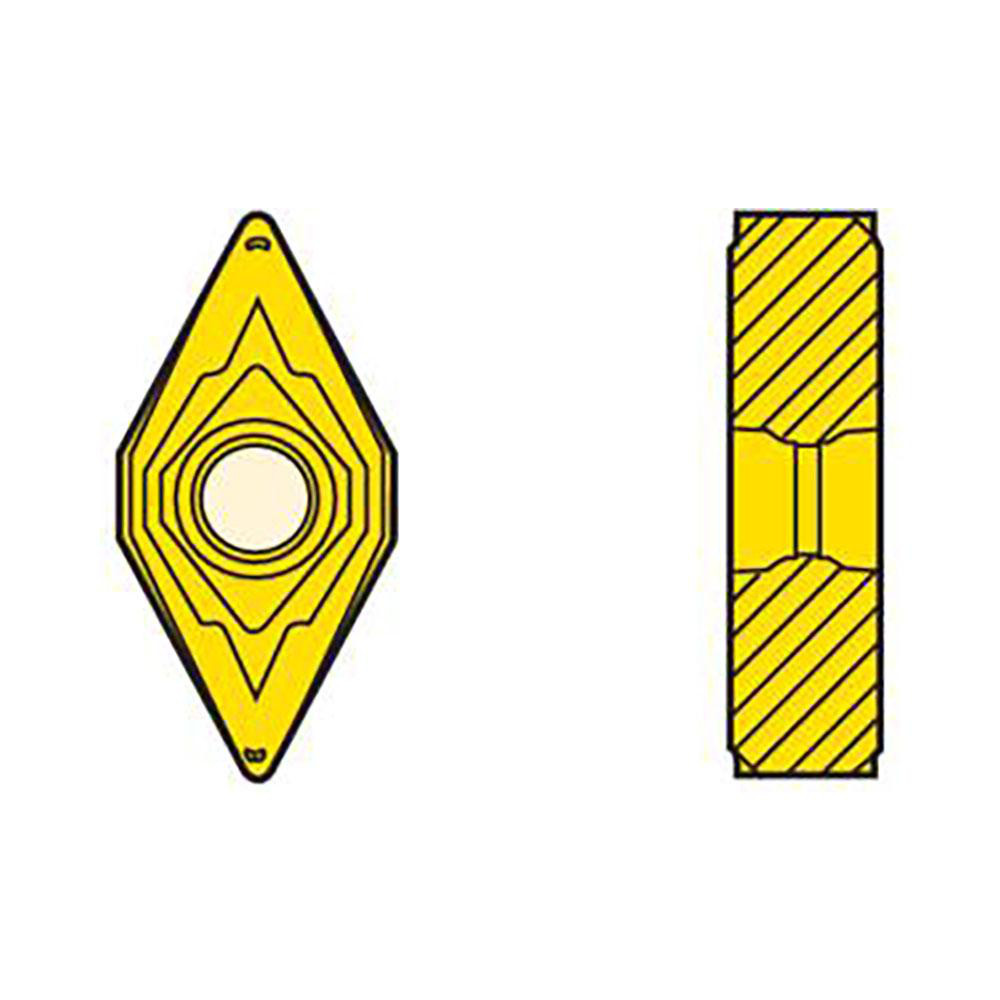

| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |
| Manufacturer Grade | TP2501 |
| Coating/Finish | TiCN; Al2O3; Cr |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | DNMU-MF2 |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.4409 |
| ISO Insert Code | DNMU110404 |
| ANSI Insert Code | DNMU331 |
| Insert Holding Method | Pin; Clamp; Lever Lock |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.9134 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | DNMU110404-MF2 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 02959828 |
| Material Grade | P35; P30; P10; P20 |
| Single or Multi Tipped | Multi Tipped |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 55 |
| Coating Classification | Duratomic |
| Chip Breaker | MF2 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | DNMU331-MF2 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Back Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
| Country of Origin | India |
| MSC Number | MSC# 43017391 |
