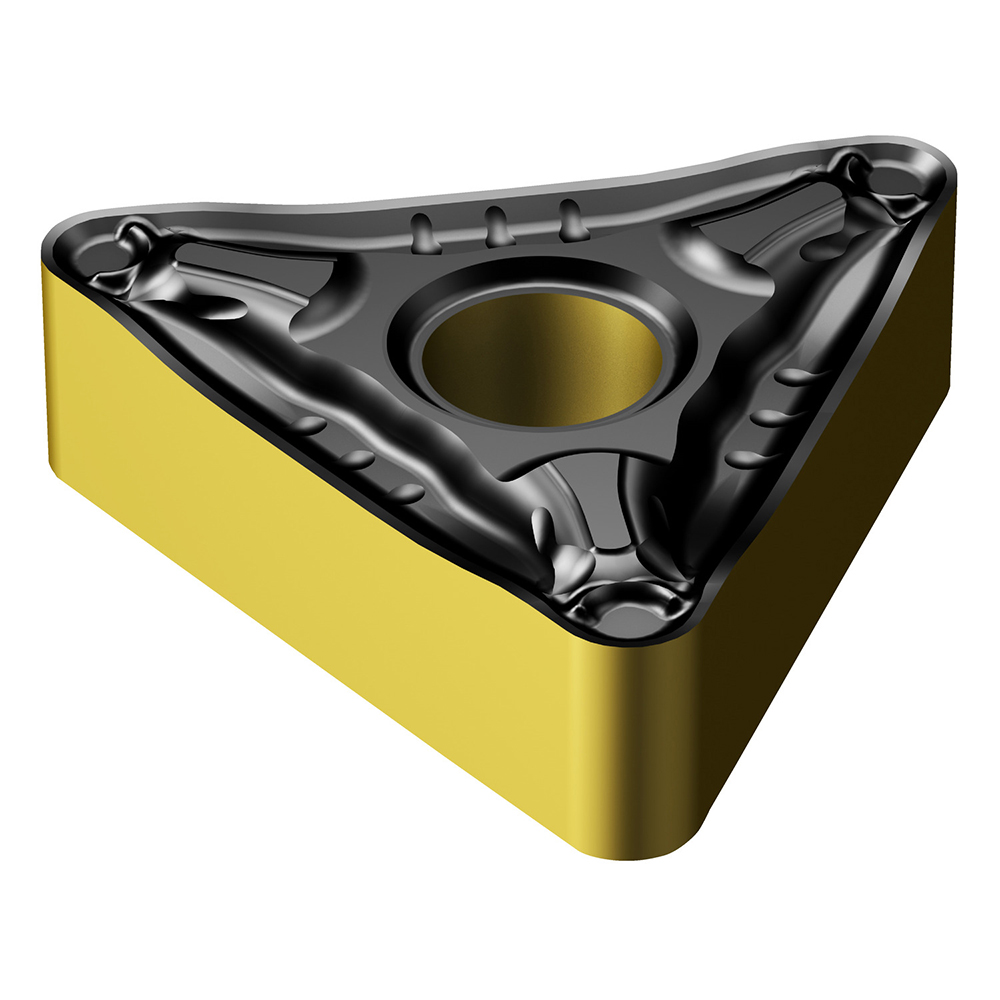

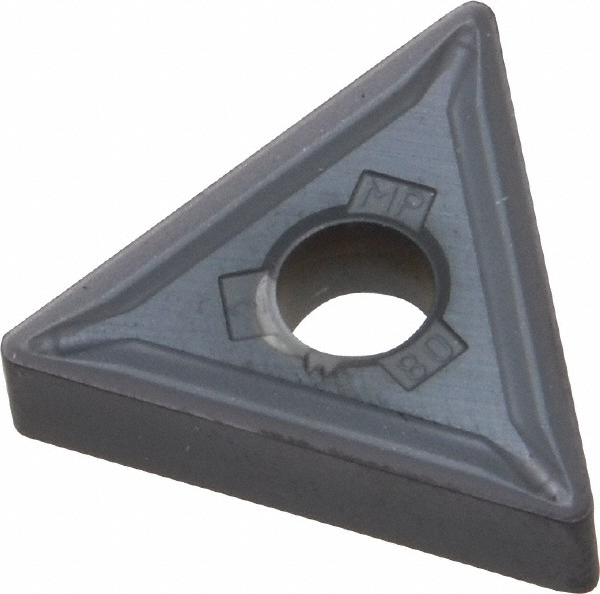

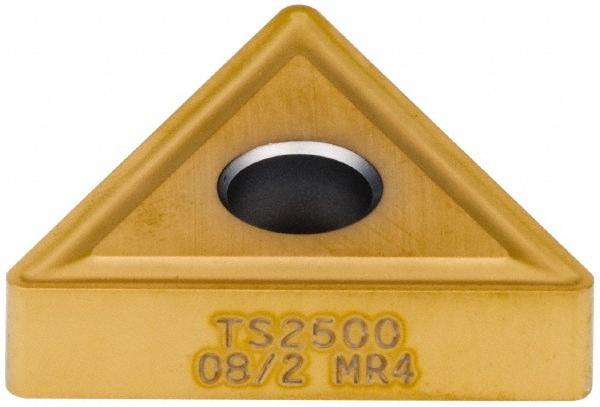

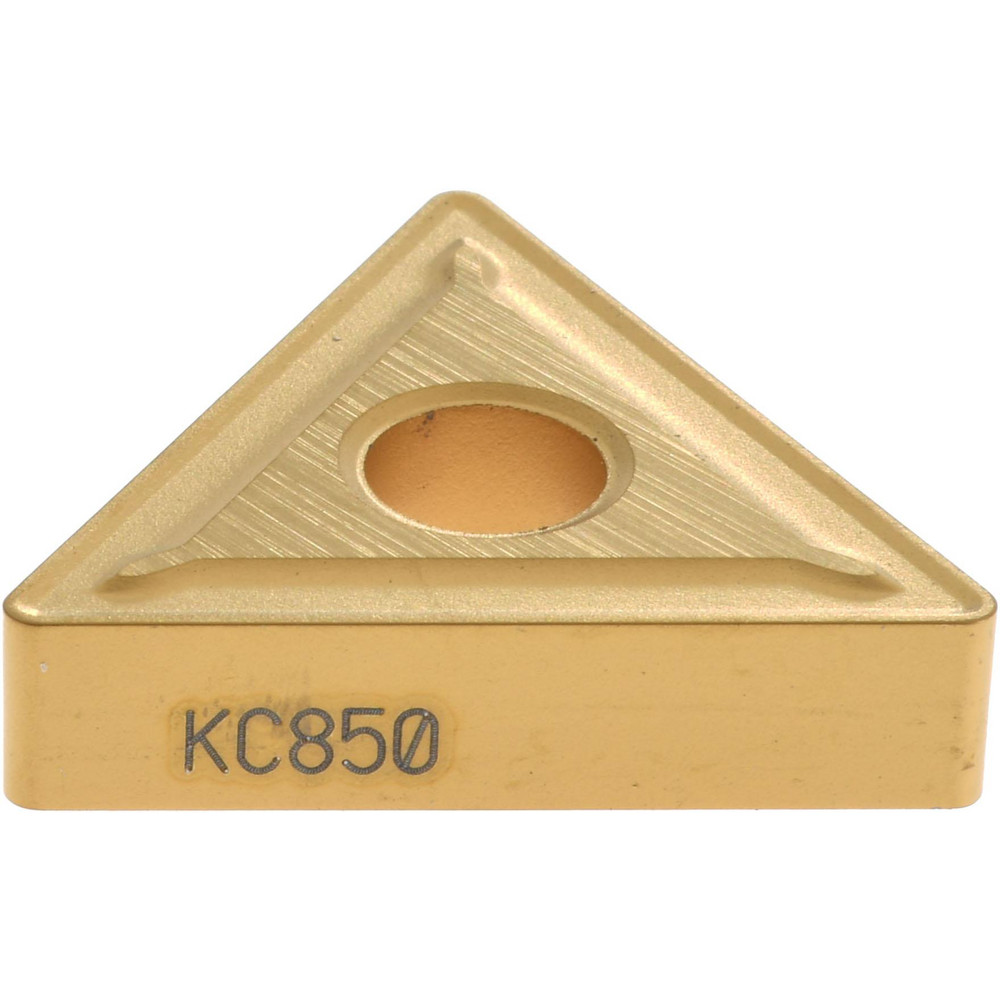

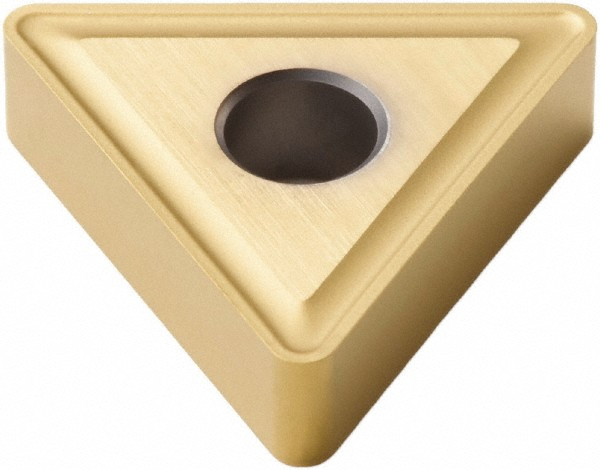

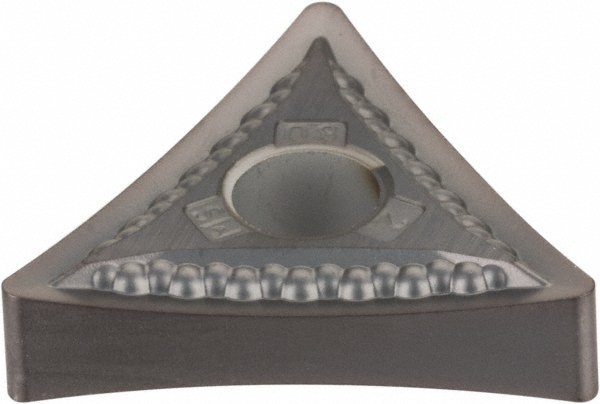

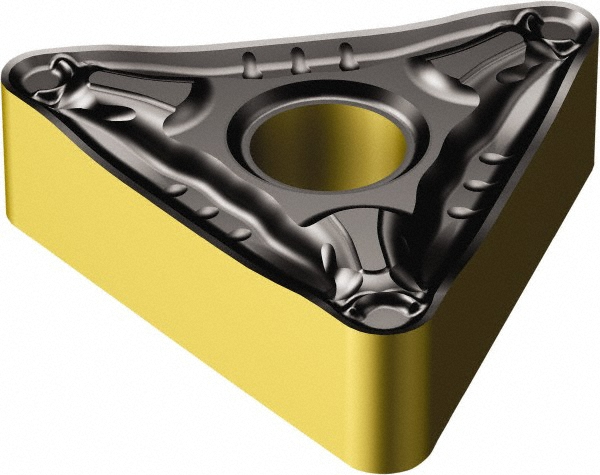

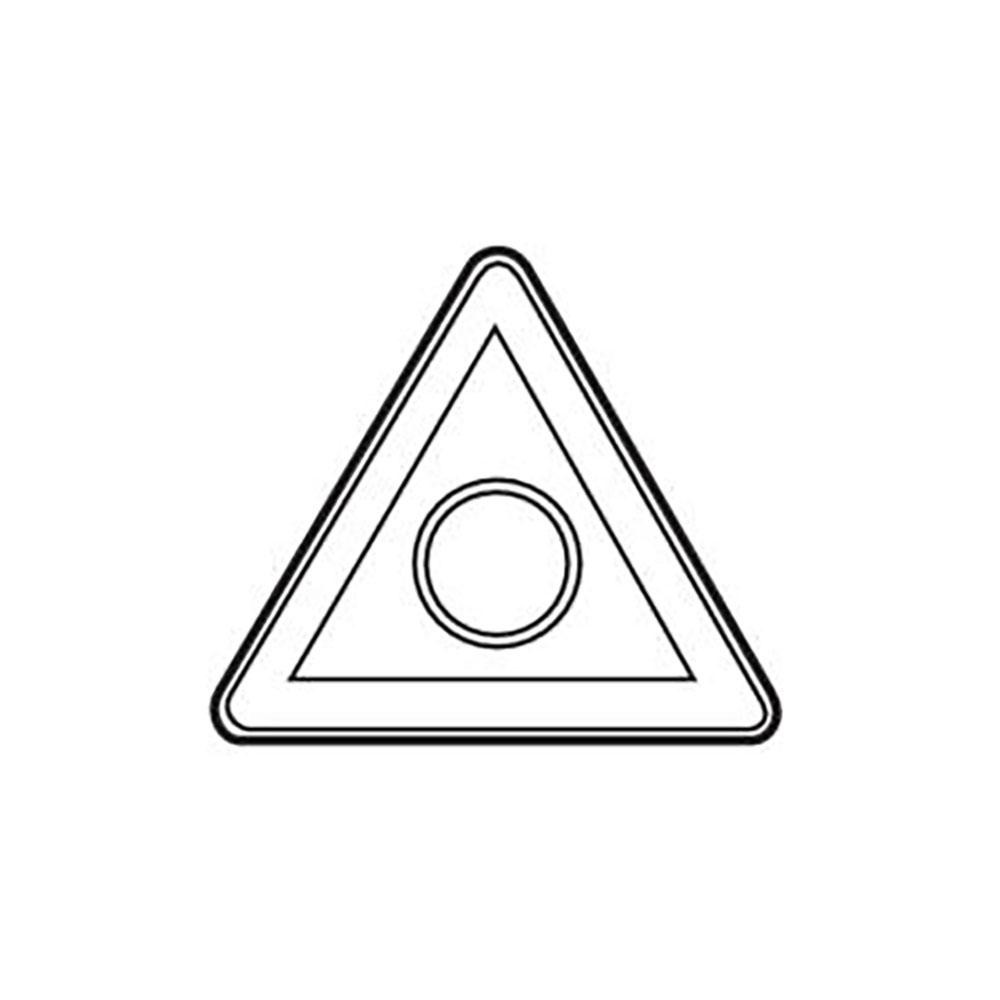

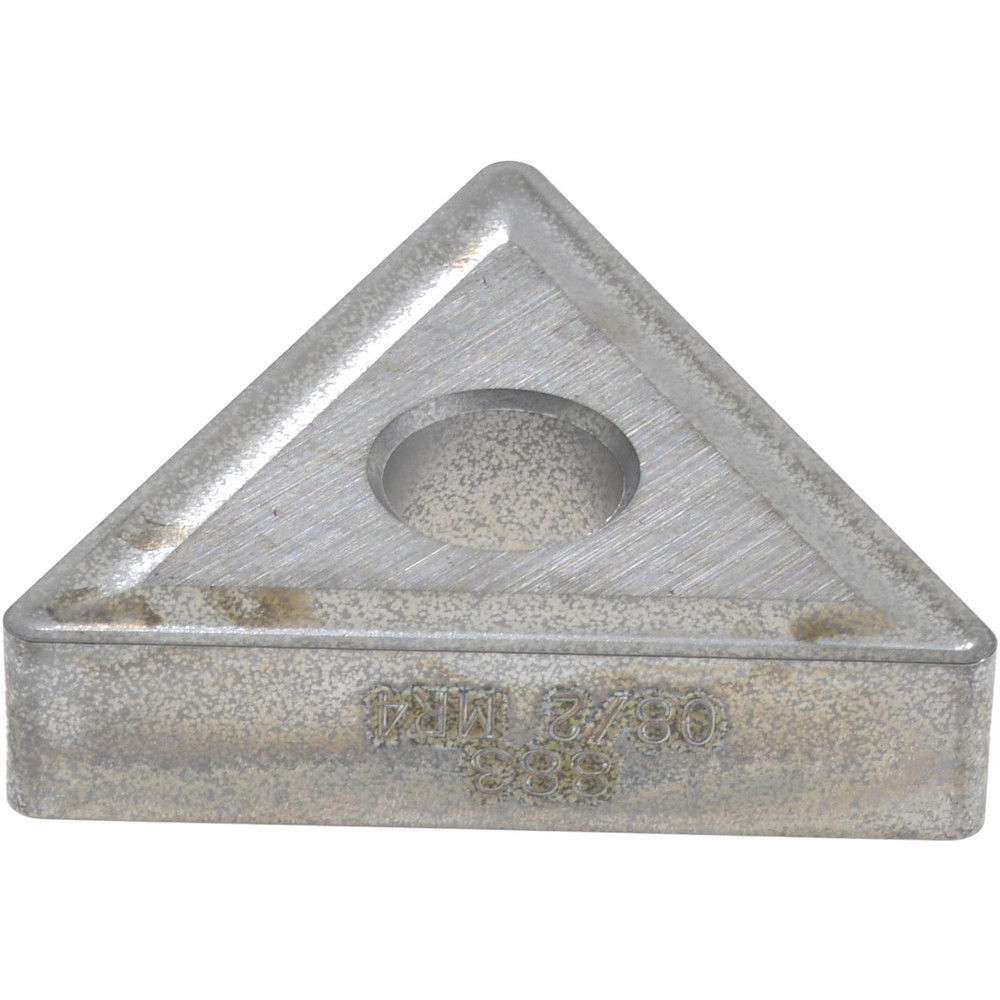

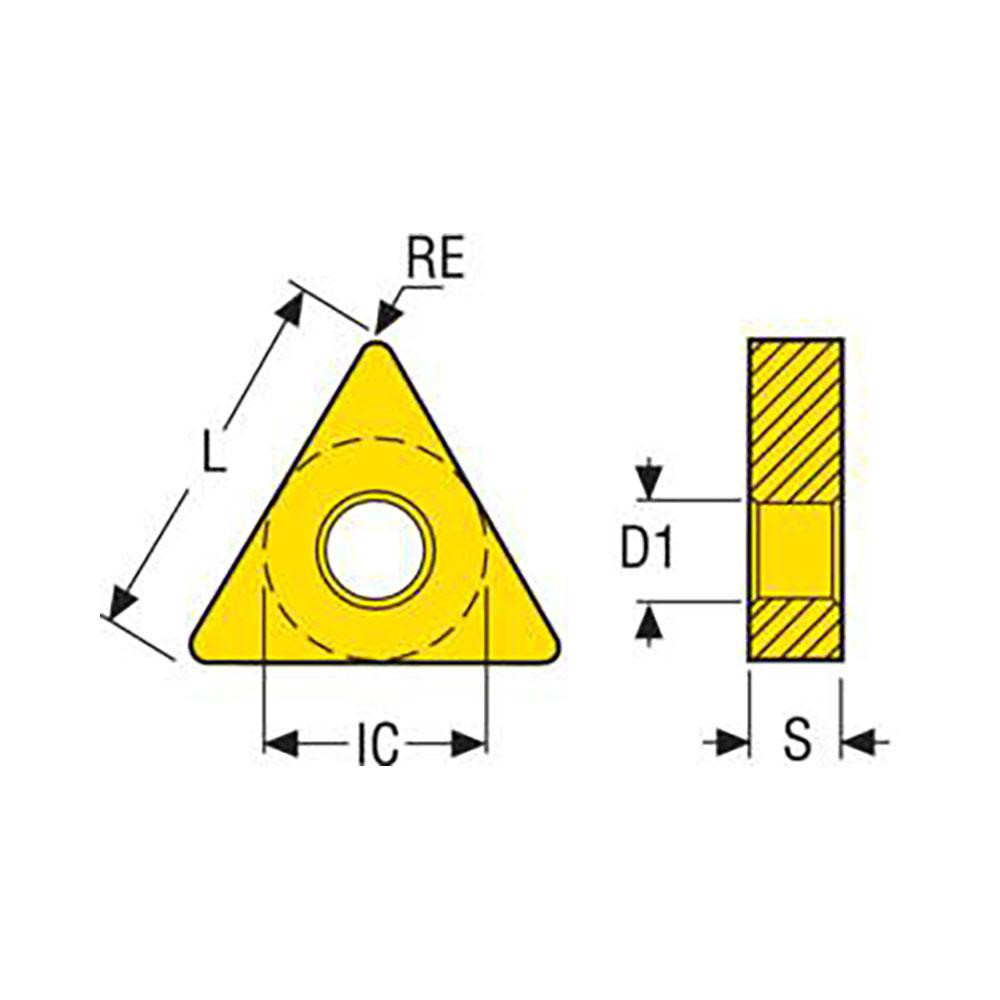

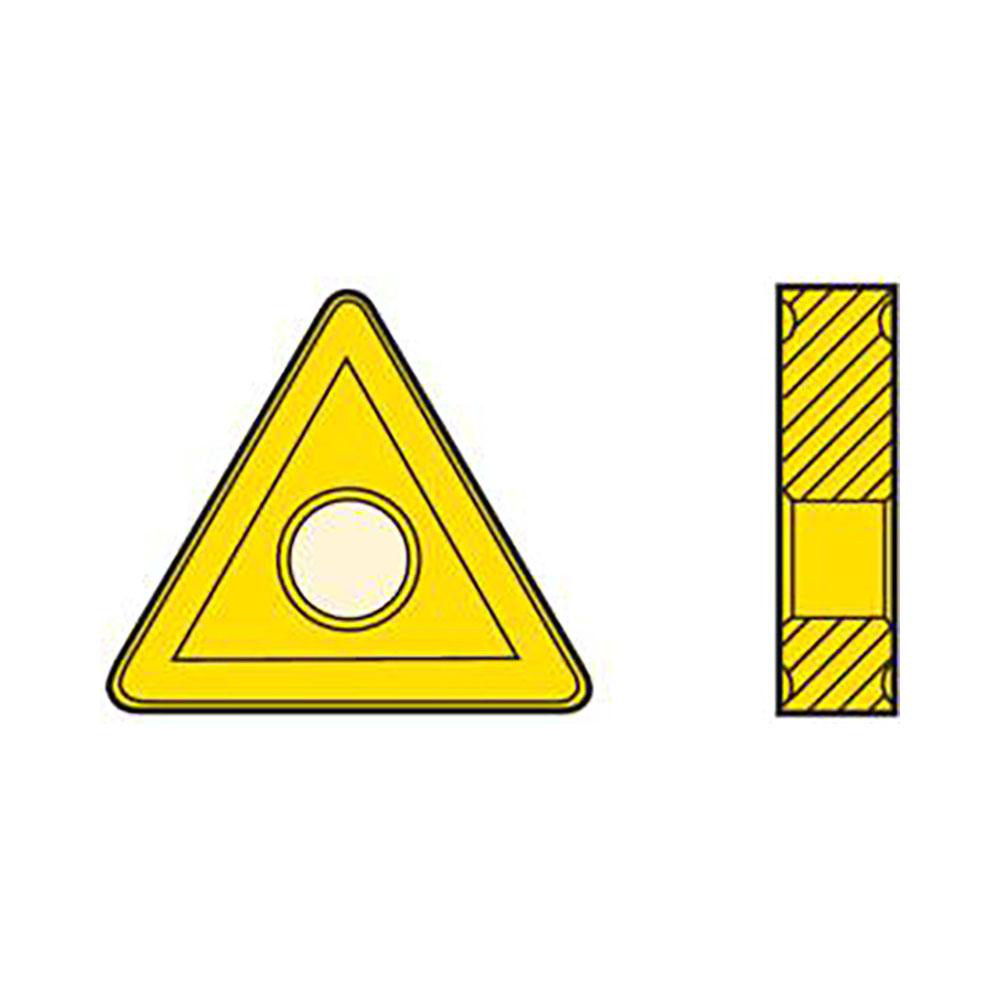

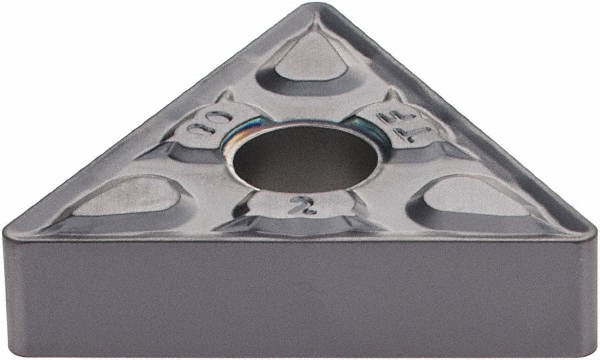

TiAlN & TiN Finish, Neutral, 0.8661" Long, 0.5000" Inscribed Circle, 0.0315" Corner Radius, 60 deg T - Triangle, Series TNMG-MR4
| Insert Style | TNMG |
|---|---|
| ISO Size Code | 220408 |
| ANSI Size Code | 432 |
| Insert Shape | T - Triangle |
| Included Angle | 60 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Manufacturer Grade | TS2500 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | TNMG-MR4 |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to High Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 6 |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| ISO Insert Code | TNMG220408 |
| ANSI Insert Code | TNMG432 |
| Insert Holding Method | Pin; Clamp; Lever Lock |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.8661 |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Iso Code | TNMG220408-MR4 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 02615981 |
| Material Grade | S20; S10 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 60 |
| Coating Classification | PVD |
| Chip Breaker | MR4 |
| Cutting Edge Style | T-Land |
| Industry Standard Number | TNMG432-MR4 |
| Width (Decimal Inch - 4 Decimals) | 0.8661 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Back Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Czechia |
| MSC Number | MSC# 76670330 |
