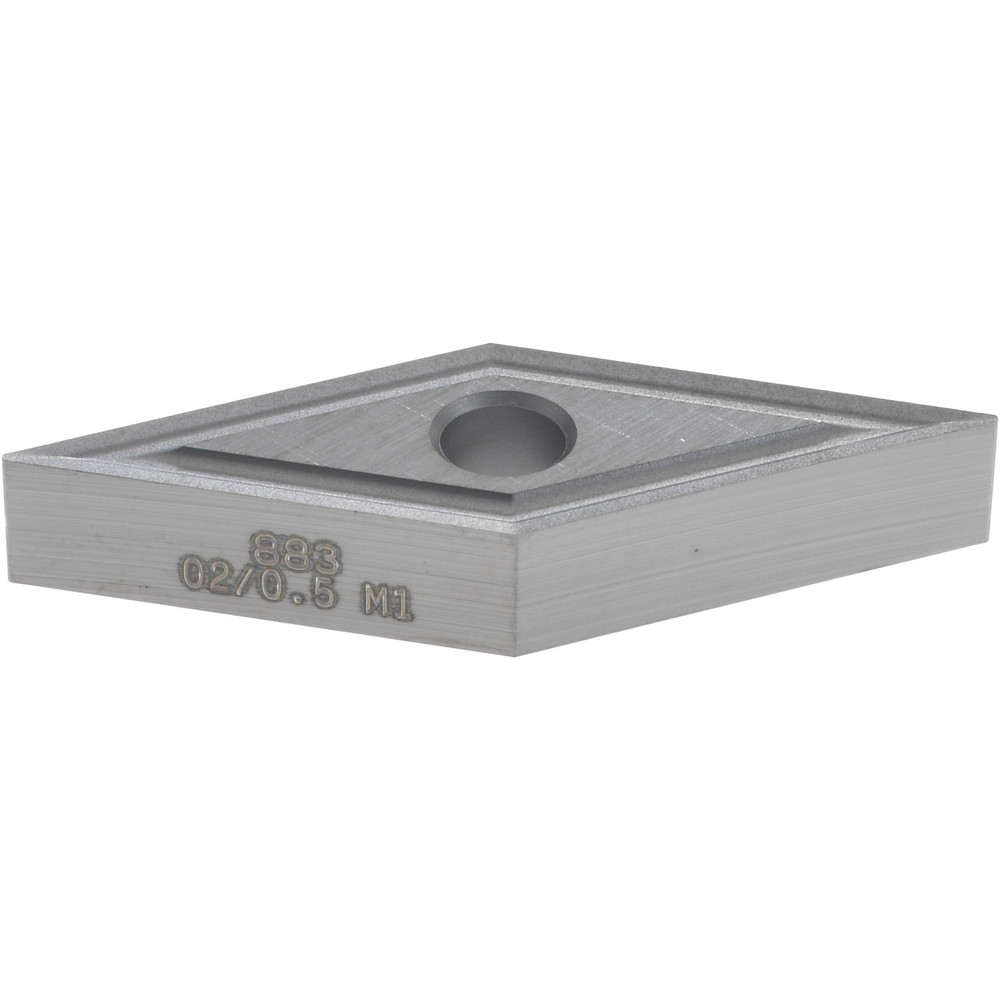

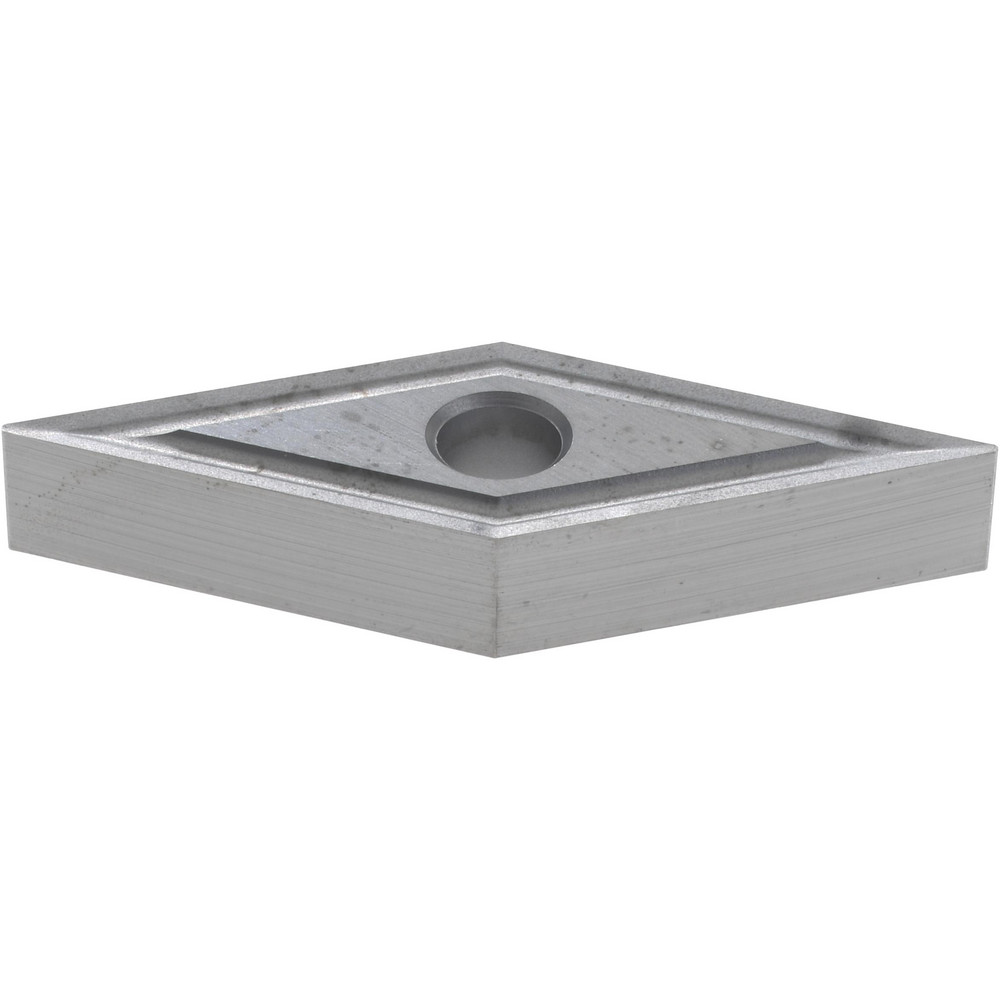

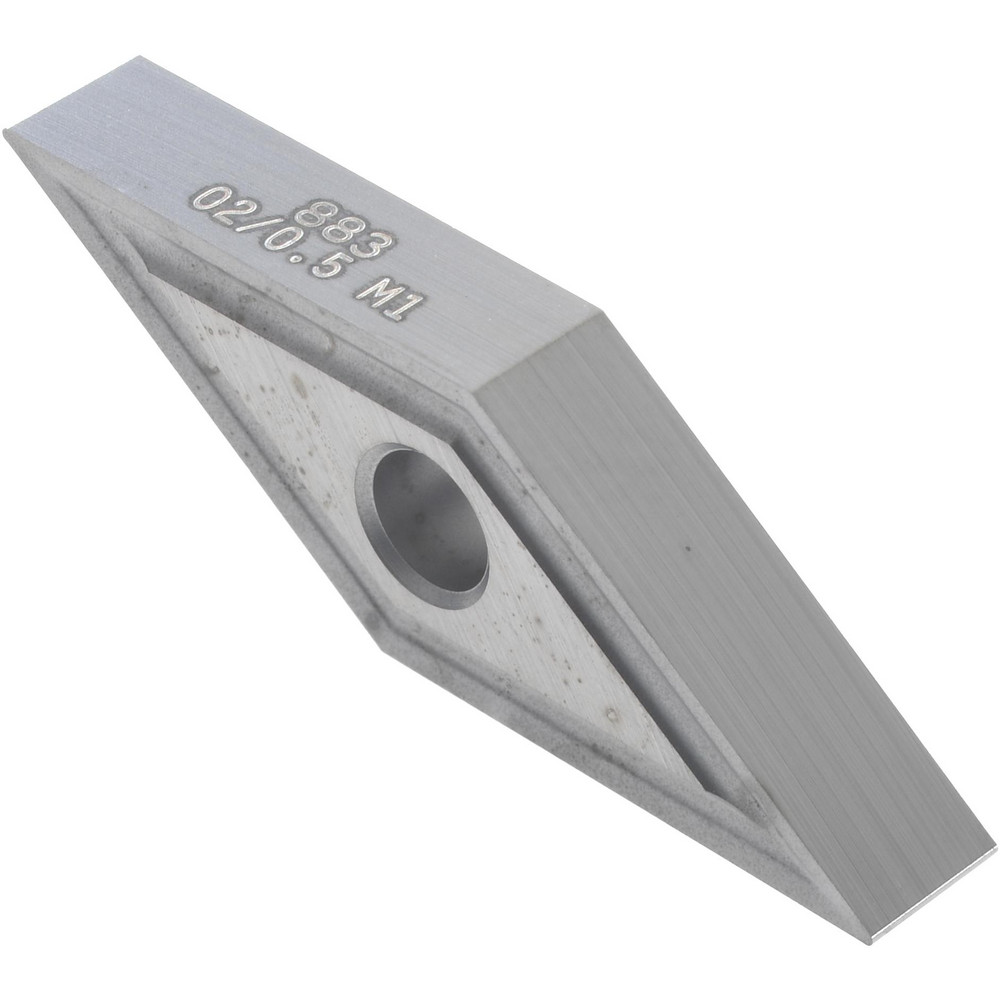

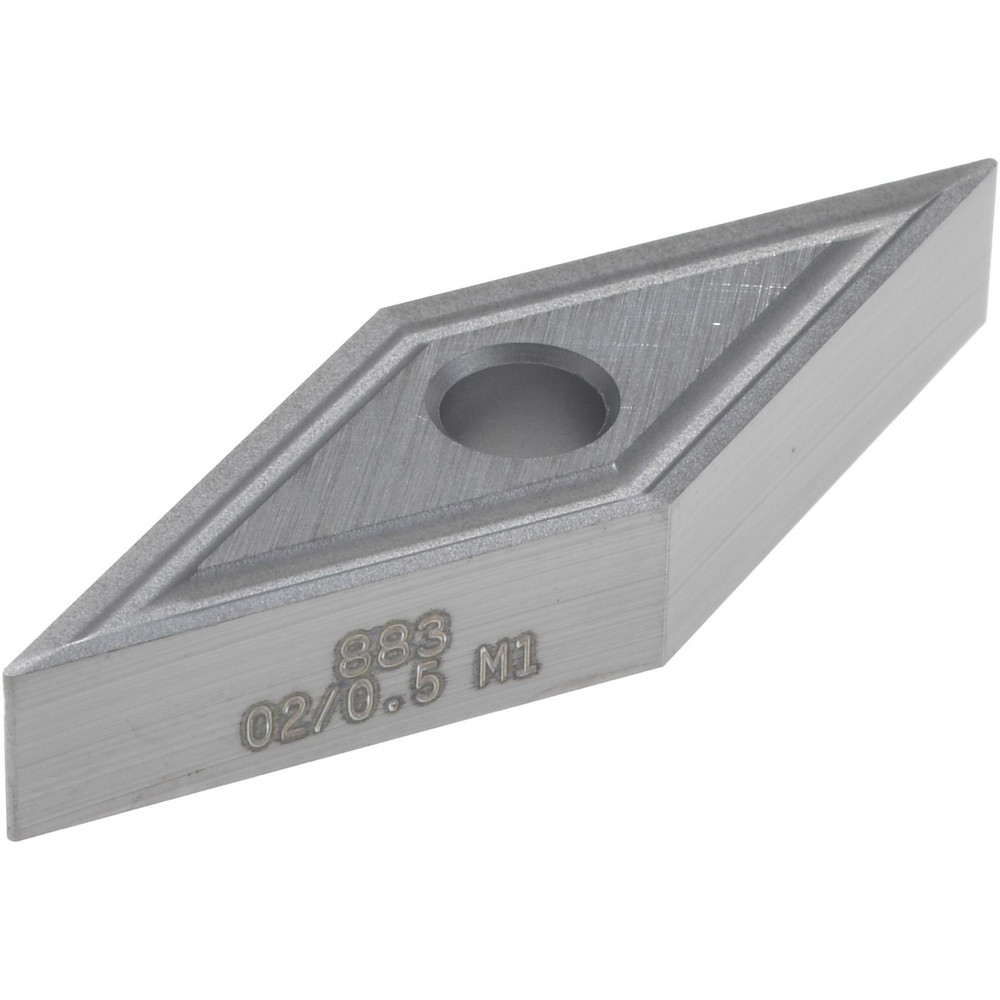

Bright/No Finish, Neutral, 1.3070" Long, 0.3750" Inscribed Circle, 0.0079" Corner Radius, 35 deg V - Diamond (Rhombic) 35-Deg, Series VNGP-M1
| Insert Style | VNGP |
|---|---|
| ISO Size Code | 160402 |
| ANSI Size Code | 330.5 |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Included Angle | 35 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Material | Carbide |
| Manufacturer Grade | 883 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | VNGP-M1 |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to High Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| ISO Insert Code | VNGP160402 |
| ANSI Insert Code | VNGP330.5 |
| Insert Holding Method | Pin; Clamp; Lever Lock |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3070 |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material Code | H; K; M; N |
| Iso Code | VNGG160402-M1 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 00050066 |
| Material Grade | S20; S30; S10 |
| Proprietary Coating Designation | Uncoated |
| Lead Angle | 35 |
| Coating Classification | Uncoated |
| Chip Breaker | M1 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | VNGP330.5F-M1 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Profiling; Turning; Back Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 330.5 |
| Country of Origin | Czechia |
| undefined | undefined |
| MSC Number | MSC# 57022964 |
