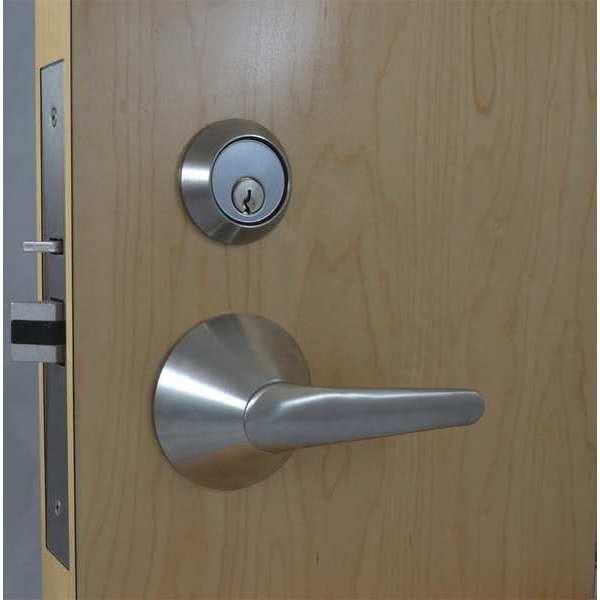

Door Lever Lockset, Mortise, Elect/Mech
| Item | Door Lockset |
|---|---|
| Finish | Stainless Steel |
| For Use With | Commercial Wood, Hollow Metal Doors |
| Includes | Complete Lock |
| Style | Lever |
| Series | LSL Series |
| Features | Door Position Switch, Latch Position Switch, Request to Exit Switch |
| Keyway Type | Less Cylinder |
| Lockset Fire Rating | 3 hr |
| Lockset Handle Type | Lever |
| Electrical/Mechanical | Electrical, Mechanical |
| Mortise / Cylindrical | Mortise |
| Key Type | Not Keyed |
| Cylinder Core Type | Format Interchangeable Core Cylinder |
| ADA Compliant | Yes |
| Lockset Function | Classroom |
| Lockset Grade | Not Graded |
| Voltage | 24V DC |
| Handle Material | Stainless steel |
| Number of Keys | 0 |
| Strike Type | Lip |
| Number of Pins | 0 |
| Standards | Intertek, UL Listed |
| Required Door Thickness | 1-3/4 in |
| Ligature Resistant | Yes |
| Lockset Finish | Stainless Steel |
| Location Type | Institutional |
| Backset | 2 3/4 in |
| Lockset Performance Strength | Extra Heavy Duty |
| Mortise/Cylindrical | Mortise |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Keying | Unkeyed |
| Fire Rated | Not Rated |
| Grade | 1 |
| Key Material | Not Applicable |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1-1/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Maximum | 1-3/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Includes Core | Core Not Included |
| Knob/Handle Material | Stainless Steel |
| Fire Rating | 3 hr |
| Ligature-Resistant | Ligature-Resistant |
| Trim Plate Shape | Round |
| Includes Hardware | Hardware Included |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Lockset Type | Electrical, Mechanical |
| Strike Plate Height | 4-7/8 in |
| Failure Mode | Fail Secure |
| Lockset Style | LSL Lever |
| Locking/Unlocking Access - Inside | Keyway |
| Hand Orientation | Right-Handed |
| ANSI Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
