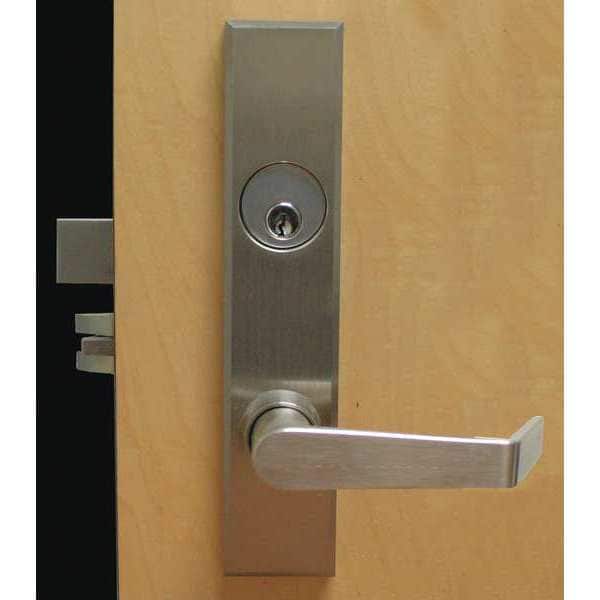

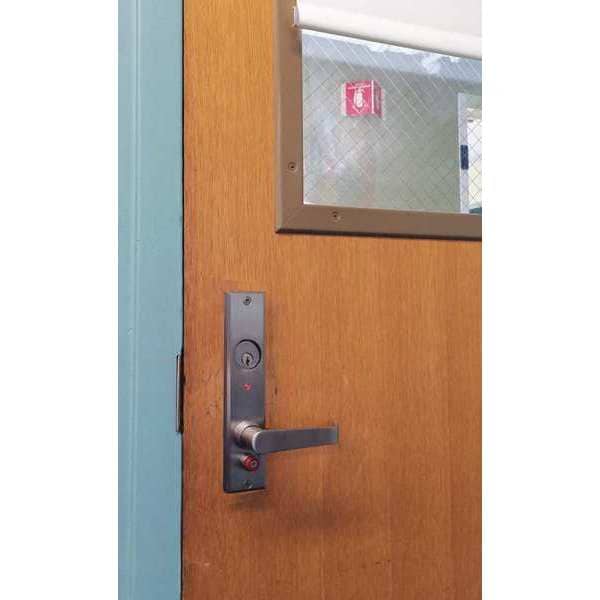

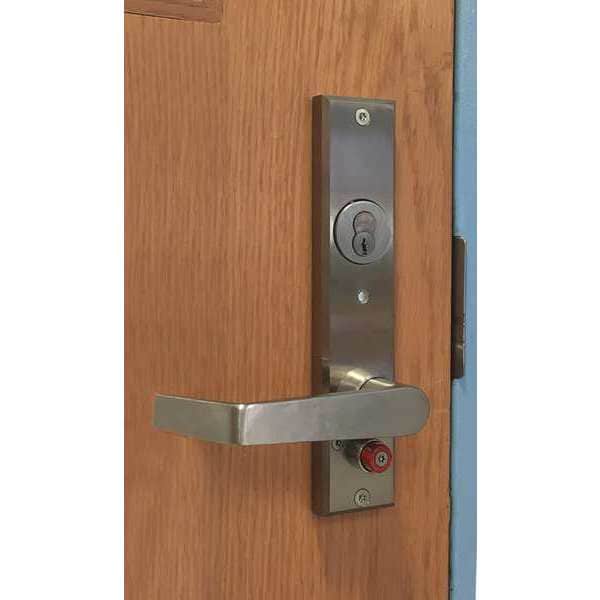

Electrionic Lock, Mortise, Intruder, Left
| Item | Door Lockset |
|---|---|
| Finish | Satin Nickel |
| For Use With | Interior/Exterior Door |
| Includes | Screw Pack |
| Operating Temp. Range | -31 to 151 deg F |
| Series | SPELL |
| Features | Emergency Button Projects Deadbolt |
| Lock Material | Stainless Steel |
| Hand | Left Hand |
| Inside Height | 9 in |
| Inside Width | 2 in |
| Electrical/Mechanical | Electrical |
| Latch Front Size | 1-1/4 in x 8 in |
| Backset | 2 3/4 in |
| Number of Keys | 0 |
| Outside Height | 9 in |
| ADA Compliant | Yes |
| Access Method | Key, Lever |
| Handle Type | Lever |
| Inside Depth | 5/8" |
| Fire Rating | 3 hr |
| Door Thickness | 1-3/4" |
| Outside Width | 2 in |
| Function | Programable Function Control |
| Key Override Options | Less Cylinder |
| Mounting Style | Mortise |
| Voltage | 24V DC |
| Weather Resistant | Yes |
| Latch Length | 3/4 in |
| Power Source | 24VDC |
| Keypad Material | Not Applicable |
| Lockset Function | Classroom Security |
| Keyway Type | Less Cylinder |
| Strike Type | Mortise |
| Mortise/Cylindrical | Mortise |
| Cylinder Core Type | Format Interchangeable Core Cylinder |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Lockset Type | Electrical |
| Latch Bolt/Dead Bolt | Dead Bolt |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Includes Core | Core Not Included |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI Grade | 1 |
| Includes Hardware | Hardware Included |
| Trim Plate Shape | Rectangular |
| Hand Orientation | Left-Handed |
| Door Thickness - Minimum | 1-3/4 in |
| Visual Indicator Location | Not Applicable |
| Locking/Unlocking Access - Outside | Keyway |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
