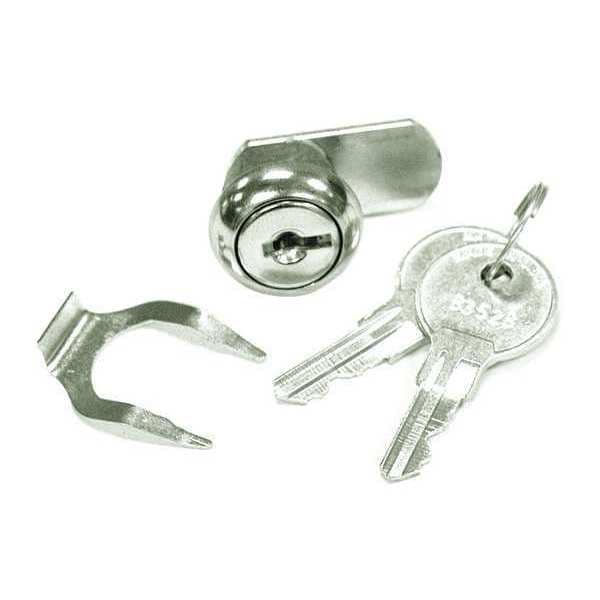

Disc Tumbler Keyed Cam Lock, Satin Stainless, 1/8 in For Door Thickness, 2 Number of Keys
| Item | Disc Tumbler Keyed Cam Lock |
|---|---|
| For Door Thickness (In.) | 1/8 |
| Key Type | Alike |
| Keying | Keyed Alike |
| Finish | Satin Stainless |
| For Use With | Standard Knockout on All Furnished Securitron Cabinets |
| Opens With | Key |
| Mounting Hole Dia. | 3/4 in |
| Number of Keys | 2 |
| Cam Lock Type | Keyed |
| Cam Width (In.) | 5/8 |
| Head Dia. (In.) | 15/16 |
| Key Number | B352B |
| Cam Length (In.) | 5/8 |
| Cam Type | Straight |
| For Material Thickness | 1/8 in |
| Mounting Hole Dia. (In.) | 3/4 |
| Weather Resistant | No |
| Offset (In.) | 11/32 |
| Max. Latching Distance (In.) | 23/32 |
| Unlocking Radius (Deg.) | 90, 180 |
| Package Quantity | 1 |
| Interchangeable Core | Yes |
| Lock Body Material | Steel |
| Unlock Turn Direction | Clockwise |
| Lock Body Finish | Chrome-Plated |
| Keyed Cam Lock Type | Disc Tumbler Keyed Cam Lock |
| Security Level | General Security |
| Latching Distance | 23/32 in |
| Body Color | Silver |
| Interchangeable Core Type | SFIC |
| Includes Mounting Hardware | No |
| Number of Locks in Pack | 1 |
| Head Dia. | 15/16 in |
| Key Retaining | No |
| Mounting Hardware Required | No |
| Straight Cam Length | 5/8 in |
| Cylinder Length | 5/8 in |
| Key Code | B352B |
| Keyway Type | B3528 |
| Straight Cam Width | 5/8 in |
| For Material | Metal |
| Unlocking Radius | Quarter-Turn |
| Type | Cabinet Door |
| Country of Origin (subject to change) | United States |
