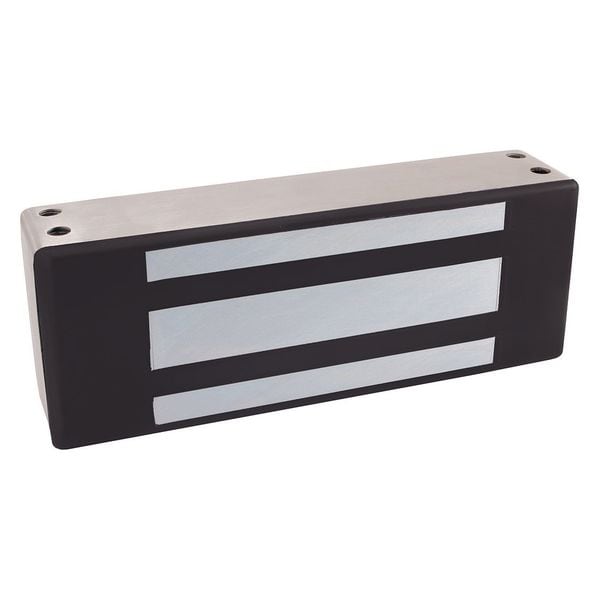

Electromagnetic Lock, 1200lb., M62 Series
| Item | Electromagnetic Lock |
|---|---|
| Finish | Anodized |
| Type | Surface Mount |
| Input Voltage | 12/24V DC |
| For Use With | High Security Gate Applications |
| Material | Steel |
| Includes | Mounting Hardware |
| Opening Action | Electromagnetic |
| Options Included | Dual Voltage |
| Series | M62 |
| Features | For Use with Door Closers |
| Amp Draw @ 24V | 150mA/24V DC |
| Standards | ANSI/BHMA A156.23, ANSI/UL 294, CAN/ULC-S533, CAN4-S104, CE:EN 50081-1(92), CSA-C22.2 No.205, CSFM, E08501-1000, EN 61000-6-2(99) |
| Strike Plate Depth (In.) | 1/2 |
| Strike Plate Width (In.) | 2-3/4 |
| Package Quantity | 1 |
| Amp Draw @ 12V | 250mA/12V DC |
| Holding Force (Lb.) | 1,200 |
| Armature Length (In.) | 6.1111 |
| Lock Body Width (In.) | 3 |
| Lock Body Length (In.) | 11 |
| Armature Width (In.) | 2-3/4 |
| Armature Depth (In.) | 1/2 |
| Release Delay | Instantaneous |
| Lock Body Depth (In.) | 1-3/4 |
| Mfr. Series | M62 |
| Projection from Wall (In.) | 1-3/4 |
| Total Projection (In.) | 1-3/4 |
| Strike Plate Length (In.) | 6.1111 |
| Armature Length | 6 in |
| Lock Body Width | 3 in |
| Strike Plate Width | 1/2 in |
| Armature Width | 2-3/4 in |
| Lock Body Depth | 2-3/4 in |
| Overall Width | 3-1/4 in |
| Current @ 24V | 150 mA |
| Holding Force - Maximum | 1,200 lb |
| Overall Height | 3 in |
| Strike Plate Height | 2-3/4 in |
| Projection | 1-3/4 in |
| UL Fire Rating | UL10C |
| Compatible Series | ASCWB |
| Includes Hardware | Hardware Included |
| Current @ 12V | 250 mA |
| Overall Length | 8 in |
| ANSI/BHMA Finish | Unfinished |
| Compatible Manufacturer Model Number | ASCWB-DM62C |
| Country of Origin (subject to change) | United States |
