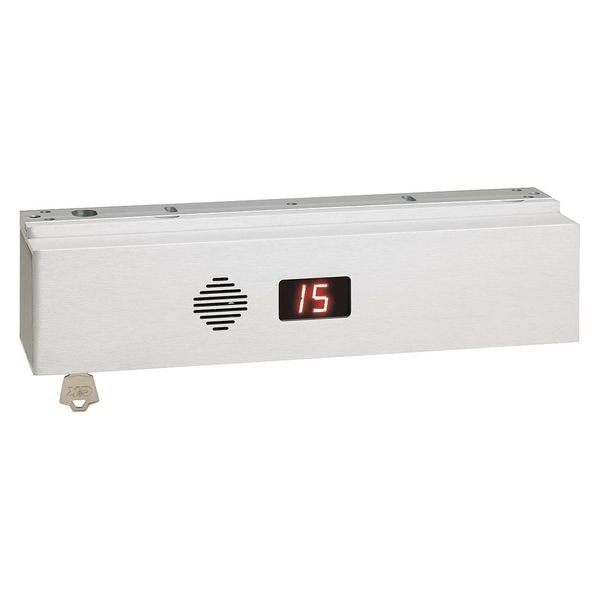

Electromagnetic Lock, 1650lb., 1511SSeries
| Item | Electromagnetic Lock |
|---|---|
| Finish | Anodized |
| Type | Surface Mount |
| Input Voltage | 12/24V DC |
| For Use With | High Security Industrial Applications |
| Material | Steel |
| Includes | Mounting Hardware |
| Opening Action | Manual |
| Options Included | Dual Voltage |
| Series | 1511S |
| Features | Integrated Three Position Key Switch for Reset, Manual Power-Up and Bypass Settings |
| Lock Body Depth (In.) | 2-5/8 |
| Lock Body Width (In.) | 2-3/4 |
| Standards | BOCA Compliant, CBC, CSFM 3774-0324:0103, IBC, IFC, NFPA 1-UFC, NFPA 101, SBC, UBC, UL 294, ULC S104, ULC S533 |
| Total Projection (In.) | 2-5/8 |
| Amp Draw @ 12V | 830mA/12V DC |
| Armature Width (In.) | 2-3/8 |
| Strike Plate Depth (In.) | 9/16 |
| Mfr. Series | 1511S |
| Strike Plate Width (In.) | 2-3/8 |
| Lock Body Length (In.) | 11 |
| Strike Plate Length (In.) | 7-3/8 |
| Holding Force (Lb.) | 1,650 |
| Amp Draw @ 24V | 450mA/24V DC |
| Armature Depth (In.) | 9/16 |
| Release Delay | Instantaneous |
| Armature Length (In.) | 7-3/8 |
| Projection from Wall (In.) | 2-5/8 |
| Package Quantity | 1 |
| Lock Body Width | 2-3/4 in |
| Armature Length | 7-3/8 in |
| Lock Body Depth | 2-5/8 in |
| Armature Width | 2-3/8 in |
| Strike Plate Width | 2-3/8 in |
| Includes Hardware | Hardware Included |
| Overall Length | 11 in |
| Current @ 12V | 820 mA |
| Overall Width | 1-9/16 in |
| Projection | 2-5/8 in |
| UL Fire Rating | UL10C, UL10B |
| Holding Force - Maximum | 1,650 lb |
| Current @ 24V | 500 mA |
| Strike Plate Height | 9/16 in |
| Overall Height | 2-3/4 in |
| Country of Origin (subject to change) | United States |
