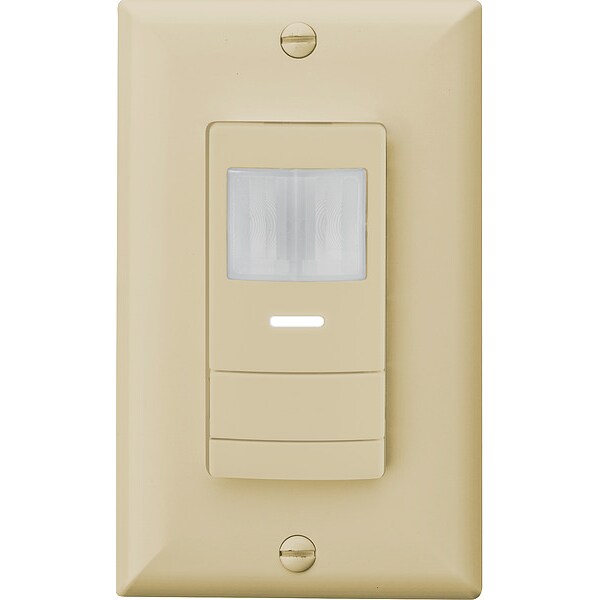

Motion Snsr, PIR, 120-277V AC, Ivory
| Item | Motion Sensor |
|---|---|
| Color | Ivory |
| Standards | cUL Listed, UL Listed |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Coverage at Suggested Mounting Height | 2,025 sq ft |
| Sensing Technology | Passive Infrared |
| Communication Method - Motion Sensing and Dimming | Wired |
| Description/Special Features | Easy to Install and Aids in Energy Code, Function with or without a Neutral Connection, Simple and Cost-Effective Solutions for Commercial and Residential Lighting Control Application |
| Lighting Technology | Fluorescent, Incandescent, LED |
| Installation Location - Motion Sensor | Wall Switch Box |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Color - Motion Sensing and Dimming | White |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Communication Method | Hard Wired |
| Maximum Time Delay | 30 min |
| Overall Depth | 1.63 in |
| Dimming Type | No Dimming |
| Manufacturer Warranty | 5 yr |
| Overall Width | 1.68 in |
| Coverage Type | Small Motion |
| Minimum Operating Temperature | 32 Degrees F |
| Maximum Mounting Height | 4 ft |
| Maximum Coverage Area | 2,025 sq ft |
| Series | Sensor Switch |
| Maximum Operating Temperature | 140 deg F |
| Load Rating @ 120V AC | 800W |
| Nightlight | No |
| Dimming Method | 0-10V |
| Number of Buttons | 1 |
| Installation Location | Wall |
| Fan Rated | Yes |
| Includes Motion Sensor | Yes |
| Sensor Operation | Occupancy, Photocell |
| Rated Frequency | 50/60 Hz |
| Compatible with Series | Not Applicable |
| Minimum Mounting Height | 30 in |
| Load Rating @ 277V AC | 1,200W |
| Includes Wall Plate | Wall Plate Included |
| Maximum Detection Distance | 20 ft |
| Number of Gangs | 1 |
| Neutral Required | No |
| Minimum Time Delay | 30 sec |
| Includes Dimming Switch | Dimming Switch Not Included |
| Horsepower Rating | 0.25 HP |
| Overall Height | 2.74 in |
| Operating Voltage | 120 to 277V AC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
