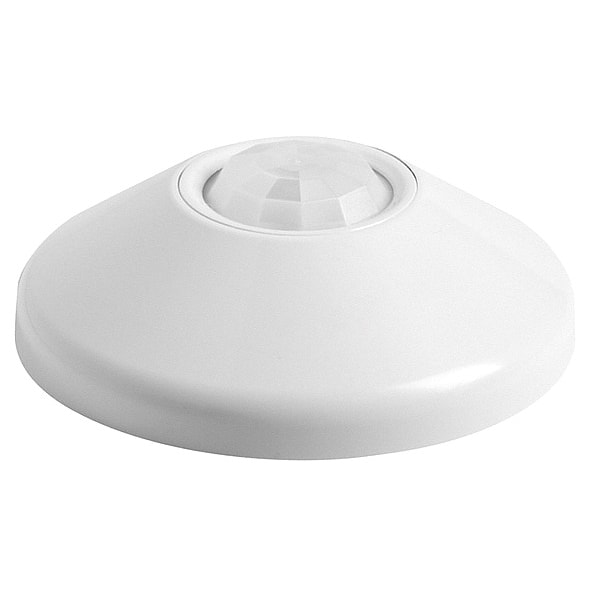

Sensor de ocupación, PIR, 2500 pies cuadrados, blanco
| Item - Motion Sensing and Dimming | Occupancy Sensor |
|---|---|
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared |
| Installation Location - Motion Sensor | Ceiling |
| Coverage at Suggested Mounting Height | 2,500 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 V AC, 277 V AC |
| Color - Motion Sensing and Dimming | White |
| Time Delay Adjustment Method - Motion Sensor | Adaptive, Manual |
| Time Delay - Motion Sensor | 30 sec to 20 min |
| For Use With | Fluorescent and Incandescent Lighting Loads |
| Coverage | 2,500 sq ft |
| Color | White |
| Watts @ 120V | 800 |
| Max. Capacity @ 277VAC | 1200W (Fluorescent, Incandescent) |
| Suggested Mounting Height - Motion Sensor | 7 to 15 ft |
| Time Delay | Adaptive/Manual |
| Lighting Technology | Fluorescent, Incandescent, LED |
| Timer Range | 30 sec. to 20 min. |
| Voltage | 120/277VAC |
| Viewing Angle | 360 deg |
| Max. Capacity @ 120VAC | 800W (Fluorescent, Incandescent) |
| Item | Occupancy Sensor |
| Installation Type | Ceiling |
| Sensor Type | Passive Infrared |
| Watts @ 277V | 1,200 |
| Coverage Angle - Motion Sensor | 360 deg |
| Standards | BAA, CA Title 24 Compliant, RoHS Compliant |
| Communication Method | Hard Wired |
| Includes | (2) Self Tapping Screw |
| Fixture Height | 1.5 |
| Fixture Length | 4.5 |
| Fixture Width | 4.5 |
| Wall Plate | Not Included |
| Maximum Operating Temperature | 185 deg F |
| Series | CMR |
| Coverage Type | Large Motion |
| Sensor Operation | Occupancy |
| Overall Width | 4.55 in |
| Installation Location | Ceiling |
| Coverage Angle | 360 deg |
| Overall Depth | 1.55 in |
| Overall Diameter | Not Applicable |
| Minimum Time Delay | 30 sec |
| Minimum Mounting Height | 7 ft |
| Maximum Coverage Area | 2,000 sq ft |
| Manufacturer Warranty | 5 yr Limited |
| Load Rating @ 277V AC | 1,200W |
| Load Rating @ 120V AC | 800W/6.67A (Incandescent) |
| Maximum Time Delay | 20 min |
| Load Rating @ 480V AC | 80mA |
| Minimum Operating Temperature | 14 deg F |
| Time Delay Adjustment Method | Adaptive, Manual |
| Maximum Mounting Height | 15 ft |
| Voltage Rating | 208, 347, 480 |
| Primary Material | Plastic |
| Application Type | Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses |
| Mounting Type | Surface, Flush |
| Power Connection | Hardwired |
| Contains Lithium Battery | No |
| Compliance Listing | BAA |
| Mounting Location | Ceiling |
| Regulatory Listing | C-UL-US |
| Control Protocol | 0-10V |
| Motion Sensing Distance | 28 |
| Mounting | Surface Mount, Flush |
| Is Motion Sensing Adjustable | Yes |
| Finish | Matte |
| Relay Configuration | Single Pole |
| Product Type | Sensor |
| Environmental Listing | High Humidity |
| Shape | Round |
| Daylight Sensing | No |
| Lens Material | Plastic |
| Control Device Type | Daylight Sensor, Occupancy Sensor |
| Motion Sensing Field of View | 360 deg |
| Batteries Included | No |
| Environment | Indoor |
| Package Quantity | 1 |
