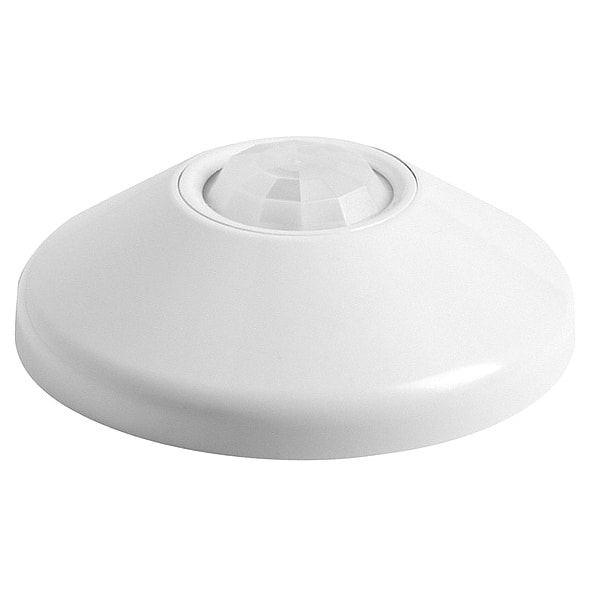

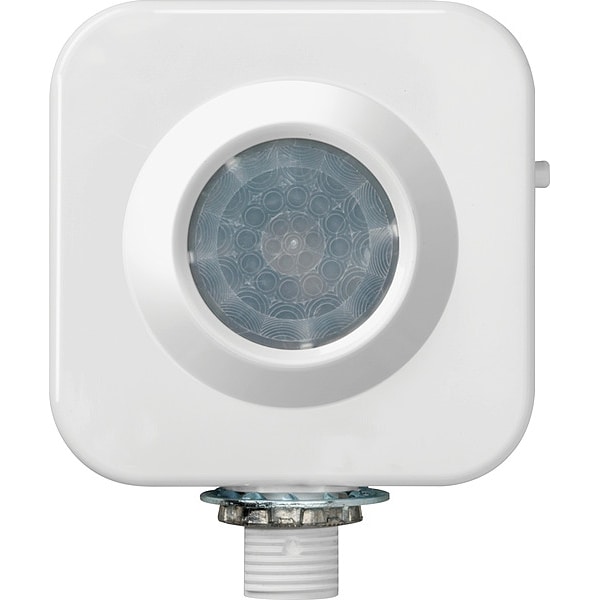

Sensor de rango estándar, doble, 1800 pies cuadrados.
| Use With - Motion Sensing and Dimming | Sensor Switch nLight Control System |
|---|---|
| Item - Motion Sensing and Dimming | Motion Sensor |
| Communication Method - Motion Sensing and Dimming | Digital Cat5 Cable |
| Sensing Technology | Passive Infrared /Microphonic |
| Installation Location - Motion Sensor | Ceiling |
| Coverage at Suggested Mounting Height | 1,800 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 12 to 24V DC |
| Color - Motion Sensing and Dimming | White |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Time Delay - Motion Sensor | 45 sec to 25 min |
| Communication Method | Digital Cat5 Cable |
| Voltage | 12 to 24VDC |
| Viewing Angle | 360 deg |
| Includes | Mounting Anchors/Screws |
| Coverage | 1,800 sq ft |
| Time Delay | Adjustable |
| Timer Range | 45 sec. to 25 min. |
| Item | Standard Range Sensor |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Standards | BAA, cUL Listed, DLC, Title 24 Compliant, UL Listed |
| For Use With | Sensor Switch nLight Control System |
| Coverage Angle - Motion Sensor | 360 deg |
| Color | White |
| Sensor Type | Dual Technology |
| Installation Type | Ceiling |
| Lighting Technology | LED |
| Load Rating @ 120V AC | Dependent on Control Unit Rating |
| Overall Diameter | Not Applicable |
| Coverage Angle | 360 deg |
| Overall Width | 4.55 in |
| Series | 2ACL2; 2ACL4; 2ALL2; 2ALL4; 2BZL2; 2BZL4; 2GTL; 2GTL2; 2GTL4; 2RTL4; 2SBSL2; 2SBSL4; 2TL2; 2TL4; ALL4; GTL; GTL4; NCM; RTL4; TL4 |
| Minimum Mounting Height | 15 ft |
| Coverage Type | Large Motion |
| Maximum Mounting Height | 45 ft |
| Minimum Time Delay | 25 sec |
| Power Relay Required | Yes |
| Installation Location | Ceiling |
| Compatible with Series | VTLED |
| Sensor Operation | Occupancy |
| Minimum Operating Temperature | 14 deg F |
| Manufacturer Warranty | 5 yr Limited |
| Overall Depth | 1.55 in |
| Maximum Operating Temperature | 185 deg F |
| Maximum Time Delay | 45 min |
| Maximum Coverage Area | 1,800 sq ft |
| Package Quantity | 1 |
