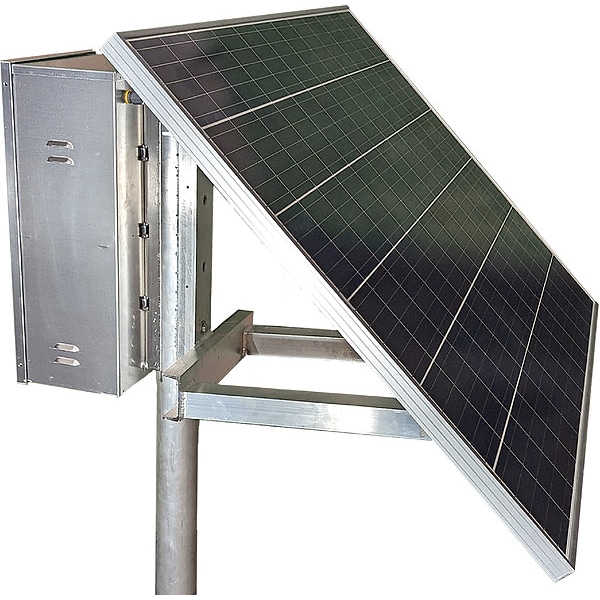

Solar Panel Kit, 170 W, 20.8 V DC, 36 Cells
| Item | Solar Panel Kit |
|---|---|
| Maximum Power Point | 170 W |
| Nominal Output Power | 170 W |
| Voltage @ Maximum Power Point | 20.8 V DC |
| Panel Max. Power Point Voltage | 12 V DC |
| Number of Cells | 36 |
| Features | Aluminum Protective Solar Panel Pan |
| Weight | 243 lb |
| Number of Solar Panels | 1 |
| Battery Capacity | 224 Ah |
| Standards | Meets AASHTO Wind Requirements |
| Modes of Operation | Always On, Motion Activation, Other Controls Available, Timers |
| Enclosure Material | Vented Aluminum |
| Mounting Hardware | Included |
| Includes | Flex Tube, Full 12 ga. Wiring Harness, Liquid Tight Connectors, Quick Connect Terminals, Stainless Steel Hardware for Mounting Solar Array and Battery Box to Bracket |
| Power Rating | 170 W |
| Effective Projected Area EPA | 9.7 sq ft |
| For Use With | Cameras, Cathodic Protection, Communications Devices, Flow Meters, Other Electronic Devices, Railroad Applications, RTU/SCADA, Seismic Monitoring |
| Battery Type | Gel Cell |
| Mounting | 45 Degrees /5 Degrees Welded Aluminum Mounting Bracket for 4 in OD Round Pole or Larger |
| Battery Voltage | 12 V DC |
| Includes Mounting Hardware | Yes |
| Total System Power Output | 170 W |
| Solar Panel Frame Material | Aluminum |
| Includes Battery | Yes |
| Package Quantity | 1 |
