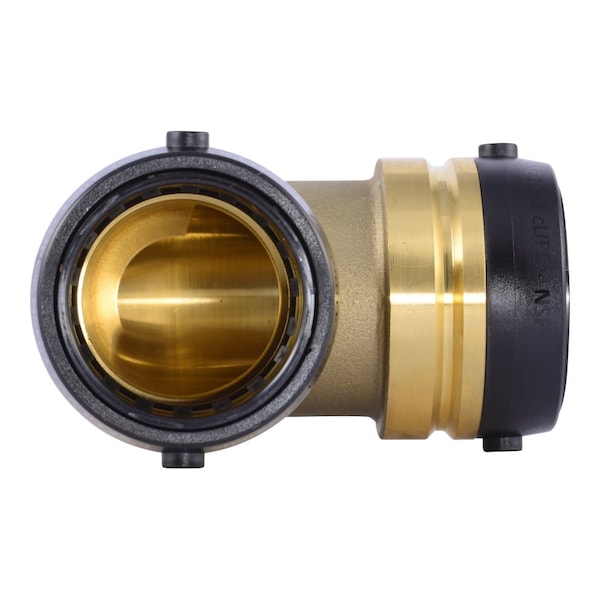

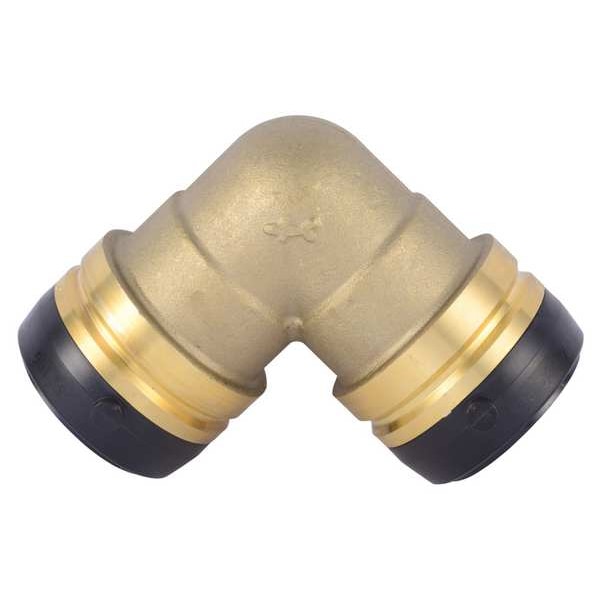

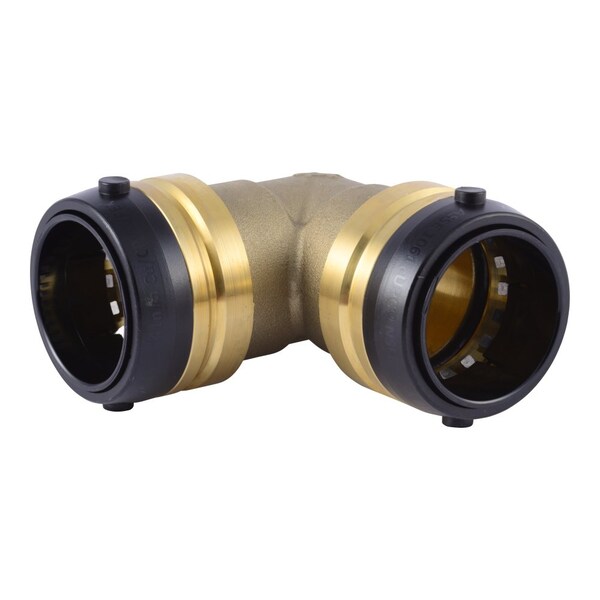

Swivel Elbow, 90 deg., 1-1/2" Tube Size
| Overall Length | 10 1/8 in |
|---|---|
| Item | Swivel Elbow |
| Color | Brass |
| Special Features | No Soldering Needed, Removable, Reusable |
| Tube Size | 1-1/2 in |
| Specific Fitting Shape | 90 Degrees Swivel Elbow Adapter |
| Gasket Material | Polysulfone |
| Standards | AB1953, ASSE 1061, ISO 6509, NSF/ANSI 30, NSF/ANSI 372 |
| Pipe Fitting Connection Type | Push-Fit |
| Pipe Size - Pipe Fitting | 1-1/2 in |
| Specific Pipe Fitting Shape | 90 Degrees Swivel Elbow |
| Temp. Range | 20 to 200 deg F |
| Compliance | AB1953, ASSE 1061, ISO 6509, NSF30, NSF372 |
| Fitting Connection Type | Push-Fit |
| Tube Fitting Material | DZR Brass |
| Max. Pressure | 200 psi |
| Pipe Size (Fittings) | 1-1/2" |
| Application | Potable Water |
| System of Measurement | Imperial |
| Maximum Operating Temperature | 200 Degrees F |
| Maximum Operating Pressure | 200 psi |
| Minimum Operating Temperature | 20 Degrees F |
| Fitting Side B Tube Outer Diameter | 1 1/2 in |
| Release Ring Material | Polysulfone |
| Fitting Side A Tube Outer Diameter | 1 1/2 in |
| Fitting Side B Connection Type | Push-to-Connect |
| Includes Pre-Applied Thread Sealant | No |
| Compatible Tube Material | Copper, CPVC, HDPE, PEX, Polyethylene |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Material | Brass |
| Resistance Properties | Corrosion-Resistant |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
