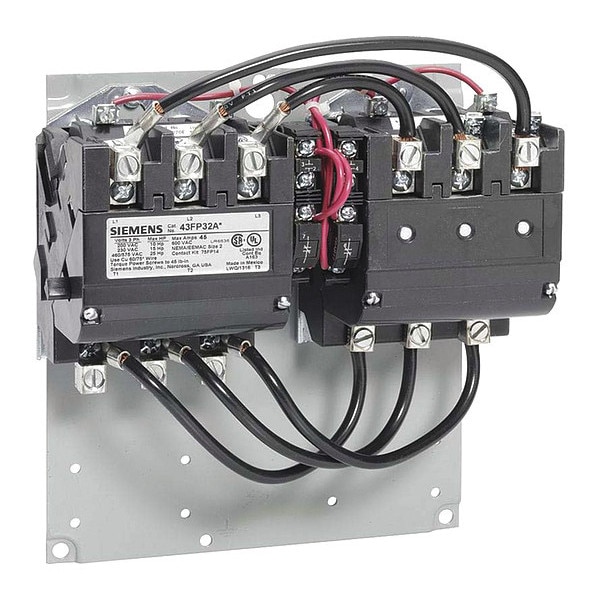

Contacto magnético de inversión de 120VCA, 3P 60A NEMA 2-1/2.
| Item | Magnetic Contactor |
|---|---|
| Action | Reversing |
| Full Load Amps | 60 A |
| Number of Poles | 3 |
| NEMA Contactor Size | 2.5 |
| Coil Volts | 120 V AC |
| Reversing | Yes |
| Height | 8.94 in |
| Width | 7-3/4 in |
| HP @ 3 Phase - 208V | 15 hp |
| HP @ 3 Phase - 575V | 30 hp |
| Depth | 4.56 in |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 480V | 30 hp |
| Enclosure NEMA Rating | No Enclosure |
| Frame / Series / Class / Code | Class 43 |
| NEMA Size | 2.5 |
| Auxiliary Contact Form | 2NO/2NC |
| Standards | REACH Art 33 |
| Hz | 60 |
| Series | 43 |
| Mounting Hole Distance - Width | 10-1/4 in |
| Maximum Voltage Rating | 600 V AC |
| Number of Normally Open Main Contacts | 3 |
| Number of Normally Closed Main Contacts | 0 |
| Maximum Operating Temperature | 104 deg F |
| Horsepower @ Three Phase - 208V AC | 15 HP |
| Mounting Style | Surface |
| Embedded Surge Suppressor | No |
| Includes Auxiliary Contacts | Yes |
| Reversing Capability | Reversing |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Minimum Operating Temperature | -4 deg F |
| Mechanical Operating Durability | 10,000,000 |
| Response Time | 10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time) |
| NEMA Enclosure Material | Not Applicable |
| Number of Auxillary Contacts | 4 |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| Full Load Current - Resistive | Not Rated |
| Overall Depth | 4.56 in |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Phase | Three |
| Full Load Current - Inductive | 60 A |
| Overall Height | 8.94 in |
| Terminal Connection Type | Screw Terminals |
| Frequency | 50/60 Hz |
| Auxiliary Contact Module Capacity | 7 |
| Mounting Postion | Vertical |
| Contactor Style | NEMA |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Height | 10-3/4 in |
| Coil Voltage | 110/120V AC |
| Mounting Hole Diameter | 0.28 in |
| Overall Width | 7-3/4 in |
| Package Quantity | 1 |
