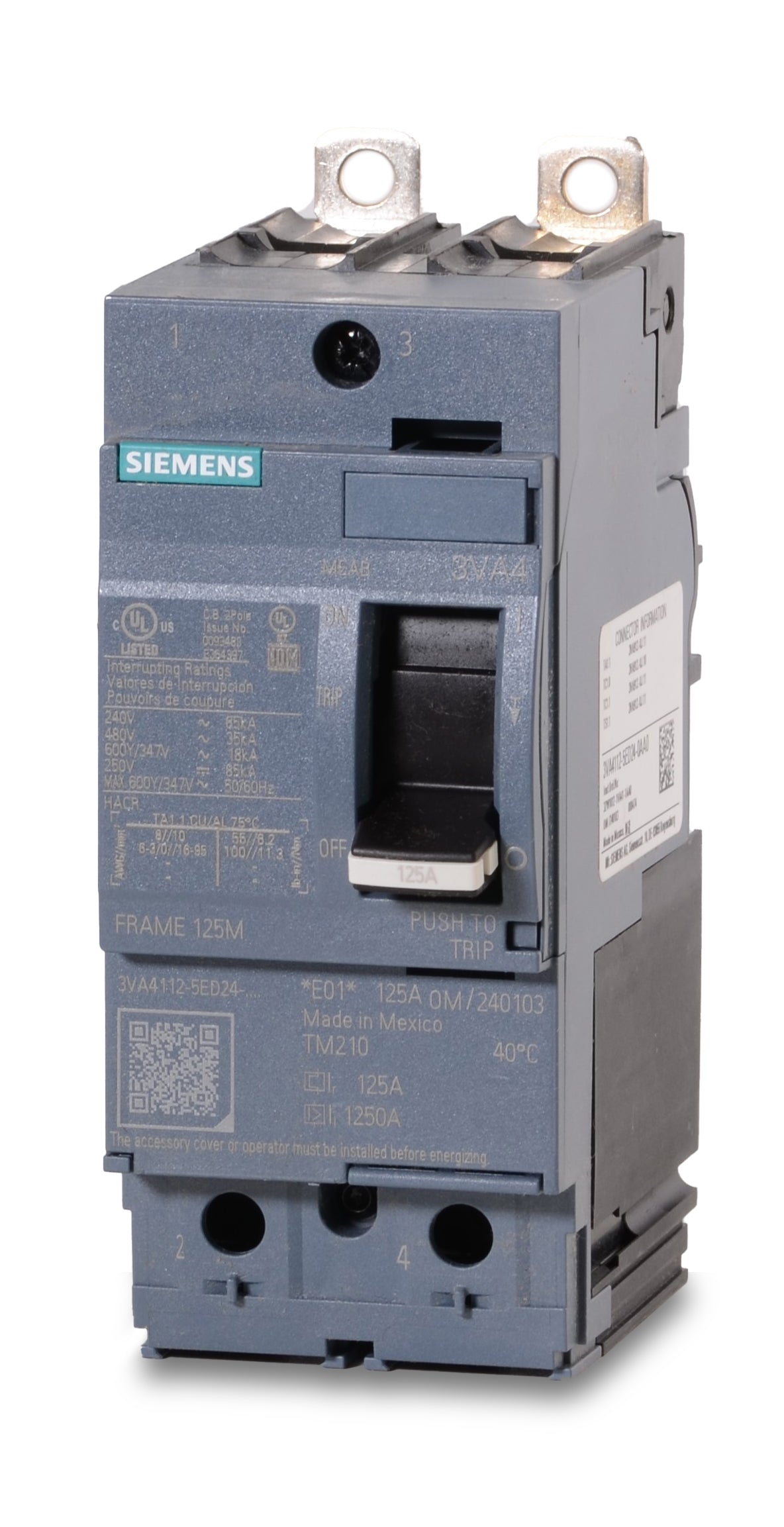

The Siemens 3VA4112-5ED24-0AA0 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 600Y/347V. It has an interrupting rating of 18kAIC at 600Y/347V, 35kAIC at 480V. The 3VA4112-5ED24-0AA0 features with a 3VA41 frame type.
| Brand | Siemens |
|---|---|
| Series | 3VA |
| Amperage | 125 |
| Voltage | 600Y/347V |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 18kAIC at 600Y/347V, 35kAIC at 480V |
| Frame Type | 3VA41 |
| Protection | Thermal Magnetic |
| Terminal Connection | Load side lug |
| Mpn | 3VA4112-5ED24-0AA0 |
| Upc | 804766942563 |
