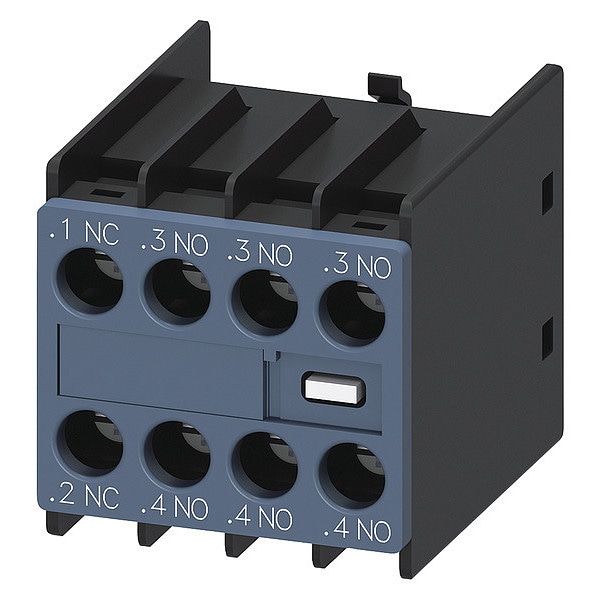

Contacto auxiliar, 10A, montaje frontal
| Item | Auxiliary Contact |
|---|---|
| Number of NO Aux. Contacts | 3 |
| Number of NC Aux. Contacts | 1 |
| Amps | 10 A |
| Mounting | Front |
| For Use With | 3RT2; 3RH2; S00-S3 Frame Contactors |
| Starter Size | 00 to 3 |
| Voltage | 48 V AC/127 V AC |
| Number of Contacts | 4 |
| Max. Contact Blocks (No.) | 4 |
| Compatible with Series | SIRIUS 3RH2 Contactor Relays, SIRIUS 3RT2 Contactors |
| Number of Normally Open Contacts | 3 |
| NEMA Size | 0, 0 |
| Terminal Connection Type | Screw Terminals |
| IP Rating | IP20 |
| Number of Normally Closed Contacts | 1 |
| Current AC | 10 A |
| Maximum Voltage Rating | 690 V AC |
| Frame Size | S0, S00, S2, S3 |
| Package Quantity | 1 |
