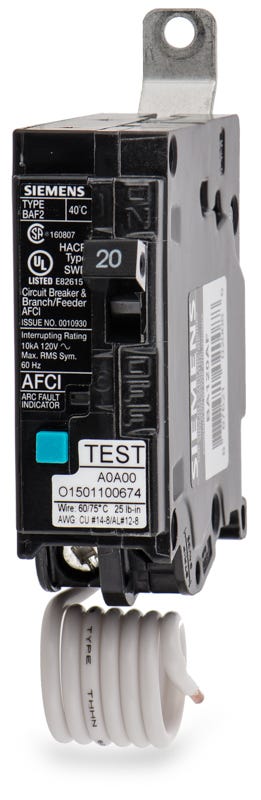

The Siemens B120AF is a 1 Pole molded case arc fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The B120AF has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | BL |
| Amperage | 20 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | B |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 3 |
| Width (in) | 1 |
| Height (in) | 3.56 |
| For Use With | Load Centers |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | AFCI |
| Max Wire Size | 8 AWG (Cu, Al) |
| Min Wire Size | 14 AWG (Cu), 12 AWG (Al) |
| Mpn | B120AF |
| Upc | 783643174290 |
| Gtin | 783643174290 |
