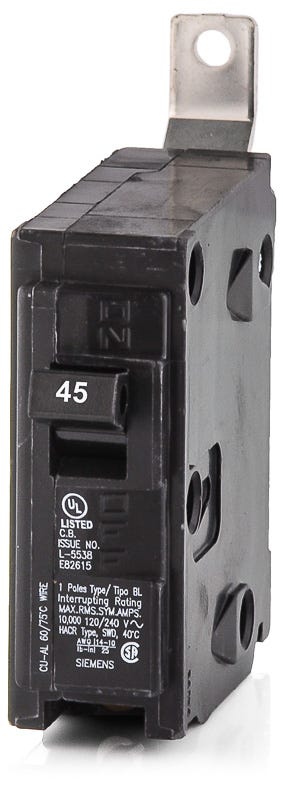

The Siemens B145 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The B145 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | BL |
| Amperage | 50 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | B |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | B145 |
| Upc | 785901587309 |
| Gtin | 00785901587309 |
