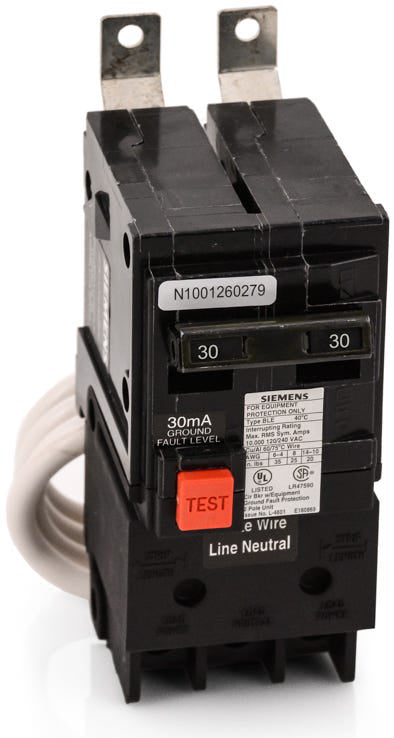

The Siemens BE230H is a 2 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kAIC. The BE230H has a panelboard mounting type and includes LI - long time and instantaneous functions.
| Brand | Siemens |
|---|---|
| Series | BLE |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Panelboard |
| Interrupting Rating | 22kAIC |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long Time and Instantaneous |
| Terminal Connection | Load side lug |
| For Use With | Siemens P1 Panelboards |
| Standards | UL, CSA, HACR, NOM |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Actuator Type | Toggle |
| Max Wire Size | 6 AWG |
| Min Wire Size | 12 AWG AL, 14 AWG CU |
| Mpn | BE230H |
| Upc | 783643274181 |
