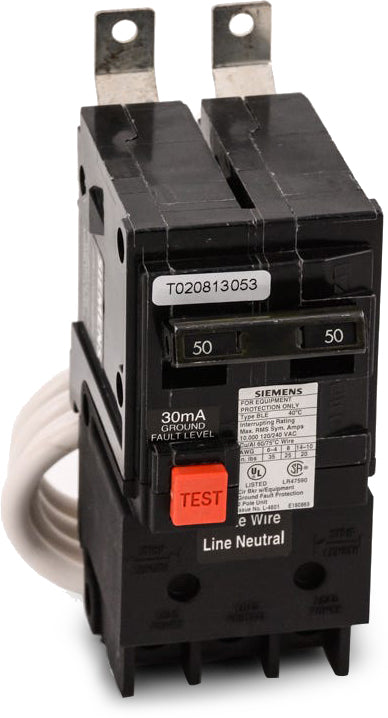

The Siemens BE250H is a 2 Pole molded case ground fault circuit breaker with a current rating of 50 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kAIC at 120/240VAC. The BE250H has a panelboard mounting type and includes LI - long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | BLE |
| Amperage | 50 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Panelboard |
| Approval | UL, CSA, NOM |
| Interrupting Rating | 22kAIC at 120/240VAC |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| For Use With | Siemens P1 Panelboards |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Actuator Type | Toggle |
| Max Wire Size | 4 AWG, 6 AWG, AL/CU |
| Min Wire Size | 8 AWG |
| Mpn | BE250H |
| Upc | 783643274204 |
