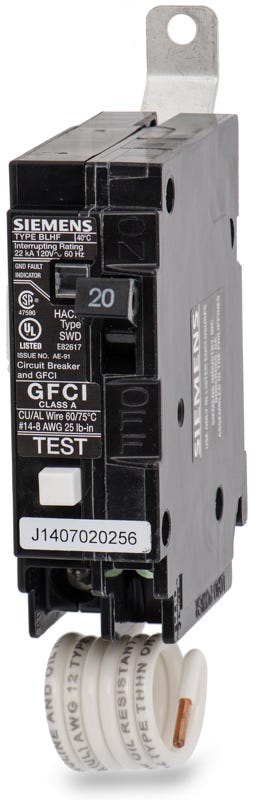

The Siemens BF120H is a 1 Pole molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120VAC. It has an interrupting rating of 22kAIC at 120V. The BF120H has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | BL |
| Amperage | 20 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Approval | UL, CSA, NOM |
| Interrupting Rating | 22kAIC at 120V |
| Frame Type | B |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 2 |
| Width (in) | 6 |
| Height (in) | 4 |
| For Use With | Panelboards |
| Standards | HACR |
| Circuit Breaker Type | GFCI |
| Actuator Type | Toggle |
| Max Wire Size | 10 AWG |
| Min Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Mpn | BF120H |
| Upc | 783643069619 |
| Gtin | 783643069619 |
