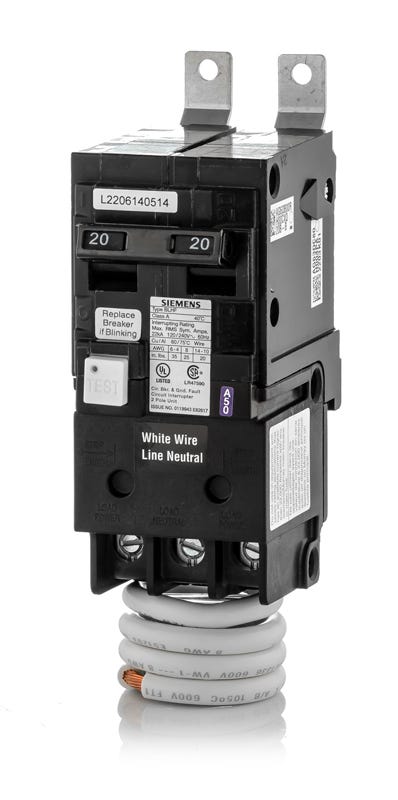

The Siemens BF220AH is a 2 Pole molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kAIC@240V. The BF220AH has a panelboard mounting type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | BF |
| Amperage | 20 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Panelboard |
| Interrupting Rating | 22kAIC@240V |
| Frame Type | B |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Standards | UL, CSA |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | BF220AH |
| Upc | 887621215408 |
