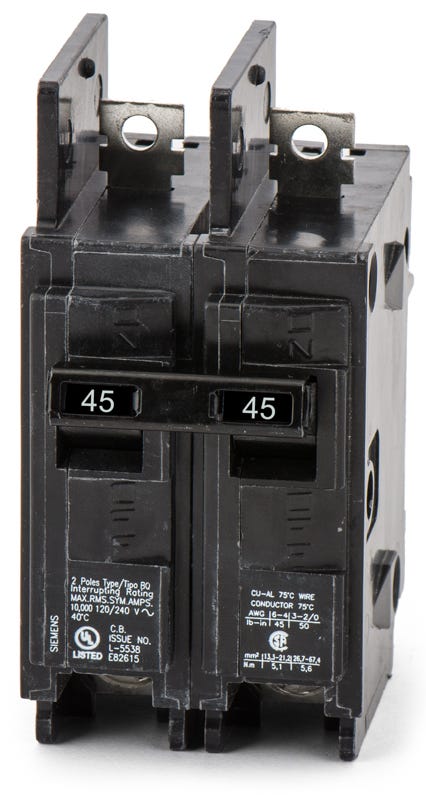

The Siemens BQ2B045 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The BQ2B045 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | BQ |
| Amperage | 45 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | BQ |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 4 |
| Width (in) | 3 |
| Height (in) | 2 |
| For Use With | Panelboards |
| Standards | HACR |
| Temperature Rating | 104 °F |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire Size | 8 AWG |
| Mpn | BQ2B045 |
| Upc | 783643161214 |
| Gtin | 783643161214 |
