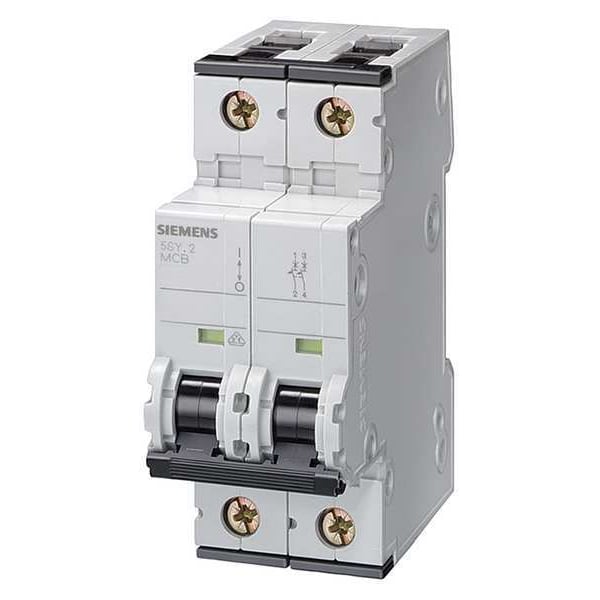

Circuit Breaker, 5SY4 Series, 10A, 2 Pole, 400V AC, 10kA at 400V AC, C Curve
| Item | Circuit Breaker |
|---|---|
| Series | 5SY4 |
| Amps | 10A |
| Number of Poles | 2 |
| AC Voltage Rating | 400V AC |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA at 400V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Frame Size | 2 |
| Width | 1.57 in |
| Depth | 3.3 in |
| Height | 3.62 in |
| DC Voltage Rating | 72V DC |
| Curve Type | C |
| Standards | EN60898, UL 1077 CSA C22.2 No. 235, UL File No. E 116385 |
| Application | Industrial |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 14 AWG |
| Features | Quick Assembly System |
| Housing Material | Thermoplastic |
| Meets UL Type | UL 1077 |
| Length (Straight Wireway) | 3.62 in |
| Length | 3.62 in |
| Mounting | Din Rail |
| Package Quantity | 1 |
