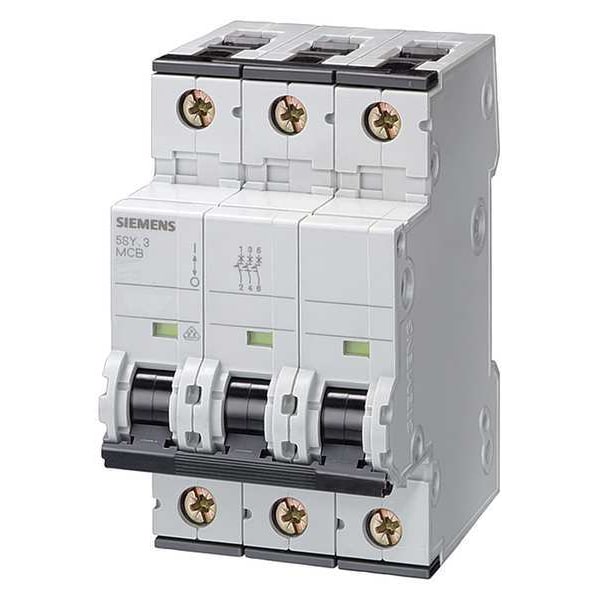

Circuit Breaker, 5SY6 Series, 13A, 3 Pole, 400V AC, 5kA at 400V AC, C Curve
| Item | Circuit Breaker |
|---|---|
| Series | 5SY6 |
| Amps | 13A |
| Number of Poles | 3 |
| AC Voltage Rating | 400V AC |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 5kA at 400V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Width | 2.28 in |
| Depth | 3.3 in |
| Height | 3.7 in |
| DC Voltage Rating | Not Rated |
| Curve Type | C |
| Application | Industrial |
| Max. Wire Size | 4 AWG |
| Standards | EN60898, UL 1077 CSA C22.2 No. 235, UL File No. E 116385 |
| Min. Wire Size | 14 AWG |
| Meets UL Type | UL 1077 |
| Package Quantity | 1 |
