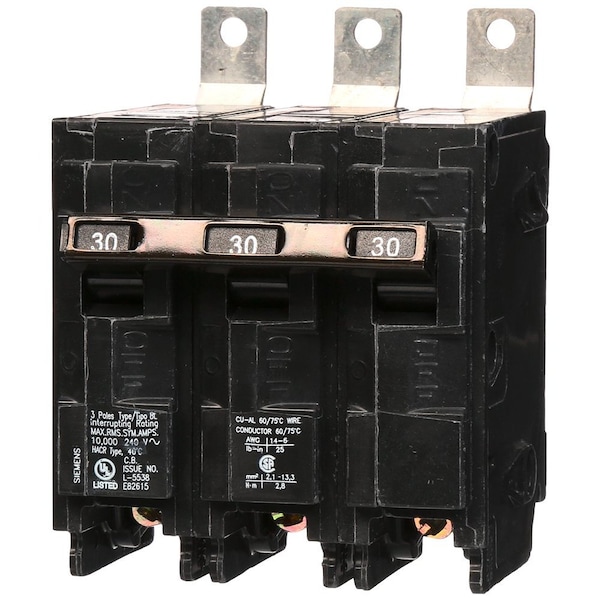

Circuit Breaker, B Series, 30A, 3 Pole, 240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | B |
| Amps | 30A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, BL |
| Width | 3 in |
| Depth | 3 in |
| Height | 2 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| For Use With | Siemens Panelboards |
| Standards | CSA Certified, HACR Rated, NOM Certified, UL Listed |
| Max. Wire Size | 6 AWG |
| Application | Electrical Distribution |
| Length (Straight Wireway) | 3.57 in |
| Mounting | Bolt on |
| Length | 3.57 in |
| Package Quantity | 1 |
