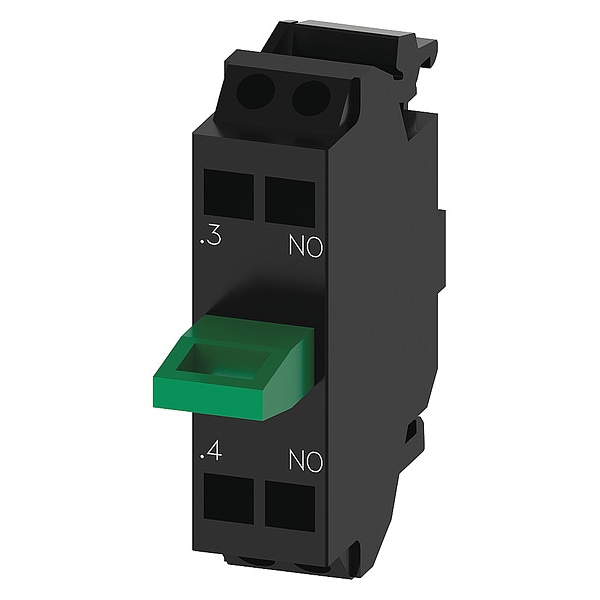

Bloque de contactos, negro/verde, 1NA, 22 mm
| Item | Contact Block |
|---|---|
| Application | General Purpose |
| Contact Form | 1NO |
| Color | Black, Green |
| Standards | CCC, CE, CSA, EAC, UL Listed, VDE |
| Safety Rating | IEC 60721 |
| Terminal Connection | Spring Clamp |
| NEMA Contact Rating Designation | A600, R300 |
| Type of electric connection | Spring clamp connection |
| Number of contacts as normally open contact | 1 |
| Mounting method | Floor fastening |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of fault-signal switches | 0 |
| Switch Action | Momentary |
| Connection Size | 22 mm |
| AC Contact Rating | 1.4 A @ 500 V, 10 A @ 110 V, 10 A @ 24 V, 10 A @ 48 V, 3 A @ 400 V, 6 A @ 110 V, 6 A @ 230 V, 6 A @ 24 V, 6 A @ 48 V, 8 A @ 230 V, 8 A @ 400 V |
| Compatible with Series | 3SU1 |
| Includes Mounting Block | Mounting Block Included |
| Compatible Operator | Push Button, Indicator Light |
| DC Contact Rating | 0.1 A @ 400 V, 0.1 A @ 500 V, 0.3 A @ 230 V, 0.3 A @ 400 V, 0.3 A @ 500 V, 0.7 A @ 110 V, 1 A @ 230 V, 1.5 A @ 48 V, 10 A @ 24 V, 2.5 A @ 110 V, 3 A @ 24 V, 5 A @ 48 V |
| Terminal Connection Type | Spring Terminals |
| Package Quantity | 1 |
