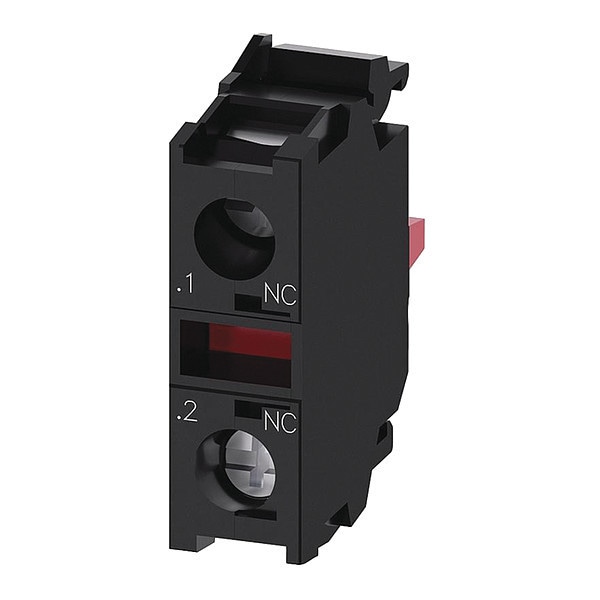

Bloque de Contacto, Acción Momentánea, 22mm.
| Item | Contact Block |
|---|---|
| Size | 22 mm |
| Contact Form | 1NC |
| Action | Momentary |
| Color | Black |
| Terminal Connection | Screw/Clamp |
| For Use With | 3SU1 Operators |
| Standards | CCC, CE, CSA, UL Listed, VDE |
| NEMA Contact Rating Designation | A600, R300 |
| Application | Control Station |
| Contact Rating | 10A @ 600V AC, 1A @ 600V DC |
| Safety Rating | IEC 60947 |
| Height | 33.2 mm |
| AC Contact Rating | 1.4 A @ 500 V, 10 A @ 110 V, 10 A @ 24 V, 10 A @ 48 V, 3 A @ 400 V, 6 A @ 110 V, 6 A @ 230 V, 6 A @ 24 V, 6 A @ 48 V, 8 A @ 230 V, 8 A @ 400 V |
| Width | 9.8 mm |
| Depth | 27.7 mm |
| DC Contact Rating | 0.1 A @ 400 V, 0.1 A @ 500 V, 0.3 A @ 230 V, 0.3 A @ 400 V, 0.3 A @ 500 V, 0.7 A @ 110 V, 1 A @ 230 V, 1.5 A @ 48 V, 10 A @ 24 V, 2.5 A @ 110 V, 3 A @ 24 V, 5 A @ 48 V |
| Positive Opening | Yes |
| Finely Stranded Without Core End Processing | 2x (1,0 to 1,5 mm²) |
| Solid without Core End Processing | 2x (1.0 to 1.5 mm²) |
| Type of Electrical Connection | screw-type terminals |
| Ambient Temperature During Storage | -40 to +80°C |
| Solid with Core End Processing | 2x (0.5 to 0.75 mm²) |
| Operating Voltage AC at 60 Hz | 5 to 500 V |
| Degree Of Pollution | 3 |
| Number of NO Contacts for Auxiliary Contacts Leading Contact | 0 |
| Number of NC Contacts for Auxiliary Contacts Lagging Switching | 0 |
| Operating Current at DC-13 at 500 V | 0.1 A |
| Operating Current at DC-12 at 110 V | 2.5 A |
| At AWG Conductors | 2x (18 to 14) |
| Finely Stranded With Core End Processing | 2x (0.5 to 1.5 mm²) |
| Number of NO Contacts for Auxiliary Contacts | 0 |
| Operating Voltage AC at 50 Hz | 5 to 500 V |
| Operating Current at DC-13 at 110 V | 0.7 A |
| Operating Current at DC-13 at 230 V | 0.3 A |
| Shock Resistance acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Operating Current at DC-12 at 230 V | 1 A |
| Number of NC Contacts for Auxiliary Contacts | 1 |
| Mechanical Service Life (Switching Cycles) | 10 000 000 |
| Operating Current at AC-15 at 400 V | 3 A |
| Shock Resistance for Railway Applications acc. to DIN EN 61373 | Category 1, Class B |
| Mounting Type | Front plate mounting |
| Thermal Current | 10 A |
| Number of CO Contacts for Auxiliary Contacts | 0 |
| Ambient Temperature During Operation | -25 to +70°C |
| Insulation Voltage Rated Value | 500 V |
| Operating Current at AC-12 at 24 V | 10 A |
| Terminal | IP20 |
| Operating Voltage | AC/DC |
| Product Group | 5452 |
| Tightening Torque with Screw-type Terminals | 0.8 to 0.9 N·m |
| Contact Reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| Operating Voltage DC | 5 to 500 V |
| Operating Current at DC-13 at 400 V | 0.1 A |
| Environmental Category During Operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 to 95%, no condensation in operation permitted) |
| Enclosure | IP40 |
| Operating Current at DC-12 at 24 V | 10 A |
| Operating Current at DC-12 at 400 V | 0.3 A |
| Operating Current at AC-12 at 110 V | 10 A |
| Operating Frequency Maximum | 3 600 1/h |
| Operating Current at DC-13 at 48 V | 1.5 A |
| Design of the Contact of Auxiliary Contacts | Silver alloy |
| Continuous Current of the C Characteristic MCB | 10 A |
| Operating Current at AC-12 at 230 V | 8 A |
| Operating Current at AC-15 at 500 V | 1.4 A |
| Input Voltage | AC/DC |
| Operating Current at DC-12 at 48 V | 5 A |
| Operating Current at AC-12 at 48 V | 10 A |
| Operating Current at DC-12 at 500 V | 0.3 A |
| Product Type Designation | 3SU1 |
| Surge Voltage Resistance Rated Value | 6 kV |
| Operating Current at AC-12 at 400 V | 8 A |
| Operating Current at AC-15 at 48 V | 6 A |
| Operating Current at AC-15 at 24 V | 6 A |
| Operating Current at AC-15 at 110 V | 6 A |
| Product Designation | Contact module |
| Operating Current at DC-13 at 24 V | 3 A |
| Electrical Endurance (Switching Cycles) | 10 000 000 |
| Operating Current at AC-15 at 230 V | 6 A |
| Includes Mounting Block | Mounting Block Included |
| Compatible Operator | Indicator Light, Push Button |
| Connection Size | 22 mm |
| Switch Action | Momentary |
| Terminal Connection Type | Screw Terminals |
| Compatible with Series | 3SU1 |
| Package Quantity | 1 |
